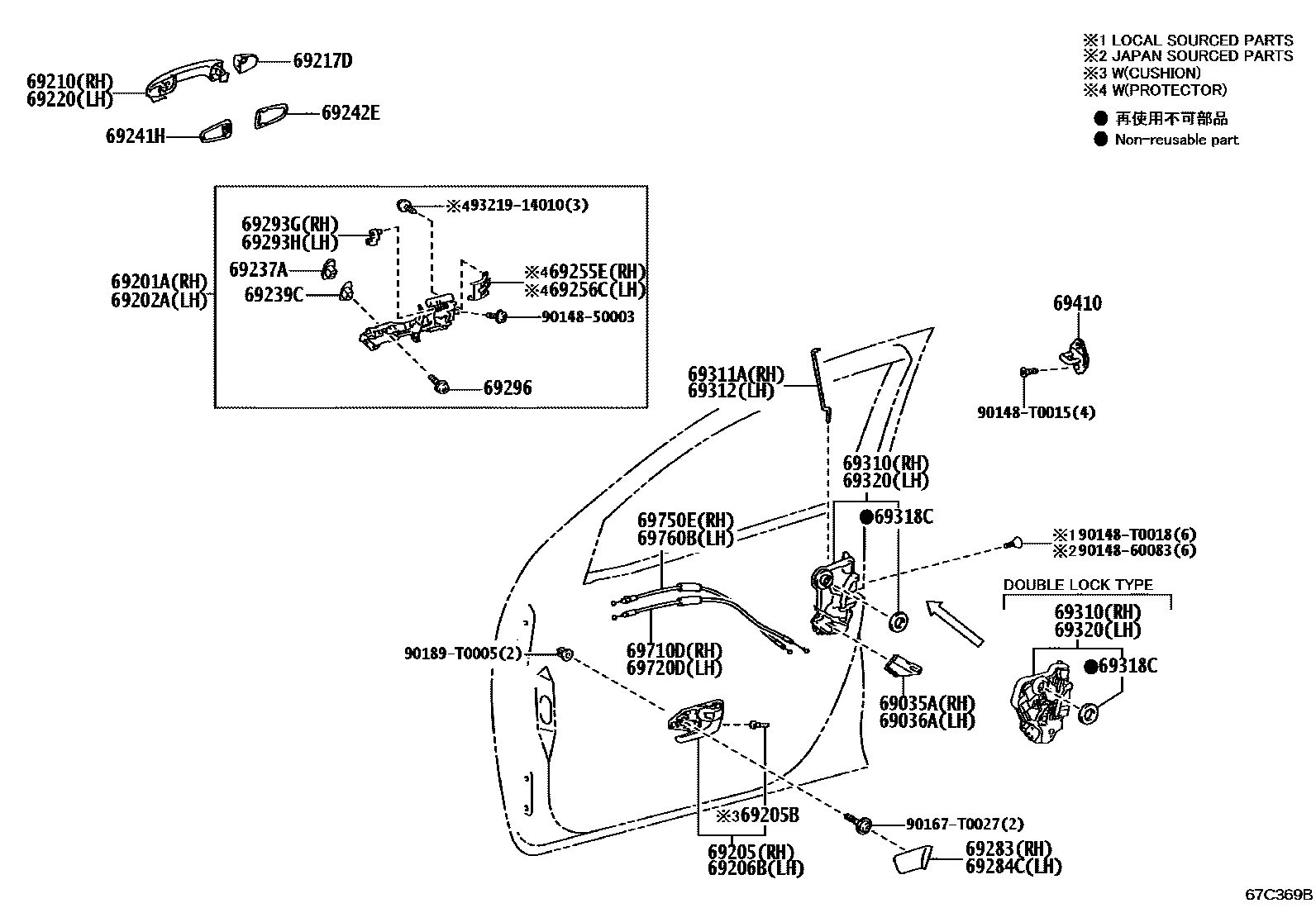

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K061iTGN126..IV3;GUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..MTM..L..(GCC,GEN,IDN,LA)202208-202401
MLM ADVENTURE PACKAGE
main69201-0K160iGUN125..RHD..THP;GUN125..LHD..THP..L;GUN122,TGN126..L..GCC..IV3;GUN112,121,TGN120,121..THP..L;GUN120,122,126,13#,TGN110,126..THP..(ARL,GEN,IDN,LA,PH,TH)202305-202307
sub69201-0K161
main69201-0K170iGUN125..KEN;GUN125..L..SA;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,LAN125,TGN121..LHD..SA202306-202312
EXPORT FROM SA
main69201-0K170iGUN125..KEN;GUN125..L..SA;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,LAN125,TGN121..LHD..SA202306-202312
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
main69201-0K170iGUN125..KEN;GUN125..L..SA;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,LAN125,TGN121..LHD..SA202306-202312
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
sub69201-0K181
sub69201-0K201
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K061iGUN125..ARL,TH;GUN125..6FC..GEN;GUN112,120,121,122,126,13#,TGN121..RHD..(ARL,GEN,TH)202208-202401
MLM ADVENTURE PACKAGE
EXPORT FROM SA&MLM ADVENTURE PACKAGE
sub69202-0K161
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
WIRELESS DOOR LOCK-WITHOUT
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
sub69202-0K201
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0K100-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202208-202307
BLACK,TRIM2#,3#
main69205-0K100-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202208-202308
BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K090-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202208-202308
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR
NO PAINT REQ.
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,DOOR OUTSIDE HANDLE-*CR,DRIVER & PASSENGER
*CR,DRIVER & PASSENGER
main69217-0K370iGUN126..H;TGN136..LA;GUN126..GCC;GUN125..XTR..THP..CBU;GUN135,TGN110,126..(GCC,TH)..CBU;GUN11#,120,122,136,TGN111,121..(H,S)..(GCC,SA,TH)202208-202401
*CR,DRIVER SIDE
main69217-0K380iGUN126..H;TGN136..LA;GUN126..GCC;GUN125..XTR..THP..CBU;GUN135,TGN110,126..(GCC,TH)..CBU;GUN11#,120,122,136,TGN111,121..(H,S)..(GCC,SA,TH)202208-202401
*CR,PASSENGER SIDE
main69217-0K430iGUN122..PH,PKN;GUN122..LHD..GEN;GUN112,125,126,135,TGN110,121,126..(PKNP,THP)..MTM..L..(GEN,IDN,LA,PKN)202208
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K430iGUN125,135..ARL;GUN125..6FC..GEN;GUN112,120,121,122,126,TGN121..RHD..L..(ARL,GEN,TH)202208-202308
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K450iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,TGN120,136..RHD..SCB..MTM..SA202301-202403
BLACK MATERIAL,DRIVER SIDE
main69217-0K450iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,TGN120,136..RHD..SCB..MTM..SA202301-202403
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K460iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,TGN120,136..RHD..SCB..MTM..SA202301-202403
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
main69210-0K200iGUN122..L..GCC;GUN135..(L,S)..TH;GUN120,122,125..THP..S;GUN11#,125,126,TGN11#,12#..GCC202208-202310
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR
main69210-0K210iGUN125,135..ARL;GUN125..6FC..GEN;GUN112,120,121,122,126,TGN121..RHD..L..(ARL,GEN,TH)202208-202308
NO PAINT REQ.
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
MLM ADVENTURE PACKAGE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
main69255-0K050iGUN125..RHD..THP;GUN125..LHD..THP..L;GUN122,TGN126..L..GCC..IV3;GUN112,121,TGN120,121..THP..L;GUN120,122,126,13#,TGN110,126..THP..(ARL,GEN,IDN,LA,PH,TH)202305-202312
sub69255-0K051
main69255-0K080iGUN125..KEN;GUN125..L..SA;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,LAN125,TGN121..LHD..SA202306-202312
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
EXPORT FROM SA
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
sub69256-0K051
WIRELESS DOOR LOCK-WITHOUT
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69030-02470iGUN125..ARL,TH;GUN125..6FC..GEN;GUN112,120,121,122,126,13#,TGN121..RHD..(ARL,GEN,TH)202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69030-02600iTGN126..THP..LA;TGN121,126..GCC..IV3;GUN125..THP..(GCC,LA);GUN112,122,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202208-202307
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
main69040-02550iGUN125..ARL;GUN125..6FC..GEN;GUN122,126,13#,TGN121..RHD..(L,S)..(ARL,GEN)202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-0K140iGUN126..S..SA;GUN125,135..L..SA;GUN125..LHD..S..SA;GUN122,LAN125,TGN121..LHD..SA202208-202403
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-0K140iGUN126..S..SA;GUN125,135..L..SA;GUN125..LHD..S..SA;GUN122,LAN125,TGN121..LHD..SA202208-202403
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-0K140iGUN126..S..SA;GUN125,135..L..SA;GUN125..LHD..S..SA;GUN122,LAN125,TGN121..LHD..SA202208-202403
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
38 parts on this diagram · 1 diagram in section
