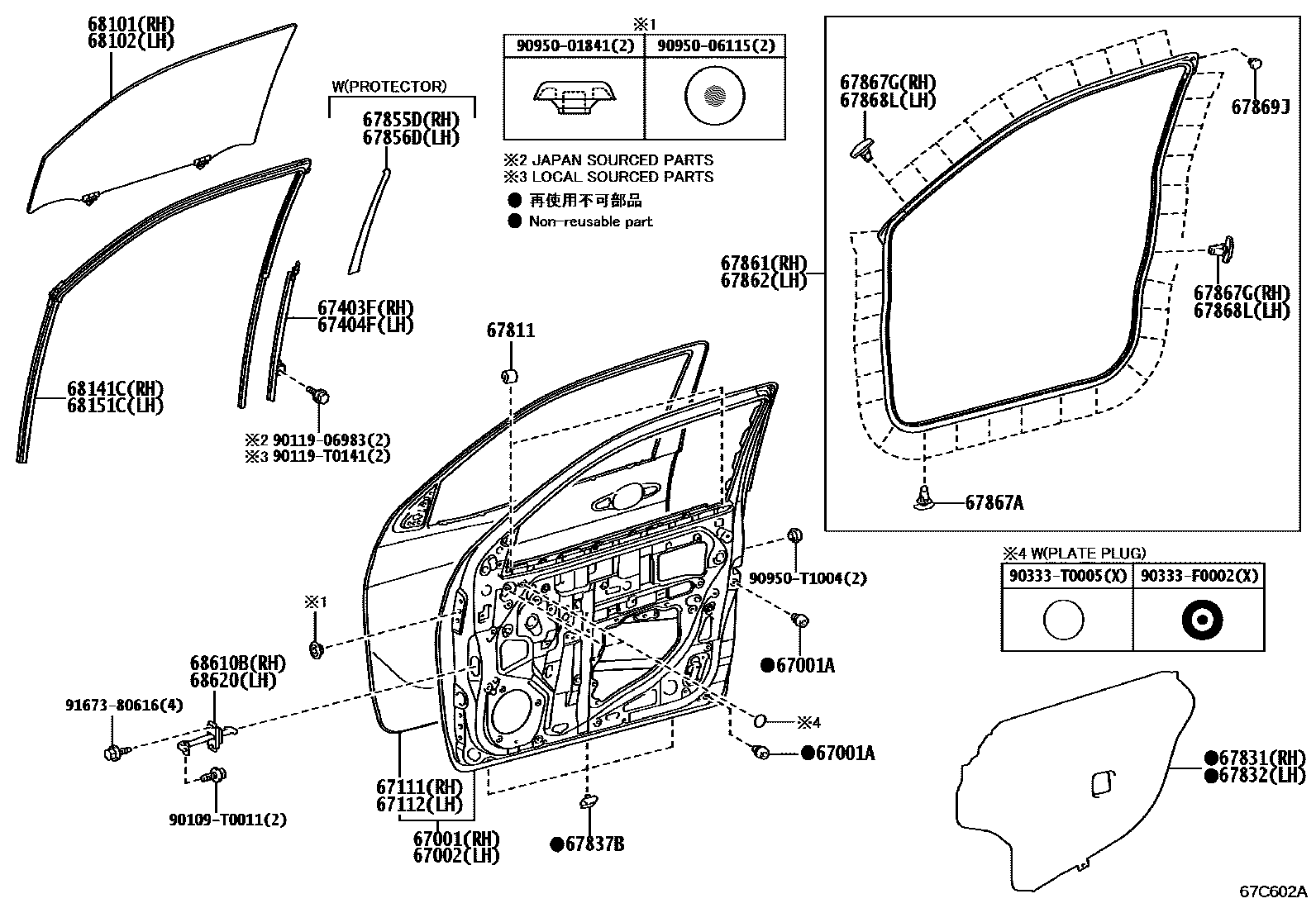

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK020iGUN125..MA202208-202308

main67001-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×2iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..SA; GUN125,126,13#..XTR..SA202208-202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..SA202208-202401

main67002-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK020iGUN125..MA202208-202308

main67111-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK020iGUN11#,12#,135,TGN11#,12#..SCB..THP202208-202307

main67112-KK030iGUN125,126,13#..XTR..SA202208-202401

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN125..MA202208-202308

main67403-0K080iGUN125,126,135,TGN126,136..AGTP202211-202310

main67403-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN125..MA202208-202308

main67404-0K080iGUN125,126,135,TGN126,136..AGTP202211-202310

main67404-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN122,126,TGN121..PKN202208

main69759-0K060×4iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K130iGUN125,135..KEN202208-202403

main67831-0K180iGUN122,126,TGN121..PKN202303

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K130iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202401

main67832-0K180iGUN122,126,TGN121..PKN202303

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092×6iGUN11#,12#,13#,TGN11#,12#202208-202209

main67837-0K093×6iGUN122,126,TGN121..PKN202303

PLANT TMT

main67837-0K103×6iGUN125,135..KEN202301-202403

main67837-0K211×6iGUN125..MA202209-202308

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0K110iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..SA202301-202401

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0K070iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..SA202301-202401

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K130iGUN122,126,TGN121..PKN202208

main67861-0K140iGUN125,126,13#..XTR..SA202208-202401

main67861-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..SA202301-202401

main67861-0K180iGUN125,126,135,TGN126,136..AGTP202211-202310

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K130iGUN125..MA202208-202308

main67862-0K140iGUN125,126,13#..XTR..SA202208-202401

main67862-0K170iGUN125,135..KEN202301-202403

main67862-0K180iGUN125,126,135,TGN126,136..AGTP202211-202310

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN125,126,135,TGN126,136..AGTP202208-202310

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×11iGUN122,126,TGN121..PKN202208

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×11iGUN125,126,13#..XTR..SA202208-202401

main67867-52030×11iGUN125,135..KEN202208-202403

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-22030×2iGUN122,126,TGN121..PKN202208

main67869-26050×2iGUN120,122,125,126,13#..XTR..THP202208-202307

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K221iGUN126..SCB..THP;GUN125,135..THP..L;GUN11#,120,121,122,TGN11#,12#..THP202208-202307

main68101-0K230iGUN125,135..KEN202301-202403

main68101-0K240iGUN125,126,135,TGN126,136..AGTP202211-202310

main68101-0K301iGUN125,126,13#..XTR..THP..(H,S)202208-202307

main68101-0K310iGUN125,126,13#..XTR..(H,S)..SA202301-202401

main68101-0K340iGUN125..MA202209-202308

main68101-0K450iGUN122,126,TGN121..PKN202303

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K221iGUN126..SCB..THP;GUN125,135..THP..L;GUN11#,120,121,122,TGN11#,12#..THP202208-202307

main68102-0K230iGUN125,135..KEN202301-202403

main68102-0K240iGUN125,126,135,TGN126,136..AGTP202211-202310

main68102-0K301iGUN125,126,13#..XTR..THP..(H,S)202208-202307

main68102-0K310iGUN125,126,13#..XTR..(H,S)..SA202301-202401

main68102-0K340iGUN125..MA202209-202308

main68102-0K450iGUN122,126,TGN121..PKN202303

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K080iGUN122,126,TGN121..PKN202208

main68141-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

main68141-0K120iGUN125,126,135,TGN126,136..AGTP202211-202310

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K080iGUN122,126,TGN121..PKN202208

main68151-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

main68151-0K120iGUN125,126,135,TGN126,136..AGTP202211-202310

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN125..MA202208-202308

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202211-202310

main68610-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202301-202401

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN11#,12#,13#,TGN11#,12#..THP202208-202307

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202211-202310

main68610-0K110iGUN125,135..KEN202301-202403

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333F0002

main90333-F0002

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 4 diagrams in section
