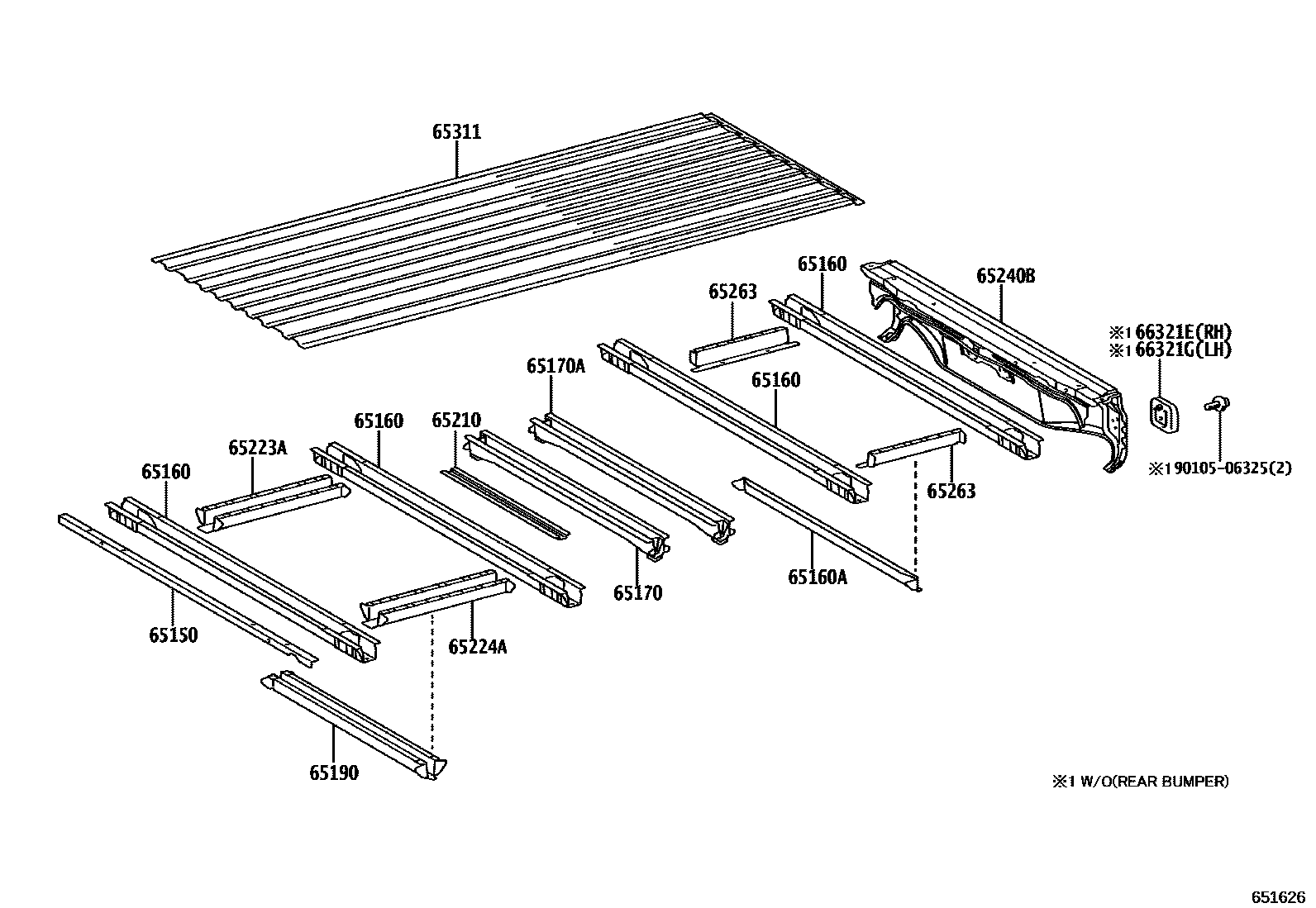

REAR BODY FLOOR & FENDER
65150SILL ASSY, CROSS, NO.1
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
65160SILL ASSY, CROSS, NO.2
main65160-KK010×3iGUN11#,TGN11#; GUN12#,135,TGN12#..SCB..THP..CBU; GUN120,122,125,126,13#..XTR..THP..CBU202208-202307
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT,TYPE A:REFER ILLUST.
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT,TYPE B:REFER ILLUST.
65160ASILL ASSY, CROSS, NO.2
65170SILL ASSY, CROSS, NO.2
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
65170ASILL ASSY, CROSS, NO.3
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
65190SILL ASSY, CROSS, NO.5
65210SILL ASSY, CROSS, NO.6
65223AREINFORCEMENT, FLOOR PANEL, FRONT RH
65224AREINFORCEMENT, FLOOR PANEL, FRONT LH
65240BSILL ASSY, CROSS, NO.9
main65240-KK010iGUN112..L..GCC;GUN111,TGN11#..GCC; GUN122..RHD..GEN;GUN125..6F..L..(GEN,IDN); GUN135..L..TH; TGN121..L..GCC..CBU;GUN122,126,TGN120,126..GCC..CBU; TGN121..S;GUN125..THP..LA;GUN125..6FC..GEN;GUN125,126,13#..XTR..THP..(H,S)..CBU;GUN122,135,TGN121,126..LHD..THP..(GEN,LA)..CBU202208-202307
EXCEPT PLANT TSAM; HIGH MOUNT STOP LAMP-WITH; HIGH MOUNT STOP LAMP-WITH,EXCEPT PLANT TSAM; REAR BUMPER-STEP TYPE(PAINTED),EXCEPT PLANT TSAM; REAR BUMPER-STEP TYPE(PLATED),EXCEPT PLANT TSAM
main65240-KK020supersedes 65240-KK040iGUN112,TGN110..IDN; TGN121..L..GCC..CBU;GUN11#,122,125,126,TGN11#,120,126..GCC..CBU202208-202307
REAR BUMPER-STEP TYPE(PAINTED)
main65240-KK030iGUN112..L..GCC; GUN135..L..TH;GUN125..6F..L..(GEN,IDN);GUN112,120,121,122,126,TGN121..RHD..(L,S)..(GEN,TH)..CBU202208-202307
REAR BUMPER-WITHOUT&HIGH MOUNT STOP LAMP-WITH
PLANT TSAM
65263REINFORCEMENT, FLOOR SIDE FRAME
65311PANEL, FLOOR, CENTER
66321EBUMPER, GATE RUBBER
main66321-0K010iGUN112,125..L..GCC; GUN135..L..TH;GUN125..6F..L..(GEN,IDN);GUN112,120,121,122,126,TGN110,121..RHD..THP..(L,S)..CBU202208-202307
REAR BUMPER-WITHOUT
66321GBUMPER, GATE RUBBER
main66322-0K010iGUN112,125..L..GCC; GUN135..L..TH;GUN125..6F..L..(GEN,IDN);GUN112,120,121,122,126,TGN110,121..RHD..THP..(L,S)..CBU202208-202307
REAR BUMPER-WITHOUT
9010506325
main90105-06325
15 parts on this diagram · 4 diagrams in section
