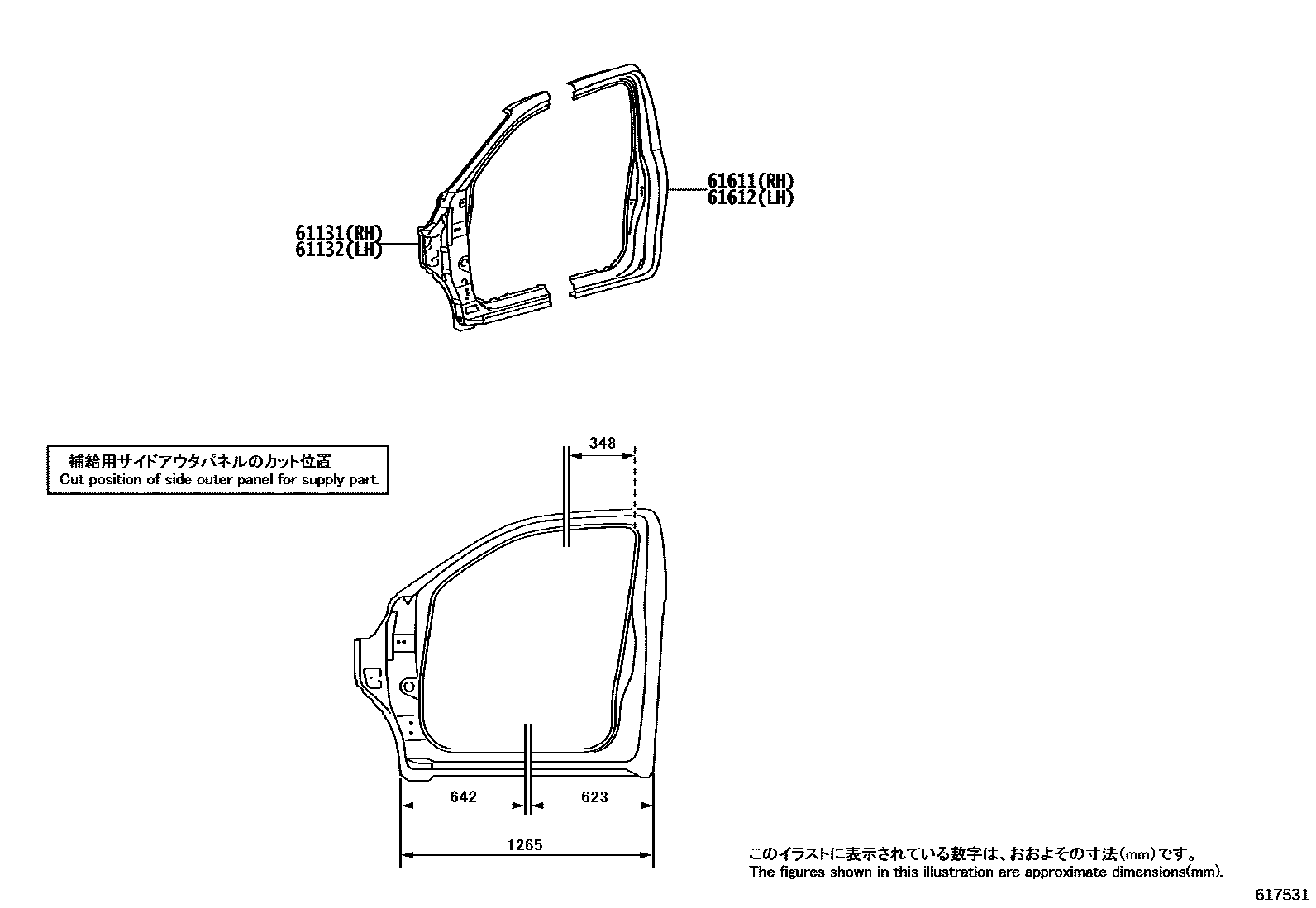

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL RH 0003 1INNER PANEL LH 0004 1OUTER PANEL 0005 1INNER PANEL RH 0006 1INNER PANEL LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK020iGUN11#,12#,135,TGN11#,12#..SCB..THP202208-202307

main61131-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK020iGUN122,126,TGN121..PKN202208

main61132-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

61611PANEL, QUARTER, RH

main61611-KK020iGUN125..MA202208-202308

main61611-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

61612PANEL, QUARTER, LH

main61612-KK020iGUN11#,12#,135,TGN11#,12#..SCB..THP202208-202307

main61612-KK030iGUN120,122,125,126,13#..XTR..THP202208-202307

4 parts on this diagram · 6 diagrams in section
