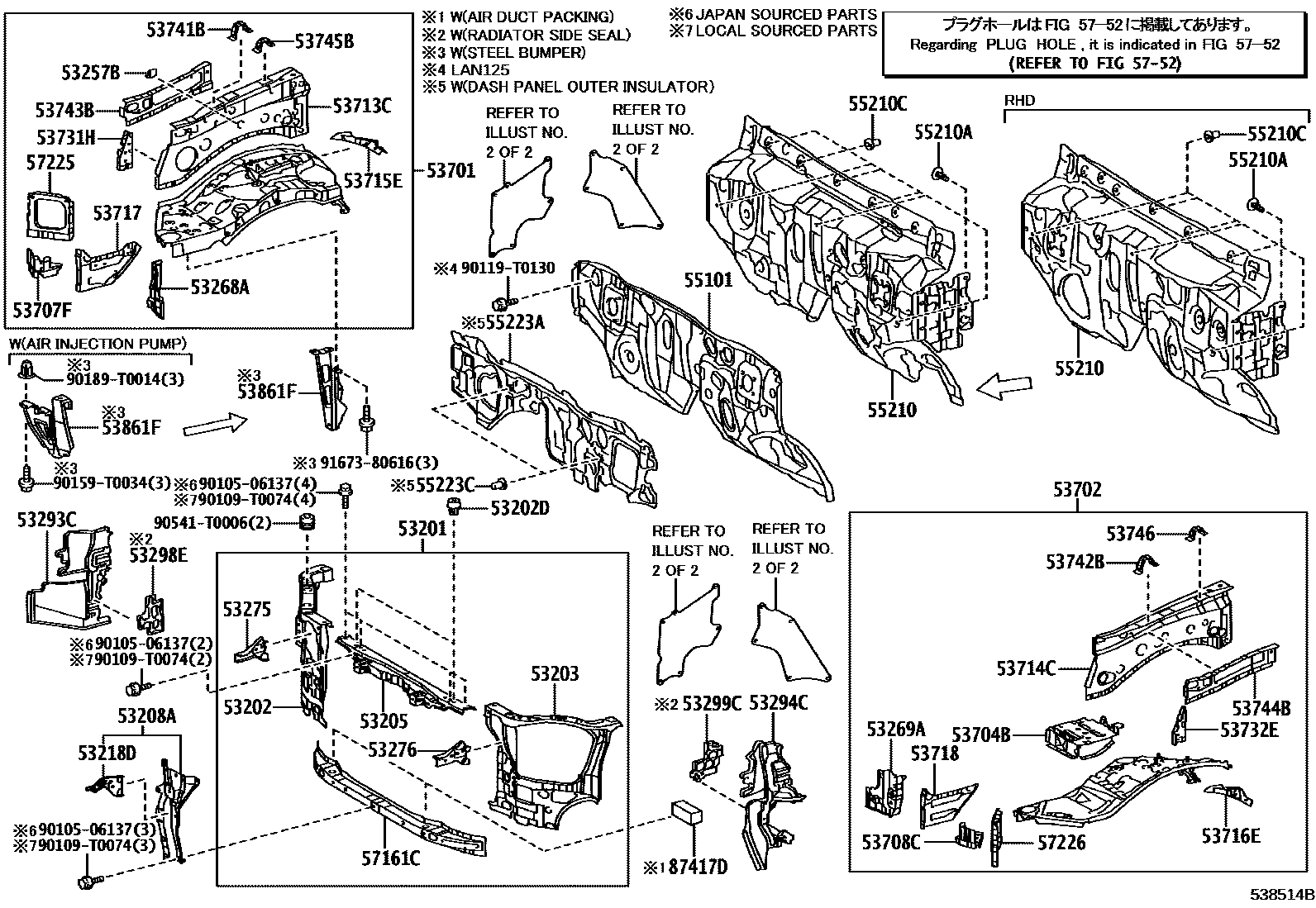

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iGUN125..MA202209-202308

main53201-KK050iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,KENP,PKNP,SAP202211-202411

main53201-KK060iGUN11#,12#,13#,TGN11#,12#..THP202208-202307

main53201-KK220iGUN12#,TGN121202411

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGUN11#,12#,13#,LAN125,TGN11#,12#,136202208

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN11#,12#,13#,LAN125,TGN11#,12#,136202208-202411

main53203-KK060iGUN12#,TGN121202411

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iGUN125..MA202209-202308

main53205-KK040iGUN11#,12#,13#,TGN11#,12#..THP202208-202307

main53205-KK050iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,KENP,PKNP,SAP202211

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGUN11#,12#,13#,LAN125,TGN11#,12#,136202208

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,KENP,MAP,PKNP,SAP202208-202307

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN125..MA202208-202403

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN125,135..KEN202208-202403

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN11#,12#,13#,LAN125,TGN11#,12#,136202208

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN11#,12#,13#,LAN125,TGN11#,12#,136202208

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK030iGUN125,126,135,TGN121..SCB..ARL202208-202307

main53293-KK040iGUN122,126,TGN121..PKN202208-202403

main53293-KK040iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202208-202307

FRONT BUMPER-PAINTED

main53293-KK100iGUN125,126,136..XTR..ARL202208-202307

main53293-KK110iGUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202208-202401

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

MLM PACKAGE

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

POWER SUPPLY PACKAGE

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

COLD CHAIN PACKAGE

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

FRONT BUMPER-PAINTED(MLM)

main53293-KK120iTGN126..S;GUN125,126..GCC202208-202307

FRONT BUMPER-WITH(STEEL LOWER COVER)

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK030iGUN125,126,135,TGN121..SCB..ARL202208-202307

main53294-KK040iGUN135..L..SA;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..SA202208-202403

main53294-KK040iTGN121..L..GCC..CBU;GUN112,120,121,122,TGN121..GEN,IDN,PH,TH;GUN125,126,135,TGN110,120,126..SCB..THP..(GCC,GEN,IDN,LA,TH)202208-202307

FRONT BUMPER-PAINTED

main53294-KK100iGUN125,126,136..XTR..ARL202208-202307

main53294-KK110iGUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202208-202401

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

MLM PACKAGE

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

POWER SUPPLY PACKAGE

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

COLD CHAIN PACKAGE

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202208-202307

FRONT BUMPER-PAINTED(MLM)

main53294-KK120iTGN126..S;GUN125,126..GCC202208-202307

FRONT BUMPER-WITH(STEEL LOWER COVER)

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iTGN126,136..AGTP202208-202401

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN11#,12#..THP202208-202401

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK040iTGN121..SA202301-202401

main53701-KK050iTGN120,136..SA202301-202401

main53701-KK280iTGN121..PKN202208-202211

main53701-KK350iTGN121..LHD;GUN11#,122,TGN11#,120,126..THP..(GCC,LA)202208-202212

FRONT BUMPER-WITH(STEEL LOWER COVER)

main53701-KK370iGUN122..LHD..(GEN,PH);GUN125,126,135..LHD..THP202208-202212

FRONT BUMPER-PAINTED

main53701-KK450iGUN125..MA202208-202308

main53701-KK560iTGN126,136..AGTP202211-202212

main53701-KK580iGUN125,126,135..AGTP202211-202212

main53701-KK660iGUN122,125..LHD..SA202301-202401

main53701-KK680iLAN125202301-202401

main53701-KK700iGUN122,125,126,13#..RHD..SA202301-202403

main53701-KK720iGUN11#,122..GCC202301-202307

FRONT BUMPER-PAINTED

main53701-KK730iTGN121..LHD..THP;GUN11#,122,TGN11#,120,126..THP..(GCC,LA)202301-202307

FRONT BUMPER-WITH(STEEL LOWER COVER)

main53701-KK760iGUN112,12#,13#..RHD..(MAP,PKNP,THP)202212-202307

main53701-KK780iTGN110,121..RHD202212-202307

main53701-KK820iTGN126,136..AGTP202301-202310

main53701-KK830iGUN125,126,135..AGTP202301-202310

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK040iGUN125..MA202209-202212

main53702-KK100iGUN122,125,LAN125,TGN121..LHD..SA202208-202401

main53702-KK140iGUN125,126,135,TGN126,136..AGTP202211-202212

main53702-KK230iGUN112,12#,13#,TGN110,121..RHD..THP202208-202211

main53702-KK290iGUN122,126,TGN121..PKN202212-202403

main53702-KK310iGUN11#,122,125,126,135,LAN125,TGN11#,12#..LHD..(SAP,THP)202212-202307

main53702-KK330iGUN125,126,135,TGN126,136..AGTP202301-202310

main53702-KK350iGUN125..MA202301-202308

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGUN125..MA202209-202308

main53704-KK020iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iGUN125,135..KEN202208-202403

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN125..MA202208-202403

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGUN125..MA202208-202310

main53713-KK040iGUN125,135..KEN202301-202403

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGUN135..AGTP..LA;GUN125,TGN126..AGTP;GUN135..ARL,BZAG,KEN,SA,TH;GUN126,TGN136..ARL,BZAG,LA,PKN,SA,TH;GUN112,120,121,122,125,136,TGN110,120,121..RHD202208-202401

main53714-KK030iGUN122,125,LAN125,TGN121..LHD..SA202212-202401

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN125..MA202208-202403

53717PLATE, FENDER APRON, RH

main53717-KK010iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGUN125,126,135,TGN126,136..AGTP202208-202403

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK020iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK020iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGUN125..MA202208-202403

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGUN125,135..KEN202208-202403

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

53861FBRACKET, FRONT WHEEL OPENING, NO.1

main53861-0K010iTGN126..S;GUN125,126..GCC202208-202307

FRONT BUMPER-WITH(STEEL LOWER COVER)

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN122,125,LAN125,TGN121..LHD..SA202208-202401

main55101-KK080iGUN126..6FC..GCC202208-202305

main55101-KK090iGUN125,135..6F..(L,S)..TH202208-202305

FRONT AIR CONDITIONER-MANUAL

main55101-KK090iGUN122,125,126,13#,TGN120,136..RHD..MTM..(KEN,SA)202208-202310

main55101-KK091iGUN125,135..KEN202310-202403

main55101-KK120iGUN125,126,13#..6FC..SA202208-202310

main55101-KK120iGUN135..6FC..H;GUN125,136,TGN121..THP..6FC;GUN126..RHD..THP..6FC..(H,S)202208-202305

FRONT AIR CONDITIONER-MANUAL

main55101-KK121iGUN125,126,13#..6FC..SA202310-202401

main55101-KK170iGUN122..PH202210-202305

main55101-KK190iGUN112,121,122,125,126,135,TGN110,121..MTM..(L,S)..(IDN,TH)202210-202305

main55101-KK200iGUN120,126,135..6FC..(L,S)..TH202210-202305

main55101-KK220iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..MTM..(GCC,GEN,LA)202305-202307

main55101-KK230iGUN122..PH202305-202307

main55101-KK240iGUN126..6FC..GCC202305-202307

main55101-KK260iGUN125..MA202305-202309

main55101-KK260iGUN135..6F..H;GUN126..RHD..THP..6F..(H,S);GUN122,125,135,TGN121..RHD..MTM..(ARL,GEN)202305-202307

FRONT AIR CONDITIONER-MANUAL

main55101-KK261iGUN122,126,TGN121..PKN202309

main55101-KK270iGUN112,121,122,125,126,135,TGN110,121..MTM..(L,S)..(IDN,TH)202305-202307

main55101-KK280iGUN135..6FC..(L,S)..TH202305-202307

FRONT AIR CONDITIONER-MANUAL

main55101-KK290iGUN120,126,135..6FC..(L,S)..TH202305-202307

55210INSULATOR ASSY, DASH PANEL

main55210-0K320iGUN11#,122,125,126,135,TGN11#,12#..LHD..SCB..THP202208-202307

main55210-0K340iGUN126..RHD..SCB..THP;GUN125,135..RHD..THP..L;GUN112,120,121,122,TGN110,121..RHD..THP202208-202307

main55210-0K360iGUN125..XTR..GEN202212-202307

main55210-KK110iGUN122,126,TGN121..PKN202209-202308

main55210-KK131iGUN125..XTR..GEN202208-202211

main55210-KK151iGUN125,126,13#..RHD..XTR..THP..(H,S)202208-202307

main55210-KK201iGUN125,126,135,TGN126,136..AGTP202211-202310

main55210-KK211iGUN125..XTR..S..SA202301-202306

main55210-KK212iGUN125..XTR..S..SA202307-202401

main55210-KK221iGUN126,13#..XTR..SA202301-202401

main55210-KK231iGUN122,125,LAN125,TGN121..LHD..SCB..SA202301-202401

main55210-KK241iGUN125..RHD..SA;GUN122,126,13#,TGN120,136..RHD..SCB..SA202301-202403

55210ACLIP

main90467-T0004-A0iGUN125..MA202208-202403

IVORY

55210CCLIP

main90467-T0032iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202208-202403

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK030iGUN125,126,135,TGN126,136..AGTP202211-202401

main55223-KK040iGUN125,135..KEN202301-202403

main55223-KK051iTGN126..THP..LA;GUN11#,122,125,126,135..LHD..THP202208-202307

IRAN SPEC

main55223-KK061iGUN125..MA202208-202308

55223CCLIP

main90467-T0032iGUN122,126,TGN121..PKN202208-202403

main90467-T0032iGUN11#,12#,13#..THP;TGN121,126..THP..(ARL,LA,TH)202208-202307

IRAN SPEC

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN12#,TGN121202208

main57161-KK010iGUN122,125,126,135,TGN121,126,136..AGTP,PKNP202211-202411

EXCEPT PLANT TSAM

main57161-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202301-202403

PLANT TSAM

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

5752HOLE PLUG

→ Go to FIG 57-52

87417DPACKING, AIR DUCT

main87417-0K020iTGN11#,12#..GCC202208-202307

9010506137

main90105-06137

90109T0074

main90109-T0074

90119T0130

main90119-T0130

90159T0034

main90159-T0034

90189T0014

main90189-T0014

90541T0006

main90541-T0006

9167380616

main91673-80616

54 parts on this diagram · 2 diagrams in section
