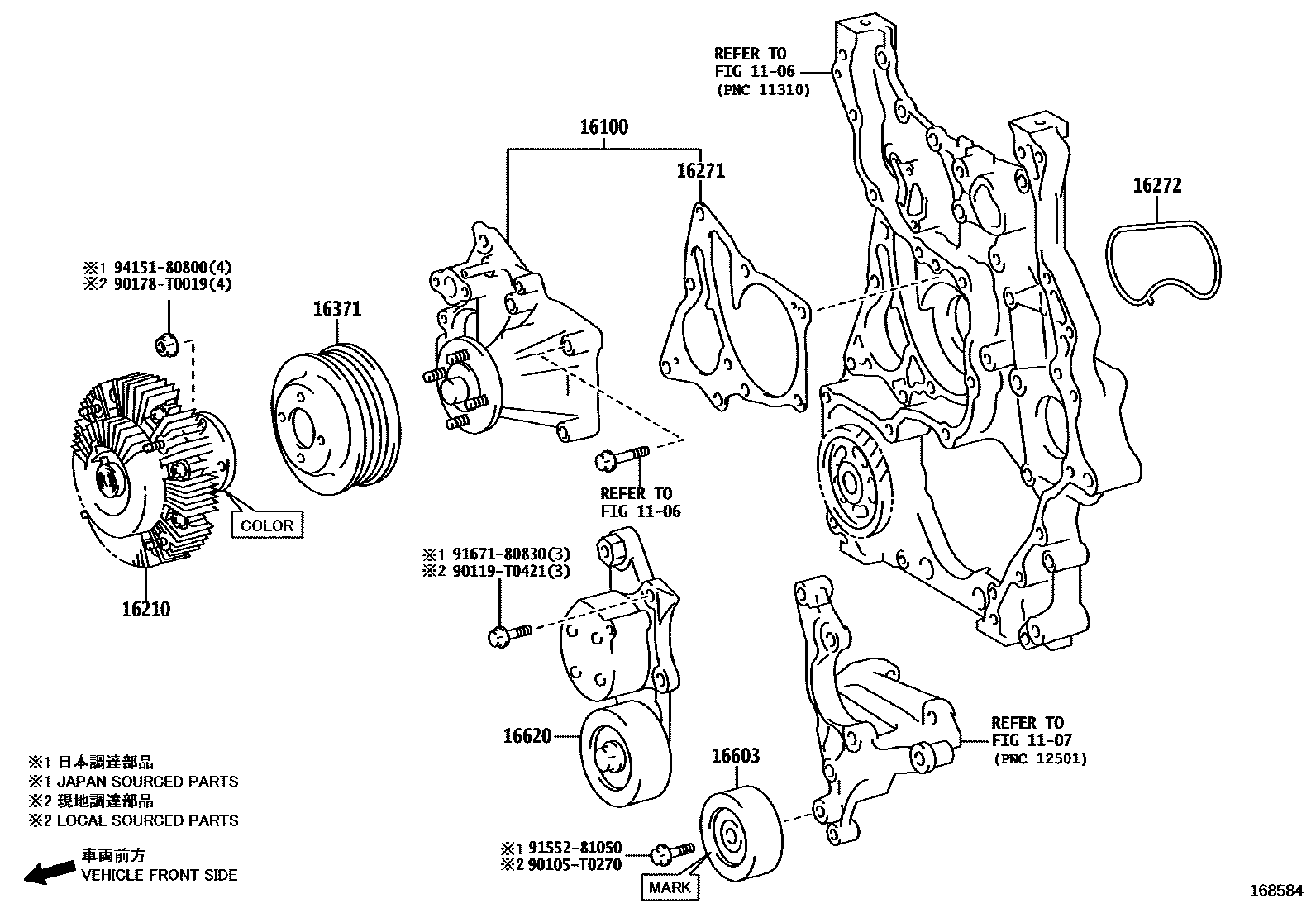

WATER PUMP
1106TIMING GEAR COVER & REAR END PLATE
1107MOUNTING
16100PUMP ASSY, ENGINE WATER
main16100-09711i2GDFTV..GUN125..6FC..GEN;1GDFTV,2GDFTV..GUN125,126,13#..ARL; 2GDFTV..GUN125..RHD..6F..GEN202208-202307
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(J)
16210COUPLING ASSY, FLUID
main16210-0E010i2GDFTV..GUN125..LHD..S;2GDFTV..GUN122..LHD..SA;2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN135..L..(ARL,LA,SA);2GDFTV..GUN125,135..6FC..(ARL,GEN,SA);2GDFTV..GUN125..6F..(H,L)..(ARL,GEN,SA)202208-202401
LIGHT GRAY
main16210-0E020i2GDFTV..GUN135..XTR..6F;2GDFTV..GUN122..LHD..THP;2GDFTV..GUN135..BZAG,KEN;2GDFTV..GUN125..RHD..6F..S;2GDFTV..GUN135..SCB..6F..S;2GDFTV..GUN122..RHD..(PKN,SA,TH);2GDFTV..GUN112,120,135..THP..(5F,6FC);2GDFTV..GUN125..L..(BZAG,GCC,IDN,KEN,LA,MA)202208
GREEN
main16210-0E040i1GDFTV..GUN126..6FC..TH;1GDFTV..GUN111,121,136..6F;1GDFTV..GUN126..6F..(H,L)..(LA,PKN,SA,TH)202208
YELLOW
main16210-0E050i1GDFTV..GUN126,136..6FC..(ARL,GCC,SA);1GDFTV..GUN126..6F..(L,S)..(ARL,BZAG,GCC,SA)202208-202401
MOSS GREEN
16271GASKET, WATER PUMP
THA SOURCED PARTS
main16271-0E020i2GDFTV..GUN125..6FC..GEN;1GDFTV,2GDFTV..GUN125,126,13#..ARL; 2GDFTV..GUN125..RHD..6F..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
main16272-0E020i2GDFTV..GUN125..6FC..GEN;1GDFTV,2GDFTV..GUN125,126,13#..ARL; 2GDFTV..GUN125..RHD..6F..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IDN SOURCED PARTS
THA SOURCED PARTS
main16371-0E020i2GDFTV..GUN125..6FC..GEN;1GDFTV,2GDFTV..GUN125,126,13#..ARL; 2GDFTV..GUN125..RHD..6F..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i1GDFTV..GUN126..LA;2GDFTV..GUN125..AGTP;2GDFTV..GUN135..BZAG; 2GDFTV..GUN135..AGTP..LA202208-202310
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA, NOPAINTED; THA, NO PAINTED
(L); THA, BLACK PAINTED
main16603-31040i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH); 2GDFTV..GUN125..RHD..6F..GEN202208-202307
JAPAN SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
WATER PROOF SPEC
main16620-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH); 2GDFTV..GUN125..RHD..6F..GEN202208-202307
(J); OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 3 diagrams in section
