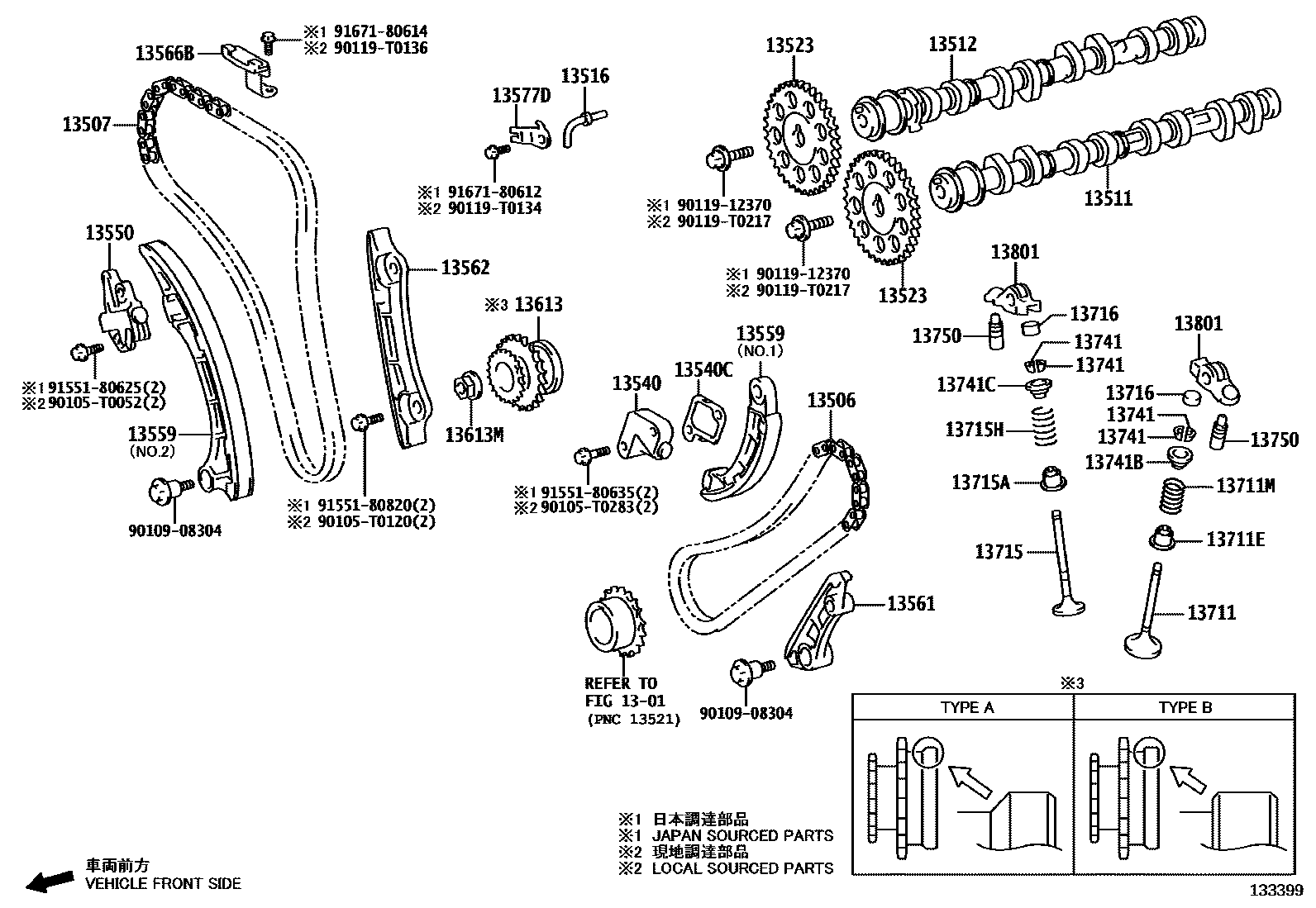

CAMSHAFT & VALVE
1301CRANKSHAFT & PISTON
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13577DPLATE, LOCK
13613GEAR, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105T0052
main90105-T0052
90105T0120
main90105-T0120
90105T0283
main90105-T0283
9010908304
main90109-08304
9011912370
main90119-12370
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90119T0217
main90119-T0217
9155180625
main91551-80625
9155180635
main91551-80635
9155180820
main91551-80820
9167180612
main91671-80612
9167180614
main91671-80614
42 parts on this diagram · 4 diagrams in section
