ELECTRONIC FUEL INJECTION SYSTEM

0001 1ENGINE ROOM 0002 1COWL

89421NSENSOR, AIR PRESSURE

main89421-71010iTGN121,126..GCC..CBU202108-202207

IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main89421-71010iTGN136..BZAG202108-202210

main89421-71010iTGN121,126..GCC..CBU202108-202207

MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTGN126,136..AGTP202108-202301

89581BDRIVER, AIR INJECTION CONTROL

main89581-60010iTGN121..GEN202108-202207

IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main89581-60010iTGN121,126..GCC..CBU202108-202207

MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0

main89581-60010iTGN136..BZAG202108-202210

89879ABRACKET, INJECTOR DRIVER

main89589-0K010iTGN121..ARL202108-202207

main89589-0K020iTGN136..BZAG202111-202210

THA SOURCED PARTS

main89589-0K040iTGN136..BZAG202111-202210

IDN SOURCED PARTS

90105T0066

main90105-T0066

90119T0130

main90119-T0130

90159T0044

main90159-T0044

9043012005

main90430-12005

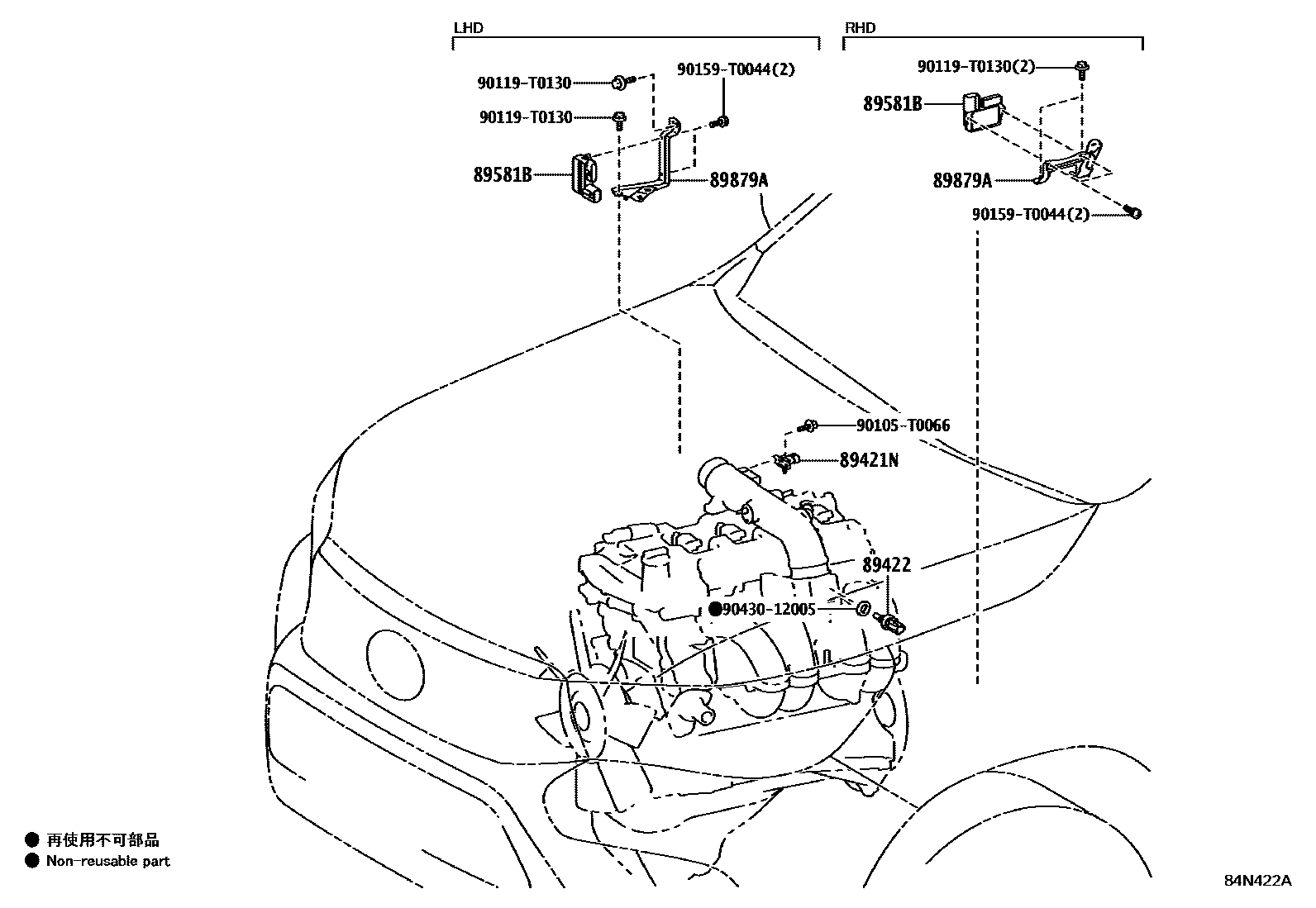

8 parts on this diagram · 2 diagrams in section
