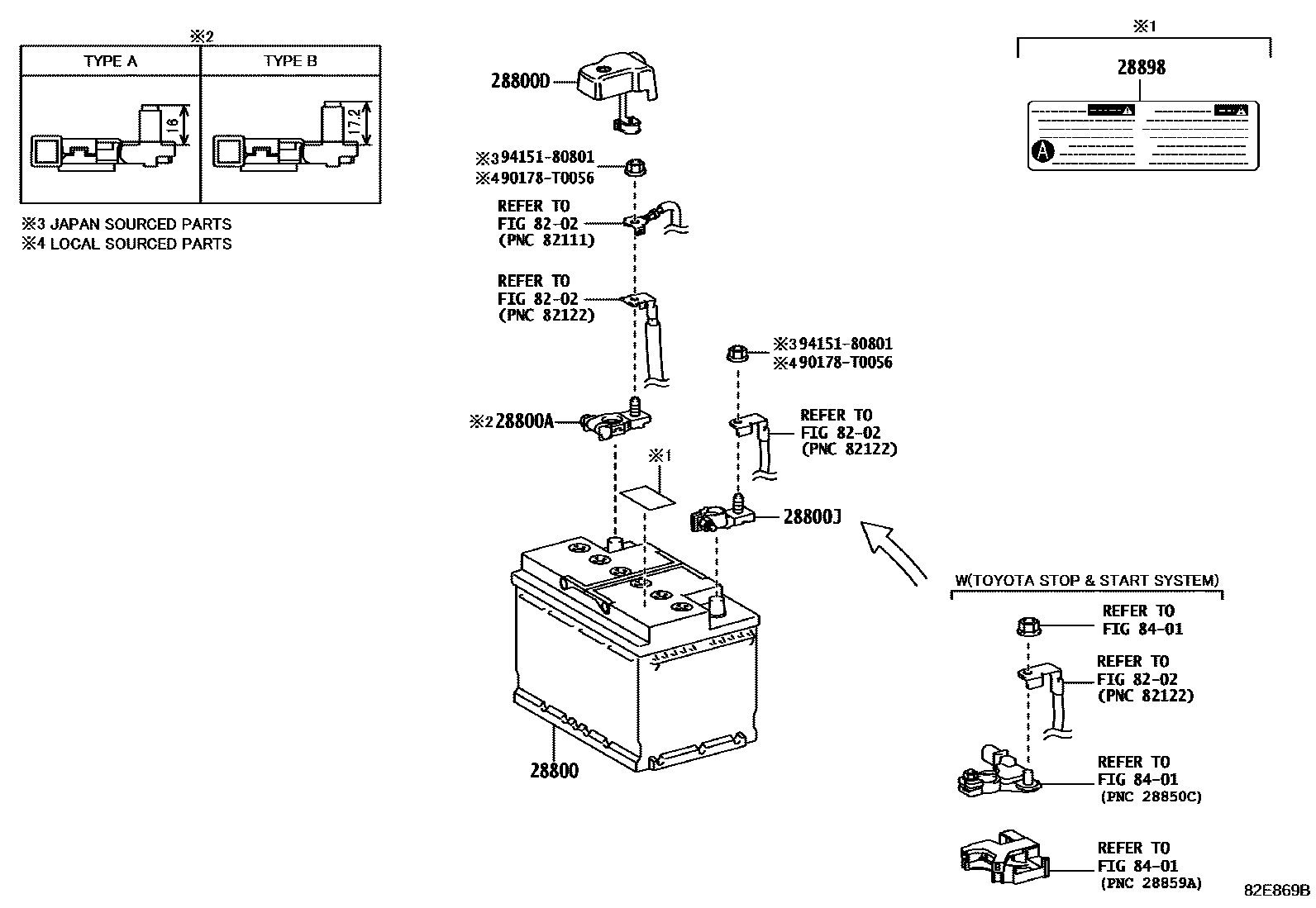

BATTERY & BATTERY CABLE
28800BATTERY
LN2,JOHNSON CONTROLS
80D26L
LN3,JOHNSON CONTROLS
LN3
main28800-0L503i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202108-202207
LN3,FURUKAWA
sub28800-0L504
main28800-0L570i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202108-202207
LN3,YUASA
sub28800-0L571
LN3,UNION BATTERY
sub28800-0L601
LN4,TOYOTA STOP & START SYSTEM-WITH,THA SOURCED PARTS
sub28800-0E011
LN4,SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH,IDN SOURCED PARTS
sub28800-0E031
main28800-0L520i2GDFTV..GUN135..6F..TH;2GDFTV..GUN135..6FC..(L,S)..TH;1GDFTV,2GDFTV..GUN125,126..XTR..TH202108-202207
LN4,TOYOTA STOP & START SYSTEM-WITH
sub28800-0L521
28800ATERMINAL, BATTERY POSITIVE
main90982-05054i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28800JTERMINAL, BATTERY NEGATIVE
28898PLATE, BATTERY
8202
8401
90178T0056
main90178-T0056
9415180801
main94151-80801
9 parts on this diagram · 1 diagram in section
