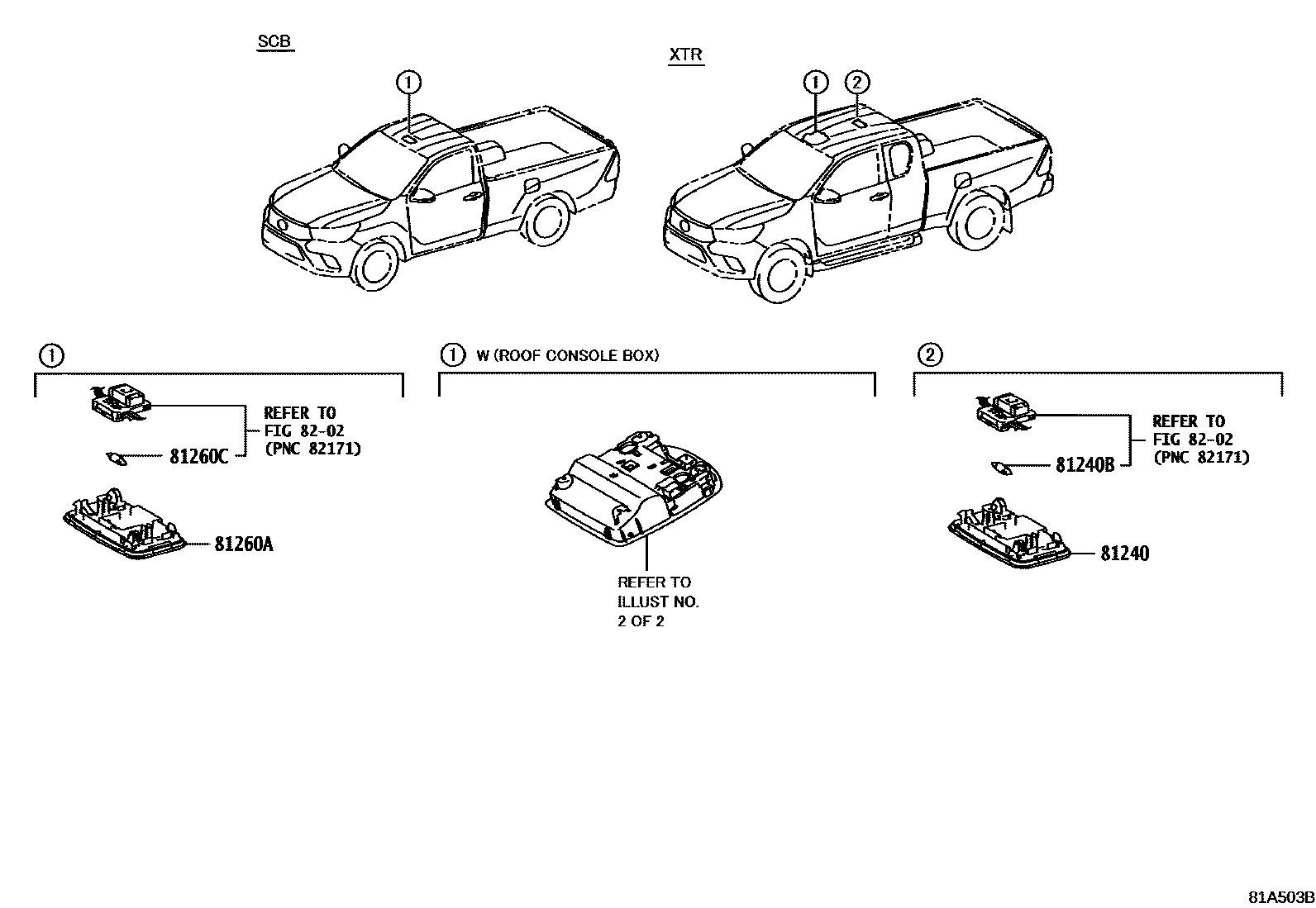

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0i202108-202207

LT.GRAY,TRIM20

main81240-0K090-C0i202108-202301

BLACK,TRIM21

81240BBULB, ROOM LAMP, NO.1

main90981-14011i202108-202301

12V 8W

81260ALAMP ASSY, MAP

main63650-0K890-B0i202109-202301

LT.GRAY,TRIM20

main63650-0K890-C0i202109-202301

BLACK,TRIM21

main63650-0KA60-B0supersedes 63650-0K880-B0i202108-202208

LT.GRAY,TRIM2#

main63650-0KA70-B0supersedes 63650-0KA60-B0i202109-202210

LT.GRAY,TRIM2#

main63650-0KA80-B0i202108-202303

LT.GRAY,TRIM2#

main63650-0KA80-C0i202108-202207

BLACK,TRIM21

main81240-0K090-B0supersedes 63650-0KA60-B0i202108-202301

LT.GRAY,TRIM2#

main63650-0K830-B0i202108-202207

DATA COMMUNICATION MODULE-WITH(G-DCM),LT.GRAY,TRIM2#

main63650-0KB00-B0i202109-202301

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS),LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-14011i202108-202207

12V 8W

main99132-12050supersedes 99132-12050i202108-202303

12V 5W

8202

5 parts on this diagram · 2 diagrams in section
