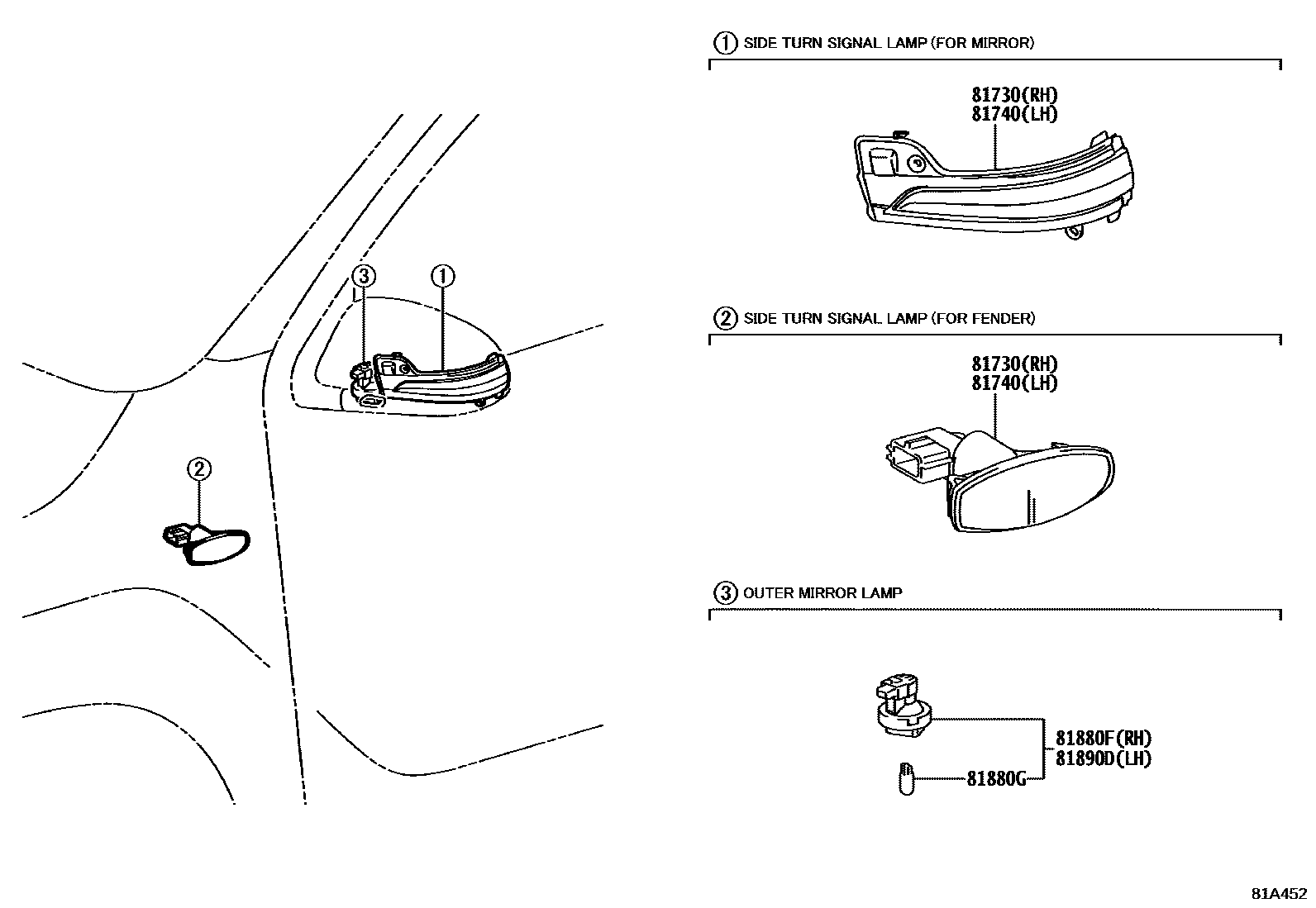

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-0D121iGUN122..L..GCC;GUN120,122..GEN,PH,TH;GUN126,136..RHD..SCB..THP;GUN112,121,125,135,TGN110,12#..SCB..THP..L202108-202303
main81730-0K020iGUN125..6FC..IV3;GUN125..THP..(H,S);GUN126,13#..XTR..THP;GUN11#,122,126,TGN111,121,126..S..GCC202108-202301
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR)& W(*SITL) & W(LOGO LAMP)
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81730-0D121iGUN122..L..GCC;GUN120,122..GEN,PH,TH;GUN126,136..RHD..SCB..THP;GUN112,121,125,135,TGN110,12#..SCB..THP..L202108-202303
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR- *RCM(*CR)& W(*SITL) & W(LOGO LAMP)
81880FLAMP ASSY, OUTER MIRROR, RH
81880GBULB, OUTER MIRROR LAMP ASSY
81890DLAMP ASSY, OUTER MIRROR, LH
5 parts on this diagram · 1 diagram in section
