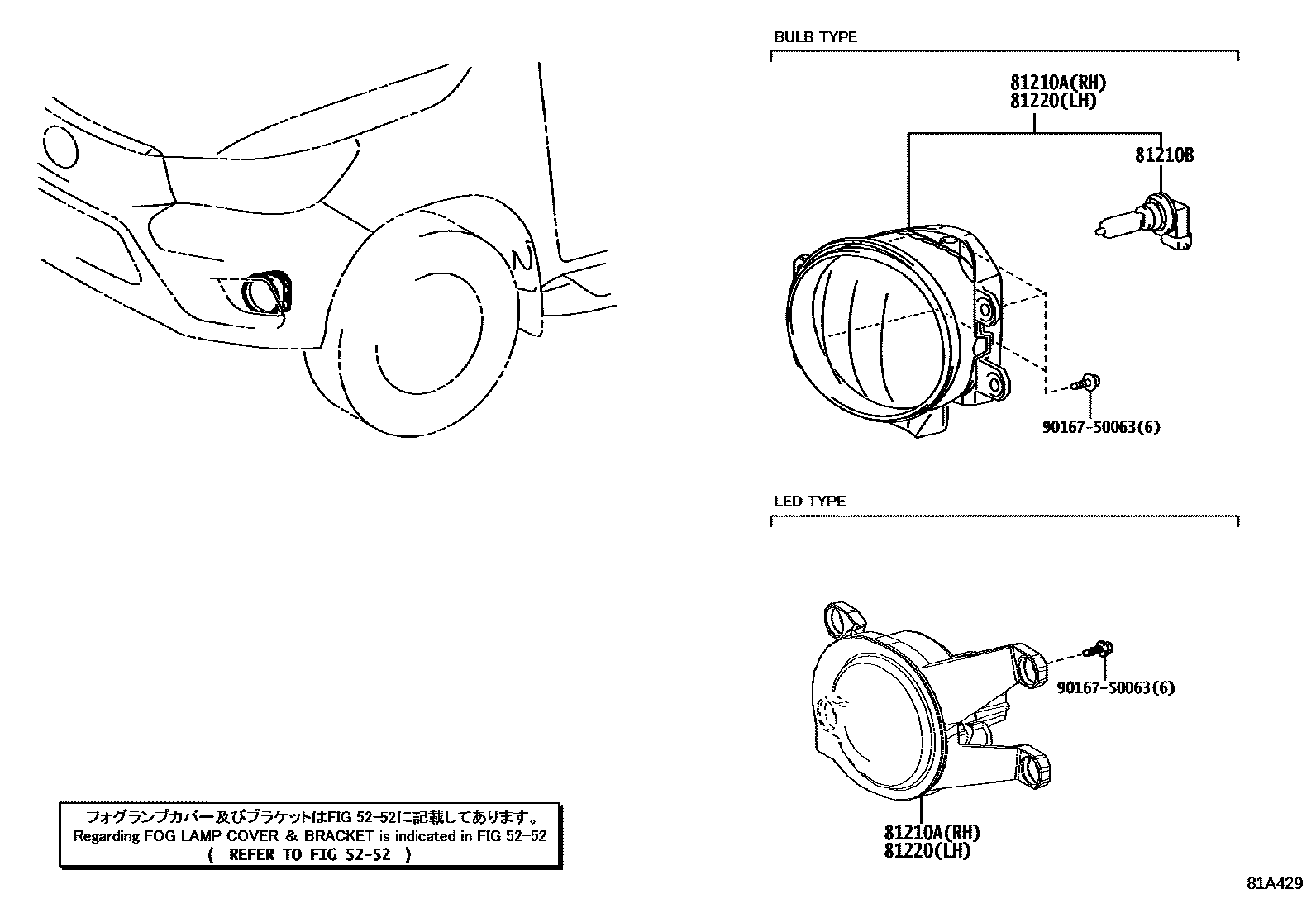

FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-02220iGUN125..XTR..S..SA;GUN135,TGN136..S..SA; GUN126,136..H..SA202108-202301

FRONT FOG LAMP-WITH(LED)

main81210-0D110iGUN126..PKN202111-202301

81210BBULB, FOG LAMP

main90981-13090×2iTGN136..LA202111-202210

12V 19W

81220LAMP ASSY, FOG, LH

main81220-02150iGUN125,126,13#..XTR..THP..S; GUN125,126,135..XTR..THP..H202108-202207

FRONT FOG LAMP-WITH(LED)

main81220-0D110iTGN136..LA202111-202210

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
