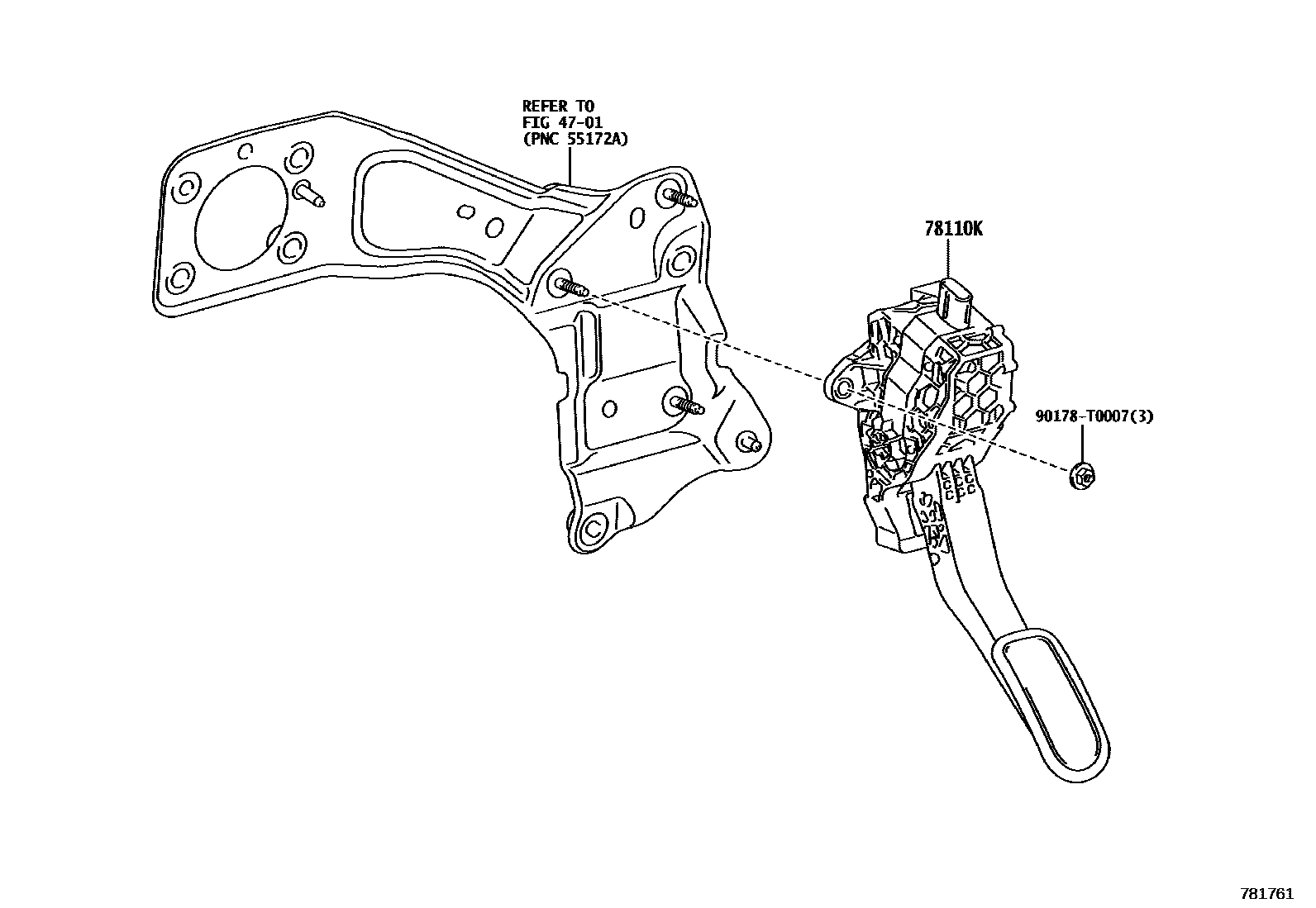

ACCELERATOR LINK

0001 1 0002 1

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-KK011iGUN122,126,TGN121..PKN202108-202301

main78110-KK021iGUN125,126,135,TGN126,136..AGTP202108-202210

90178T0007

main90178-T0007

3 parts on this diagram · 2 diagrams in section
