REAR BODY GUARD FRAME & TAIL GATE

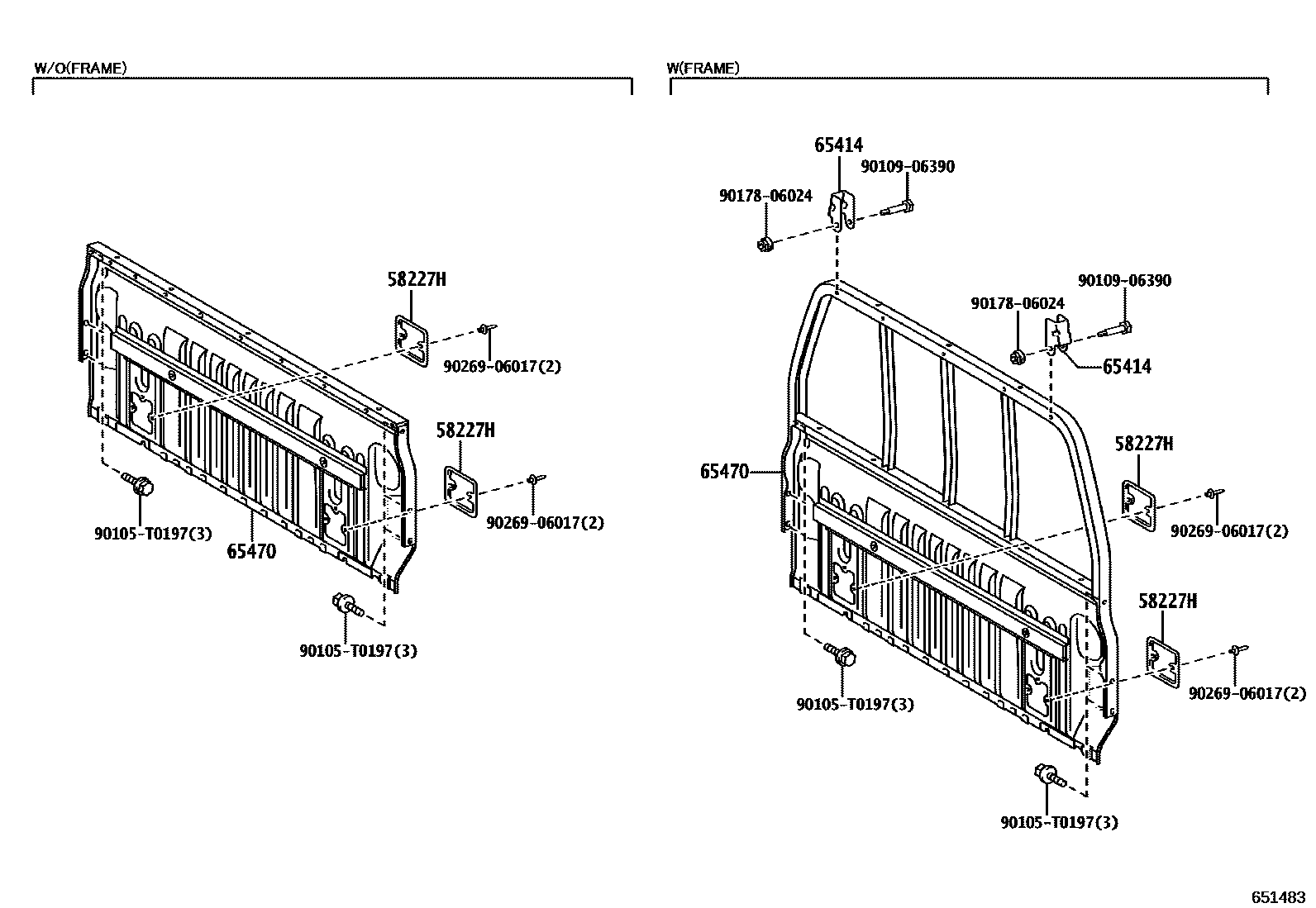

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031×2iGUN122,126,TGN121..PKN..CBU202108-202301

65414STOPPER, GUARD FRAME

main65414-KK010×2iGUN135..L..SA;GUN126..6F..SA;GUN122,125,LAN125,TGN120,121..SA..CBU202108-202301

DECK GUARD FRAME-WITH(STOPPER)

65470BOARD ASSY, HEADER

main65470-KK010iGUN125,126,13#..XTR..SA202108-202301

main65470-KK020iGUN122..THP..5F..CBU;GUN11#,121,125,126,135,TGN11#,12#..SCB..THP..(GCC,GEN,LA,TH)..CBU202108-202207

main65470-KK030supersedes 65470-KK020iGUN122..THP..5F..CBU;GUN126..SCB..THP..CBU;GUN11#,121,125,135,TGN11#,12#..SCB..THP..MTM..(GCC,GEN,LA,TH)..CBU202108-202207

DECK GUARD FRAME-WITH(STOPPER)

main65470-KK050iGUN125,126..XTR..6F..SA202108-202301

DECK GUARD FRAME-WITH(STOPPER)

90105T0197

main90105-T0197

9010906390

main90109-06390

9017806024

main90178-06024

9026906017

main90269-06017

7 parts on this diagram · 3 diagrams in section
