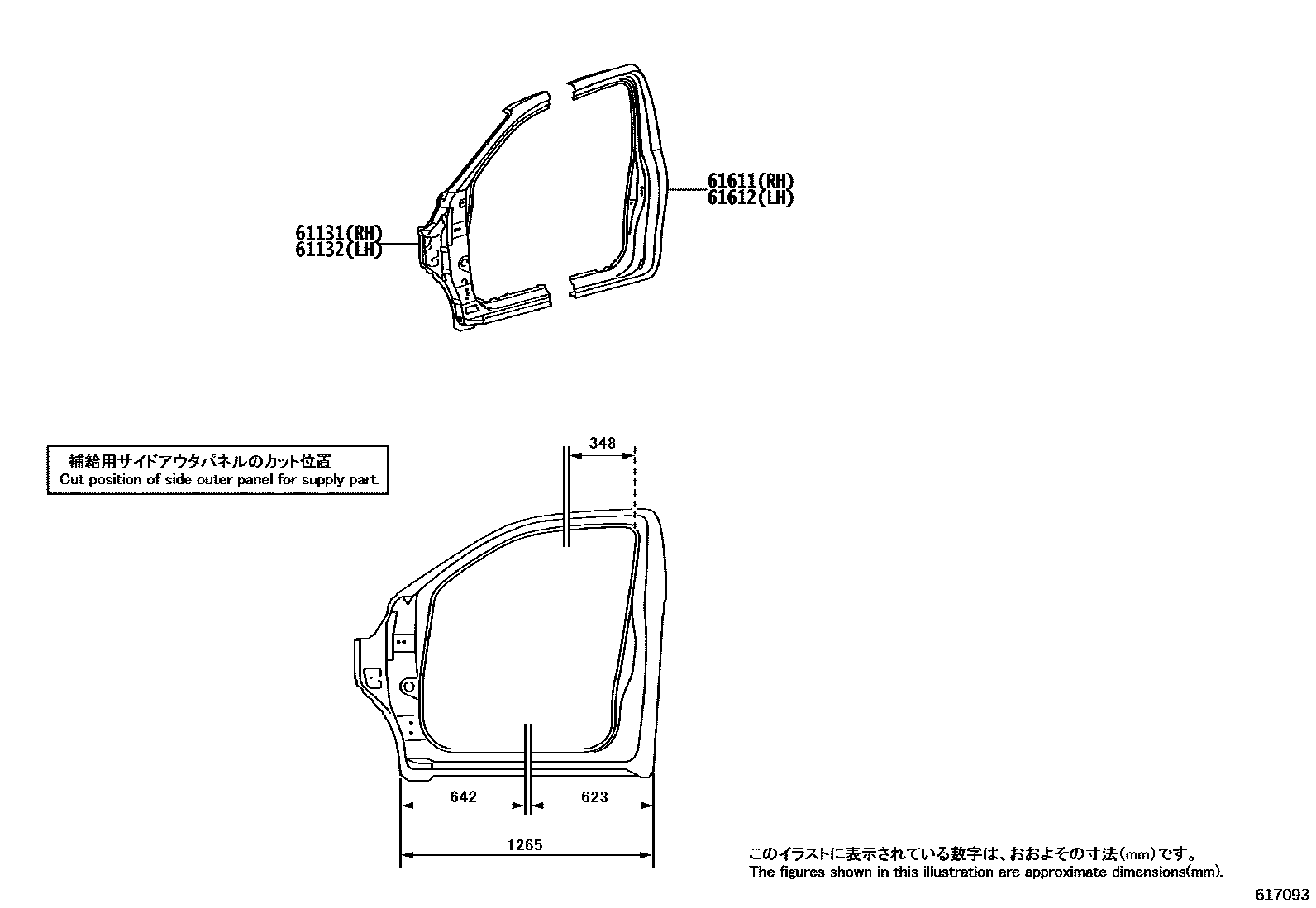

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1OUTER PANEL 0005 1INNER PANEL,RH 0006 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK020iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main61131-KK030iGUN120,122,125,126,13#..XTR..THP202108-202207

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK020iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main61132-KK030iGUN120,122,125,126,13#..XTR..THP202108-202207

61611PANEL, QUARTER, RH

main61611-KK020iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main61611-KK030iGUN125,126,13#..XTR..SA202108-202301

61612PANEL, QUARTER, LH

main61612-KK020iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main61612-KK030iGUN125,126,13#..XTR..SA202108-202301

4 parts on this diagram · 6 diagrams in section
