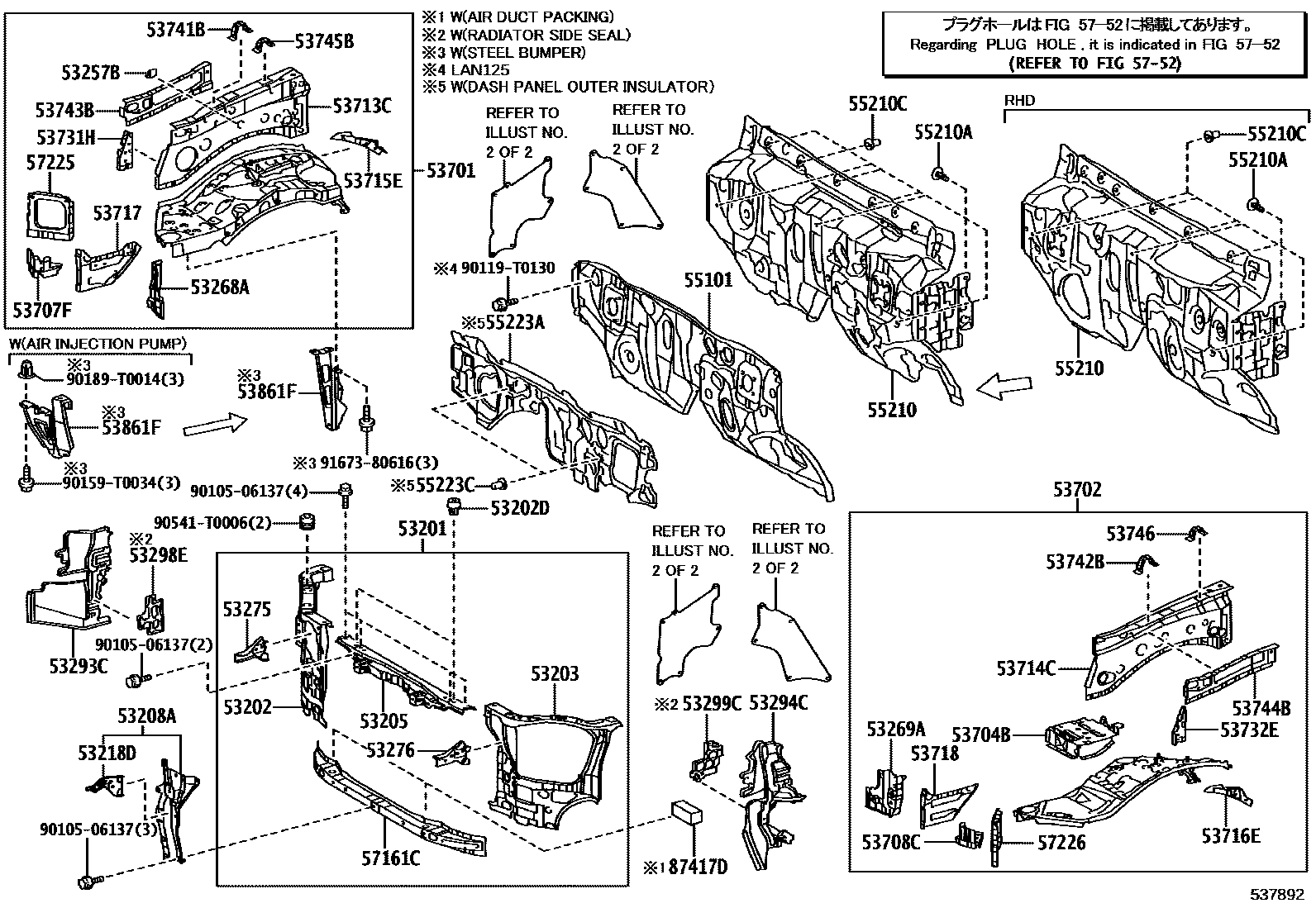

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iGUN125..MA202110-202208

main53201-KK050iGUN122,126,TGN121..PKN202109-202301

main53201-KK060iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGUN125,126,135,TGN126,136..AGTP202108-202210

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040×2iGUN125,126,135,TGN126,136..AGTP202108-202210

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN125..MA202108-202208

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iGUN125..MA202110-202208

main53205-KK040iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main53205-KK050iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGUN125..MA202108-202208

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGUN125..MA202109-202208

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN125,126,135,TGN126,136..AGTP202108-202210

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN125..MA202108-202208

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN125..MA202108-202208

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK030iGUN125,126,13#,TGN121..SCB..ARL202108-202207

main53293-KK040supersedes 53293-KK120iGUN122,126,TGN121..PKN202108-202301

main53293-KK100iGUN125,126,136..XTR..ARL202108-202207

main53293-KK110iGUN125,126,135..XTR..(GEN,TH)202108-202207

TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main53293-YP091iGUN126,135..6FC..H..TH202108-202207

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK030iGUN125,126,13#,TGN121..SCB..ARL202108-202207

main53294-KK040supersedes 53294-KK120iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)202108-202303

main53294-KK100iGUN125,126,136..XTR..ARL202108-202207

main53294-KK110iGUN125,126,135..XTR..(GEN,TH)202108-202207

TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main53294-YP091iGUN126,135..6FC..H..TH202108-202207

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iTGN11#,12#..THP202108-202207

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN11#,12#..THP202108-202207

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK040iTGN121..SA202109-202301

main53701-KK050iTGN120,136..SA202109-202301

main53701-KK070iGUN122,125..LHD..SA202109-202301

main53701-KK080iGUN122,125,126,13#..RHD..SA202109-202111

main53701-KK150iLAN125202109-202301

main53701-KK280iTGN121..PKN202207-202212

main53701-KK290iGUN122,125,126,13#..RHD..(KEN,SA)202111-202303

main53701-KK350iTGN121..LHD..THP;GUN11#,122,TGN11#,120,126..THP..(GCC,LA)202108-202207

FRONT BUMPER-WITH(STEEL LOWER COVER)

main53701-KK360iTGN110,121..RHD202108-202207

main53701-KK370iGUN122..LHD..(GEN,PH);GUN125,126,135..LHD..THP202108-202207

FRONT BUMPER-PAINTED

main53701-KK380iGUN112,12#,13#..RHD..(MAP,PKNP,THP)202108-202207

sub53701-KK760

main53701-KK450iGUN122,126..PKN202207-202212

main53701-KK560iTGN126,136..AGTP202111-202210

sub53701-KK820

main53701-KK580iGUN125,126,135..AGTP202111-202210

sub53701-KK830

main53701-KK780iTGN121..PKN202212-202301

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK030iGUN11#,122,125,126,135,LAN125,TGN11#,12#..LHD..(SAP,THP)202108-202207

main53702-KK040iGUN112,12#,13#,TGN110,120,121,136..RHD..(KENP,PKNP,SAP,THP)202108-202207

main53702-KK100iGUN122,125,LAN125,TGN121..LHD..SA202207-202212

main53702-KK140iGUN125,126,135,TGN126,136..AGTP202111-202210

sub53702-KK330

main53702-KK230iGUN122,125,126,13#,TGN120,121,136..RHD..(KEN,PKN,SA)202207-202212

main53702-KK290iGUN122,126,TGN121..PKN202212-202301

main53702-KK310iGUN122,125,LAN125,TGN121..LHD202212-202301

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGUN11#,12#,13#,LAN125,TGN11#,12#,136..KENP,PKNP,SAP,THP202108-202207

main53704-KK020iGUN122,126,TGN121..PKN202207-202301

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN122,125..LHD..SA;LAN125,TGN121..SAP,THP;GUN11#,12#,13#,TGN11#,120,126..THP202108-202207

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iTGN121..PKN202108-202301

main53713-KK040iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGUN122,126,TGN121..PKN202108-202301

main53714-KK030iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202108-202303

53717PLATE, FENDER APRON, RH

main53717-KK010iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN122,125..LHD..SA;LAN125,TGN121..SAP,THP;GUN11#,12#,13#,TGN11#,120,126..THP202108-202207

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGUN125..MA202108-202208

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK020iGUN125..MA202108-202208

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGUN122,125..LHD..SA;LAN125,TGN121..SAP,THP;GUN11#,12#,13#,TGN11#,120,126..THP202108-202207

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iTGN121..THP;GUN11#,12#,13#,TGN11#,120,126..MAP,PKNP,THP202108-202207

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGUN122,125..LHD..SA;LAN125,TGN121..SAP,THP;GUN11#,12#,13#,TGN11#,120,126..THP202108-202207

53861FBRACKET, FRONT WHEEL OPENING, NO.1

main53861-0K020iTGN121..GCC..CBU202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..MTM202108-202207

sub55101-KK220

main55101-KK080iGUN126..6FC..GCC202108-202207

sub55101-KK240

main55101-KK090iGUN112,121,122,125,126,13#,TGN110,121..RHD..THP..MTM202108-202207

sub55101-KK260

main55101-KK120iGUN125,126,13#..6FC..SA202108-202301

sub55101-KK280

main55101-KK261iGUN122,126,TGN121202310

55210INSULATOR ASSY, DASH PANEL

main55210-0K320iGUN11#,122,125,126,135,TGN11#,12#..LHD..SCB..THP202108-202207

main55210-0K340iGUN135..RHD..THP..L;GUN125..RHD..THP..(H,L);GUN126,136..RHD..SCB..THP;GUN112,120,121,122,TGN110,121..RHD..THP202108-202207

main55210-KK110iGUN122,126,TGN121..PKN202110-202301

main55210-KK131iGUN125..XTR..GEN202108-202207

sub55210-0K360

main55210-KK151iGUN125,126,13#..RHD..XTR..THP..(H,S)202108-202207

main55210-KK201iGUN125,126,135,TGN126,136..AGTP202111-202210

main55210-KK211iGUN125..XTR..S..SA202109-202301

main55210-KK221iGUN126,13#..XTR..SA202109-202301

main55210-KK231iGUN122,125,LAN125,TGN121..LHD..SCB..SA202109-202301

main55210-KK241iGUN126,13#..SCB..(KEN,SA);GUN122,125,TGN120,136..RHD..(KEN,SA)202109-202303

55210ACLIP

main90467-T0004-A0×2iGUN122,126,TGN121..PKN202108-202301

IVORY

55210CCLIP

main90467-T0032×6iGUN112,12#,13#,TGN110,121..RHD..THP202108-202207

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK030iGUN125,126,135,TGN126,136..AGTP202109-202210

main55223-KK040iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main55223-KK051iTGN126..THP..LA;GUN11#,122,125,126,135..LHD..THP202108-202207

IRAN SPEC

main55223-KK061iGUN125..MA202108-202208

55223CCLIP

main90467-T0032×2iGUN125,126,135,TGN126,136..AGTP202108-202210

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN122,126,TGN121..PKN202111-202301

main57161-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGUN122,125..LHD..SA;LAN125,TGN121..SAP,THP;GUN11#,12#,13#,TGN11#,120,126..THP202108-202207

5752

87417DPACKING, AIR DUCT

main87417-0K020×2iTGN11#,12#..GCC202108-202207

9010506137

main90105-06137

90119T0130

main90119-T0130

90159T0034

main90159-T0034

90189T0014

main90189-T0014

90541T0006

main90541-T0006

9167380616

main91673-80616

53 parts on this diagram · 2 diagrams in section
