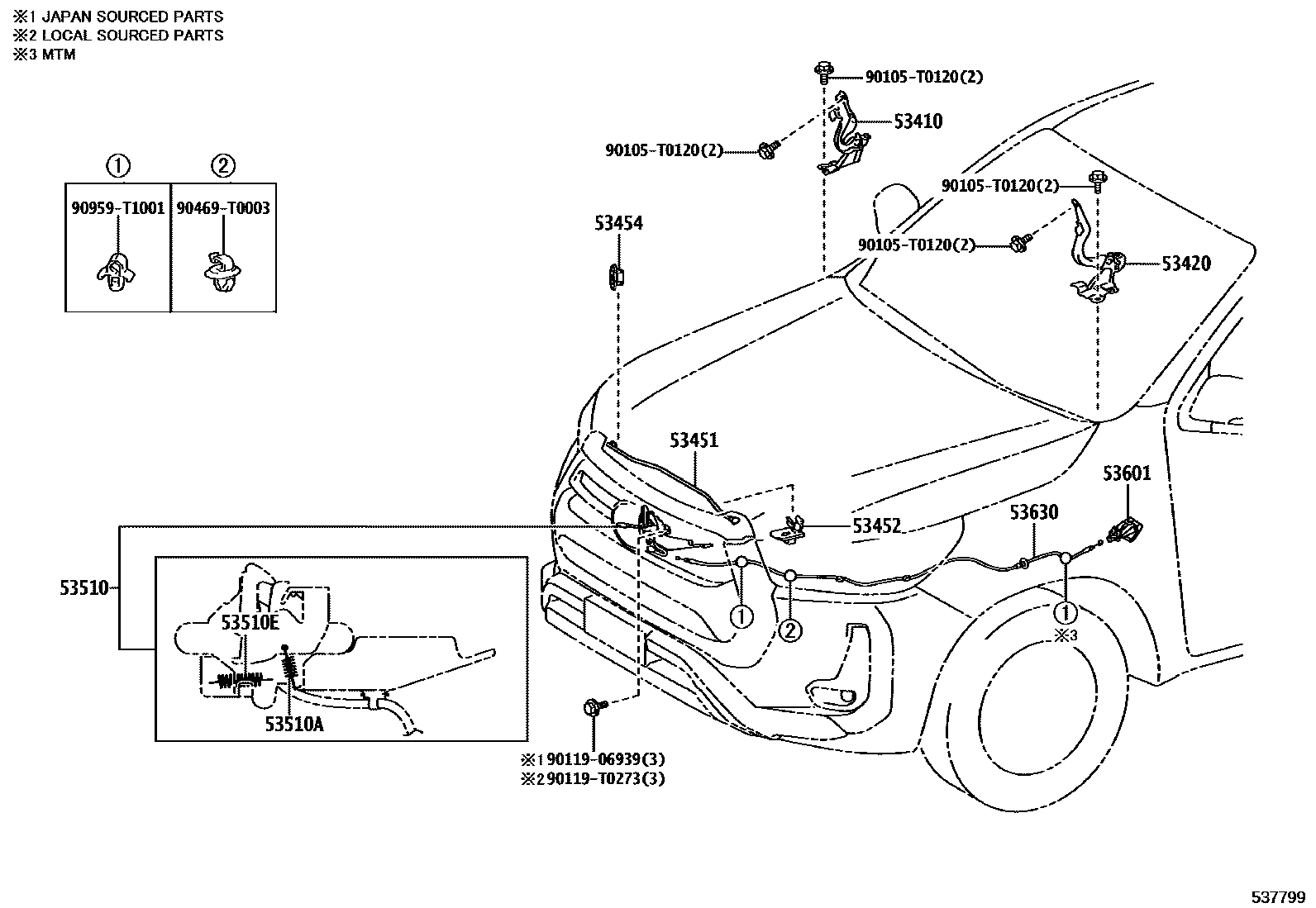

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
main53510-0K650iGUN135..L..TH;GUN125..RHD..SCB..THP..CBU;GUN112,120,121,122,126,TGN110,121..RHD..(L,S)..(GEN,IDN,TH)202108-202207
main53510-0K660iGUN125,136..ARL,TH;GUN135,TGN121..ARL;GUN126,135..RHD..THP..(H,S); GUN135..L..TH202108-202207
TOYOTA STOP & START SYSTEM-WITH
main53510-0K700iGUN125..XTR..L..CBU;GUN125,135..RHD..S..(KEN,SA);GUN122,126,136,TGN120,136..RHD..SA202109-202303
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90959T1001
main90959-T1001
15 parts on this diagram · 2 diagrams in section
