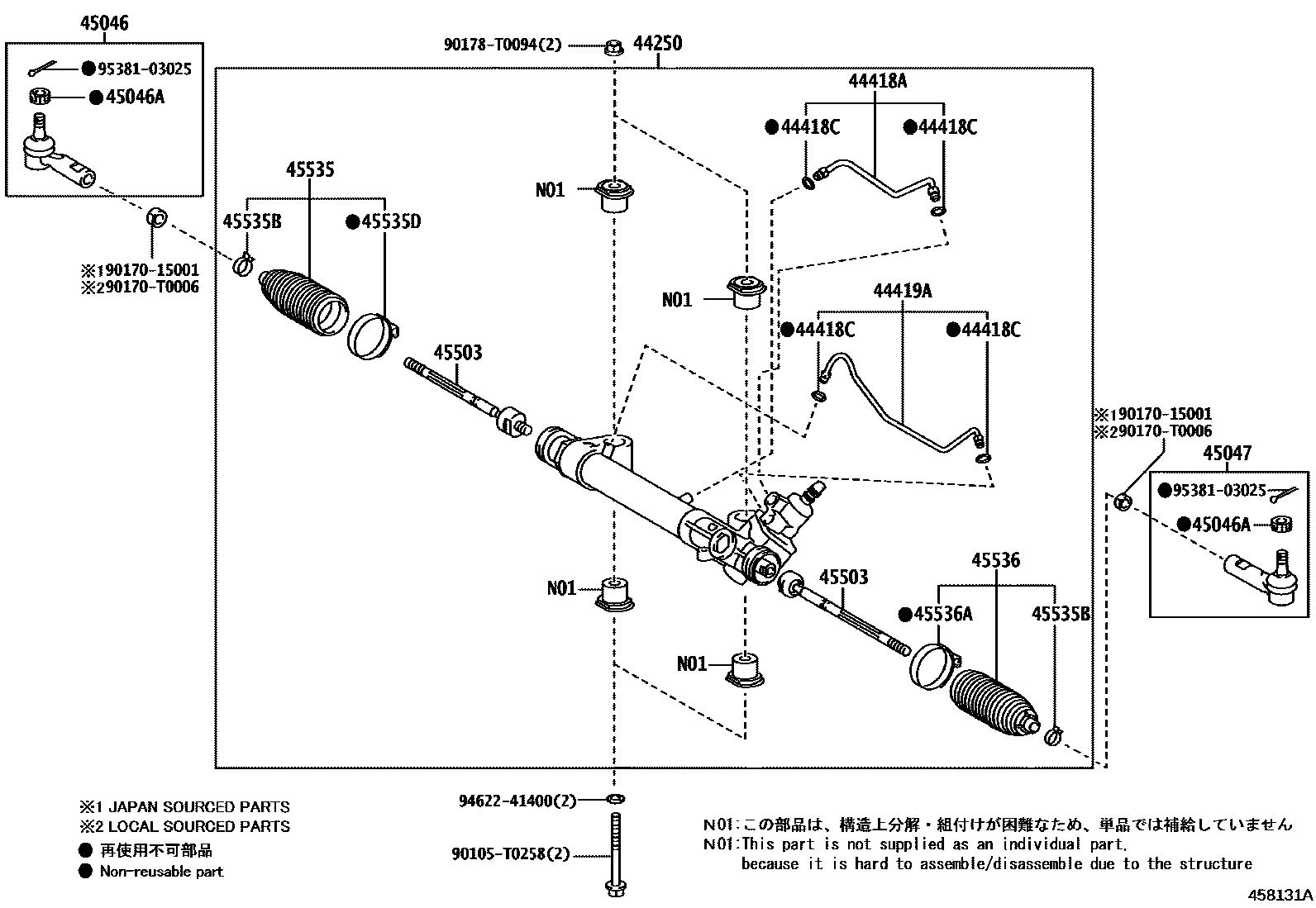

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K601iGUN122,TGN120..RHD..SA202109-202112

main44250-0K602iGUN122,TGN120..RHD..SA202201-202301

main44250-0K621iGUN122,TGN120,121..LHD..THP202108-202111

main44250-0K622iGUN122,TGN120,121..LHD..THP202112-202201

main44250-0K623iGUN122,TGN120,121..LHD..THP202202-202207

main44250-0K631iGUN122,TGN121..LHD..SA202109-202112

main44250-0K632iGUN122,TGN121..LHD..SA202201-202301

main44250-0K641iGUN112,TGN110..RHD202108-202111

main44250-0K642iGUN112,TGN110..RHD202112-202207

main44250-0K651iGUN11#,TGN11#..GCC202108-202111

main44250-0K652iGUN11#,TGN11#..GCC202112-202207

main44250-0K671iGUN125..L..KEN202111-202112

main44250-0K672iGUN125..L..KEN202201-202303

main44250-0K691iLAN125;GUN125..LHD..SA..IV3202109-202112

TIRE & DISC WHEEL-205R16C STEEL

main44250-0K692iLAN125;GUN125..LHD..SA..IV3202201-202301

TIRE & DISC WHEEL-205R16C STEEL

main44250-0K711iGUN125,126,13#..RHD..THP202108-202111

main44250-0K712iGUN125,126,13#..RHD..THP202112-202301

main44250-0K721iGUN125..RHD..SCB..S;GUN125..RHD..L..(MA,SA);GUN126,13#,TGN136..KEN,SA202109-202112

main44250-0K722iGUN125..MA202201-202303

main44250-0K731iGUN125,126,135,TGN126..LHD..THP202108-202111

main44250-0K732iGUN125,126,135,TGN126..LHD..THP202112-202207

main44250-0K741iGUN125..LHD..SA..CBU202109-202112

main44250-0K742iGUN125..LHD..SA..CBU202201-202301

main44250-0K752iGUN125,126,135,TGN126,136..AGTP202111-202201

main44250-0K753iGUN125,126,135,TGN126,136..AGTP202202-202210

main44250-0K761iGUN120,121,122,TGN121..RHD..THP202108-202111

main44250-0K762iGUN122,TGN121..PKN202112-202301

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K190iGUN112,120,121,122,TGN110,121..RHD..THP202108-202301

main44418-0K200iGUN122,TGN120..RHD..SA202109-202301

main44418-0K220iGUN11#,122,TGN11#,120,121..LHD..THP202108-202207

main44418-0K230iGUN122,TGN121..LHD..SA202109-202301

main44418-0K250iGUN126..PKN202108-202301

main44418-0K260iGUN125,126,13#,TGN136..RHD..(KEN,SA)202109-202303

main44418-0K270iGUN125,126,135,TGN126,136..AGTP202108-202210

main44418-0K280iGUN125,LAN125..LHD..SA202109-202301

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032iGUN125,126,135..LHD..THP;GUN11#,120,121,122,TGN11#,12#..THP202108-202303

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K190iGUN122,TGN121..PKN202108-202301

main44419-0K200iGUN122,TGN120..RHD..SA202109-202301

main44419-0K220iGUN11#,122,TGN11#,120,121..LHD..THP202108-202207

main44419-0K230iGUN122,TGN121..LHD..SA202109-202301

main44419-0K250iGUN126..PKN202108-202301

main44419-0K260iGUN125,126,13#,TGN136..RHD..(KEN,SA)202109-202303

main44419-0K270iGUN125,126,135,TGN126..LHD..THP202108-202210

main44419-0K280iGUN125,LAN125..LHD..SA202109-202301

45046END SUB-ASSY, TIE ROD, RH

main45046-09780iGUN122,TGN120,121..PKN,SA202108-202301

main45046-09800iGUN126..PKN202108-202303

main45046-09820iGUN125,126,135,TGN126,136..AGTP202111-202210

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002iGUN125,126,13#,TGN126..THP202108-202303

main90171-T0004iGUN122,TGN120,121..PKN,SA202108-202301

45047END SUB-ASSY, TIE ROD, LH

main45046-09780iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

main45046-09800iGUN125..MA202108-202303

main45046-09820iGUN125,126,135,TGN126,136..AGTP202111-202210

45503END SUB-ASSY, STEERING RACK

main45503-0K110iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

main45503-0K130iGUN126..PKN202108-202303

main45503-0K140iGUN125,126,135,TGN126,136..AGTP202111-202210

45535BOOT, STEERING RACK, NO.1

main45535-09380iGUN122,TGN121..PKN202108-202301

main45535-09390iGUN125,126,13#,TGN126..THP202108-202301

main45535-09400iGUN122,TGN120,121..SA202109-202301

main45535-09410iGUN125..MA202109-202303

main45535-09420iGUN125,126,135,TGN126,136..AGTP202111-202210

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D040iGUN125,126,135,TGN126,136..AGTP202111-202210

main90466-T0004iGUN11#,12#,13#,TGN11#,12#..THP202108-202301

main90466-T0005iGUN125..MA202109-202303

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K010iGUN122,TGN121..PKN202108-202301

main45538-0K020iGUN122,TGN120,121..SA202109-202301

main45538-0K030iGUN125,126,13#,TGN126..THP202108-202301

main45538-0K040iGUN125..MA202109-202303

main45538-0K050iGUN125,126,135,TGN126,136..AGTP202111-202210

45536BOOT, STEERING RACK, NO.2

main45535-09380iGUN122,TGN121..PKN202108-202301

main45535-09390iGUN125,126,13#,TGN126..THP202108-202301

main45535-09400iGUN122,TGN120,121..SA202109-202301

main45535-09410iGUN125,126,13#,LAN125,TGN136..KEN,SA202109-202303

main45535-09420iGUN125,126,135,TGN126,136..AGTP202111-202210

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K010iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

main45538-0K020iGUN122,TGN120,121..SA202109-202301

main45538-0K030iGUN126..PKN202108-202301

main45538-0K040iGUN125..MA202109-202303

main45538-0K050iGUN125,126,135,TGN126,136..AGTP202111-202210

90105T0258

main90105-T0258

9017015001

main90170-15001

90170T0006

main90170-T0006

90178T0094

main90178-T0094

9462241400

main94622-41400

9538103025

main95381-03025

19 parts on this diagram · 4 diagrams in section
