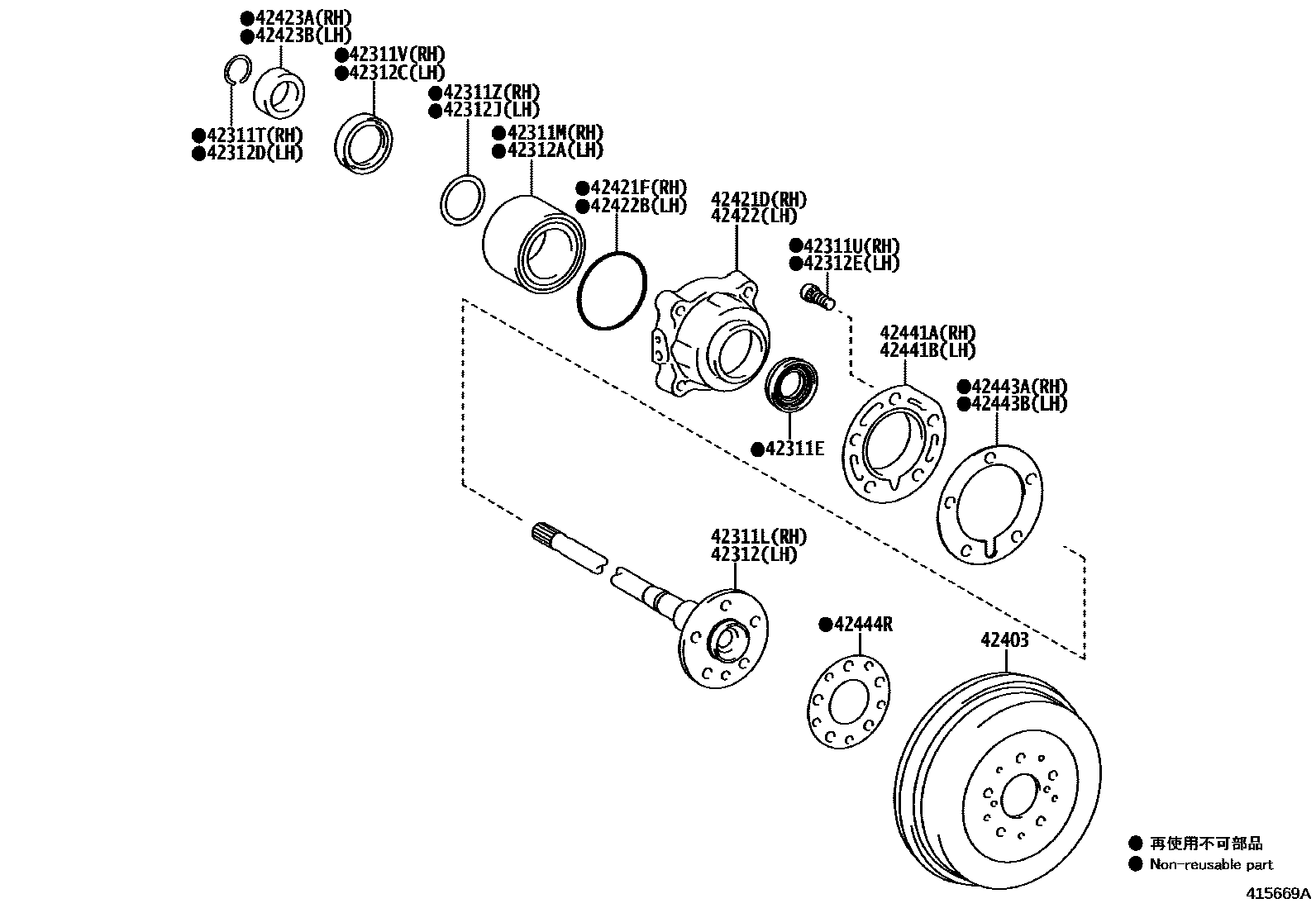

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-T0002×2iGUN125..MA202108-202208

42311LSHAFT, REAR AXLE, RH

main42311-KK010iTGN120..SA202108-202301

main42311-KK020iGUN120,121,122..GCC,GEN,TH;GUN11#,TGN111,121..ARL,GCC,GEN202108-202207

main42311-KK030iLAN125202109-202301

main42311-KK040iGUN125,126,135,TGN126,136..AGTP202108-202210

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90366-F0001iGUN125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main90366-T0060iGUN125,126,135,TGN126,136..AGTP202108-202210

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-T0033iGUN122,126,TGN121..PKN202108-202301

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202108-202207

main90942-02081×5iGUN120,121,122..GCC,GEN,TH;GUN11#,TGN111,121..ARL,GCC,GEN; GUN125,126,13#,TGN126..THP202108-202207

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-T0008iGUN125..MA202108-202208

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-T0001iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

42312SHAFT, REAR AXLE, LH

main42311-KK010iTGN120..SA202108-202301

main42311-KK020iGUN120,121,122..GCC,GEN,TH;GUN11#,TGN111,121..ARL,GCC,GEN202108-202207

main42311-KK030iLAN125202109-202301

main42311-KK040iGUN125,126,135,TGN126,136..AGTP202108-202210

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90366-F0001iGUN125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main90366-T0060iGUN125,126,135,TGN126,136..AGTP202108-202210

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-T0008iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-T0033iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202108-202207

main90942-02081×6iGUN120,121,122..GCC,GEN,TH;GUN11#,TGN111,121..ARL,GCC,GEN; GUN125,126,13#,TGN126..THP202108-202207

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-T0001iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0K120×2iGUN125..MA202108-202208

main42431-0K180×2iGUN125,126,13#,LAN125,TGN136..KEN,SA202109-202303

main42431-0K220×2supersedes 42431-0K090iTGN121..PKN;GUN122..PKN,SA202108-202301

main42431-0K090×2iGUN122..SA; TGN120,121..SA202109-202301

VSC-WITHOUT

42421DCASE, REAR AXLE BEARING, RH

main42421-KK010iGUN122,TGN120,121..PKN,SA202108-202301

main42421-KK030iGUN125,126,13#,LAN125,TGN136..KEN,SA202108-202303

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-T0043iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

42422CASE, REAR AXLE BEARING, LH

main42421-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202108-202207

main42421-KK030iGUN125..MA202108-202208

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-T0043iGUN125..MA202108-202208

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-KK010iGUN125,126,135,TGN126,136..AGTP202108-202210

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-KK010iGUN122,126,TGN121..PKN202108-202301

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-0K030iGUN122,TGN120,121..PKN,SA202108-202301

main42441-KK010iGUN125..MA202108-202208

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-0K030iGUN11#,120,121,122,TGN11#,120,121..THP202108-202207

main42441-KK010iGUN126..PKN202108-202301

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-30010iGUN122,TGN120,121..PKN,SA202108-202301

main42443-60010iGUN125,126,13#,TGN126..THP202108-202207

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-30010iGUN122,TGN120,121..PKN,SA202108-202301

main42443-60010iGUN125,126,135,TGN126,136..AGTP202108-202210

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iGUN125,126,135,TGN126,136..AGTP202108-202210

main42444-35070×2iGUN11#,120,121,122,TGN11#,120,121..THP202108-202207

25 parts on this diagram · 2 diagrams in section
