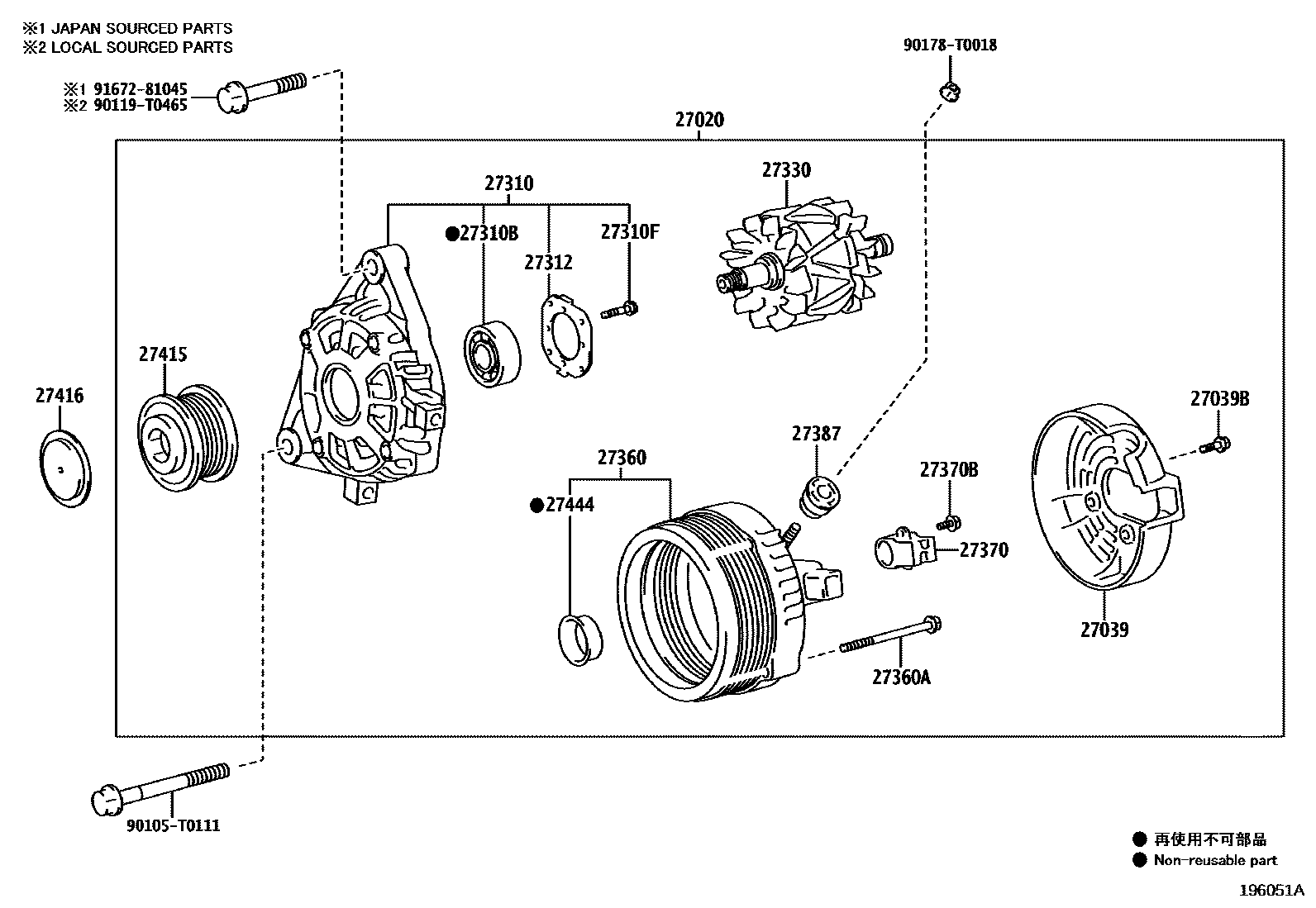

27020ALTERNATOR ASSY
main27060-0C110i1TRFE,2TRFE..TGN11#,12#..ARL,GCC,GEN,IDN,TH202108-202301 12V 80A
main27060-0C150i1TRFE,2TRFE..TGN120,121,136..SA202109-202301 12V 90A,BOSCH
main27060-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 12V 100A
main27060-0L150i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 12V 90A,BOSCH
main27060-0L160i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 12V 100A,DENSO
main27060-0L170i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 12V 90A,BOSCH
main27060-0L280i2GDFTV..GUN125..6F..(GEN,IDN,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,135..GEN,IDN,PH,TH202108-202301 12V 80A
main27060-0L280i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 12V 80A,DENSO
main27060-0L290i2GDFTV..GUN120,122..TH..IV3202108-202207 12V 100A,POWER SUPPLY PACKAGE
main27060-0L290i2GDFTV..GUN120,122..TH..IV3202108-202207 12V 100A,COLD CHAIN PACKAGE
main27060-0L290i2GDFTV..GUN120,122..TH..IV3202108-202207 12V 100A
27039COVER, ALTERNATOR REAR END
main27039-0L180i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 BOSCH
main27039-0M100i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27039-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main27039-0V220i2GDFTV..GUN120,122..TH..IV3202108-202207 COLD CHAIN PACKAGE
main27039-0V220i2GDFTV..GUN120,122..TH..IV3202108-202207 POWER SUPPLY PACKAGE
27039BBOLT(FOR ALTERNATOR REAR END COVER)
main90068-04046i2GDFTV..GUN125..THP..6F..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN11#,122,126,13#..THP..(ARL,GCC,LA);2GDFTV,2TRFE..GUN125,TGN126..THP..(5F,6FC)..(ARL,GEN,LA)202108-202207 POWER SUPPLY PACKAGE
main90068-04046i2GDFTV..GUN125..THP..6F..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN11#,122,126,13#..THP..(ARL,GCC,LA);2GDFTV,2TRFE..GUN125,TGN126..THP..(5F,6FC)..(ARL,GEN,LA)202108-202207 COLD CHAIN PACKAGE
main90068-04047i2GDFTV..GUN125..6F..(GEN,IDN,TH);1TRFE,2TRFE..TGN11#,12#..ARL,GCC,GEN,IDN,TH;1GDFTV,2GDFTV..GUN112,120,121,122,126,135..GEN,IDN,PH,TH202108-202301 main90068-04047i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main90068-04051i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0C110i1TRFE,2TRFE..TGN11#,12#..ARL,GCC,GEN,IDN,TH202108-202301 main27310-0L190i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main27310-0L300i2GDFTV..GUN120,122..TH..IV3202108-202207 COLD CHAIN PACKAGE
main27310-0L300i2GDFTV..GUN120,122..TH..IV3202108-202207 POWER SUPPLY PACKAGE
main27310-0L310i2GDFTV..GUN125..6F..(GEN,IDN,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,135..GEN,IDN,PH,TH202108-202301 main27310-0L310i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27310-0L320i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10051i2GDFTV..GUN120,122..TH..IV3202108-202207 POWER SUPPLY PACKAGE
main90068-10051i2GDFTV..GUN120,122..TH..IV3202108-202207 COLD CHAIN PACKAGE
main90068-10051i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main90068-10052i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main90068-10052i2GDFTV..GUN125..6F..(GEN,IDN,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,135..GEN,IDN,PH,TH202108-202301 27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
main90068-00022i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202108-202301 main90068-00022i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main90068-00039i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 DENSO
27312PLATE, RETAINER
main27312-0C020i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202108-202301 main27312-0C020i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27312-0C130i2GDFTV..GUN125,135..BZAG;1GDFTV,2TRFE..GUN126,TGN136..AGTP202111-202210 BOSCH
main27312-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27330ROTOR ASSY, ALTERNATOR
main27330-0L140i2GDFTV..GUN120,122..TH..IV3202108-202207 POWER SUPPLY PACKAGE
main27330-0L140i2TRFE..TGN126..THP..LA;1GDFTV,2GDFTV..GUN11#,122,125,126,135..THP..(GCC,LA)202108-202207 COLD CHAIN PACKAGE
main27330-0L180i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 BOSCH
main27330-0M100i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27330-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main27330-0V220i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 27360COIL ASSY, ALTERNATOR
main27360-0C110i1TRFE,2TRFE..TGN11#,12#..ARL,GCC,GEN,IDN,TH202108-202301 main27360-0E030i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 main27360-0L140i2GDFTV..GUN120,122..TH..IV3202108-202207 POWER SUPPLY PACKAGE
main27360-0L140i1GDFTV,2GDFTV..GUN11#,122,125,126,135..THP..(GCC,LA)202108-202207 COLD CHAIN PACKAGE
main27360-0L190i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main27360-0L220i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
27360ABOLT(FOR ALTERNATOR COIL)
main90068-04048i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main90068-04050i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-0M040i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27370-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
main90068-00023i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202108-202301 main90068-00023i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main90068-00037i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27387INSULATOR, TERMINAL
main27387-0C020i1GDFTV,2GDFTV,2TRFE..GUN122,126,TGN121..PKN202108-202301 main27387-0C020i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
main27387-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
27415PULLEY, ALTERNATOR W/CLUTCH
main27415-0C010i1TRFE,2TRFE..TGN120,121,136..SA202109-202301 main27415-0L030i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 main27415-0L040i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 BOSCH
main27415-0L040i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 PNC 27020=BOSCH
main27415-0L050i2GDFTV..GUN120,122..TH..IV3202108-202210 DENSO
main27415-0L050i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..THP..6F..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN11#,122,126,13#..THP..(ARL,GCC,LA)202108-202207 POWER SUPPLY PACKAGE,DENSO
main27415-0L050i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..THP..6F..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN11#,122,126,13#..THP..(ARL,GCC,LA)202108-202207 COLD CHAIN PACKAGE,DENSO
main27415-0L050i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 PNC 27020=DENSO
main27415-0W053i1TRFE,2TRFE..TGN11#,12#..ARL,GCC,GEN,IDN,TH202108-202301 27416CAP, ALTERNATOR PULLEY
main27416-0L050i2GDFTV..GUN125,135..AGTP..LA202108-202303 DENSO
main27416-0L050i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 (L)
main27416-0W050i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301 main27416-33010i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..BZAG202111-202210 (J)
main27416-33010i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 BOSCH
27444PACKING, ALTERNATOR BEARING COVER
main27444-0T300i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210 DENSO
main27444-0Y180i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303 DENSO
