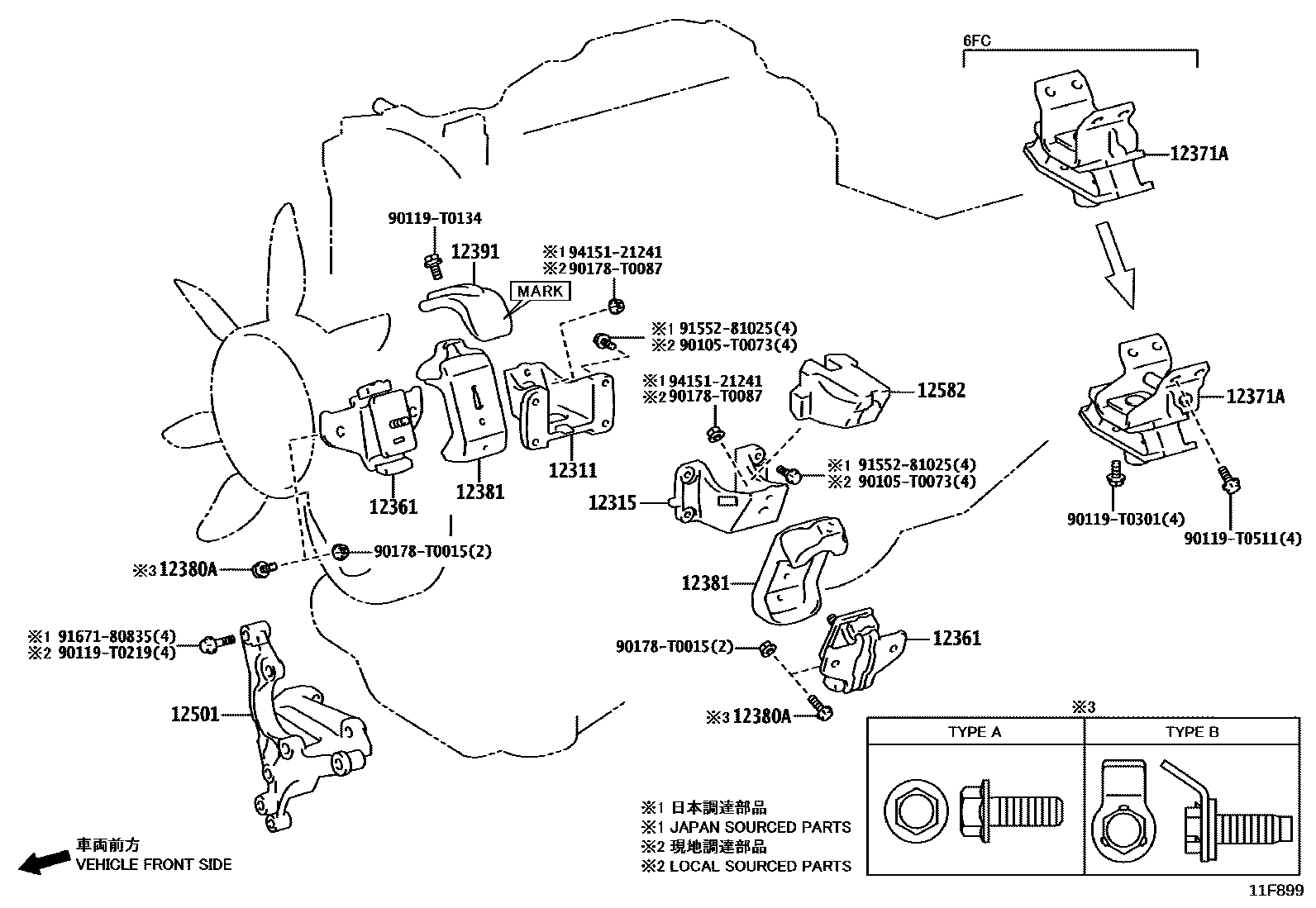

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i2TRFE..TGN126,136..AGTP202108-202210

IDN SOURCED PARTS

main12311-0C020i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

THA SOURCED PARTS

main12311-0E020i2GDFTV..GUN125..MA202108-202208

THA SOURCED PARTS

main12311-0E040i2GDFTV..GUN135..AGTP..LA202111-202210

BOLIVIA URUGUAY SPEC,(L)

main12311-0E050i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207

IND SOURCED PARTS

main12311-11140i2GDFTV..GUN135..AGTP..LA202204-202210

(J)

main12311-54181i5LE..LAN125202109-202301

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,GEN,LA,TH)202108-202207

IDN SOURCED PARTS

main12315-0C020i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

THA SOURCED PARTS

main12315-0E010i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202207

THA SOURCED PARTS

main12315-0E030i2GDFTV..GUN135..AGTP..LA202111-202210

BOLIVIA URUGUAY SPEC,(L)

main12315-0E040i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207

IND SOURCED PARTS

main12315-11060i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

JAPAN SOURCED PARTS

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L021×2i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202207

(L)

main12361-30171×2i1GDFTV,2GDFTV..GUN11#,12#,13#202108-202207

(J)

main12361-54260×2i5LE..LAN125202109-202301

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C072i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301

main12371-0C190i2TRFE..TGN121..6FC202108-202207

main12371-0C200i5LE..LAN125202109-202301

main12371-0C270i2TRFE..TGN126..THP202108-202207

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L052i2GDFTV..GUN122..PKN,SA202108-202301

main12371-0L180i1GDFTV,2GDFTV..GUN13#..6F..(KEN,SA)202108-202303

main12371-0L200i1GDFTV,2GDFTV..GUN120,13#..THP..6FC202108-202207

main12371-0L210i1GDFTV,2GDFTV..GUN125,126..KEN,SA202108-202303

main12371-0L240i1GDFTV,2GDFTV..GUN125,126..AGTP202111-202210

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174×4i2GDFTV..GUN125..MA202108-202208

TYPE A:REFER ILLUST.

main90910-03003×4i5LE..LAN125202109-202301

TYPE B:REFER ILLUST.

12381STABILIZER, ENGINE MOUNTING

main12381-0L081×2i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202207

(L)

main12381-30091×2i1GDFTV,2GDFTV..GUN11#,12#,13#202108-202207

(J)

main12381-54130i5LE..LAN125202109-202301

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

MARK=T

main12391-0L020i2TRFE..TGN126,136..AGTP202111-202210

MARK=A

main12391-0L050i1TRFE,2TRFE..TGN120,121,136..SA202109-202301

MARK=S

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202207

THA SOURCED PARTS

main12501-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207

IND SOURCED PARTS

main12501-0E030i2GDFTV..GUN135..AGTP..LA202111-202210

COSTA RICA SPEC,ARG SOURCED PARTS

main12501-11012i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

JAPAN SOURCED PARTS

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303

THA SOURCED PARTS

main12582-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207

IND SOURCED PARTS

main12582-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

JAPAN SOURCED PARTS

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

90178T0087

main90178-T0087

9155281025

main91552-81025

9167180835

main91671-80835

9415121241

main94151-21241

20 parts on this diagram · 7 diagrams in section
