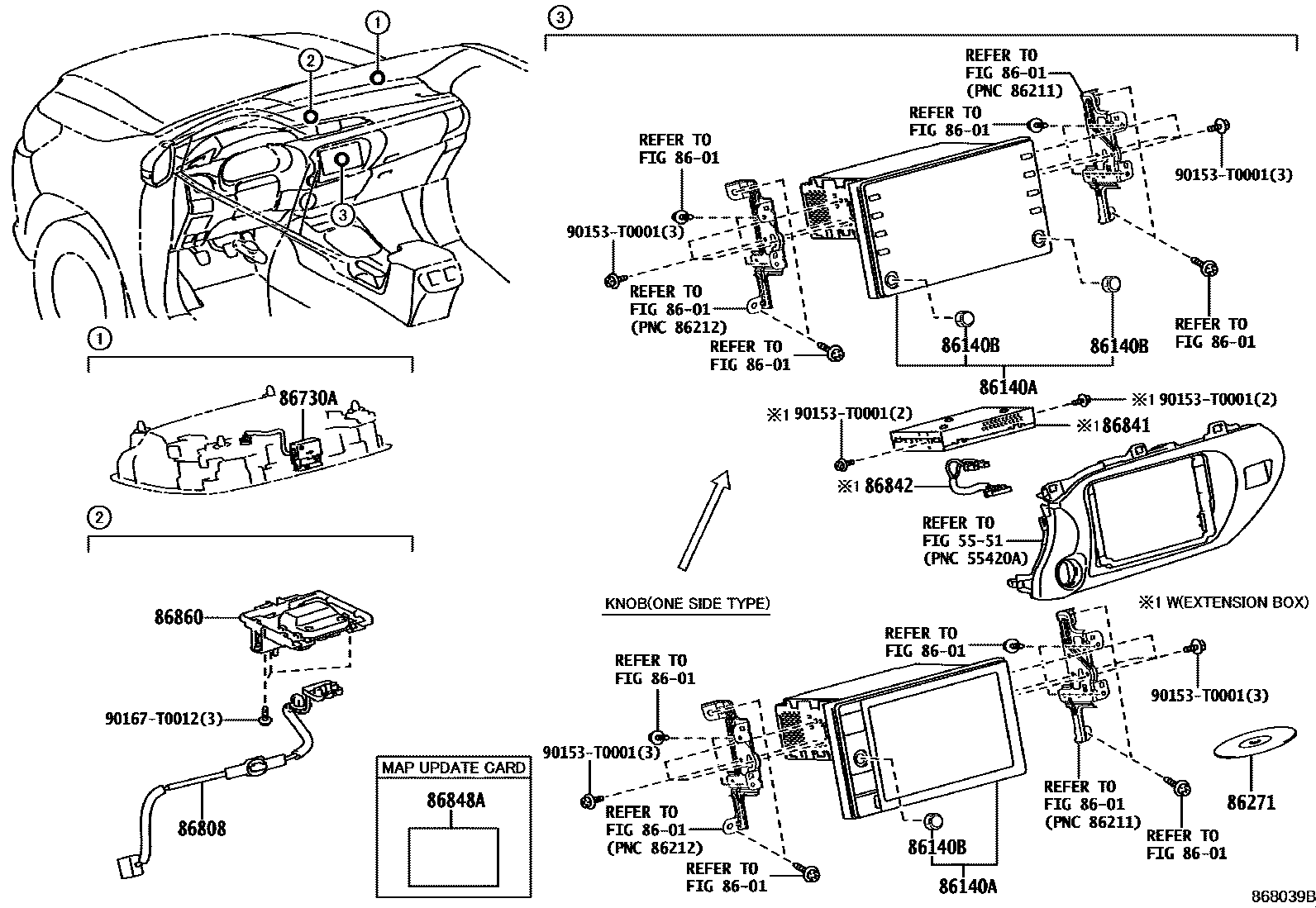

NAVIGATION & FRONT MONITOR DISPLAY
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN
PANASONIC
PANASONIC; PANASONIC,ASEAN GENERAL SPEC&AUDIO-*DA(8INCH) & *BT; PANASONIC,AUDIO-*DA(8INCH) & *BT
main86140-0KP50iGGN125,GUN135..6FC..BZAG;GUN126,135..AD..6F..(H,S)..LA;GUN126,TGN126..AD..(5F,6FC)..H;GUN125,136,TGN136..AD..(H,S)..LA; GGN125,GUN135..AD..6FC..LA;GUN125,126,13#..6F..S..BZAG; GUN126..6FC..S..BZAG202011-202110
PIONEER; PIONEER,ARGENTINA SPEC&AUDIO-*DA(8INCH) & *BT; PIONEER,AUDIO-*DA(8INCH) & *BT
DENSO TEN; DENSO TEN,AUDIO-*DA(8INCH) & *BT & ENTUNE
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86140-0KU50iGUN122,125..RHD..L..GEN; GUN126..RHD..6F..H..GEN;GUN112,12#,135,TGN121..(L,S)..TH; GUN126..RHD..6FC..GEN;GUN125..RHD..TD..(H,S)..GEN;GUN126,135..RHD..6F..(L,S)..GEN202006-202108
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN; DENSO TEN,OCEANIA GENERAL SPEC&AUDIO-*DA(8INCH) & *BT
main86140-0KY30iGUN125..LHD..L..GEN; GUN126,136..S..SA;GUN125,135..RHD..(SD,SX)..L;GUN125,126,LAN125,TGN126,136..LHD..(H,S)..SA; TGN120..GCC;GUN125..TD..6F..L..GCC; TGN121..5F..S;TGN121..6FC..H;TGN126..H..GCC;GUN125..6F..H..GCC202006-202108
DENSO TEN; DENSO TEN,AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,AFRICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,MOROCCO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,MOROCCO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
main86140-0KN50iGUN125,TGN121..LHD..L..GEN; GUN125..LHD..L..GEN; GUN125..LHD..TD..S..GEN; GUN125..VN;GUN125..TX..S..GEN;GUN122,135..S..(GEN,VN);GUN125..LHD..TD..H..GEN202006-202108
DENSO TEN; DENSO TEN,ASEAN GENERAL SPEC; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CAMBODIA SPEC; DENSO TEN,OCEANIA GENERAL SPEC; DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(8INCH) & *BT
DENSO TEN,AUDIO-*DA(8INCH) & *BT
main86140-0KP20iGUN125..LHD..TD..S..GEN; GUN125..TX..GEN;GUN125,126,135..LHD..TD..H..GEN202006-202108
DENSO TEN,AUDIO-*DA(8INCH) & *BT
DENSO TEN,AUDIO-*DA(8INCH) & *BT
PIONEER,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB
PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB
DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
PIONEER; PIONEER,ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT
PIONEER,AUDIO-AVN(8INCH) & *BT
PIONEER,AUDIO-AVN(8INCH) & *BT & DIGITAL TV; PIONEER,BRAZIL SPEC
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB
PIONEER,UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
DENSO TEN,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL; PIONEER,SPEAKER-9SPEAKER & JBL
DENSO TEN,SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(8INCH) & *BT & ENTUNE&SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,AUDIO-AVN(8INCH) & *BT & DIGITAL TV&SPEAKER-9SPEAKER & JBL; PIONEER,BRAZIL SPEC&SPEAKER-9SPEAKER & JBL
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
main86140-0KU80iGUN122..LHD..TD..L..GEN; GUN125..TX..S..GEN; GUN125..TX..S..GEN;GUN125..RHD..S..GEN;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..S..GEN; TGN121..GEN; TGN121..TD..GEN; TGN121..TD..GEN;GUN122..RHD..TD..GEN;GUN125..RHD..6F..L..GEN202006-202108
DENSO TEN,BOLIVIA, URUGUAY SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,BOLIVIA, URUGUAY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,COLOMBIA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,COSTA RICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,ECUADOR SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86140-0KW90supersedes 86140-0KY20iGGN125,GUN126..6FC..H..BZAG; GUN126,TGN138..6FC..S..BZAG; TGN128,138..H202011-202110
PIONEER; PIONEER,AUDIO-*DA(8INCH) & *BT; PIONEER,BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
PIONEER,BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL; PIONEER,SPEAKER-9SPEAKER & JBL
DENSO TEN,ARGENTINA SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86140-0KY60iGGN125,GUN112,122,125,126,TGN111,121,126..(H,S)..GCC; GUN112,122,125,TGN110,120,121,126..L..GCC202006-202108
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
main86140-0KY80iGGN125,GUN112,122,125,126,TGN111,121,126..(H,S)..GCC; GUN112,122,125,TGN110,120,121,126..L..GCC202006-202108
DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; DENSO TEN,UAE SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGINGMARKET) & DAB
DENSO TEN,MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,OCEANIA GENERAL SPEC&AUDIO-*DA(8INCH) & *BT; DENSO TEN,OCEANIA GENERAL(EURO 4 REGULATION)&AUDIO-*DA(8INCH) & *BT; DENSO TEN,OCEANIA(EURO 5 REGULATION)&AUDIO-*DA(8INCH) & *BT
DENSO TEN,EXPORT FROM SOUTH AFRICA&AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
main86140-F0280iGUN112,TGN110..L..GCC;GUN122,TGN120..TD..L..GCC; TGN126..TS..S;TGN126..H..GCC;GUN122..TD..S..GCC;GUN125,TGN121..(6F,6FC)..H..GCC202007-202108
DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,SUDAN SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90010-22129×2iGGN125,GUN122,125,126,TGN121,126..H..GCC; GUN125..6FC..S..GEN; GUN125..LHD..TD..H..GEN; GUN126,136..H..(ARL,VN); GUN126,136..S..ARL; GUN126..VN202006-202108
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT; SPEAKER-9SPEAKER & JBL; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
main90011-25323×2iGUN126..LHD..S..GEN;GUN125,126,13#..(L,S)..ARL;GUN126,136..RHD..H..(KEN,SA);GGN125,TGN121..RHD..(ARL,SA)202006-202111
main90011-25325iGGN125,GUN112,122,125,126,TGN111,121,126..(H,S)..GCC; GUN112,122,125,TGN110,120,121,126..L..GCC; GUN112,TGN110..L..GCC;GUN122,TGN120..TD..L..GCC; GUN122..RHD..GEN;GUN125..LHD..L..SA;GUN125..L..(GCC,GEN);GUN122..LHD..TD..L..GEN;GUN122,TGN126..LHD..L..(GCC,SA);GUN112,135,LAN125,TGN110,120,121,136..LHD..L..(GCC,GEN,SA); GUN125,135..RHD..SS..L; GUN125..LHD..L..GEN; GUN125..TX..S..GEN; GUN125..TX..S..GEN;GUN125..RHD..S..GEN;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..S..GEN; GUN126,136..S..SA;GUN125,135..RHD..(SD,SX)..L;GUN125,126,LAN125,TGN126,136..LHD..(H,S)..SA; TGN120..GCC;GUN125..TD..6F..L..GCC; TGN121..5F..S;TGN121..6FC..H;TGN126..H..GCC;GUN125..6F..H..GCC; TGN121..GEN; TGN121..TD..GEN; TGN121..TD..GEN;GUN122..RHD..TD..GEN;GUN125..RHD..6F..L..GEN; TGN121..TS..GEN; TGN126..TS..S;TGN126..H..GCC;GUN122..TD..S..GCC;GUN125,TGN121..(6F,6FC)..H..GCC202006-202108
AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); AFRICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET); BOLIVIA, URUGUAY SPEC&AUDIO-*DA(FOR EMERGING MARKET); BOLIVIA, URUGUAY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); CENTRAL AND SOUTH AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); COLOMBIA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); COSTA RICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); ECUADOR SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); MOROCCO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&AUDIO-*DA(FOR EMERGING MARKET); MOROCCO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&AUDIO-*DA(FOR EMERGING MARKET); STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET); SUDAN SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET) &DAB
main90011-25333×2iGUN126,136..AD..H..LA; GUN126,TGN126..AD..H..LA;GUN126,135..AD..6F..S..LA;GUN126,135,TGN138..6FC..S..BZAG;GUN125,136,TGN136..AD..(H,S)..LA; GUN126..6FC..S..BZAG; GUN126..H..BZAG;GUN135..AD..6FC..LA;GUN126,135..6F..S..BZAG;GUN125,136..(H,S)..BZAG;GGN125,TGN128,138..AD..H202011-202110
ARGENTINA SPEC&AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
86271DISC, DISC PLAYER
AUDIO-*DA(8INCH) & *BT & ENTUNE; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-*DA(8INCH) & *BT & ENTUNE; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-*DA(8INCH) & *BT; BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT; BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC
86730AMICROPHONE ASSY, TELEPHONE
main86730-20060iGUN126..RHD..6F..H..GEN;GUN125,135..RHD..(KS,SS)..S;GUN126,136,TGN136..RHD..(ARL,KEN,SA,TH);GGN125,GUN112,120,122,123,125,135,TGN121..RHD..(KD,SD,SX,TD,TS,TX)..(ARL,KEN,SA,TH)202006-202111
main86730-71040iGUN125..RHD..SS..S;GUN135..RHD..SD..L;GUN125..RHD..(SD,SX);GUN126..RHD..6F..H..GEN;GGN125,GUN126,13#,TGN136..RHD..(H,S)..SA202006-202109
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
main86808-0K051iGGN125,GUN122,125,126,TGN121,126..H..GCC; GGN125,GUN122,125,126,TGN121,126..TD..(H,S)..GCC; GUN125..6FC..S..GEN; GUN125..LHD..TD..H..GEN; GUN126,136,TGN126..TD..H..LA; GUN135..H..(PH,TH);GUN126..LHD..S..GEN;GUN135..TD..6FC..LA;GUN125,13#,TGN121..ARL;GUN126..(H,S)..(ARL,PH,TH,VN); GUN135..S..TH;GUN125..6FC..S..GEN;GUN126..H..(GCC,GEN);GUN125..(TS,TX)..(H,S);GUN125,135..TD..H..GEN;GUN125..LHD..TD..S..GEN;GUN125..TD..(H,S)..(GCC,TH);GGN125,GUN122,TGN121,126..TD..(H,S)..GCC; TGN126..H..GEN202006-202108
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT; CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
main86808-0K181iGUN126,TGN126..AD..H..LA;GUN126,135..AD..6F..S..LA;GUN126,135,TGN138..6FC..S..BZAG;GUN125,136,TGN136..AD..(H,S)..LA; GUN126..H..BZAG;GUN135..AD..6FC..LA;GUN126,135..6F..S..BZAG;GUN125,136..(H,S)..BZAG;GGN125,TGN128,138..AD..H202011-202110
AUDIO-*DA(8INCH) & *BT
86841COMPUTER, NAVIGATION
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; AUDIO-AVN(8INCH) & *BT & DIGITAL TV&SPEAKER-9SPEAKER & JBL; BRAZIL SPEC; BRAZIL SPEC&SPEAKER-9SPEAKER & JBL
86842WIRE, NAVIGATION, NO.1
86848ACARD, SERIAL NUMBER MAP UPDATE
AUDIO-*DA(8INCH) & *BT; BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT & ENTUNE; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DIGITAL TV; BRAZIL SPEC
AUDIO-AVN(8INCH) & *BT; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
ASEAN GENERAL SPEC&AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DAB
86860ANTENNA ASSY, NAVIGATION
main86860-0K040iGUN135..H..(PH,TH);GUN126..LHD..S..GEN;GUN135..TD..6FC..LA;GUN125,13#..(L,S)..ARL;GUN126..RHD..(SD,SS)..H;GGN125,GUN136,TGN121..RHD..(H,L)..(ARL,SA);GUN126..(KD,MMD,SX,TD,TS,TX)..(H,S)..(ARL,KEN,MMR,PH,SA,TH,VN)202006-202301
90153T0001
main90153-T0001
90167T0012
main90167-T0012
13 parts on this diagram · 1 diagram in section
