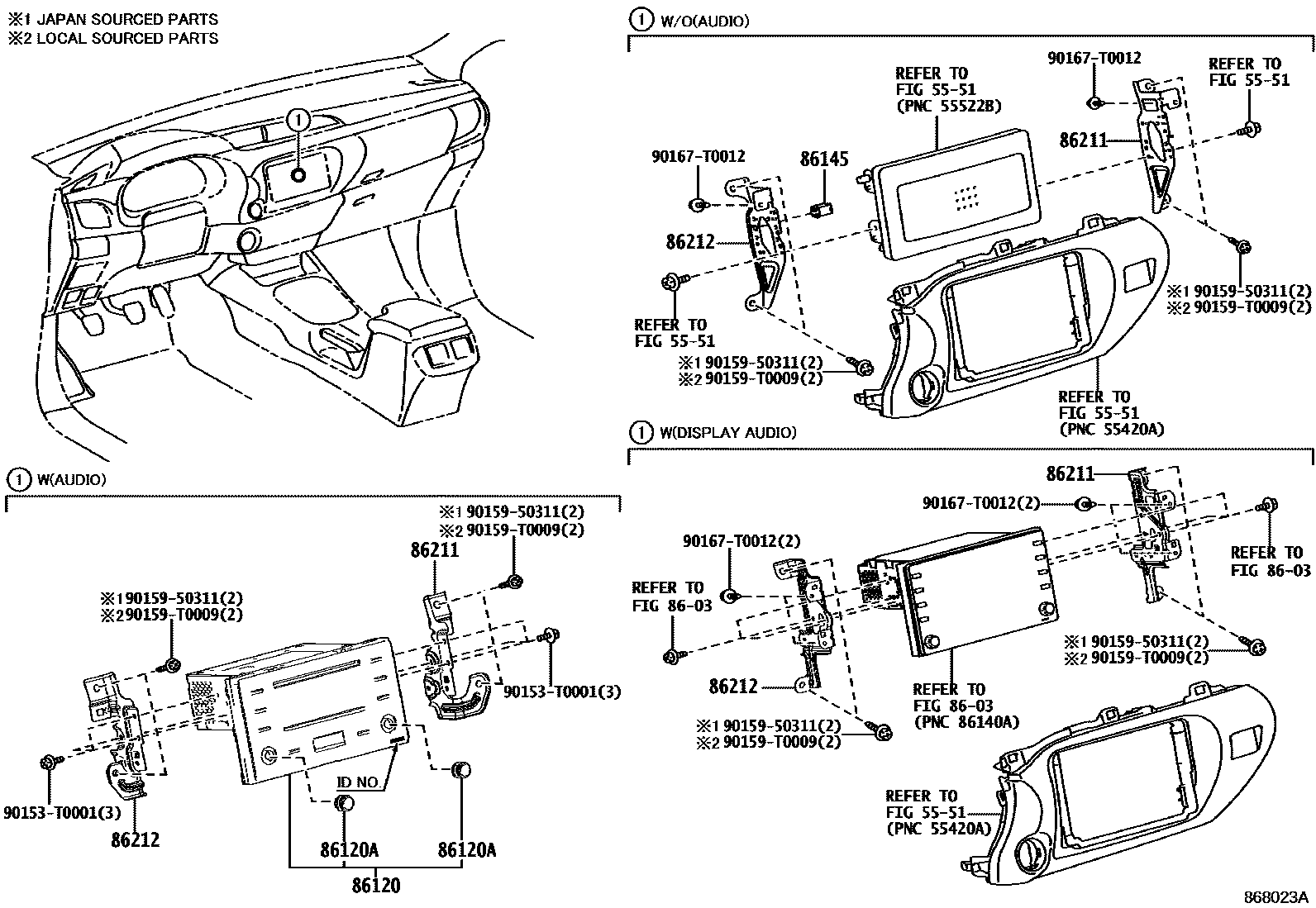

RADIO RECEIVER & AMPLIFIER & CONDENSER
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8603NAVIGATION & FRONT MONITOR DISPLAY
86120RECEIVER ASSY, RADIO
DENSO TEN,ID=100892,ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & RDS; DENSO TEN,ID=100892,ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & RDS&SPEAKER-4SPEAKER; DENSO TEN,ID=100892,AUDIO-AM/FM & CD & *BT & RDS
86120AKNOB, RADIO RECEIVER SWITCH
ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & RDS; ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD &*BT & RDS&SPEAKER-4SPEAKER; AUDIO-AM/FM & CD & *BT & RDS
86145CONNECTOR, ANTENNA MALE
main86145-52010iGUN125..AD..S..LA;GUN135..6FC..BZAG;GUN126,135..L..BZAG;GUN135..(AD,AS)..6F..LA;GUN125,TGN136..(AD,AS)..L;GUN126,136,TGN126..(AD,AS)..LA; TGN136..S..LA;GUN126,TGN138..6FC..S..BZAG202006-202110
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86211BRACKET, RADIO, NO.1
main86211-KK050supersedes 86211-KK100iGUN135..S..VN;TGN126..L..SA;GUN125..TX..S..GEN;GUN135..TD..6F..S..LA;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..(GEN,IDN,MA);GUN135..LHD..(L,S)..(PH,SA);GUN125,126..LHD..TD..H..GEN;GUN125..(KS,SS,TX)..6F..(H,L);GUN125..(TD,TS)..(GCC,LA,PH,VN);GUN122,TGN121..GCC,GEN,PH,PKN,SA;GUN125..LHD..(SD,TD)..L..(GEN,SA);GUN126..(MD,PD,PS,TD)..(GCC,LA,MA,PKN,TWN);GUN136,LAN125,TGN136..LHD..(SD,SS,TD)..(H,L);GUN135..(KS,SS,TD,TS)..(H,L)..(GEN,KEN,LA,SA,VN);GGN125,GUN112,TGN11#,120,126..(SS,TD,TS)..(GCC,GEN,IDN,LA,SA)202006-202201
main86211-KK100iGUN135..SS..S;GUN125..L..GHA;GUN126..(L,S)..(SA,TH);GUN126..RHD..6F..H..GEN;LAN125,TGN126,136..S..SA;GUN125..(GD,KS,SS,SX)..S;GUN125,126..LHD..H..(GHA,SA);GUN125..LHD..(SD,TD)..S..(GEN,SA);GUN112,120,122,123,125,13#,TGN121..RHD..(KD,SD,SX,TD,TS,TX)..(L,S)..(KEN,SA,TH)202006-202111
main86211-KK130iGUN126..6FC..S..BZAG;GUN125,TGN136..AD..S..LA;GUN126,136,TGN126..H..LA;GUN126,135..AD..6F..S..LA;GUN125,135,TGN138..6FC..S..(BZAG,GEN); GUN126..H..BZAG;GUN135..AD..6FC..LA;GUN126,135..6F..S..BZAG;GUN125,136..(H,S)..BZAG;GGN125,TGN128,138..AD..H202006-202110
AUDIO-*DA(8INCH) & *BT
86212BRACKET, RADIO, NO.2
main86212-KK050supersedes 86212-KK100iGUN125..AD..S..LA;GUN135..6FC..BZAG;GUN126,135..L..BZAG;GUN135..(AD,AS)..6F..LA;GUN125,TGN136..(AD,AS)..L;GUN126,136,TGN126..(AD,AS)..LA; TGN136..S..LA;GUN126,TGN138..6FC..S..BZAG202006-202110
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86212-KK100iGUN135..SS..S;GUN125..L..GHA;GUN126..(L,S)..(SA,TH);GUN126..RHD..6F..H..GEN;LAN125,TGN126,136..S..SA;GUN125..(GD,KS,SS,SX)..S;GUN125,126..LHD..H..(GHA,SA);GUN125..LHD..(SD,TD)..S..(GEN,SA);GUN112,120,122,123,125,13#,TGN121..RHD..(KD,SD,SX,TD,TS,TX)..(L,S)..(KEN,SA,TH)202006-202111
main86212-KK130iGUN135..H..(PH,TH);GUN126..LHD..S..GEN;GUN135..TD..6FC..LA;GUN125,13#..(L,S)..ARL;GUN126..RHD..(SD,SS)..H;GGN125,GUN136,TGN121..RHD..(H,L)..(ARL,SA);GUN126..(KD,MMD,SX,TD,TS,TX)..(H,S)..(ARL,KEN,MMR,PH,SA,TH,VN)202006-202301
90153T0001
main90153-T0001
9015950311
main90159-50311
90159T0009
main90159-T0009
90167T0012
main90167-T0012
11 parts on this diagram · 2 diagrams in section
