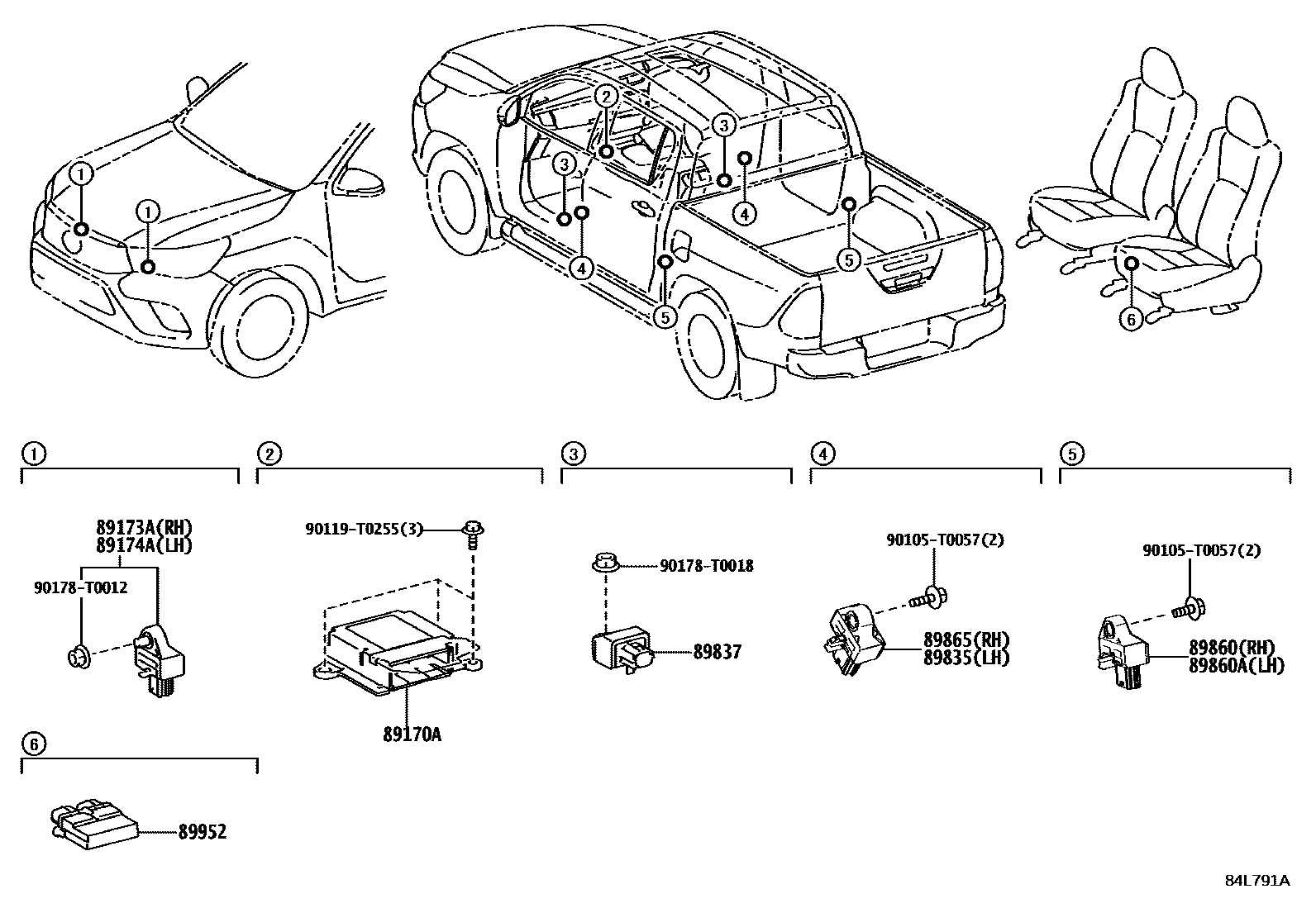

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K400iGUN135..L..SA;GUN125..6F..L..(GEN,GHA,SA); TGN126..S..SA;GUN125,135..KS..L;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..SA202006-202111
VEHICLE STABILITY CONT-WITHOUT
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main89170-0K470iGUN126..AS;GUN125,135..AS..LA;GUN126..AD..6F..L..LA;GUN126..AD..6FC..H..LA; TGN126..AS202011-202110
SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KA60iTGN120..SA;TGN121..GEN; TGN121..SA;GUN122..RHD..(GEN,SA);GUN112,122,TGN111,121..LHD..(H,S);GUN122..LHD..(SD,SS,TS)..L..(GEN,SA)202006-202109
VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)
main89170-0KB20iGUN125,135..TS..LA; GUN125..PH;TGN136..GEN;GUN125..TS..IDN; GUN125..TD..6F..L..GEN; GUN125..TD..6FC..L..GEN; GUN125..TS..6F..L..GEN202006-202108
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITHOUT; VEHICLE STABILITY CONT-WITHOUT; VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRP)
main89170-0KB50iTGN126..TS..LA;GUN126..(H,S)..PKN;GUN135..L..(GEN,VN);GUN125..6FC..L..GEN;GUN125,135..S..(IDN,MA,PH,TH)202006-202201
main89170-0KB80iGUN135..TD..L..LA;GUN135..TD..S..(LA,VN);GUN125,TGN126,136..TD..(LA,VN);GUN125,13#..(MD,TD)..H..(IDN,LA,MA,PH,TH);GUN126..(MD,MMD,TD)..(LA,MA,MMR,PH,TH,VN)202006-202301
main89170-0KC00iGUN112..IDN; GUN122,TGN110..IDN,PH; GUN122..LHD..TS..GEN; GUN122..LHD..TS..L..GEN; GUN122..TD..S..GEN; TGN121..TS..GEN202006-202108
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT; ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER); BOLIVIA, URUGUAY SPEC&VEHICLE STABILITY CONT-WITHOUT; CAMBODIA SPEC&VEHICLE STABILITY CONT-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); CAMBODIA SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITHOUT; COLOMBIA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); MEXICO SPEC; VEHICLE STABILITY CONT-WITHOUT
main89170-0KD20iGUN122..LHD..TD..L..GEN; GUN122..RHD..TD..GEN; GUN122..TD..S..GEN; TGN121..TD..GEN202006-202108
ASEAN GENERAL SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE &CURTAIN); BOLIVIA, URUGUAY SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); COLOMBIA SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ECUADOR SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KD40iGUN125,135..TX..S..TH; GUN125..TX..H; GUN125..TX..S..GEN; GUN126,135..TX..H..TH202006-202108
ASEAN GENERAL SPEC; ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BOLIVIA, URUGUAY SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); COSTA RICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KF60iGUN126..GCC;GUN125..L..GHA;GUN13#..(L,S)..SA;GUN126..RHD..S..(GEN,SA);GUN125..6FC..S..(GEN,SA);GUN126,136..RHD..(SS,TD)..H..(GEN,SA);GUN125..LHD..(SD,SS,TD,TX)..6F..(L,S)..(GEN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS)..6F..(GEN,KEN,SA);GGN125,GUN125,TGN126..(GD,KS,SX,TD,TS)..(H,S)..(GCC,GHA,KEN,SA)202006-202111
main89170-0KF70iGUN126..LHD..GEN;GGN125,GUN126,136..(GD,KD,SD)..H;GUN125,135..LHD..(SD,TD)..H..(GEN,SA)202006-202111
main89170-0K240supersedes 89170-0KC10iGUN112,120,122,123,TGN121..TH; GUN112..IDN; GUN122..LHD..TS..GEN; GUN122..LHD..TS..L..GEN; GUN122..TD..S..GEN; TGN121..TS..GEN202006-202108
ASEAN GENERAL SPEC; ASEAN GENERAL SPEC&REAR HEADREST-WITH(RH/LH/CENTER); BOLIVIA, URUGUAY SPEC; CAMBODIA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); CAMBODIA SPEC&REAR HEADREST-WITH(RH/LH/CENTER); CENTRAL AND SOUTH AMERICA SPEC; COLOMBIA SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); ECUADOR SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); MEXICO SPEC&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL); VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)
VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRP)
ASIA COLD COUNTRY SPEC&VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE& CURTAIN); NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(*DRS &SIDE & CURTAIN)
VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&POWER DOOR LOCK-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(*DRS &SIDE & CURTAIN)
main89170-0KB60iGUN125..RHD..TD..6F..L..GEN; GUN125..TD..6F..L..GEN; GUN125..TD..6FC..L..GEN; TGN136..GEN;GUN125..TD..L..IDN202006-202108
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER); CAMBODIA SPEC&VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BOLIVIA, URUGUAY SPEC&VEHICLE STABILITY CONT-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEATCOVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&VEHICLE STABILITY CONT-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITHOUT&FRONT SEAT-SEPARATETYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); POWER DOOR LOCK-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BOLIVIA, URUGUAY SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIRBAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BOLIVIA, URUGUAY SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRSAIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VEHICLE STABILITY CONT-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); COLOMBIA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VEHICLE STABILITY CONT-WITHOUT
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VEHICLE STABILITY CONT-WITHOUT
VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG); VEHICLE STABILITY CONT-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
main89173-09B20iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
89835SENSOR, DOOR SIDE AIRBAG, LH
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 3 diagrams in section
