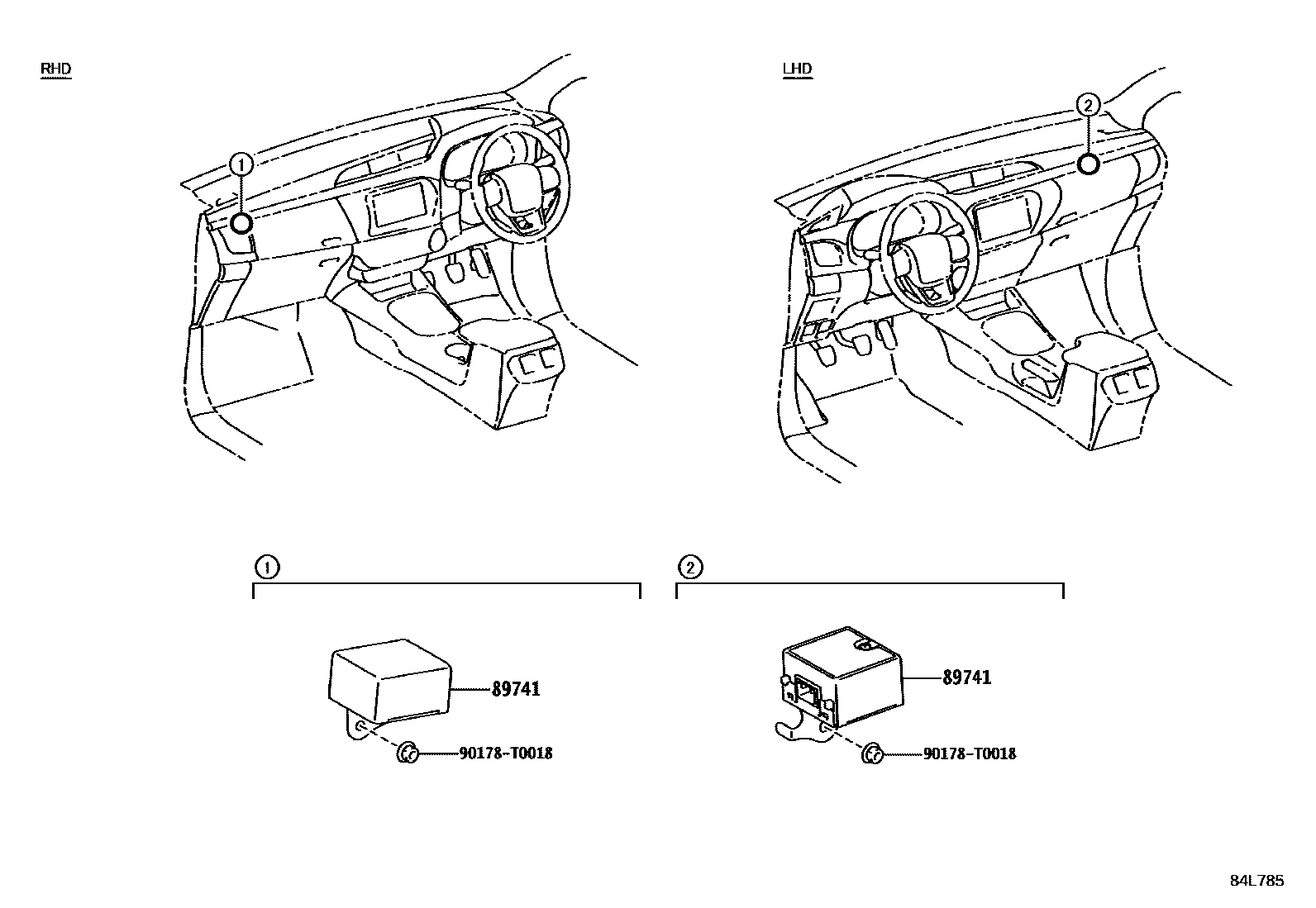

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-0K280iTGN126..L..GEN;GUN126..TD..6FC..L;GUN125..H..(GCC,SA);GUN125,135..L..(GHA,VN);GUN125,135..LHD..(GD,SD,SS,SX,TD,TX)..S;GUN126..LHD..(GD,SD,TD)..(H,S)..(GCC,GHA,LA,SA);GGN125,GUN112,122,136,LAN125,TGN111,121,126,136..LHD..(SD,TD,TS)..(H,S)202006-202111

main89741-0K290iGUN125..6FC..S..MA;GUN135..(SD,SS)..S;GUN125..RHD..TD..6F..S;GUN126..RHD..S..(GEN,PKN);GUN125..RHD..6FC..(GEN,IDN,SA);GUN126..RHD..(SD,SS,SX,TS)..CBU;GUN125..RHD..(SD,SS,TS,TX)..6F..(H,S);GUN135..(SX,TD,TX)..(L,S)..(GEN,SA,TH);GUN125..(KD,MD,MS,SX,TD)..L..(IDN,KEN,MA,SA);GGN125,GUN112,120,122,123,136,TGN120,121,136..RHD..(SA,TH)202006-202201

main89741-0K300iGUN126..6F..L..LA; TGN136..GEN202006-202108

MEXICO SPEC&WIRELESS DOOR LOCK-WITH

main89741-0K310iGUN125,126,13#,TGN121..(L,S)..ARL202006-202108

90178T0018

main90178-T0018

2 parts on this diagram · 3 diagrams in section
