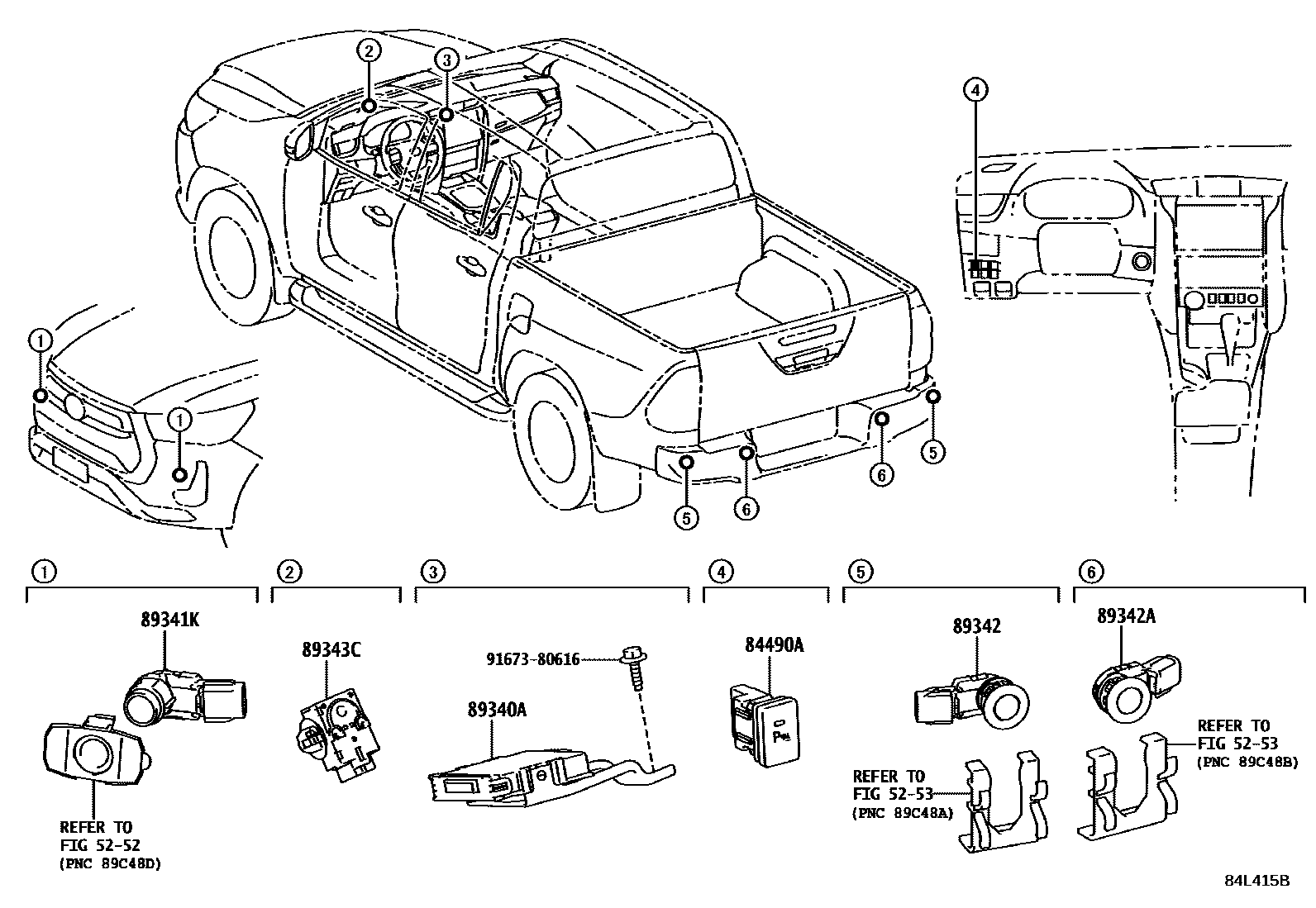

CLEARANCE & BACK SONAR
5252FRONT BUMPER & BUMPER STAY
5253REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-0K030iGUN125..VN;GUN125..TX..H;GUN125..RHD..TD..H..GEN;TGN126..TD..H..(GEN,LA);GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..(MMD,TD,TX)..H..(ARL,GCC,GEN,LA,MMR,PH,TH,VN)..CBU202006-202301
main84490-0K060iGUN125..AD..L..LA;GUN135..AD..6F..LA;GUN135..S..(BZAG,SA);GUN125,126,136,TGN126,13#..(AD,SD,SS,SX)..S..CBU; GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202009-202110
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-0K030iGUN126..TWN;TGN126..(AD,TD)..S;GUN126..S..(BZAG,LA);GUN135..6F..S..(BZAG,LA);GUN125,135..LHD..6FC..(BZAG,SA);GUN125,136,TGN13#..LHD..(AD,SX,TD,TX)..S..(BZAG,GEN,LA,SA); GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202006-202110
CLEARANCE & BACK SONAR-WITH
main89340-0K100iGGN125,GUN125,126,13#..RHD..(SD,SS,SX,TD,TX)..H..(ARL,GEN,SA,TH)..CBU; GUN125..RHD..(TD,TX)..S;GUN125,135..RHD..SD..6FC;GUN136,TGN136..RHD..S..CBU;GUN126..RHD..(SD,TD)..S..CBU;GUN135..RHD..(SS,SX,TD,TX)..S202006-202109
CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
SUPER WHITE 2,040
main89341-06080-A2×2iGUN126..TWN;GUN136..S..CBU;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN125,135..SD..6FC;GUN126..S..(BZAG,LA);GUN126,TGN136..RHD..(SD,TD)..S..CBU;GUN135..(AD,SX,TD,TX)..S..(BZAG,SA,TH);GUN125,TGN13#..(AD,SX,TD,TX)..S..(BZAG,GEN,IDN,LA,SA,TH); GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202006-202110
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main89341-06080-B2×2iGUN126..TWN;TGN136..RHD;GUN136..S..CBU;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN125,135..SD..6FC;GUN126..S..(BZAG,LA);GUN126..RHD..(SD,TD)..S..CBU;GUN135..(AD,SS,SX,TD,TX)..S..(BZAG,SA,TH);GUN125,TGN13#..(AD,SX,TD,TX)..S..(BZAG,GEN,IDN,LA,SA,TH); GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202006-202110
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3; GRAY ME.,1G3
main89341-06080-B3×2iGUN125..VN;GUN125..(SD,TX)..H;GUN125..RHD..TD..H..GEN;TGN126..TD..H..(GEN,LA);GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..(GCC,SA);GUN126,13#..(GD,SD,SS,SX,TD,TX)..H..(ARL,GCC,GEN,GHA,LA,PH,SA,TH,VN)..CBU202006-202111
SILVER ME.,1D6
main89341-06080-C0×2iGUN125..VN;GUN125..(SD,TX)..H;GUN125..RHD..TD..H..GEN;TGN126..TD..H..(GEN,LA);GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..(GCC,SA);GUN126,13#..(MMD,SD,SS,SX,TD,TX)..H..(ARL,GCC,GEN,LA,MMR,PH,SA,TH,VN)..CBU202006-202206
ATTITUDE BLACK MC.,218
main89341-06080-D2×2iGUN125..H..SA;GUN125,135..S..VN;GUN125..6FC..H..GCC;GUN135..AD..6FC..LA;TGN126..H..(GEN,LA);GUN125..RHD..TD..H..GEN;GGN125,GUN126,13#,TGN128,138..(AD,SD,SS,SX,TD)..H..(ARL,BZAG,GCC,GEN,LA,PH,SA,TH,VN)..CBU; GUN126..TWN;TGN136..RHD;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN125..TX..S..GEN;GUN125,135..SD..6FC;GUN126..S..(BZAG,LA);GUN136..(AD,SD,TD)..S;GUN126..RHD..(SD,TD)..S..CBU;GUN135..(AD,SS,SX,TD)..S..(BZAG,SA,TH);GUN125,TGN13#..(AD,SX,TD)..S..(BZAG,GEN,IDN,LA,SA,TH)202006-202110
CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6; CRIMSON SPARK RED ME.,3T6
main89341-06080-D5×2iGUN125..VN;GUN125..TX..H;TGN126..H..(GEN,LA);GUN125..RHD..TD..H..GEN;GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..(GCC,LA);GUN126,13#..H..(ARL,GCC,GEN,LA,MMR,PH,TH,VN)..CBU; GUN126..TWN;GUN126..S..LA;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN126,135..RHD..(TD,TX)..S..CBU;GUN125,136,TGN136..S..(ARL,GEN,IDN,LA,TH)..CBU202006-202109
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; EMOTIONAL RED 2,3U5
main89341-06080-E3×2iGUN125..LHD..6FC..SA;GUN135..AD..6F..S..LA;GUN125,126,TGN126,136..(AD,SX)..S..(LA,SA); GUN126..TWN; GUN135..AD..6FC..LA;GGN125,GUN125,126,136,TGN126..LHD..(AD,SD)..H..(LA,SA); TGN126..TD..S..GCC202006-202108
CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8; ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
main89341-06080-J2×2iGUN125..LHD..6FC..SA;GUN135..AD..6F..S..LA;GUN125,126,TGN126,136..(AD,SX)..S..(LA,SA); GUN126..TWN; GUN135..AD..6FC..LA;GGN125,GUN125,126,136,TGN126..LHD..(AD,SD)..H..(LA,SA); TGN126..TD..S..GCC202006-202108
CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2; NEBULA BLUE ME.,8X2
main89341-06080-J3×2iGUN125..VN;GUN125..TX..H;TGN126..H..(GEN,LA);GUN125..RHD..TD..H..GEN;GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..(GCC,LA);GUN126,13#..H..(ARL,GCC,GEN,LA,MMR,PH,TH,VN)..CBU; GUN126..TWN;GUN126..S..LA;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN126,135..RHD..(TD,TX)..S..CBU;GUN125,136,TGN136..S..(ARL,GEN,IDN,LA,TH)..CBU202006-202109
CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-71040×2iGUN126..TWN;TGN136..RHD;GUN136..S..CBU;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN125,135..SD..6FC;GUN126..S..(BZAG,LA);GUN126..RHD..(SD,TD)..S..CBU;GUN135..(AD,SS,SX,TD,TX)..S..(BZAG,SA,TH);GUN125,TGN13#..(AD,SX,TD,TX)..S..(BZAG,GEN,IDN,LA,SA,TH); GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202006-202110
CLEARANCE & BACK SONAR-WITH
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-71030×2iGUN126..TWN;TGN136..RHD;GUN136..S..CBU;GUN135..6F..S..LA;TGN126..(AD,TD)..S;GUN125,135..SD..6FC;GUN126..S..(BZAG,LA);GUN126..RHD..(SD,TD)..S..CBU;GUN135..(AD,SS,SX,TD,TX)..S..(BZAG,SA,TH);GUN125,TGN13#..(AD,SX,TD,TX)..S..(BZAG,GEN,IDN,LA,SA,TH); GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H202006-202110
CLEARANCE & BACK SONAR-WITH
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010iGUN125..VN;GUN125..(SD,TX)..H;GUN125..RHD..TD..H..GEN;TGN126..TD..H..(GEN,LA);GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..(GCC,SA);GUN126,13#..(MMD,SD,SS,SX,TD,TX)..H..(ARL,GCC,GEN,LA,MMR,PH,SA,TH,VN)..CBU202006-202301
9167380616
main91673-80616
9 parts on this diagram · 2 diagrams in section
