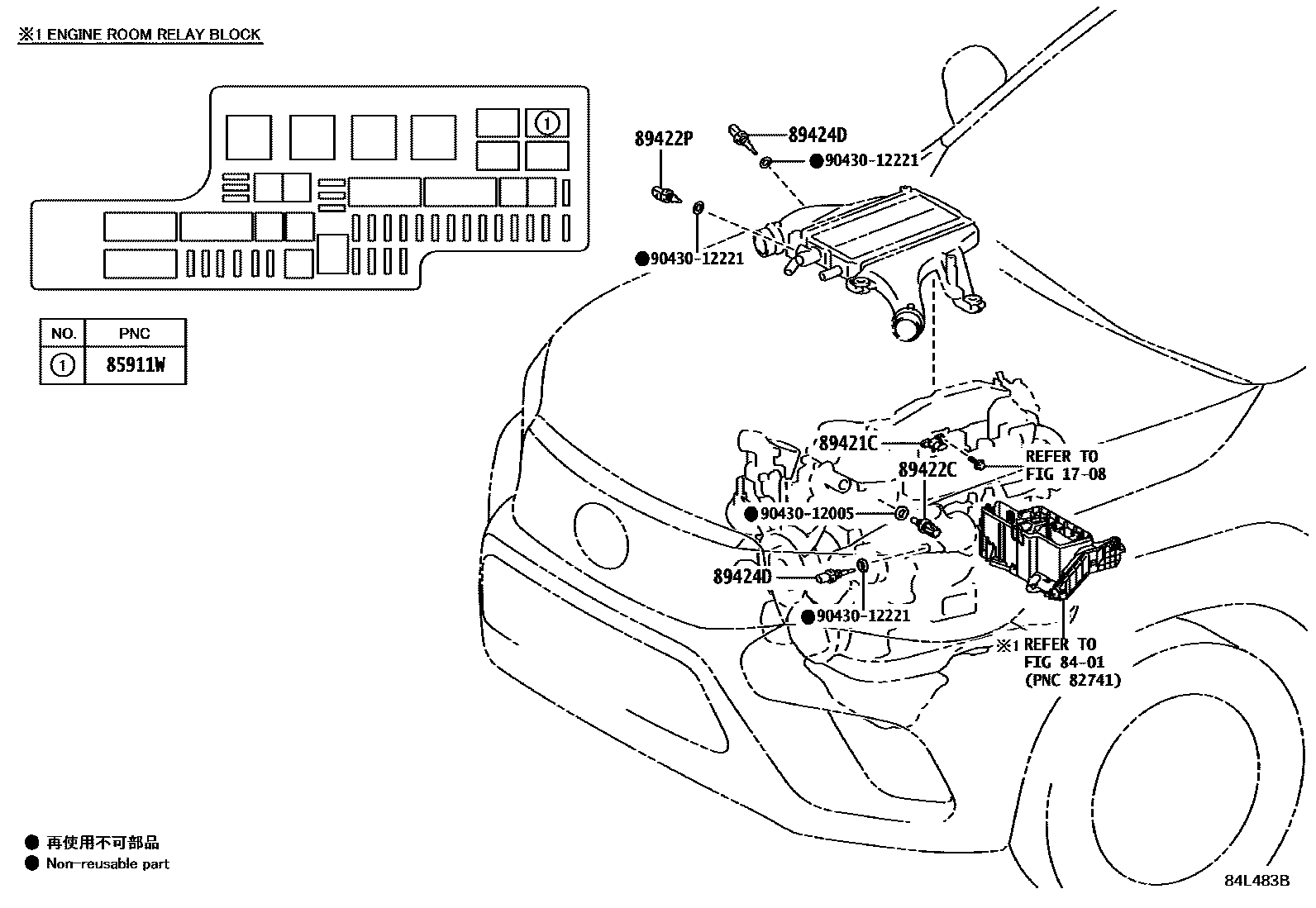

ELECTRONIC CONTROLED DIESEL (ECD)
1708VACUUM PIPING
8401SWITCH & RELAY & COMPUTER
85911WRELAY, ELECTRONIC DRIVER UNIT
(J)
(L)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89422PSENSOR, WATER TEMPERATURE
main89422-33030iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
89424DSENSOR, INLET AIR TEMPERATURE
main89424-60020iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,INTAKE SIDE; EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,INTERCOOLER SIDE; INTERCOOLER SIDE,INTAKE SIDE
9043012005
main90430-12005
9043012221
main90430-12221
9 parts on this diagram · 5 diagrams in section
