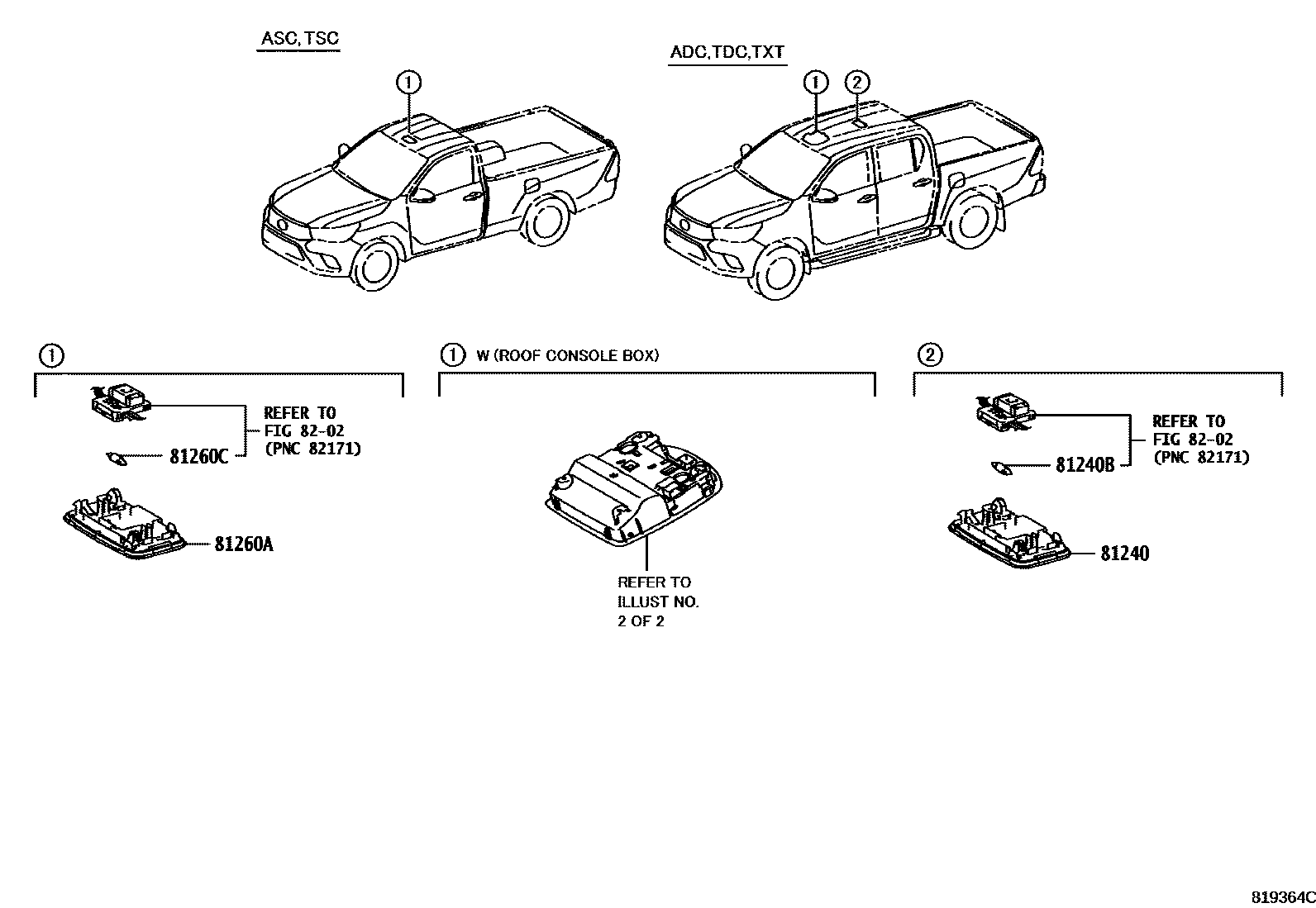

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
main81240-0K070-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..6FC..H..GCC;GUN125..TD..(L,S)..GCC;GUN122,TGN120,121,126..TD..GCC202006-202108
LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20,3#
main81240-0K070-C0iGUN136..(SD,SX)..H;GUN126,136..TD..6FC..H..ARL..CBU;GUN125,135..TD..6F..H..(GCC,GEN,PH);GUN126..(SD,SX,TD)..6F..H..(ARL,GCC,GEN,PH,SA);GGN125,GUN126,135..(MD,MMD,SD,SX,TD,TX)..6FC..H..(GCC,GEN,MA,MMR,PH,SA,TH,TWN,VN)202006-202110
BLACK,TRIM21
81240BBULB, ROOM LAMP, NO.1
main90981-14011iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,SX,TD,TX202006-202301
12V 8W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#; LT.GRAY,TRIM20
BLACK,TRIM21
LT.GRAY,TRIM2#
BLACK,TRIM21
main63650-0K680-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125,135..TD..H..GEN;GUN126..LHD..6F..H..GEN;GUN126..6FC..H..(GEN,TWN); GUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC; GUN126..VN;GUN126..RHD..6F..H..GEN; TGN126..H..GEN202006-202108
ASIA COLD COUNTRY SPEC,LT.GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT.GRAY,TRIM20; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main63650-0K680-C0iGUN126..VN;GUN126..RHD..6F..H..GEN; GUN135..H..GEN;GUN125..TD..6F..H;GUN126..LHD..6F..H..(GCC,GEN);GGN125,GUN126..6FC..H..(GCC,GEN,TWN)202006-202108
AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21; BLACK,TRIM21
LT.GRAY,TRIM20
BLACK,TRIM21
main63650-0K700-B0iGUN125..6FC..GEN;GUN126..RHD..S..GEN;GUN122,125,135..RHD..TD..MTM..(L,S)..GEN; GUN125..6FC..S..GEN; GUN125..RHD..TD..H..GEN;GUN126..RHD..6FC..H..GEN; GUN125..TS..H;GUN125..6FC..S..GEN; GUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN126..RHD..6F..H..GEN;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT,LT.GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT,LT.GRAY,TRIM20; AUDIO-*DA(FOR EMERGING MARKET),LT.GRAY,TRIM2#; AUDIO-*DA(FOR EMERGING MARKET),LT.GRAY,TRIM20; LT.GRAY,TRIM20
main63650-0K700-C0iGUN125..RHD..TD..H..GEN;GUN126..RHD..6FC..H..GEN; GUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN126..RHD..6F..H..GEN;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM21; BLACK,TRIM21
main63650-0K771-B0iGUN126,136..H..BZAG;GGN125,TGN128,138..AD..H; GUN126..6FC..S..BZAG;GUN125,LAN125,TGN126,136..LHD..S..SA202009-202110
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS),LT.GRAY,TRIM2#; LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM2#
81260CBULB(FOR MAP LAMP)
12V 8W
main99132-12050×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD; GUN122..SA..IV3;GUN122..TS..GEN;GUN125,135,TGN121..(AS,SS,TS)..MTM..L..(BZAG,GEN,LA,SA);GUN122,126,LAN125,TGN126,136..LHD..(AS,SS,TS)..(BZAG,LA,SA); GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125,135,TGN121..(AS,SS,TS)..MTM..L..(BZAG,GEN,LA,SA);GUN122,126,LAN125,TGN126,136..LHD..(AS,SS,TS)..(BZAG,LA,SA)202006-202110
12V 5W; 12V 5W,FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX); 12V 5W,FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOREMERGING MARKET)
8202WIRING & CLAMP
5 parts on this diagram · 2 diagrams in section
