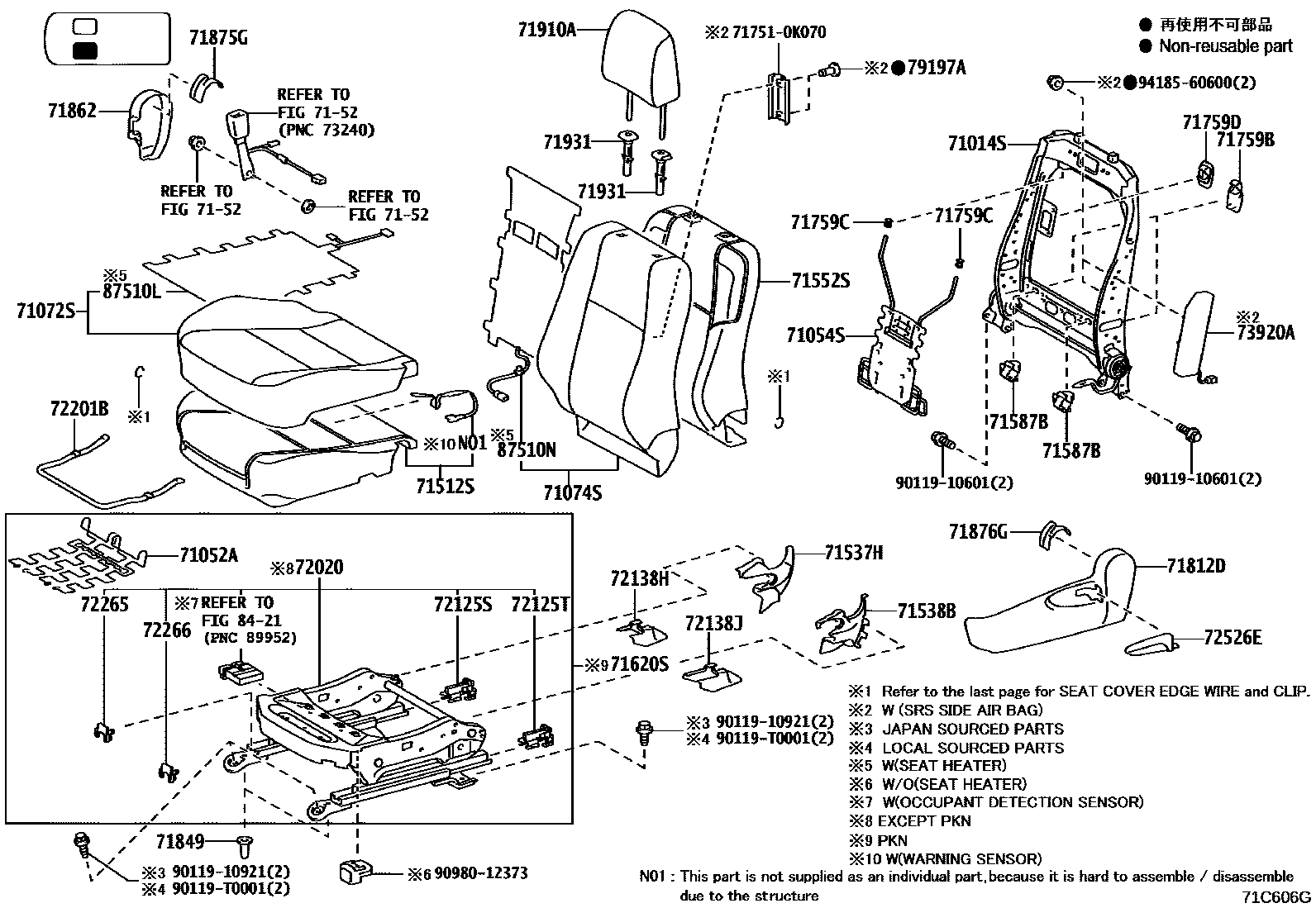

SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K340iGUN126..TX..ARL;GUN125..6FC..L..GCC;GUN135..TD..6F..S..LA;TGN126..TD..5F..S..GCC;TGN121..6FC..(L,S)..CBU;GUN125..TD..S..(GCC,LA);GUN126..RHD..6FC..S..GEN;TGN121..TD202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71014-0K460iGUN126..SX;GUN125,136..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..S;GUN122,126,136,TGN136..SD..(L,S)202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
SEAT COVER MATERIAL-FABRIC(HI)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-NATURAL LEATHER
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06070iGUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);G202006-202301
main71051-0D060iGUN125..GD,SX;GUN135..S..SA;GUN125..(KS,SD,SS)..(H,S);GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION)
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K040iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIRBAG-WITH(*DRP),BLACK,TRIM2#
main71072-0KG60-C1iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN112,122,123,126,TGN110,121..TS..(IDN,TH)202006-202108
BLACK,TRIM2#
main71072-0KG70-C2iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)202006-202108
BLACK,TRIM2#
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT HEATER-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71072-0KT30-C0iGUN135..TD..6F..S..LA;GUN122..LHD..TD..L..GEN;GUN135..(TD,TS)..L..(ARL,LA);GUN126,TGN126..TD..(L,S)..LA;GUN125,TGN121,136..(TD,TS,TX)..(ARL,LA)202006-202108
BLACK,TRIM2#
BLACK,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71072-0KW20-C0supersedes 71072-0KJ60-C2iGUN125..RHD..TD..H..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125..RHD..S..(GEN,IDN)202006-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM
main71072-0KX61-C0iGUN135..6FC..BZAG;TGN126..AD..(L,S);GUN135..(AD,AS)..6F;GUN125,126,136,TGN136..(AD,AS)..(L,S)202011-202110
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIRBAG-WITH(*DRP),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION),BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM20
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/NEUTRAL WARM GRAY,TRIM21
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK/GRAY,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
RUGGED X PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K430-C5iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN112,122,123,126,TGN110,121..TS..(IDN,TH)202006-202108
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),MAROON,TRIM3#
SEAT HEATER-WITHOUT,BLACK,TRIM2#
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM
main71074-0K632-21supersedes 71074-0K622-21iGUN125..LHD..TD..H..GEN;GUN125,126,135..H..(IDN,MMR,TH)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71074-0K810-C5iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..S;GUN122,126,136,TGN136..SD..(L,S)202009-202111
BLACK,TRIM2#
main71074-0K890-C7iGUN126..(KD,SD)..6F..H;GUN126..(GD,SD)..6FC..H;GGN125,GUN125,136..SD..H202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71074-0KG31-C7iGUN135..TD..6F..LA;GUN122..LHD..TD..L..GEN;GUN125,126,TGN126,136..TD..(L,S)..LA202006-202108
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71074-0KN21-C3iGUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136,TGN126,136..AD..(L,S)202011-202110
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIRBAG-WITH(*DRP),BLACK,TRIM2#
BLACK,TRIM2#
main71074-0KP20-D1iTGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC202006-202108
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71074-0K240-C4iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN202006-202108
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),MAROON,TRIM3#
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIRBAG-WITH(*DRP),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM21
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM21
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK,TRIM2#
RUGGED X PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0K031iGUN126..RHD..6F..S..GEN;GUN126..RHD..H..(GEN,TH);GUN120,122,135..(TD,TX)..TH;GUN125..RHD..(TD,TX)..(H,S)202006-202108
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71502-0K050iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN112,122,123,126,TGN110,121..TS..(IDN,TH)202006-202108
main71502-0K080iGUN125..SX..L;GUN126,136..SS..H;GUN125,126,13#,TGN136..RHD..S..(KEN,SA)202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71512-0K081iGUN136..TD,TX;GUN125..TX..H;TGN126..TD..H;GUN135..TD..6FC..LA;GUN135..LHD..(GEN,PH,VN);GUN126..LHD..TD..H..(GEN,LA);GGN125,GUN122,125,TGN121..H..GCC;GUN125,126..LHD202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71512-0K240iGUN135..6FC..BZAG;GUN135..(AD,AS)..6F;GUN125,126,136,TGN126,136..(AD,AS)..(L,S)202011-202110
main71512-0K571iGUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SEAT COVER MATERIAL-FABRIC(HI)
SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
BLACK,TRIM2#,3#
main71537-02200-C0iGUN135..L..SA;GUN125,TGN121..LHD..SD..L;GUN122,125,TGN120..RHD..(KD,SD,SS)..L202009-202111
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
main71537-0K100-C0iGUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136,TGN126,136..AD..(L,S)202011-202110
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02110-C0iGUN135..L..SA;GUN125,TGN121..LHD..SD..L;GUN122,125,TGN120..RHD..(KD,SD,SS)..L202009-202111
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK
BLACK,TRIM2#,3#
main71538-0K080-C0iGUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136,TGN126,136..AD..(L,S)202011-202110
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71552-0K140iGUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN112,122,123,126,TGN110,121..TS..(IDN,TH)202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71552-0K160iGUN135..TD..6F..LA;GUN122..LHD..TD..L..GEN;GUN125,126,TGN126,136..TD..(L,S)..LA202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)
main71552-0K200iGUN135..H;GUN125..VN;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..TD..6FC..(LA,VN);GUN125,126,136,TGN126..(MMD,TD,TX)..H..(IDN,LA,MMR,PH,TH,VN)202006-202301
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS)
main71552-0K350iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..S;GUN122,126,136,TGN136..SD..(L,S)202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIRBAG-WITH(*DRP)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
SEAT COVER MATERIAL-VINYL LEATHER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)&SEAT HEATER-WITHOUT & WITH(SEATVENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K040×4iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71759BHOOK, FRONT SEATBACK
main71759-0K140×4iGUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136,TGN126,136..AD..(L,S)202006-202110
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K080×4iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
71759DHOOK, FRONT SEATBACK, NO.2
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06390-C0iGUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)202006-202110
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71812-0K100-C0iGUN122..LHD..TD..L..GEN;GUN135..(AD,TD)..6F..LA;GUN125,135..H..(IDN,MA,TH);GUN135..(AD,TD)..(ARL,BZAG);GUN126,136..(MD,TD,TX)..(ARL,MA,TH);GUN126,136..(AD,TD)..(L,S202006-202110
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
BLACK,TRIM2#
main71812-0K130-C0iGUN122..RHD..TD..GEN;GUN125..(MS,TS)..6F..L..(GEN,MA);GUN112,122,123,126,TGN110,121..(PD,PS,TS)..L..(IDN,PKN,TH)202006-202201
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#,3#
main71812-0K300-C0iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..S;GUN122,126,136,TGN136..SD..(L,S)202009-202111
BLACK,TRIM2#
main71812-0K330-C0iGUN122..LHD..SS;GUN125,126,13#,TGN136..(KS,SS)..(H,S);GUN125,135,LAN125,TGN121,126..LHD..L..SA202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2iGUN125..GD,SX;GUN135..S..SA;GUN125..(KS,SD,SS)..(H,S);GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71848-47010×2iGUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);G202006-202301
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM2#,3#
main71862-0K120-C0iGUN122..RHD..TD..GEN;GUN125..(MS,TS)..6F..L..(GEN,MA);GUN112,122,123,126,TGN110,121..(PD,PS,TS)..L..(IDN,PKN,TH)202006-202201
BLACK,TRIM2#
main71862-0K140-C0iGUN125..GD,SX;GUN125,LAN125,TGN126..SD..S;GGN125,GUN122,136,TGN136..SD,SX;GUN126,135..RHD..(KD,SD,SX)..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
main71862-0K240-C0iGUN125..TX..S..GEN;GUN135..TD..6F..LA;GUN125,135..RHD..(TD,TX);GUN122,125..LHD..TD..L..GEN;GUN122..(TD,TX)..L..(PH,TH);GUN126..RHD..(PD,TD,TX)..(H,S);GUN125,126..TD202006-202201
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
BLACK,TRIM2#,3#
main71875-0K120-C0iTGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71875-0K160-C0iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71876-0K120-C0iGUN126,136..AD..LA;GUN126,136..AD..(L,S)..BZAG;GUN125,135,TGN126,128,13#..AD202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71876-0K160-C0iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),MAROON,TRIM3#
BLACK,TRIM2#
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM
main71910-0KC00-C2×2iGUN125..LHD..TD..H..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135..H..(IDN,MMR,TH)202006-202206
BLACK,TRIM2#
main71910-0KC60-C2×2iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..S;GUN122,126,136,TGN136..SD..(L,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
main71910-0KC80-C0×2iGUN126..(KD,SD)..6F..H;GUN126..(GD,SD)..6FC..H;GGN125,GUN125,136..SD..H202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main71910-0KK80-C0×2iGUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136,TGN126,136..AD..(L,S)202011-202110
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71930-47050-C5×2iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
W(LOCK),BLACK,TRIM2#
W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
main71931-47030-C4×2iGUN125..GD,SX;GUN135..(SD,SX)..S;GUN125,LAN125,TGN126..SD..(H,S);GGN125,GUN122,126,136,TGN136..GD,KD,SD,SX202009-202111
W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main72020-0K070iGUN125..TX..H;GUN135..TD..6FC..LA;GUN135..LHD..(GEN,PH,VN);GUN126,TGN126..LHD..TD..H;GUN125,126..LHD..TD..S..(GEN,VN);GGN125,GUN122,125,136,TGN121..TD..H..(GCC,LA)202006-202108
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main72020-0K180iGUN135..6FC..BZAG;GUN135..(AD,AS)..6F;GUN125,126,136,TGN126,136..(AD,AS)..(L,S)202011-202110
SEAT COVER MATERIAL-FABRIC(HI)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
SEAT COVER MATERIAL-NATURAL LEATHER
72125SCOVER, FRONT SEAT TRACK, UPPER REAR RH
SEAT COVER MATERIAL-FABRIC(HI)
main72265-0K010iGUN126..6FC..H..GEN;GUN126..LHD..6F..H..GEN;GUN135,TGN126..H..(GEN,LA);GUN125,TGN128,138..(AD,TX)..H;GUN125,TGN136..AD..(5F,6FC)..S;GUN126,136..(AD,SD,TD)..H..(ARL,202006-202110
FOR POWER SEAT
72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH
SEAT COVER MATERIAL-FABRIC(HI)
main72265-0K010iGUN126..6FC..H..GEN;GUN126..LHD..6F..H..GEN;GUN135,TGN126..H..(GEN,LA);GUN125,TGN128,138..(AD,TX)..H;GUN125,TGN136..AD..(5F,6FC)..S;GUN126,136..(AD,SD,TD)..H..(ARL,202006-202110
FOR POWER SEAT
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
BLACK,TRIM2#
BLACK,TRIM2#,3#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0iGUN125,135..SD..(H,S);GUN125,135..LHD..SD..L;GUN122..LHD..TD..L..GEN;GUN122..(TD,TX)..S..(GEN,TH);GUN122..(SD,TD,TX)..L..(PH,SA,TH);GUN125,135..(MD,SX,TD,TX)..(ARL,202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0D160iGUN125..TX..GEN;GUN125..6FC..GEN;GUN122..TS..5F..L;GUN126,136..S..BZAG;GUN125..TD..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)202006-202110
SEAT COVER MATERIAL-FABRIC(HI)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main72211-0K120iGUN125..GD,SX;GUN135..S..SA;GUN125..(KS,SD,SS)..(H,S);GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
72265COVER, SEAT TRACK UPPER RAIL, RH
SEAT COVER MATERIAL-FABRIC(HI)
72266COVER, SEAT TRACK UPPER RAIL, LH
SEAT COVER MATERIAL-FABRIC(HI)
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72525-0K010-C0iGUN122..RHD..TD..GEN;GUN125..RHD..(KD,KS,MS,SD,SS,TS)..6F..L..(GEN,KEN,MA,SA);GUN112,122,123,126,135,TGN110,120,121..RHD..(KS,PD,PS,SD,SS,TS)..L..(IDN,KEN,PKN,SA,TH202006-202201
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main72526-0D260-C0iGUN135..6FC..BZAG;GUN135..(AD,AS)..6F;GUN125,126,136,TGN126,136..(AD,AS)..(L,S)202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
sub73920-0K190
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
79197ARIVET
8421
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
RUGGED X PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER)
87510NHEATER ASSY, FRONT SEATBACK, LH
RUGGED X PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
717510K070HANGER, SEAT COVER
main71751-0K070
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600
42 parts on this diagram · 15 diagrams in section
