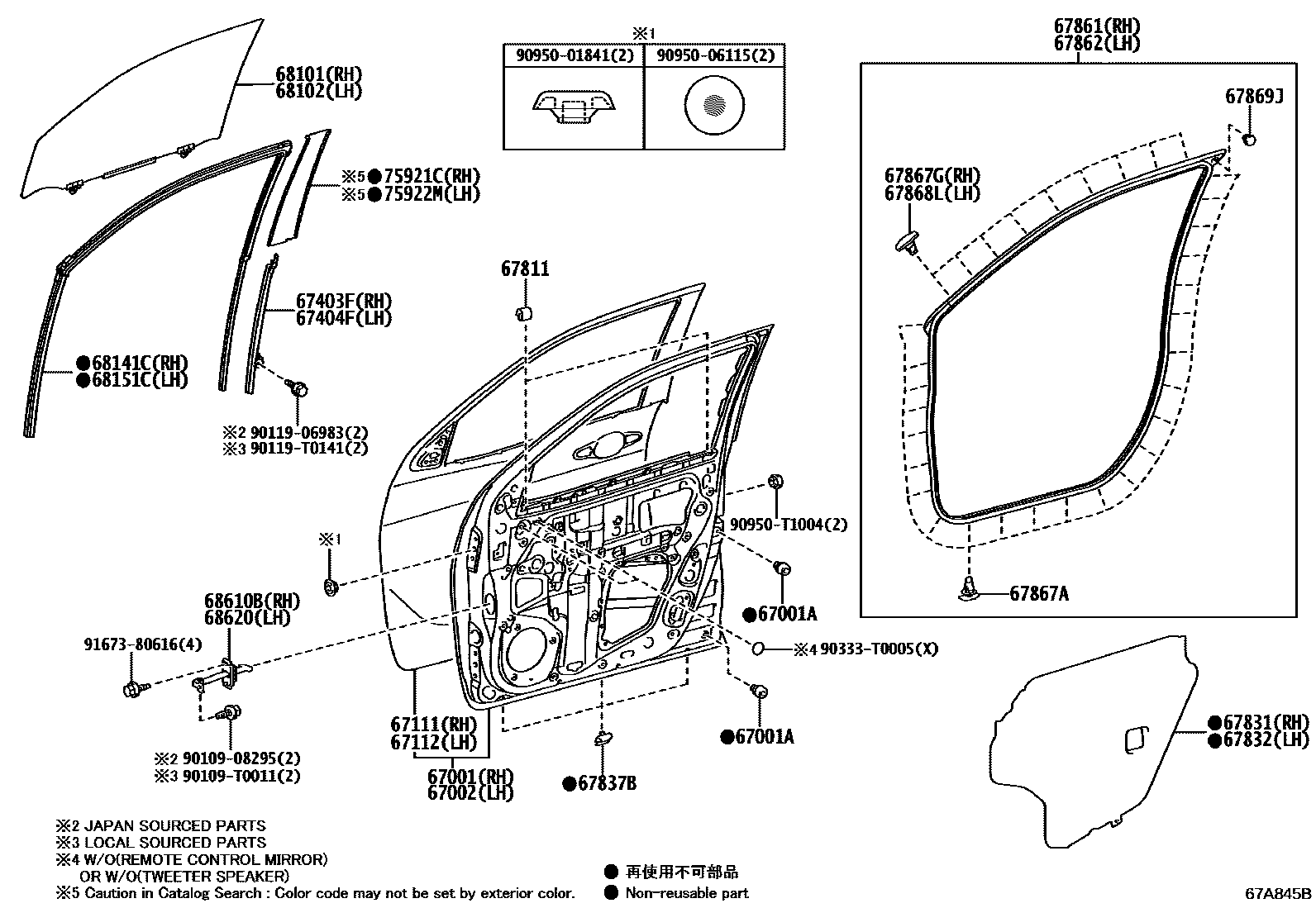

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM,W(POWER WINDOW) 0005 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

main67001-KK020iGUN125,126,135,TGN126,136..AS202006-202110

main67001-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×2iGUN120,122,125,126,13#..SX,TX202006-202109

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

main67002-KK020iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

main67002-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN125,126..GHA202006-202111

main67111-KK020iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

main67111-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

main67112-KK020iGUN125,126,135,TGN126,136..AS202006-202110

main67112-KK030iGUN120,122,125,126,13#..SX,TX202006-202109

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN122,126,TGN121..PKN202006-202201

main67403-0K080iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main67403-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main67404-0K080iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main67404-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main69759-0K060×4iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGUN125,126..GHA202006-202111

main67831-0K130iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,SS,SX,TS,TX202006-202111

main67831-0K160iGUN126..PD202106-202201

main67831-0K180iGUN122,126,TGN121..PS202106-202201

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

main67832-0K130iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,SS,SX,TS,TX202006-202111

main67832-0K160iGUN126..PD202106-202201

main67832-0K180iGUN122,126,TGN121..PS202106-202201

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092×6iGUN112,12#,13#,TGN11#,120,121,126..PS,TS,TX; GUN126..PD202006-202201

PLANT TMT

main67837-0K102×6iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

main67837-0K121×6iGUN126..PD202011-202201

EXCEPT PLANT TMT

main67837-0K210×6iGUN125,126..MA202009-202110

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K120iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MMD,TD202006-202105

main67861-0K121iGUN126..PD202106-202201

main67861-0K130iGUN112,12#,13#,TGN11#,120,121,126..MS,PS,TS202006-202201

main67861-0K140iGUN120,122,125,126,13#..SX,TX202006-202109

main67861-0K150iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SD202009-202102

main67861-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202103-202111

main67861-0K161iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main67861-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..KS,SS202009-202111

main67861-0K180iGUN125,126,135,TGN126,136..AS202011-202110

main67861-0K240iGUN125,126..MD202009-202102

main67861-0K241iGUN125,126..MD202103-202110

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K120iGGN125,GUN120,122,125,126,13#,TGN120,121,126,136..MMD,TD202006-202105

main67862-0K121iGUN126..PD202106-202201

main67862-0K130iGUN112,12#,13#,TGN11#,120,121,126..MS,PS,TS202006-202201

main67862-0K140iGUN120,122,125,126,13#..SX,TX202006-202109

main67862-0K150iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SD202009-202102

main67862-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202103-202111

main67862-0K161iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main67862-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..KS,SS202009-202111

main67862-0K180iGUN125,126,135,TGN126,136..AS202011-202110

main67862-0K240iGUN125,126..MD202009-202102

main67862-0K241iGUN125,126..MD202103-202110

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×11iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,SX,TS,TX202006-202201

main67867-52040×9iGUN125,126..GHA202006-202111

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

main67867-52030×11iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main67869-22030×2iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

main67869-26050×2iGUN120,122,125,126,13#..SX,TX202006-202109

main9004A-46317×2iGUN126202212-202301

main90467-06084×2iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202211

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K192iGUN125,135..S..VN;GUN120,122,TGN120,121,136..TD;GUN125,126,135,TGN126..TD..L..(ARL,GCC,GEN,IDN,LA,TH)202006-202108

main68101-0K200iGUN122,125,135,LAN125,TGN121,126..(GD,KD,SD)..L202009-202111

main68101-0K210iGUN125,126,135,TGN126,136..AD..L202011-202110

main68101-0K221iGUN126,136..TS;GUN125..LHD..TS;GUN135..(TS,TX)..L;GUN125..RHD..(TS,TX)..(H,L);GUN112,120,122,123,TGN11#,120,121,126..TS,TX202006-202108

main68101-0K230iGUN125..LHD..SS;GUN125..RHD..(KS,SS,SX);GUN122,126,13#,LAN125,TGN120,121,136..KS,SS202009-202111

main68101-0K240iGUN125,126,135,TGN126,136..AS202011-202110

main68101-0K272iGUN125,135..L..(PH,VN);GUN126..(MMD,TD)..(H,S);GGN125,GUN125,13#,TGN126..TD..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,TH)202006-202301

main68101-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GD,KD,SD)..(H,S)202009-202111

main68101-0K290iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main68101-0K301iGUN125,126,13#..TX..(H,S)202006-202108

main68101-0K310iGUN125,126,13#..SX..(H,S)202009-202109

main68101-0K320iGUN125..MD..L202010-202110

main68101-0K330iGUN125,126..(H,S)..MA202009-202110

main68101-0K340iGUN125..MS202009-202110

main68101-0K430iGUN126..(H,S)..PKN202106-202201

main68101-0K440iGUN126..PD..L202106-202201

main68101-0K450iGUN122,126,TGN121..PS202106-202201

main68101-0K380iGGN125,GUN125,126,TGN126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

main68101-0K390iGUN122,TGN121..H202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K192iGUN125,135..S..VN;GUN120,122,TGN120,121,136..TD;GUN125,126,135,TGN126..TD..L..(ARL,GCC,GEN,IDN,LA,TH)202006-202108

main68102-0K200iGUN122,125,135,LAN125,TGN121,126..(GD,KD,SD)..L202009-202111

main68102-0K210iGUN125,126,135,TGN126,136..AD..L202011-202110

main68102-0K221iGUN126,136..TS;GUN125..LHD..TS;GUN135..(TS,TX)..L;GUN125..RHD..(TS,TX)..(H,L);GUN112,120,122,123,TGN11#,120,121,126..TS,TX202006-202108

main68102-0K230iGUN125..LHD..SS;GUN125..RHD..(KS,SS,SX);GUN122,126,13#,LAN125,TGN120,121,136..KS,SS202009-202111

main68102-0K240iGUN125,126,135,TGN126,136..AS202011-202110

main68102-0K272iGUN125,135..L..(PH,VN);GUN126..(MMD,TD)..(H,S);GGN125,GUN125,13#,TGN126..TD..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,TH)202006-202301

main68102-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GD,KD,SD)..(H,S)202009-202111

main68102-0K290iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main68102-0K301iGUN125,126,13#..TX..(H,S)202006-202108

main68102-0K310iGUN125,126,13#..SX..(H,S)202009-202109

main68102-0K320iGUN125..MD..L202010-202110

main68102-0K330iGUN125,126..(H,S)..MA202009-202110

main68102-0K340iGUN125..MS202009-202110

main68102-0K430iGUN126..(H,S)..PKN202106-202201

main68102-0K440iGUN126..PD..L202106-202201

main68102-0K450iGUN122,126,TGN121..PS202106-202201

main68102-0K370iGGN125,GUN125,126,TGN126..H..GCC202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

main68102-0K380iGUN122,TGN121..H202006-202108

BACK GLASS-SLIDING TYPE(GREEN, *HSEA)

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGUN126..PD202006-202201

main68141-0K080iGUN112,12#,13#,TGN11#,120,121,126..MS,PS,TS,TX202006-202201

main68141-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68141-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68141-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KS,SS,SX202009-202111

main68141-0K120iGUN125,126,135,TGN126,136..AS202011-202110

main68141-0K150iGUN125,126..MD202009-202110

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGUN126..PD202006-202201

main68151-0K080iGUN112,12#,13#,TGN11#,120,121,126..MS,PS,TS,TX202006-202201

main68151-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GD,KD,SD202009-202111

main68151-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main68151-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KS,SS,SX202009-202111

main68151-0K120iGUN125,126,135,TGN126,136..AS202011-202110

main68151-0K150iGUN125,126..MD202009-202110

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN122,126,TGN121..PKN202006-202201

main68610-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main68610-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN122,126,TGN121..PKN202006-202201

main68610-0K100iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main68610-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN126..(H,S)..PKN202006-202201

main75921-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main75921-0K070iGUN125..TX..H;GUN125..TX..TH;GUN126,13#..TX; GUN125..TX..S..GEN202006-202108

BLACKOUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75921-0K080iGUN125,135..SX..S; GUN126,136..SX202009-202109

BLACKOUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75921-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..(GD,KD,SD)..H202009-202111

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGUN126..(H,S)..PKN202006-202201

main75922-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

main75922-0K070iGUN125..TX..H;GUN125..TX..TH;GUN126,13#..TX; GUN125..TX..S..GEN202006-202108

BLACKOUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75922-0K080iGUN125,135..SX..S; GUN126,136..SX202009-202109

BLACKOUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75922-0K090iGUN125..S..GHA;GGN125,GUN125,126,136..(GD,KD,SD)..H202009-202111

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 5 diagrams in section
