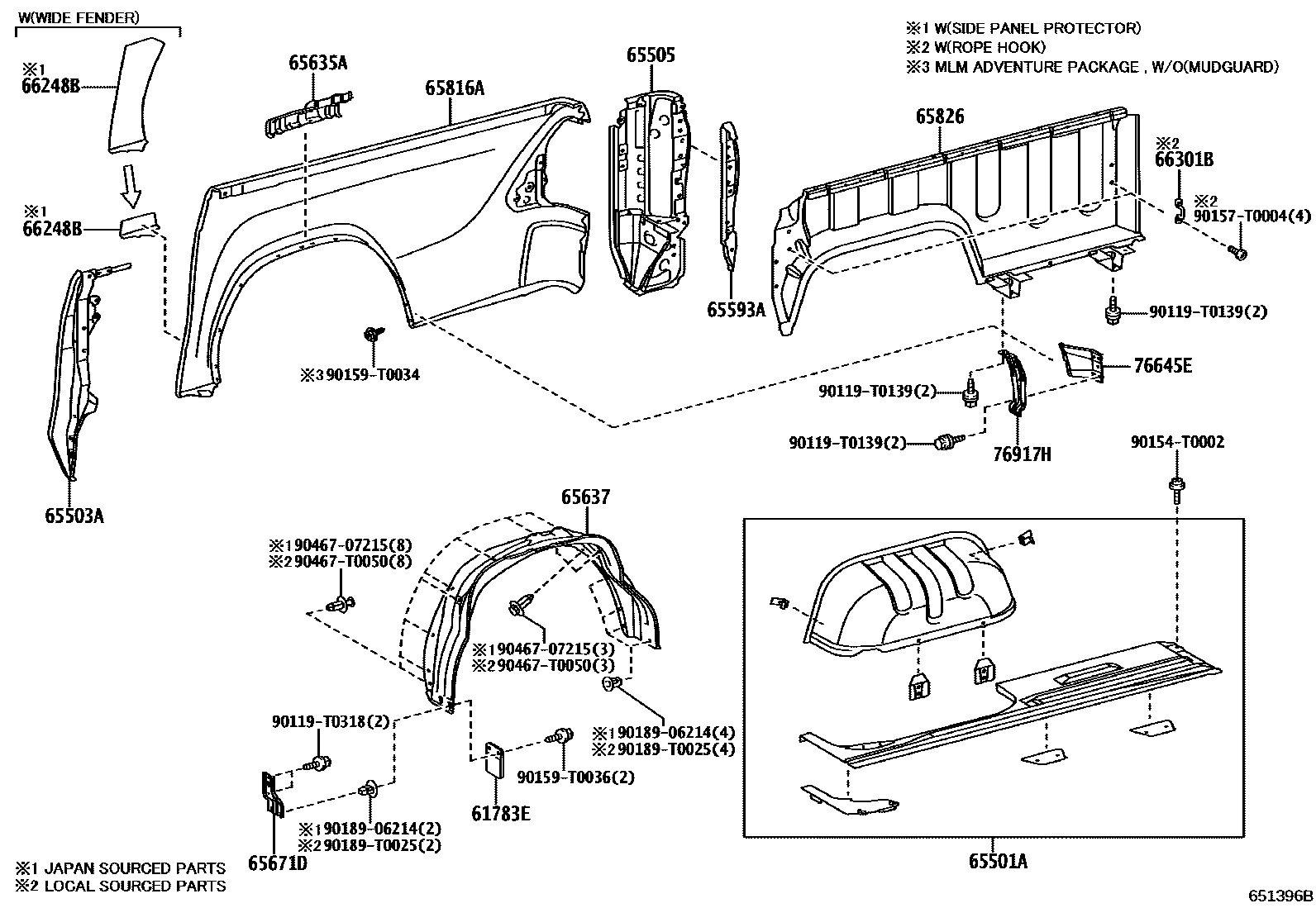

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
main61783-0K180×2iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..(GHA,KEN,SA)..CBU202009-202111
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
main65551-KK060iGUN126..GCC;GUN125..L..GHA;TGN120,121..TD;GUN135..SD..6F..S;GUN125,TGN136..RHD..SD..S;GUN126,13#..6F..(L,S)..ARL..CBU;GUN122,125,TGN126..(KD,TD)..(ARL,GCC,KEN)..CBU;GUN126,13#,TGN126..(SD,TD)..6FC..(L,S)..(ARL,SA)..CBU202006-202111
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
EXCEPT PLANT TSAM
main65505-KK030iGUN135,TGN126..TS..LA;GUN135..(ARL,KEN)..CBU;GUN126,TGN126..GCC..CBU;TGN121..(PS,TD,TS)..CBU;GUN122,125..TD..(ARL,GCC)..CBU;GUN122,125..(KD,KS,MS,PS,TS)..CBU;GUN120,123,TGN120..L..(GCC,TH)..CBU;GUN126,136..(PS,TD,TS)..(L,S)..(ARL,PKN,TH)..CBU202006-202201
EXCEPT PLANT TSAM
main65505-KK040iGUN135..TD..S;TGN126..5F..SA;GUN136..6F..H..ARL;GUN125..LHD..SD..S;TGN136..LHD..(SD,TD);GUN136..(SD,TD)..6FC..H;GUN125,TGN121..SD..(H,L);GGN125,GUN120,LAN125..SD,TD;GUN126..TD..6FC..S..(GEN,LA);GUN126..(SD,TD)..6F..S..(GEN,LA,SA);GUN122,136..(SD,TD)..MTM..(GEN,LA,PH,SA,TH);GUN135..(SD,TD)..(H,L)..(GEN,LA,PH,SA,TH,VN);GUN125,TGN126..(MD,TD)..(GEN,IDN,LA,MA,PH,TH,VN);GUN126..(KD,MD,MMD,SD,TD)..(H,L)..(ARL,GEN,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202006-202301
PLANT TSAM
main65505-KK050iGUN125,126..SS..S..CBU; GUN125,135..SD..L;GUN125,TGN136..LHD..SD..S;GUN122,126,136,LAN125,TGN121,126..SD..MTM..(L,S); GUN125,LAN125,TGN126,136..LHD..SD..MTM..S; GUN125..LHD..SS..S; GUN126..SS..H;GUN13#,TGN136..SS..(H,S); GUN135,TGN136..SS..MTM..S202009-202109
REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM; TIRE & DISC WHEEL-225/70R17C, STEEL,PLANT TSAM; TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM; TIRE & DISC WHEEL-265/65R17, STEEL; TIRE & DISC WHEEL-265/65R17, STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
main65593-KK010iGUN136..TX;TGN126..5F..SA;GUN136..6F..H..ARL;GUN125..LHD..SD..S;TGN136..LHD..(SD,TD);GUN136..(SD,SX,TD)..6FC..H;GUN126..TD..6FC..S..(GEN,LA);GUN125,135,TGN121..SD..(H,L);GGN125,GUN120,LAN125..SD,TD,TX;GUN126..(SD,TD)..6F..S..(GEN,LA,SA);GUN122,136..(SD,SX,TD,TX)..MTM..(GEN,LA,PH,SA,TH);GUN125,135,TGN126..(MD,SX,TD,TX)..(GEN,IDN,LA,MA,PH,SA,TH,VN);GUN126..(KD,MD,MMD,SD,SX,TD,TX)..(H,L)..(ARL,GEN,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202006-202301
65635APANEL, WHEEL HOUSE, REAR RH
main65635-KK020iGUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S); TGN126..S..SA;TGN136..AD..L..LA;GUN125..LHD..SS..S;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125,TGN126..(AD,TD)..MTM..L..(GEN,LA); TGN126..S..SA;TGN136..LHD..(GEN,SA);GUN125,126..SS..S..CBU;GUN135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125..(AD,TD)..6F..L..(GEN,LA)202006-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
65637LINER, REAR WHEEL HOUSE, RH
main65637-0K080iGUN135..TD..S..LA;GUN125..TD..6FC..L..GEN;GUN135..(ARL,GEN,PH,TH,VN)..CBU;GUN126..(MD,MMD,TD,TX)..(H,S)..CBU;GUN125..(MD,TD,TX)..(ARL,IDN,MA,TH,VN)..CBU;GGN125,GUN125,136,TGN126..(TD,TX)..(H,S)..(ARL,GCC,GEN,LA)202006-202301
main65637-0K090iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S)..CBU;GUN122,LAN125,TGN120,121,126..SA..CBU202009-202111
main65637-0K100iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
main65637-0K120iGUN125,126,135,TGN136..AD..L..BZAG; GUN135..AS..CBU;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG..CBU;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
TIRE & DISC WHEEL-225/70R17C, STEEL
main65637-0K130iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,135..AD..L..LA; GUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S)202011-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
main65608-KK050iGUN125,126..SS..S..CBU; GUN125..LHD..SS..S; GUN126..SS..H;GUN13#,TGN136..SS..(H,S)202009-202109
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
main65671-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..(KD,MD,MMD,SD,TD)..CBU202006-202301
65816APANEL, REAR BODY SIDE, RH
main65816-KK020iTGN120,121..TD;GUN122..TD..GCC;TGN126..6FC..SA;GUN125,135..RHD..SD..6F..S;GUN125,TGN126..(GD,KD,TD)..L..(GCC,GHA,KEN)202006-202111
main65816-KK040iGUN125..ARL..CBU;GUN135..(SD,TD)..6FC..(ARL,SA);GUN126,13#..6F..(L,S)..ARL..CBU;GUN125,126,TGN126..TD..(H,S)..GCC;GUN125,126,136,TGN136..RHD..(SD,TD)..(5F,6FC)..S..(ARL,SA)..CBU202006-202109
main65816-KK050iGUN135..(KS,SS,TS)..L..CBU;GUN126..(PS,SS,TS)..(L,S)..CBU;GUN120,122,123,125,LAN125,TGN120,121,126..(KS,MS,PS,SS,TS)..CBU202006-202201
main65816-KK060iGUN125,126..SS..S..CBU; GUN125..LHD..SS..S; GUN126..SS..H;GUN13#,TGN136..SS..(H,S)202009-202109
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
main65816-YP010iGUN126..6F..H..ARL;GUN126,13#..TD..6FC..H..(ARL,TH)..CBU; GUN126..GCC;GUN125..6F..H..GCC; GUN126..TD..6FC..H..ARL..CBU202006-202108
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK, WITH(ROPE HOOK); RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED), ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM
65826PANEL, REAR BODY SIDE, INNER RH
main65826-KK903iGUN126..GCC;GUN125..L..GHA;TGN120,121..TD;GUN135..SD..6F..S;GUN125,TGN136..RHD..SD..S;GUN126,13#..6F..(L,S)..ARL..CBU;GUN122,125,TGN126..(KD,TD)..(ARL,GCC,KEN)..CBU;GUN126,13#,TGN126..(SD,TD)..6FC..(L,S)..(ARL,SA)..CBU202006-202111
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
main58745-0K070iGUN125,126..SS..S..CBU; GUN125..LHD..SS..S; GUN125..SX;GUN126..(SS,SX)..H;GUN13#,TGN136..(SS,SX)..(H,S)202009-202109
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
main58745-0K110iGUN135..SD..6F;GUN125..(GD,KD,SD)..L;GUN125..LHD..SD..6F..S;GUN122,LAN125,TGN121,126,136..LHD..SD202009-202111
main58745-0K040iGUN125,TGN126..LHD..L..GEN; TGN121..ARL..CBU; TGN121..TD..GCC;GUN122..TD..L..GCC; TGN126..TD..5F..L..GCC202006-202108
ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-205R16C, STEEL&STEP & STEP COVER-WITHOUT; IRAQ SPEC; IRAQ SPEC&STEP & STEP COVER-WITHOUT; STEP & STEP COVER-WITHOUT
main58745-0K050iGUN125..RHD..SD..6F..S; GUN126,136..RHD..SD..H;GGN125,GUN125..RHD..SD..6FC; GUN135..SD..6FC;GUN125..LHD..6FC..SA;GUN125,126..LHD..H..SA;GUN126,136,TGN136..RHD..SD..S; TGN126..S..SA;GUN135..SD..6F..S;GUN125,LAN125,TGN136..LHD..SD..MTM..S202009-202109
STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/65R17, STEEL; TIRE & DISC WHEEL-265/65R17, STEEL&STEP & STEP COVER-WITHOUT
main58745-0K130iGUN125,TGN126..LHD..L..GEN; GUN125..6F..(H,S)..GCC;TGN126..TD..(H,S)..GCC;GGN125,GUN125..6FC..H..GCC; GUN125..LHD..L..GEN; GUN125..LHD..TD..(H,S)..GEN; GUN135..6FC..ARL;GUN136,TGN126..H..(ARL,GEN);GUN125,126..TD..(ARL,TWN)..CBU; TGN126..S..GEN;GUN135..6F..ARL..CBU202006-202108
ASIA COLD COUNTRY SPEC&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17, STEEL&STEP & STEP COVER-WITHOUT; IRAQ SPEC&STEP & STEP COVER-WITHOUT; STEP & STEP COVER-WITHOUT
main58745-YP010iGGN125..GCC;GUN125..6F..H..GCC; GUN125..LHD..TD..H..GEN; GUN126..TD..6FC..H..ARL..CBU; GUN136..6FC..H..ARL;GUN126..TD..H..(ARL,TWN)..CBU; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108
ASIA COLD COUNTRY SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; IRAQ SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEPCOVER-WITHOUT; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&STEP & STEP COVER-WITHOUT; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED), ALUMINUM&STEP & STEP COVER-WITHOUT
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
66301BHOOK SUB-ASSY, ROPE
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-KK020iGUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S); TGN126..S..SA;TGN136..AD..L..LA;GUN125..LHD..SS..S;TGN136..LHD..(SD,TD);GUN126,135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125,TGN126..(AD,TD)..MTM..L..(GEN,LA); TGN126..S..SA;TGN136..LHD..(GEN,SA);GUN125,126..SS..S..CBU;GUN135..(AD,TD)..L..LA;GUN125,135,LAN125..SD..MTM..S;GUN125..(AD,TD)..6F..L..(GEN,LA)202006-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, STEEL
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050
24 parts on this diagram · 10 diagrams in section
