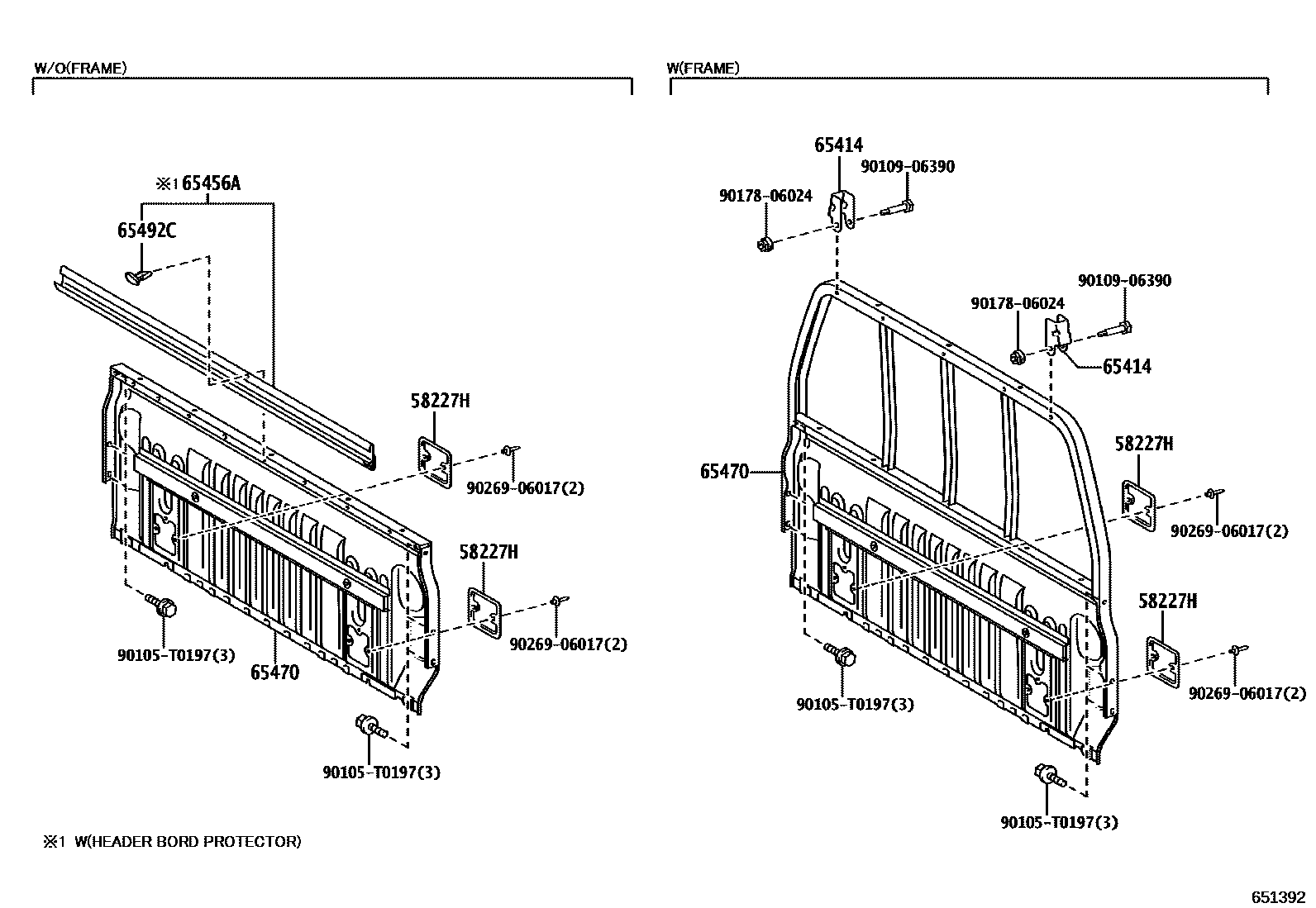

REAR BODY GUARD FRAME & TAIL GATE

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031×2iGUN125,126..GHA202006-202111

65414STOPPER, GUARD FRAME

main65414-KK010×2iGUN126..PD..L;GUN120,122..(PS,TS)..(PKN,TH)..CBU;GUN112,125,126,135,TGN110..(KD,KS,MS,PS,TD,TS)..(IDN,KEN,MA,PKN)202006-202201

65456APROTECTOR, HEADER BORD

main65496-0K010iTGN136..AD..L;GGN125,GUN125,126,13#,TGN126,128,138..AD; TGN136..S..LA202011-202110

BOLIVIA, URUGUAY SPEC; CENTRAL AND SOUTH AMERICA SPEC

65470BOARD ASSY, HEADER

main65470-KK010iGUN126..(H,S)..PKN202006-202201

main65470-KK020iGUN125,126,135,TGN126,136..AS..CBU202006-202110

main65470-KK030iGUN125..L..GHA202006-202111

main65470-KK050iGUN126..KEN;GUN126..PD..L;GUN125..TD..IDN202006-202201

main65470-KK070iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

main65470-KK100iGUN126..AD..6FC..L;GUN125,135..AD..L..LA202011-202110

DECK GUARD FRAME-WITH(STOPPER)

65492CRETAINER, FRONT GUARD CUSHION

main65492-0K010×10iTGN136..AD..L;GGN125,GUN125,126,13#,TGN126,128,138..AD; TGN136..S..LA202011-202110

BOLIVIA, URUGUAY SPEC; CENTRAL AND SOUTH AMERICA SPEC

90105T0197

main90105-T0197

9010906390

main90109-06390

9017806024

main90178-06024

9026906017

main90269-06017

9 parts on this diagram · 3 diagrams in section
