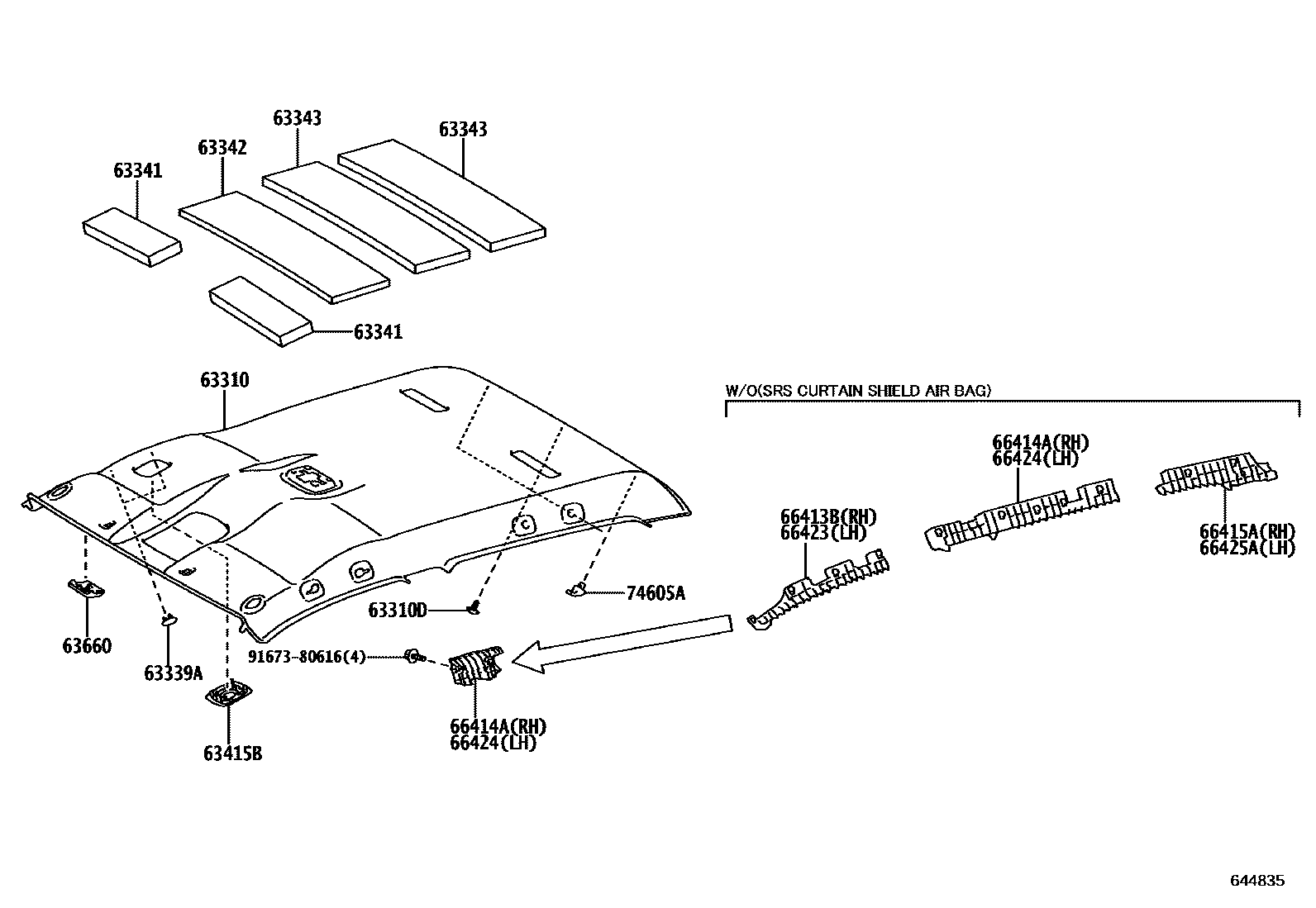

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#
main63310-0KA50-B0iGUN122..SA..IV3;GUN125,135..(KS,SS)..L;GUN122,LAN125,TGN121..LHD..SS202009-202111
LT. GRAY,TRIM2#
main63310-0KA60-B0supersedes 63310-0KJ20-B0iGUN125..S..KEN;GUN125..LHD..SS..S;GUN122..RHD..SA..CBU;GUN126,TGN120..SS..(L,S)202009-202111
LT. GRAY,TRIM2#
main63310-0KA80-B0supersedes 63310-0KA90-B0iGUN125..SX; GUN126,136..SX; GUN126..SX..6F; GUN135..SX202009-202109
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM20; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM20; LT. GRAY,TRIM2#
main63310-0KB10-B0supersedes 63310-0KB00-B0iGGN125,TGN126..AD..LA;GUN126,136..AD..(L,S);GUN125,135,TGN128,13#..AD; GGN125..BZAG; GUN126,136..AD..H..LA; GUN126..6FC..H..BZAG202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-0KF90-B0supersedes 63310-0KG50-B0iGGN125,GUN126,136..RHD..SD..H; GGN125,GUN126..RHD..SD..H; GUN125,135,TGN136..RHD..SD..S; GUN125,135..RHD..SD..S; GUN126..LHD..SA202009-202109
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM20; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM20; LT. GRAY,TRIM20
main63310-0KF90-C0supersedes 63310-0KG50-C0iGGN125,GUN126,136..RHD..SD..H; GGN125,GUN126..RHD..SD..H; GUN126..LHD..SA202009-202109
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21; BLACK,TRIM21
LT. GRAY,TRIM2#
BLACK,TRIM2#
LT. GRAY,TRIM2#
main63310-0KX30-B0iGUN112,122,125,TGN11#,120,121,126..TS..GCC; GUN122,125,135,TGN121,126..TS..MTM..(L,S)..(GEN,LA); GUN125..TS..H;GUN125..TS..6FC;GUN112,12#,13#,TGN110,121..TS..(ARL,IDN,TH)202006-202108
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,3#
main63310-0KX50-B0iGUN126,135..TX..(L,S);GUN126,135..TX..6F..H;GUN120,122,125,136..TX; GUN126,135..TX..6FC..H..TH202006-202108
LT. GRAY,TRIM2#; LT. GRAY,TRIM20
BLACK,TRIM21
main63310-0KX60-B0supersedes 63310-0KX80-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125,126,135..TD..6F..H..(GEN,PH);GUN126,135..TD..6FC..H..(GEN,PH,TH,TWN,VN); GUN125..6FC..H..GCC;GUN125..TD..(L,S)..GCC;GUN122,TGN120,121,126..TD..GCC; GUN126..H..IV3;GUN136..6F..H..ARL; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU; TGN126..H..GEN; TGN126..TD..S..LA;GUN126,13#..TD..6F..H..(LA,TH);TGN126..TD..5F..(H,L)..(GEN,LA);GUN125,126..TD..6FC..H..(IDN,LA);GUN120,122,125,126,13#,TGN121,136..TD..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN)202006-202108
ASIA COLD COUNTRY SPEC,LT. GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT & ENTUNE,LT. GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT & ENTUNE,LT. GRAY,TRIM20; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,3#; LT. GRAY,TRIM20; LT. GRAY,TRIM20,3#
main63310-0KX60-C0supersedes 63310-0KX80-C0iGUN125,126,135..TD..6F..H..(GCC,GEN,PH);GGN125,GUN126,135..TD..6FC..H..(GCC,GEN,PH,TH,TWN,VN); GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT & ENTUNE,BLACK,TRIM21; BLACK,TRIM21
LT. GRAY,TRIM2#
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
main63310-0KA40-B0supersedes 63310-0KQ10-B0iGUN125..AS..BZAG;GUN126,135,TGN126,136..AS; GUN125..AS..LA202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21
main63310-0KB00-B0supersedes 63310-0KQ30-B0iGGN125..BZAG; GUN126,136..H..BZAG; TGN128,138..H202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DIGITAL TV,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
main63310-0KB20-B0supersedes 63310-0KQ10-B0iGUN125..AS..BZAG;GUN126,135,TGN126,136..AS; GUN125..AS..LA202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
main63310-0KJ20-B0iGUN122..SA..IV3; GUN126..SS..H;GUN125,13#,TGN136..RHD..SS..(H,S); TGN120..SA;GUN122..RHD..SA..CBU202009-202109
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
main63310-0KQ70-B0iGUN126,136..AD..H..LA; GUN126..6FC..H..BZAG; GUN135..AD..6F;GUN135..6FC..BZAG;GUN125,126,136..AD..(L,S)202011-202110
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#
main63310-0KX80-B0supersedes 63310-0KX60-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN122,125,TGN121,126..(5F,6FC)..H..GCC; GUN125..6FC..H..GCC;GUN125..TD..(L,S)..GCC;GUN122,TGN120,121,126..TD..GCC; GUN125..S..GCC;GUN125..6FC..H..GCC;GUN122,TGN121,126..TD..(H,S)..GCC; GUN126,136..TD..S..ARL; GUN126..H..IV3;GUN136..6F..H..ARL; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,3#; AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM20,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM20,3#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,3#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM20,3#; LT. GRAY,TRIM2#; LT. GRAY,TRIM20
main63310-0KX80-C0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21; AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM21; BLACK,TRIM21
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN112,122,125,TGN11#,120,121,126..TS..GCC; GUN125..6FC..H..GCC;GUN125..TD..(L,S)..GCC;GUN122,TGN120,121,126..TD..GCC202006-202108
LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20,3#
BLACK,TRIM21
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0K030-B0×2iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125,126..RHD..TD..H..GEN; GUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC202006-202108
LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
BLACK,TRIM21
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63415BGRILLE, ROOF SPEAKER, RH
LT.GRAY,TRIM2#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
main63359-0K040-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN122,125,TGN121,126..(5F,6FC)..H..GCC; GUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC; GUN125..S..GCC;GUN125..6FC..H..GCC;GUN122,TGN121,126..TD..(H,S)..GCC; GUN126,136..S..ARL; GUN126..H..IV3;GUN136..6F..H..ARL;GUN126..TX..ARL..CBU; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU; TGN126..H..GEN202006-202108
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#; AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,3#; AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM20,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM20,3#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,3#; AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM20,3#; LT.GRAY,TRIM2#; LT.GRAY,TRIM20
main63359-0K040-C0iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21; AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM21; BLACK,TRIM21
main63359-KK010-B0iGGN125,GUN126,136..RHD..(SD,SX)..H; GUN122..SA..IV3; TGN120..SA;GUN122..RHD..SA..CBU202009-202109
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#; LT.GRAY,TRIM20
BLACK,TRIM21
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0K080iGUN135..L..VN;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,126..H..GCC;GUN122..GCC,PH,PKN,TH;GUN125,126..RHD..H..(GEN,PKN);GUN126..RHD..(L,S)..(GEN,PKN,TH);GUN122,TGN126..LHD..TS..L..(GEN,LA);GUN125,135..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN112,120,123,TGN11#,120,121,126,136..GCC,GEN,IDN,PKN,TH202006-202201
main66413-KK020iGUN126,136..SS..H;GUN122,125,126,13#,LAN125,TGN120,121,126,136..(L,S)..(GHA,KEN,SA)202009-202111
66414ASPACER, SIDE RAIL, REAR RH
SRS AIR BAG-WITH(*DRP)
main66414-0K100iGUN122..TD..(H,S);GUN122..RHD..TD..L;GUN125,126..H..GCC;GUN125..RHD..TD..H..GEN;GUN122,135..TD..L..(GCC,PH,VN);GUN126..RHD..(PD,TD)..(GEN,PKN);GUN125,135..(MD,TD)..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN120,TGN120,121,126,136..TD..(GCC,GEN,TH)202006-202201
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-0K160iGUN122..TD..(H,S);GUN122..RHD..TD..L;GUN125,126..H..GCC;GUN125..RHD..TD..H..GEN;GUN122,135..TD..L..(GCC,PH,VN);GUN126..RHD..(PD,TD)..(GEN,PKN);GUN125,135..(MD,TD)..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN120,TGN120,121,126,136..TD..(GCC,GEN,TH)202006-202201
66423SPACER, SIDE RAIL, FRONT LH
main66423-0K080iGUN135..L..VN;GUN122..S..GEN;GUN122..RHD..GEN;GUN125,126..H..GCC;GUN122..GCC,PH,PKN,TH;GUN125,126..RHD..H..(GEN,PKN);GUN126..RHD..(L,S)..(GEN,PKN,TH);GUN122,TGN126..LHD..TS..L..(GEN,LA);GUN125,135..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN112,120,123,TGN11#,120,121,126,136..GCC,GEN,IDN,PKN,TH202006-202201
main66423-KK020iGUN126,136..SS..H;GUN122,125,126,13#,LAN125,TGN120,121,126,136..(L,S)..(GHA,KEN,SA)202009-202111
66424SPACER, SIDE RAIL, REAR LH
SRS AIR BAG-WITH(*DRP)
main66424-0K100iGUN122..TD..(H,S);GUN122..RHD..TD..L;GUN125,126..H..GCC;GUN125..RHD..TD..H..GEN;GUN122,135..TD..L..(GCC,PH,VN);GUN126..RHD..(PD,TD)..(GEN,PKN);GUN125,135..(MD,TD)..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN120,TGN120,121,126,136..TD..(GCC,GEN,TH)202006-202201
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-0K160iGUN122..TD..(H,S);GUN122..RHD..TD..L;GUN125,126..H..GCC;GUN125..RHD..TD..H..GEN;GUN122,135..TD..L..(GCC,PH,VN);GUN126..RHD..(PD,TD)..(GEN,PKN);GUN125,135..(MD,TD)..(L,S)..(GCC,GEN,IDN,MA,PH,TH);GGN125,GUN120,TGN120,121,126,136..TD..(GCC,GEN,TH)202006-202201
74605AHOOK SUB-ASSY, COAT
main74631-0K040-B0×2iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN125..6FC..H..GCC;GUN125..TD..(L,S)..GCC;GUN122,TGN120,121,126..TD..GCC202006-202108
LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20,3#
main74631-0K040-C0×2iGUN125,126,135..TD..6F..H..(ARL,GCC,GEN,PH);GGN125,GUN126,13#..(MD,MMD,TD)..6FC..H..(ARL,GCC,GEN,MA,MMR,PH,TH,TWN,VN)..CBU202006-202109
BLACK,TRIM21
LT.GRAY,TRIM20
BLACK,TRIM21
9167380616
main91673-80616
16 parts on this diagram · 3 diagrams in section
