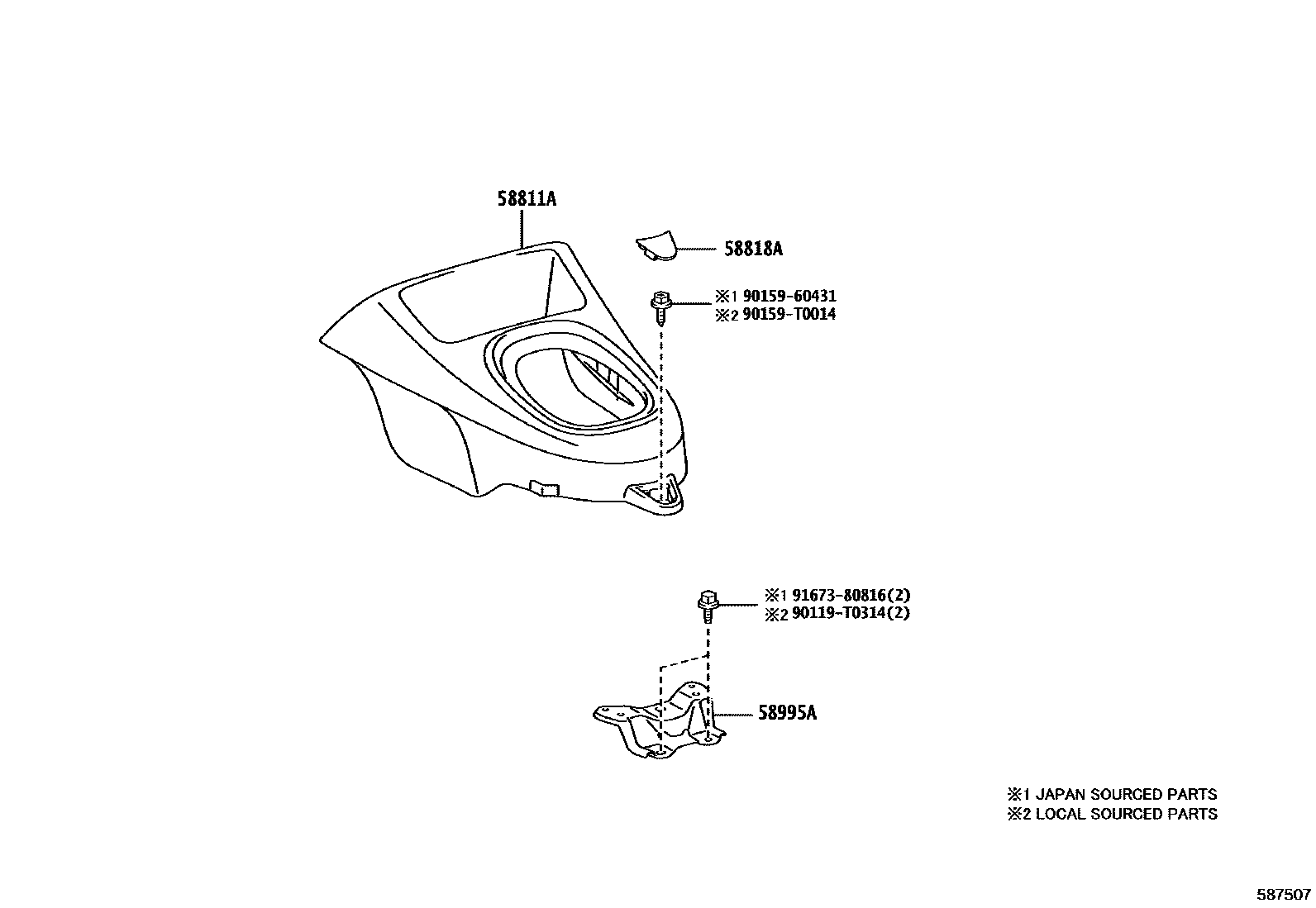

CONSOLE BOX & BRACKET

0001 1FRONT SEAT = BENCH TYPE 0002 1FRONT SEAT = SEPARATE TYPE 0003 1FRONT SEAT = SEPARATE TYPE 0004 1FRONT SEAT = SEPARATE TYPE

58811ABOX, CONSOLE, FRONT

main58802-KK010-C0iTGN121..TD..GEN;TGN121..(PS,SD,SS,TS)..5F..(ARL,GEN,PKN,SA,TH);GUN112,122,123,LAN125,TGN110,120,126,136..(PS,SD,SS,TD,TS)..5F..L..(GEN,IDN,LA,PH,PKN,SA,TH)202006-202201

BLACK,TRIM2#

main58802-KK020-C0iGUN125..L..GHA202006-202111

BLACK,TRIM2#

58818ACOVER, CONSOLE BOX, FR

main58818-KK010-C0iGUN122..RHD..TD..GEN;GUN122..LHD..TS..L..GEN;GUN122..(PS,SS,TS)..(PH,PKN,SA,TH);GUN125..(KD,KS,MS,SD,SS,TS)..6F..L..(GEN,KEN,MA,SA);GUN112,123,126,135,LAN125,TGN110202006-202201

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iGUN122,TGN121..5F..H;TGN126..(SD,TD)..5F..(H,S);GUN135..(SD,SS,TD)..6F..S..(LA,SA);GUN122,TGN121..(TD,TX)..MTM..L..(ARL,TH);GUN126..(KD,PD,SD,SS,SX,TD,TS,TX)..6F..(202006-202201

main58995-KK030iGUN135..TD..L..LA;GUN122..TD..L..GEN;TGN121..5F..ARL..IV3;GUN122,TGN126..TS..S..GCC;GUN122..TD..(L,S)..(GCC,PH);GUN125..TD..6F..L..(GCC,GEN,LA);GUN122,125,135..(KD,202006-202201

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

9167380816

main91673-80816

7 parts on this diagram · 4 diagrams in section
