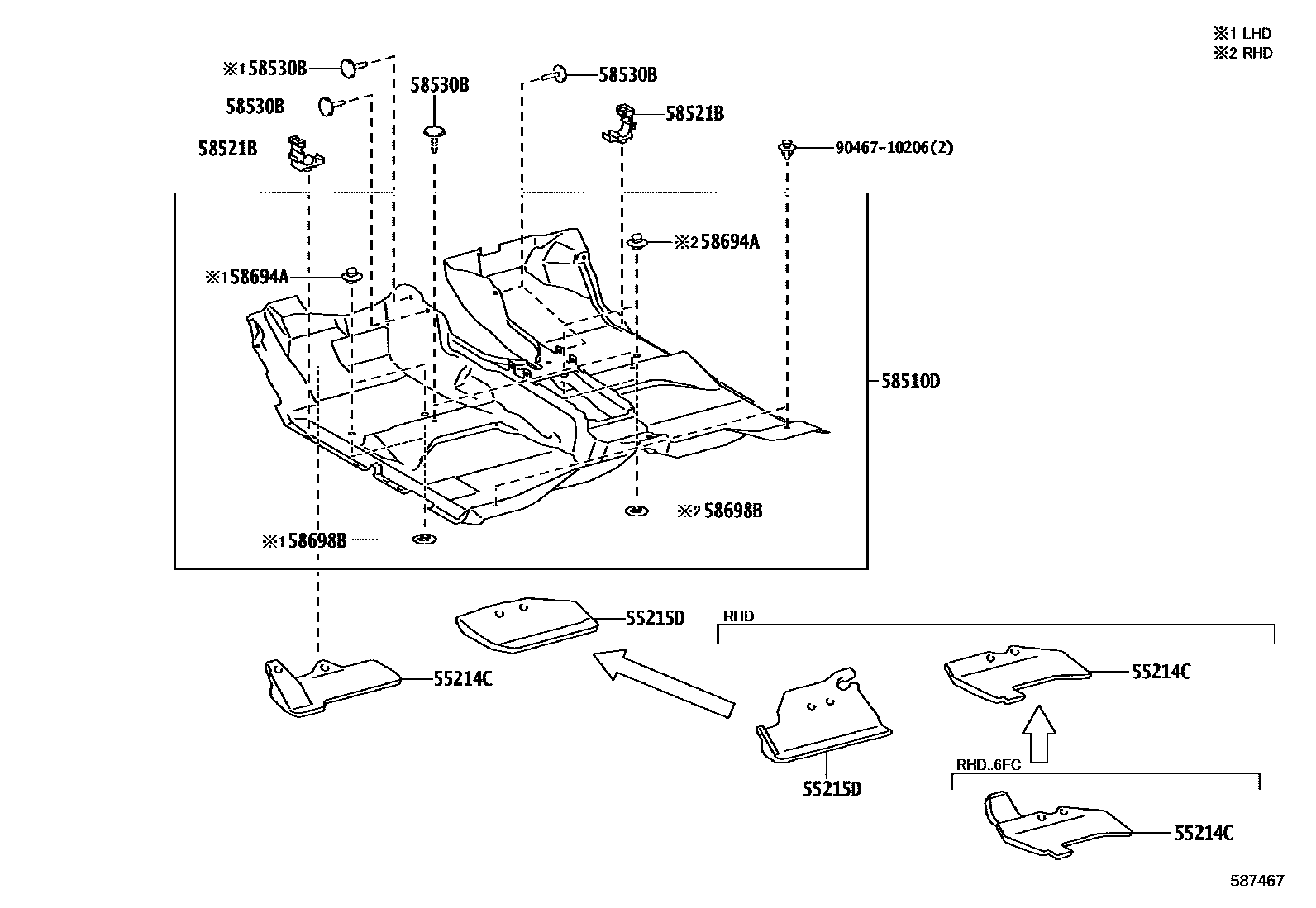

FLOOR MAT & SILENCER PAD

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-KK010i202006-202301

main55214-KK020i202009-202201

main55214-KK030i202009-202201

main55214-KK040i202006-202108

main55214-KK050i202006-202108

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-KK010i202006-202301

main55215-KK020i202006-202201

58510DCARPET ASSY, FLOOR, FRONT

main58500-0K080-C0i202006-202108

BLACK,TRIM2#

main58500-0K090-C0i202006-202108

BLACK,TRIM2#

main58500-0K220-C0i202009-202109

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58500-0K250-C0i202009-202111

BLACK,TRIM2#

main58500-0K260-C0i202009-202111

BLACK,TRIM2#

main58500-0K370-C0i202009-202109

BLACK,TRIM2#

main58500-0K440-C0supersedes 58510-0KX00-C0i202009-202111

BLACK,TRIM2#

main58500-0K490-C0i202009-202111

BLACK,TRIM2#

main58500-0K530-C0supersedes 58500-0KJ80-C0i202009-202111

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main58500-0K550-C0i202009-202111

BLACK,TRIM2#

main58500-0K670-C0i202011-202110

BLACK,TRIM2#

main58500-0K680-C0i202011-202110

BLACK,TRIM2#

main58500-0KE40-C0i202011-202110

BLACK,TRIM2#

main58500-0KE70-C0i202011-202110

BLACK,TRIM2#

main58510-0KL40-C0i202006-202108

BLACK,TRIM2#

main58510-0KS00-C0i202006-202108

BLACK,TRIM2#; SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KS10-C1i202006-202108

BLACK,TRIM2#

main58510-0KS20-C0i202006-202110

BLACK,TRIM2#

main58510-0KS30-C1i202006-202108

BLACK,TRIM2#

main58510-0KS50-C0i202006-202109

BLACK,TRIM2#

main58510-0KS60-C1supersedes 58510-0KS50-C0i202006-202108

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main58510-0KS80-C0i202006-202108

BLACK,TRIM2#

main58510-0KT50-C0i202006-202108

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KT70-C0i202006-202108

BLACK,TRIM2#

main58510-0KT80-C0i202006-202108

BLACK,TRIM2#

main58510-0KT90-C0i202006-202108

BLACK,TRIM2#

main58510-0KU11-C0i202006-202108

BLACK,TRIM2#

main58510-0KU70-C0i202106-202201

BLACK,TRIM2#

main58510-0KU80-C0i202106-202201

BLACK,TRIM2#

main58510-0KU90-C0i202106-202201

BLACK,TRIM2#

main58510-0KV00-C0i202106-202201

BLACK,TRIM2#

main58510-0KV31-C2i202006-202108

BLACK,TRIM2#

main58510-0KV80-C0i202009-202109

BLACK,TRIM2#

main58510-0KV90-C0i202009-202109

BLACK,TRIM2#

main58510-0KW00-C0i202006-202108

BLACK,TRIM2#; SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KW10-C1i202006-202108

BLACK,TRIM2#

main58510-0KW30-C0supersedes 58510-0KW40-C0i202006-202108

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main58510-0KW50-C1i202006-202108

BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KW80i202206-202301

main58510-0KW80-C1i202006-202206

BLACK,TRIM2#

main58510-0KX10-C1supersedes 58510-0KX30-C1i202006-202108

BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main58510-0KX40-C0i202006-202108

BLACK,TRIM2#

main58510-0KX80-C1i202006-202108

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#

main58510-0KZ51-C0i202006-202108

BLACK,TRIM2#

main58510-0KZ90-C0i202006-202108

BLACK,TRIM2#

main58500-0K100-C1i202011-202110

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58500-0K230-C0i202009-202109

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58500-0K450-C0supersedes 58510-0KX00-C0i202009-202109

BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58500-0K780-C0i202009-202109

SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58500-0KB30-C0i202011-202110

BOLIVIA, URUGUAY SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVERMATERIAL-VINYL LEATHER,BLACK,TRIM2#; COSTA RICA SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYLLEATHER,BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; PERU SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58500-0KJ20-C0supersedes 58500-0K340-C0i202009-202109

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#

main58500-0KN00-C0i202011-202110

BOLIVIA, URUGUAY SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; COSTA RICA SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#; PERU SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main58510-0KS70-C1i202006-202108

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KS90-C1i202006-202110

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KT20-C0i202006-202109

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main58510-0KT30-C0supersedes 58510-0KU30-C1i202006-202108

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#

main58510-0KT40-C0i202006-202108

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KW40-C0i202009-202109

SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KW70-C1supersedes 58510-0KW40-C0i202006-202108

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

main58510-0KX00-C0i202006-202108

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KX30-C1i202006-202108

BLACK,TRIM2#,3#; FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main58510-0KZ40-C1supersedes 58510-0KX00-C0i202009-202109

EXPORT FROM SOUTH AFRICA&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#; NIGERIA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYLLEATHER,BLACK,TRIM2#

main58510-0KZ60-C0i202006-202108

ASIA COLD COUNTRY SPEC&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KZ70-C0supersedes 58500-0K640-C0i202011-202110

SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

main58510-0KZ80-C0i202011-202110

SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-0K030×8i202106-202201

main58521-0K120×10i202006-202301

main58521-KK010×10i202009-202111

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-T0031×20i202206-202301

main90467-T0031-C0×21i202006-202201

BLACK,TRIM2#

58694APLATE, MAT SET, UPPER

main58694-0K010×2i202006-202108

(L)

main58694-76010×2i202009-202111

58698BPLATE, MAT SET, LOWER

main58698-0K070×2i202006-202301

main58698-76010×2i202009-202201

9046710206

main90467-10206

8 parts on this diagram · 5 diagrams in section
