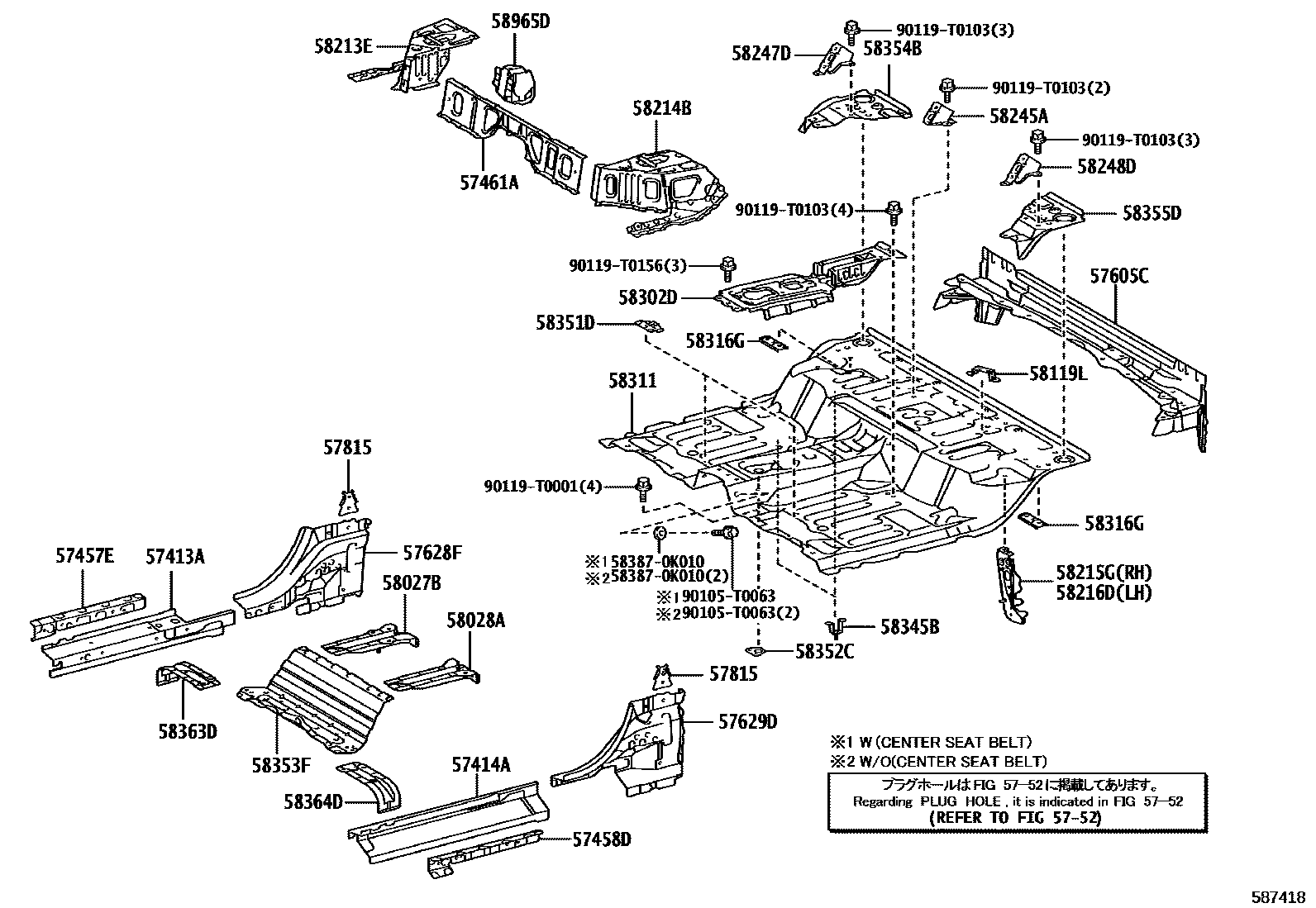

REAR FLOOR PANEL & REAR FLOOR MEMBER
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57457EPATCH, FLOOR SIDE MEMBER, RR RH
main57457-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
57458DPATCH, FLOOR SIDE MEMBER, REAR LH
main57458-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
57461AMEMBER, CENTER FLOOR CROSS
main57461-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
5752HOLE PLUG
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
main57605-KK020iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
57628FPLATE, REAR FLOOR SIDE MEMBER, RH
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57815REINFORCEMENT, BELT ANCHOR, NO.1
58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2
58119LPLATE, REAR FLOOR SIDE
58213EPANEL, SEAT FLOOR SIDE, RH
main58201-KK020iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
58214BPANEL, SEAT FLOOR SIDE, LH
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58247DBRACKET, REAR SEAT HINGE, OUTER RH
main58247-KK010×2iGUN125..LHD..TD..S..GEN; GUN125..TD..GCC;TGN121..LHD..TD;GUN135..RHD..SD..L;GUN125..LHD..SD..S;GUN125..LHD..L..GEN;GUN122..TD..5F..(H,S);GUN126..RHD..6FC..GEN;TGN126..6FC..(GCC,SA);GUN126..RHD..6F..S..GEN;GUN125..RHD..S..(GEN,IDN);GUN122,135..TD..L..(GCC,VN);TGN126..(SD,TD)..5F..(GCC,GEN,SA);GUN122,125..RHD..(SD,TD)..MTM..(H,L)..(GEN,IDN,SA);GGN125,GUN126,LAN125,TGN120,136..LHD..(SD,TD)..(GCC,SA); TGN121..TD..5F..S;GUN122..RHD..TD..GEN;GUN125..TD..6F..L..GCC;GUN122..TD..(L,S)..GCC;LAN125,TGN126..(SD,TD)..5F..L..(GCC,SA); TGN121..TD..GEN; TGN121..TD..GEN;GUN122..TD..5F..S;GUN125..LHD..SD..S;GUN122..TD..L..GCC;TGN126..S..(GEN,SA);GUN126..RHD..6FC..GEN;TGN121..TD..5F..(H,S);GUN126..RHD..6F..S..GEN;GUN125..RHD..TD..(H,S)..GEN;GUN125..TD..6F..L..(GCC,GEN);GUN125,TGN121..(6F,6FC)..H..GCC;TGN126..(SD,TD)..(H,L)..(GCC,SA);GGN125,GUN126,LAN125,TGN136..LHD..(SD,TD)..(GCC,SA); TGN136..RHD..SD;GUN126..LHD..S..GEN;GUN125..LHD..SD..(H,L)202006-202011
ASIA COLD COUNTRY SPEC&REAR HEADREST-WITH(RH/LH); FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&REAR HEADREST-WITH(RH/LH/CENTER); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&REAR HEADREST-WITH(RH/LH/CENTER); OCEANIA GENERAL SPEC&REAR HEADREST-WITH(RH/LH); REAR HEADREST-WITH(RH/LH); REAR HEADREST-WITH(RH/LH/CENTER)
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58311PAN, REAR FLOOR
main58311-KK040iGUN122..TS..S..GCC;GUN122,135..RHD..SS..L;GUN122,125..LHD..TS..L..(GCC,GEN);GUN125..RHD..(MS,SS,TS)..6F..L..(GEN,MA,SA);GUN112,TGN11#,120,121,126..(SS,TS)..(GCC,GEN,IDN,SA); GUN125,126,135,TGN126,136..AS202006-202110
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main58311-KK050iGUN122..TS..S..GCC;GUN122,125..LHD..(SS,TS)..L..(GCC,GEN,PH,SA);GUN112,LAN125,TGN11#,120,121,126..LHD..(SS,TS)..(GCC,GEN,SA)202006-202109
main58311-KK060iGUN125..RHD..(KS,MS,SS,TS)..6F..L..(GEN,KEN,MA,SA);GUN112,122,123,126,135,TGN110,120,121..RHD..(KS,PS,SS,TS)..L..(IDN,KEN,PKN,SA,TH)202006-202201
main58311-KK110iGUN126..S..PKN;GUN122..TD..S..GEN;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..S..(GEN,IDN);GUN122,125,TGN121..MTM..H..GCC;GUN125..RHD..TD..6F..(H,L)..(GEN,IDN);GUN125,TGN121,126..LHD..6FC..(GCC,SA);GUN125..LHD..(SD,TD)..6F..S..(GCC,SA);TGN126..(SD,TD)..5F..(H,S)..(GCC,GEN,SA);GUN125,135,TGN121,126..LHD..TD..L..(GEN,VN);GGN125,GUN126,LAN125,TGN136..LHD..(H,S)..(GCC,SA)202006-202201
main58311-KK120iGUN125..TD..6F..L..GCC;GUN122,TGN120,121..TD..5F..(L,S)..GCC;LAN125,TGN126..(SD,TD)..5F..L..(GCC,SA)202006-202109
58316GRETAINER, REAR SEAT, NO.1
main58316-KK010×2iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1
main58345-0K010×2iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
58351DREINFORCEMENT, REAR FLOOR PANEL
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
main58363-0K010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58965DBRACKET, JACK SUPPORT
main58967-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
583870K010PLATE, REAR FLOOR FINISH
main58387-0K010
90105T0063
main90105-T0063
90119T0001
main90119-T0001
90119T0103
main90119-T0103
90119T0156
main90119-T0156
37 parts on this diagram · 3 diagrams in section
