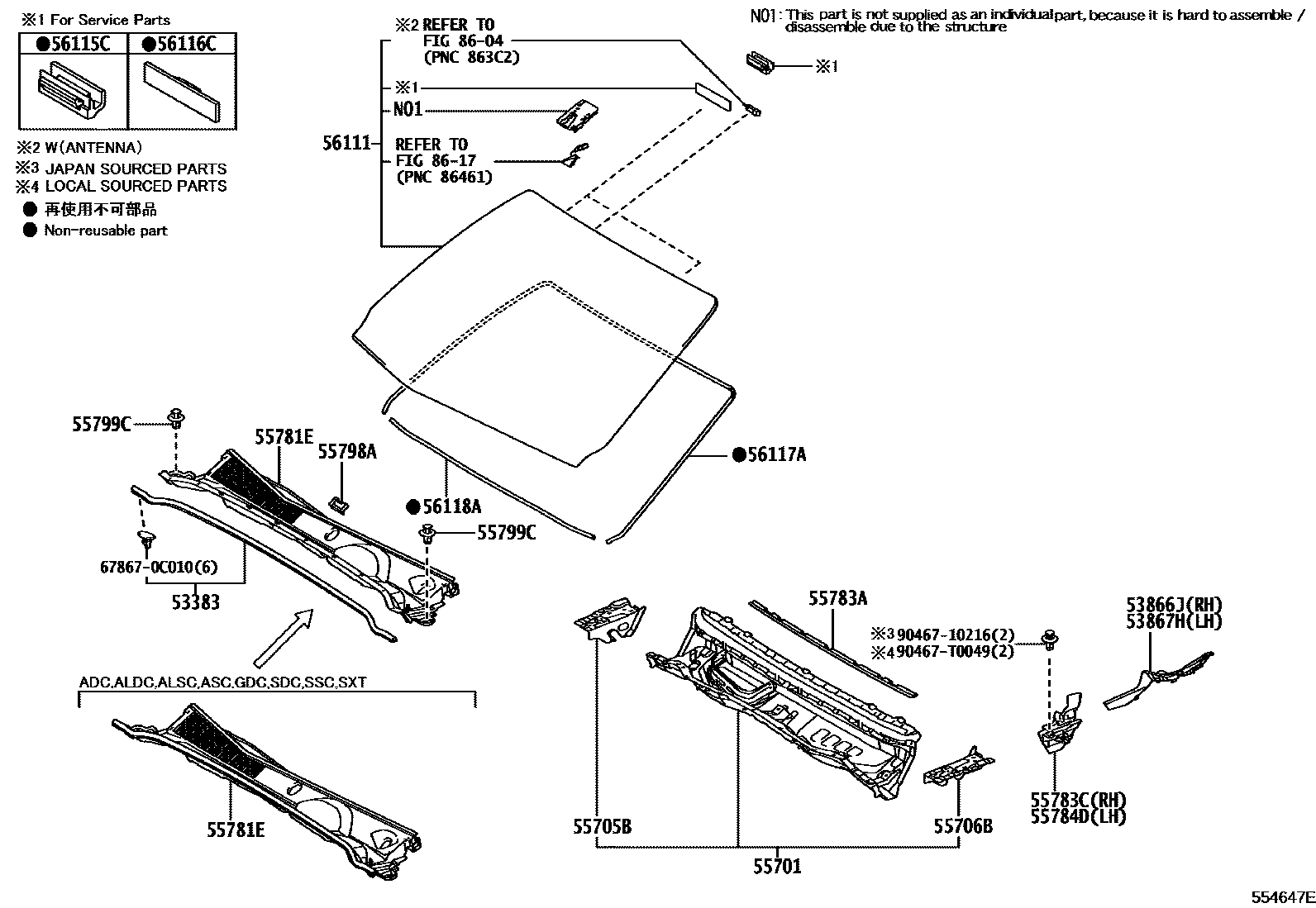

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
main53867-0K050iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202301
55701PANEL SUB-ASSY, COWL
main55700-KK020iTGN126..GEN,SA;TGN126..(TD,TS)..(H,L)..LA;TGN136..LHD..(SD,TD)..(LA,SA);GUN122,125,126,13#,LAN125,TGN121..LHD..(MMD,SD,SS,SX,TD,TS,TX)..(GEN,LA,MMR,PH,SA,TWN,VN)202006-202301
main55700-KK030iTGN136..GEN;TGN126..TD..S..LA;GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108
WINDSHIELD DEICER-WITH
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
ASIA COLD COUNTRY SPEC
main55708-0K200iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GGN125,GUN112,122,125,126,13#,TGN11#,120,121,136..LHD..(MMD,TD,TS,TX)202006-202301
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
main55798-0K010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
55799CCLIP, COWL TOP VENTILATOR LOUVER
main90467-07215×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202104
(L)
56111GLASS, WINDSHIELD
main56101-0K301iGUN126..PD..L;GUN125..TD..TH;GUN125..(TS,TX)..(IDN,TH);GUN112,120,122,123,126,135,TGN110,121..(PS,TD,TS,TX)..(IDN,PKN,TH)202006-202201
main56101-0K342iGUN126..LHD..(GEN,MMR,PH);GUN135..(H,S)..(GEN,PH,VN);TGN126..(TD,TS)..(H,L)..LA;GUN135,TGN136..TD..(5F,6FC)..LA;GUN122,125,TGN121,126..LHD..(GEN,VN)202006-202301
main56101-0K361iGUN126..TD..6F..L; TGN136..GEN;TGN126..TD..S..LA;GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108
MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE); MEXICO SPEC&STEERING SWITCH-WITHOUT
main56101-0K410supersedes 56101-0KG40iGGN125..BZAG; GUN125..AS..BZAG;GUN125,136..AD..(L,S);GUN126..(AD,AS)..(L,S);GUN135,TGN128,13#..AD,AS;GGN125,TGN126..(AD,AS)..LA; GUN125..AS..LA; GUN125..AS..LA;GUN126,136..AD..H..LA; GUN126..6FC..H..BZAG202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT; STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); STEERING SWITCH-WITH(AUDIO & TELEPHONE); STEERING SWITCH-WITHOUT
ACTIVE SAFETY PACKAGE-WITH
main56101-0KP40supersedes 56101-0KP50iGUN126..KEN;GUN126,136..S..SA;GUN125..RHD..(KD,KS,SX);GUN135..RHD..L..(KEN,SA);GUN122,125,TGN120..RHD..(SD,SS)..L202009-202111
ACTIVE SAFETY PACKAGE-WITHOUT; AUDIO-AVN(8INCH) & *BT & DIGITAL TV
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(8INCH) & *BT & DAB
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH&AUDIO-*DA(8INCH) & *BT & DAB
main56101-0K830iGGN125..BZAG; GGN125..LA;TGN128,138;GUN126..AD..L..BZAG;GUN126..6FC..S..BZAG; GUN126..6FC..H..BZAG; GUN126..AD..6FC..H..LA202011-202110
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
BACK GLASS-SLIDING TYPE(GREEN, *HSEA)
main56101-0KB80iGGN125,GUN122,126..H..GCC; GUN122..H;GUN125..TS..GCC;GUN125..6F..S..GCC;TGN126..TD..S..GCC;GUN122,TGN121,126..GCC..IV3;GGN125,GUN112,126..(H,S)..GCC;GUN125,TGN121..6FC..(L,S)..GCC; GUN125,TGN121,126..H..GCC; TGN126..H..GCC;GUN122..TD..S..GCC;TGN121..TD..5F..(H,S);GUN125,TGN121..(6F,6FC)..H..GCC; TGN126..TD..S..GCC;GGN125,GUN122,126..H..GCC;GUN125,TGN121..(6F,6FC)..S..GCC; TGN126..TS..S;TGN121..5F..GCC..CBU;GUN125..TD..6F..(H,L)..GCC;GUN125,TGN121..6FC..H..GCC;GUN112,TGN126..(H,L)..GCC..CBU;GUN122,TGN11#,120..(L,S)..GCC..CBU202006-202108
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT & ENTUNE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main56101-0KG10iGGN125,GUN126,136..RHD..H..SA; GUN126..SX..6F;GGN125,GUN126..RHD..SD..H202009-202109
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main56101-0KG40iGUN125,126,13#..(L,S)..BZAG; GUN125..AS..LA;GUN126,136..AD..H..LA; GUN126..6FC..H..BZAG; GUN135..(AD,AS)..6F..LA;GUN125,126..AD..(L,S)..LA202011-202110
ACTIVE SAFETY PACKAGE-WITH; AUDIO-*DA(8INCH) & *BT; STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH; MEXICO SPEC
BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB; BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-AVN(8INCH) & *BT & DAB
MEXICO SPEC; MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
main56101-0KL40iGUN126..6FC..H..BZAG; GUN126..AD..6FC..H..LA; GUN126..AD..L..BZAG;GUN126..6FC..S..BZAG202011-202110
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-*DA(8INCH) & *BT & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main56101-0KP50iGUN122,TGN120..RHD..SA; GUN126,136..RHD..H..SA;GGN125,GUN125,135,TGN136..RHD..(H,S)..SA202009-202109
AUDIO-*DA(FOR EMERGING MARKET) & DAB
MEXICO SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
MEXICO SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB; ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(FOR EMERGING MARKET) & DAB; ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH)& *BT & DAB; ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-AVN(8INCH)& *BT & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-AVN(8INCH) & *BT & DAB
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
main56116-22050iGUN125,126,135..(TD,TS)..L..LA; GUN126..MMR; GUN126..TD..6F..L; GUN126..TD..6F..L;GUN126..TD..6FC..H..LA; GUN135..(TD,TS)..6F..LA;GUN125,126,136..(TD,TS)..LA202006-202108
MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE); MEXICO SPEC&STEERING SWITCH-WITHOUT; STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); STEERING SWITCH-WITH(AUDIO & TELEPHONE); STEERING SWITCH-WITHOUT
56117ADAM, WINDOW GLASS ADHESIVE
main56117-KK060iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS; GUN125,126,13#..(L,S)..BZAG; GUN126,136..H..LA;GUN135..(TD,TS)..6F..LA;GUN125,126..(AS,TD,TS)..(L,S)..LA; GUN126..AD..6FC..H;GUN126..6FC..S..BZAG;GGN125,TGN128,138..AD,SD;GUN126..RHD..H..(ARL,SA);GUN136..H..(ARL,BZAG,SA);GUN126..AD..6F..(H,L)..BZAG; GUN126..TD..6F..L;GUN126..6FC..H..LA; GUN135..(TD,TS)..L..LA;GUN125,126..(AS,TD,TS)..L..LA; TGN121..TS..GEN;GUN126..6F..L..LA;GUN126..6FC..H..LA202006-202110
L=2620; L=2620,ACTIVE SAFETY PACKAGE-WITH; L=2620,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; L=2620,MEXICO SPEC; L=2620,MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); L=2620,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); L=2620,STEERING SWITCH-WITH(AUDIO & TELEPHONE); L=2620,STEERING SWITCH-WITHOUT
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
main56117-KK030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS; GUN125,126,13#..(L,S)..BZAG; GUN126,136..H..LA;GUN135..(TD,TS)..6F..LA;GUN125,126..(AS,TD,TS)..(L,S)..LA; GUN126..AD..6FC..H;GUN126..6FC..S..BZAG;GGN125,TGN128,138..AD,SD;GUN126..RHD..H..(ARL,SA);GUN136..H..(ARL,BZAG,SA);GUN126..AD..6F..(H,L)..BZAG; GUN126..TD..6F..L;GUN126..6FC..H..LA; GUN135..(TD,TS)..L..LA;GUN125,126..(AS,TD,TS)..L..LA; TGN121..TS..GEN;GUN126..6F..L..LA;GUN126..6FC..H..LA202006-202110
L=1248; L=1248,ACTIVE SAFETY PACKAGE-WITH; L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; L=1248,MEXICO SPEC; L=1248,MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); L=1248,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); L=1248,STEERING SWITCH-WITH(AUDIO & TELEPHONE); L=1248,STEERING SWITCH-WITHOUT
8604ANTENNA
8617PRE-COLLISION SYSTEM
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
