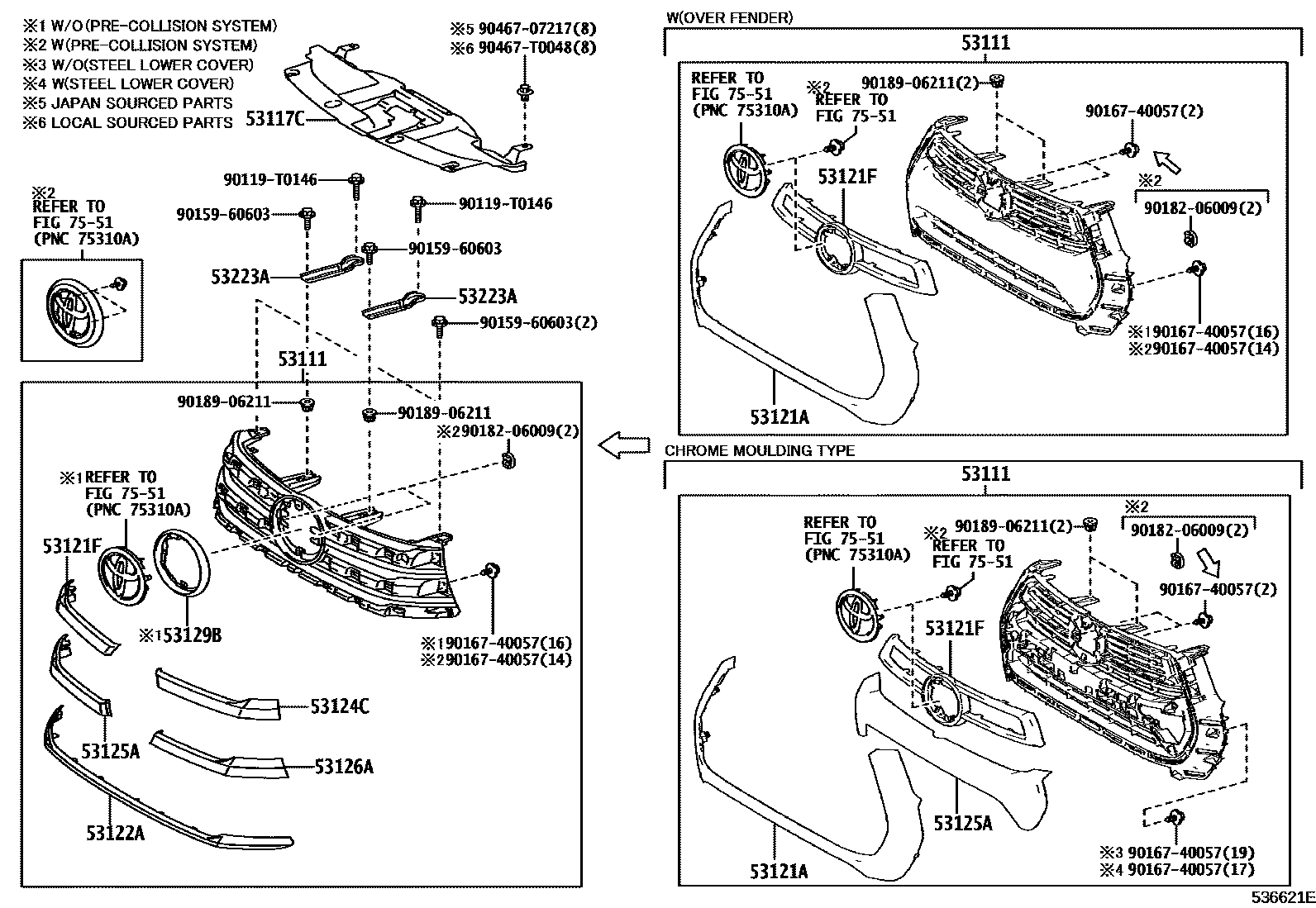

RADIATOR GRILLE
53111GRILLE, RADIATOR
main53100-0K480iGUN125,126,135..(TD,TS)..L..LA; TGN126..TS..LA; TGN136..TD..LA;GUN122..RHD..(GEN,TH);TGN126..TD..L..(GEN,LA);GUN122..LHD..L..(GEN,PH);GUN125,126..RHD..TS..L..CBU;GUN125..TD..6F..L..(GEN,PH);GUN112,120,123,TGN110,121..GEN,IDN,TH202006-202108
NO PAINT REQ.; NO PAINT REQ.,RADIATOR GRILLE-MOLDING; NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE); NO PAINT REQ.,STEERING SWITCH-WITHOUT
main53100-0K490iGUN125,126,135..TD..L..LA; TGN126,136..TD..L..LA; TGN136..GEN;GUN122..S..GEN202006-202108
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE& DISPLAY,SILVER); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53100-0K510iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
PLATED; PLATED,FRONT BUMPER-PAINTED; PLATED,RADIATOR GRILLE-CHROME PLATED; PLATED,REAR BUMPER-STEP TYPE(PLATED)
main53100-0K906iGUN125,135..TD..L..LA;GUN125,135..TS..(ARL,LA);GUN126,TGN121..(TD,TS)..L..(ARL,LA)202006-202108
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)
main53100-0KA80supersedes 53100-0KB40iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
NO PAINT REQ.
main53100-0KB10iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED)); NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53100-0KB50supersedes 53100-0KF71iGUN125,135,TGN136..AD..L..BZAG; GUN125..AS..LA; GUN126..AD..L..BZAG; GUN135..AS;GUN125,126,TGN136..AS..BZAG;GUN125,126,135,TGN126,136..AD..L..LA; TGN126..AS202011-202110
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-MATERIAL COLOR; NO PAINT REQ.,FRONT BUMPER-PAINTED; NO PAINT REQ.,RADIATOR GRILLE-MOLDING; NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE); NO PAINT REQ.,STEERING SWITCH-WITHOUT; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
NO PAINT REQ.
NO PAINT REQ.
main53100-0KF90iGUN125..6FC..S..MA;GUN126..RHD..S..GEN;GUN125..S..(GEN,TH,VN);GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,PH,TH,VN);GUN135,TGN126..TD..(5F,6FC)..S..LA202006-202110
NO PAINT REQ.
main53100-0KG00iGUN125,126,135..TD..L..LA; GUN125,135..TD..L..LA; GUN135..TD..6F..S..LA;GUN125,126,136..(TD,TX)..S..(ARL,LA)202006-202108
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
main53100-0KG60supersedes 53100-0KJ40iGUN126..LHD..S..GEN;GUN125,TGN126..TD..(H,S)..(GCC,IDN);GUN125,TGN126..(TD,TX)..MTM..H..(GEN,LA);GGN125,GUN126,135..H..(GCC,GEN,MMR,PH,TH,VN)202006-202301
PLATED
PLATED
NO PAINT REQ.
main53100-0KK00iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
NO PAINT REQ.
main53100-0KK40iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,135..AD..L..LA; GUN126..AD..L..BZAG;GUN125,126,13#,TGN126,13#..AD..S202011-202110
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)
main53100-0KK60iGGN125,TGN126,128,138..AD..H; GUN126,136..AD..H..LA; GUN126,136..H..BZAG202011-202110
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITHOUT; PLATED,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
PLATED
PLATED
NO PAINT REQ.
PLATED
main53100-0KU00iGUN125,126,135..TD..L..LA; GUN125,135..(TD,TX)..ARL; GUN125,135..TD..L..LA202006-202108
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL
NO PAINT REQ.
main53100-0KU30iGUN125,135..RHD..SD..6F..S; GUN125..SX..L; TGN136..RHD..SD;GUN135..SS..6F..S; TGN136..SS202009-202109
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,RADIATOR GRILLE-MOLDING; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
PLATED; PLATED,FRONT BUMPER-MATERIAL COLOR; PLATED,FRONT BUMPER-PAINTED; PLATED,RADIATOR GRILLE-CHROME PLATED
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)
main53100-0KF71iGUN125,126,135..AS..BZAG; GUN125,126..AD..L..LA;GUN135..(AD,AS)..L..LA; GUN125,135..AD..L..BZAG; GUN125..AS..LA; GUN126..AD..L..BZAG202011-202110
NO PAINT REQ.; NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH; NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONTBUMPER-MATERIAL COLOR; NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE& DISPLAY & *LDA)
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH
main53100-0KK50iGUN125,126,135..AD..L..LA; GUN125,126..AD..S..LA;GUN135..AD..6F..S..LA; GUN125,13#..S..BZAG;GUN126..AD..(L,S)..BZAG; GUN125,135..AD..L..LA202011-202110
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH; NO PAINT REQ.,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
PLATED,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
main53100-0KU40iGUN125,126,135..AD..L..LA; GUN125,135..AD..L..BZAG; GUN125,135..AD..L..LA202011-202110
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
main53100-0KU50iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..LA202011-202110
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL
main53100-YP210iGUN125..RHD..TD..H..GEN;GUN126..LHD..6FC..H..GEN; GUN126,135..6FC..H..(TH,VN); GUN126..RHD..H..GEN;GUN125,126..LHD..TD..6F..H..GEN202012-202108
PLATED,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); PLATED,MLM ADVENTURE PACKAGE&HEADLAMP- LED(MLM); PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP- LED(MLM)
PLATED,MLM ADVENTURE PACKAGE
PLATED,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PLATED,MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,RUGGED X PACKAGE&FRONT BUMPER-MATERIAL COLOR(MLM) & WITH(WIDE FENDER)
53117CRETAINER, RADIATOR GRILLE, NO.1
main53117-0K040iTGN126..TS..S;GUN125,126,13#..MS,PS,TS;GUN126,135..(PD,TD)..L..(LA,PKN);GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L;GUN112,120,122,123,TGN11#,120,121,136..PS,TD,TS,TX202006-202201
main53117-0K050iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
main53117-0K060iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
main53117-0K120iGUN135..TD..S..LA;GUN125..TD..6FC..L..GEN;GUN126..(MD,MMD,TD,TX)..(H,S);GUN135..(ARL,GEN,PH,TH,VN)..CBU;GUN125..(MD,TD,TX)..(ARL,IDN,MA,TH,VN);GGN125,GUN125,136,TGN126..(TD,TX)..(H,S)..(ARL,GCC,GEN,LA)202006-202301
main53117-0K130iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
main53117-0K140iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,126,135..AD..L..LA; GUN125,135..AD..L..LA; GUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S)202011-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL; TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
53121AMOULDING, RADIATOR GRILLE
main53121-0K870supersedes 53121-0K890iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..TD..(H,S)..(GCC,IDN);GUN125,TGN126..(TD,TX)..MTM..H..(GEN,LA)202006-202301
main53121-0KA00iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
main53121-0KA50iGUN125..6FC..S..MA;GUN126,135..TD..S..LA;GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,PH,TH,VN);GUN125,136,TGN126..(TD,TX)..S..(ARL,GEN,LA,TH,VN)202006-202110
main53121-0KA70iGUN125,135..RHD..SD..6F..S; GUN125..SX..L; TGN136..RHD..SD;GUN135..SS..6F..S; TGN136..SS202009-202109
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED)); RADIATOR GRILLE-MOLDING; REAR BUMPER-WITH(*RUPD(PAINTED))
main53121-0KA80iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,126,135..AD..L..LA; GUN125,135..AD..L..LA; GUN126..AD..L..BZAG;GUN125,126,13#,TGN126,13#..AD..S202011-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
main53121-0KC60iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,126,135..AD..L..LA; GUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..LA202011-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL; TIRE & DISC WHEEL-265/65R17, STEEL&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
main53121-YP160iGUN126..LHD..6FC..H..GEN;GUN126,135..TD..6FC..H..(TH,VN); GUN135..6FC..GEN; GUN135..LHD..H;GUN126..RHD..H..GEN;GUN126..6FC..(PH,TWN);GUN125,126..LHD..TD..6F..H..(GEN,PH); GUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU;GUN125..RHD..TD..H..GEN;GUN126..LHD..6FC..H..GEN;GUN126,135..6FC..H..(TH,VN)202006-202012
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH; MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
RUGGED X PACKAGE
53121FMOULDING, RADIATOR GRILLE, UPPER RH
main53125-0K010iGUN125,126,135,TGN126,136..TD..L..LA; GUN125,126,135..TD..L..LA; TGN136..GEN;GUN122..S..GEN;GUN126,136..TS..IV3202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53125-0K020supersedes 53125-0K050iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53125-0K040iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53125-0K210iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121..ARL,GEN,IDN,TH;GUN125,135..(MS,TS)..L..(ARL,GEN,IDN,LA,MA)202006-202110
main53125-0K220iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53125-0K230supersedes 53125-0K060iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
main53125-0K490iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..(TD,TX)..H..(GEN,LA);GUN125,TGN126..TD..(H,S)..(GCC,IDN)202006-202301
main53125-0K520iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
main53125-0K570iGUN125..6FC..S..MA;GUN126,135..TD..S..LA;GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN125..(MD,TD,TX)..L..(ARL,IDN,MA);GUN135..(L,S)..(ARL,GEN,PH,TH,VN)..CBU;GUN125,136,TGN126..(TD,TX)..S..(ARL,GEN,LA,TH,VN)202006-202110
main53125-0K590iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,126,135..AD..L..LA; GUN125,135..AD..L..LA; GUN126,135..AD..S;GUN126,135..AD..L..BZAG;GUN125,TGN126,136..AD..S..LA;GUN125,136,TGN13#..AD..(L,S)..BZAG202011-202110
TIRE & DISC WHEEL-265/65R17, ALUMINUM; TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL; TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED); TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); TIRE & DISC WHEEL-265/65R17, STEEL&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
53122AMOULDING, RADIATOR GRILLE, LOWER
main53122-0K200iGUN125,126,135,TGN126,136..TD..L..LA; GUN125,126,135..TD..L..LA; TGN136..GEN;GUN122..S..GEN;GUN126,136..TS..IV3202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53122-0K210supersedes 53122-0K240iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53122-0K230iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53122-0K410iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121..ARL,GEN,IDN,TH;GUN125,135..(MS,TS)..L..(ARL,GEN,IDN,LA,MA)202006-202110
main53122-0K420iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53122-0K430supersedes 53122-0K250iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
53124CMOULDING, RADIATOR GRILLE, UPPER LH
main53126-0K010iGUN125,126,135,TGN126,136..TD..L..LA; GUN125,126,135..TD..L..LA; TGN136..GEN;GUN122..S..GEN;GUN126,136..TS..IV3202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53126-0K020supersedes 53126-0K050iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53126-0K040iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53126-0K210iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121..ARL,GEN,IDN,TH;GUN125,135..(MS,TS)..L..(ARL,GEN,IDN,LA,MA)202006-202110
main53126-0K220iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53126-0K230supersedes 53126-0K060iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
53125AMOULDING, RADIATOR GRILLE, CENTER RH
main53123-0K030iGUN125,126,135,TGN126,136..TD..L..LA; GUN125,126,135..TD..L..LA; TGN136..GEN;GUN122..S..GEN;GUN126,136..TS..IV3202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53123-0K040supersedes 53123-0K070iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53123-0K060iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53123-0K240iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121..ARL,GEN,IDN,TH;GUN125,135..(MS,TS)..L..(ARL,GEN,IDN,LA,MA)202006-202110
main53123-0K250iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53123-0K260supersedes 53123-0K080iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
main53123-0K560iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..(TD,TX)..H..(GEN,LA);GUN125,TGN126..TD..(H,S)..(GCC,IDN)202006-202301
main53123-0K590iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
53126AMOULDING, RADIATOR GRILLE, CENTER LH
main53124-0K030iGUN125,126,135,TGN126,136..TD..L..LA; GUN125,126,135..TD..L..LA; TGN136..GEN;GUN122..S..GEN;GUN126,136..TS..IV3202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53124-0K040supersedes 53124-0K070iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53124-0K060iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53124-0K240iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121..ARL,GEN,IDN,TH;GUN125,135..(MS,TS)..L..(ARL,GEN,IDN,LA,MA)202006-202110
main53124-0K250iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53124-0K260supersedes 53124-0K080iGUN125,135,TGN136..AD..L..BZAG; GUN125,135..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
53129BMOULDING, RADIATOR GRILLE, NO.9
main53127-0K010iGUN125,126,135..TD..L..LA; TGN126,136..TD..L..LA; TGN136..GEN;GUN122..S..GEN202006-202108
REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE); REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITHOUT
main53127-0K020supersedes 53127-0K050iGUN125,135..RHD..SD..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;TGN126..S..SA;GUN125..SS..6FC;GUN125,LAN125,TGN136..LHD..(SD,SS)..MTM..S; TGN136..SS202009-202109
EXPORT FROM SOUTH AFRICA&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITH(*RUPD(PLATED)); TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53127-0K040iGUN122..TD..S..GEN; TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..TS..LA;GUN125,TGN126..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..GCC202006-202108
FRONT BUMPER-PAINTED; RADIATOR GRILLE-CHROME PLATED; REAR BUMPER-STEP TYPE(PLATED)
main53127-0K110iTGN136..TD..LA;GUN122..RHD..(GEN,TH);TGN126..TD..L..(GEN,LA);GUN122..LHD..L..(GEN,PH);GUN125..TD..6F..L..(GEN,PH);GUN125,126..RHD..(MS,TS)..L..CBU;GUN112,120,123,TGN110,121..GEN,IDN,TH202006-202110
main53127-0K120iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53127-0K130supersedes 53127-0K360iGUN125,135,TGN136..AD..L..BZAG; GUN125..AS..LA; GUN126..AD..L..BZAG; GUN135..AS;GUN125,126,TGN136..AS..BZAG;GUN125,126,135,TGN126,136..AD..L..LA; TGN126..AS202011-202110
FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-PAINTED; RADIATOR GRILLE-MOLDING; STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); STEERING SWITCH-WITH(AUDIO & TELEPHONE); STEERING SWITCH-WITHOUT; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR
REAR BUMPER-STEP TYPE(PLATED)
FRONT BUMPER-MATERIAL COLOR,MARK=53100-0KB40; FRONT BUMPER-PAINTED,MARK=53100-0KB40; MARK=53100-0KB40; RADIATOR GRILLE-CHROME PLATED,MARK=53100-0KB40
main53127-0K360iGUN125,126,135..AS..BZAG; GUN125,126..AD..L..LA;GUN135..(AD,AS)..L..LA; GUN125,135..AD..L..BZAG; GUN125..AS..LA; GUN126..AD..L..BZAG202011-202110
ACTIVE SAFETY PACKAGE-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-MATERIAL COLOR; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED; ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
53223ABRACKET, RADIATOR GRILLE MOUNTING
7551EMBLEM & NAME PLATE
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048
18 parts on this diagram · 2 diagrams in section
