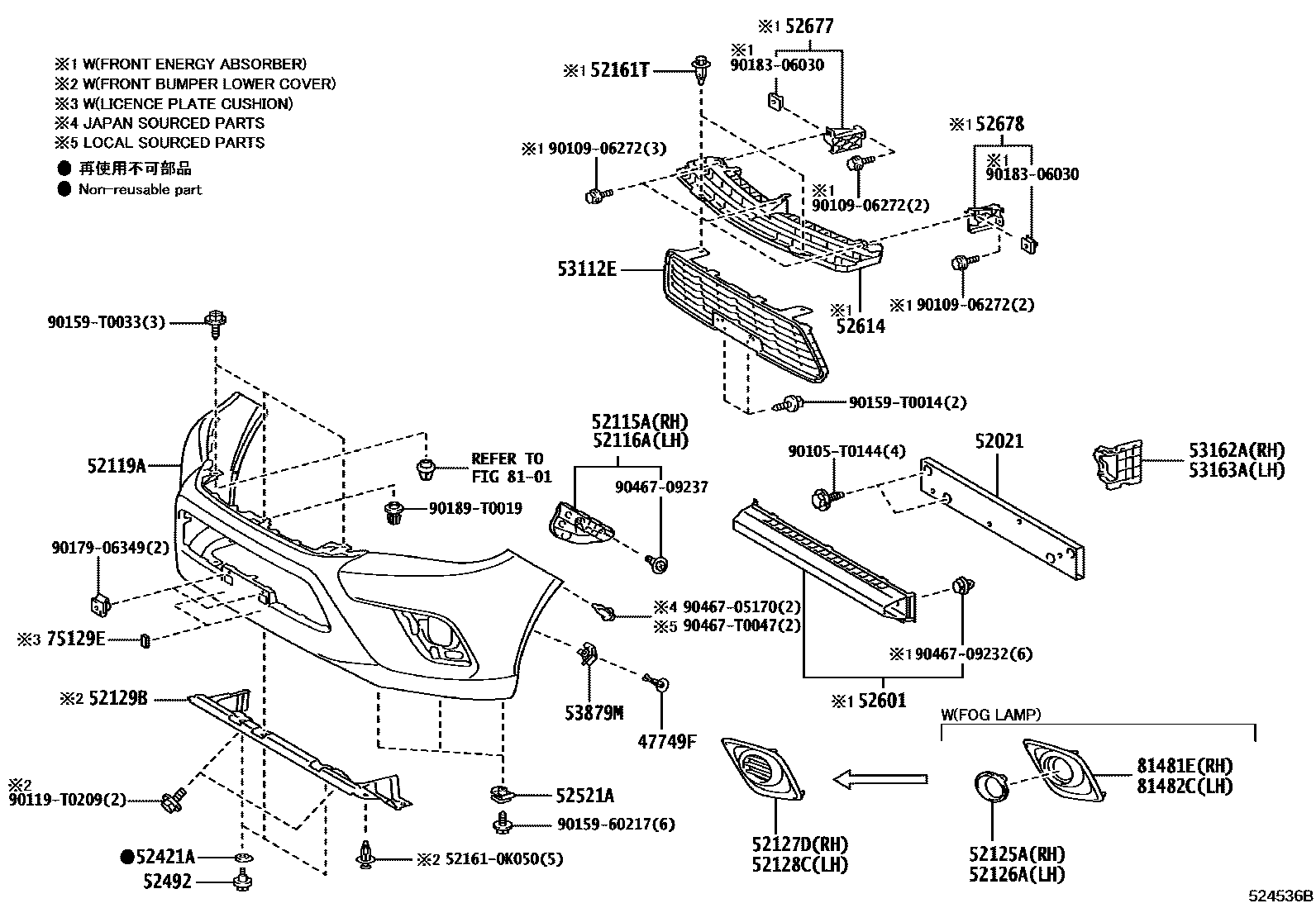

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-0K110iGUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202006-202110
main52115-0K120iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
main52115-0K180iGUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S); GUN135..TD..L..LA;GUN125..TD..6F..L..(GEN,LA);GUN126,TGN126,136..(AD,TD)..L..(GEN,LA)202006-202110
TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main52115-0K190iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
main52115-YP040iGUN126..6F..PH;GUN135..LHD..6F..H;GUN13#..(TD,TX)..6FC..H;GUN126..TD..H..ARL..CBU;GUN126..6FC..(MMR,PH,TH)202006-202301
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-0K110iGUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202006-202110
main52116-0K120iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
main52116-0K180iGUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S); GUN135..TD..L..LA;GUN125..TD..6F..L..(GEN,LA);GUN126,TGN126,136..(AD,TD)..L..(GEN,LA)202006-202110
TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main52116-0K190iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
main52116-YP040iGUN126..6F..PH;GUN135..LHD..6F..H;GUN13#..(TD,TX)..6FC..H;GUN126..TD..H..ARL..CBU;GUN126..6FC..(MMR,PH,TH)202006-202301
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52119ACOVER, FRONT BUMPER
main52119-0K820iTGN121..ARL,TH;GUN122..PH..CBU;TGN121..TS..GEN;GUN122..RHD..TD..GEN;GUN125,TGN126..LHD..L..(GEN,PH);GUN125..(MS,TS)..6F..L..(ARL,GEN,IDN,LA,MA);GUN112,120,122,135,TGN110,126..TS..L..(ARL,GEN,IDN,LA,PH,TH)202006-202110
main52119-0KA00iGUN125,126,135,TGN126,136..AS; GUN125,135,TGN136..AD..L..BZAG; GUN126..AD..L..BZAG202011-202110
TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN MULTI; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN(VALEO); TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO); TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main52119-0M951iGUN112,122,TGN11#,120,121..GCC; TGN126..TS..S; TGN126..TS..S;GUN125,TGN126..L..GCC..CBU202006-202108
PAINT REQ.; PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER); PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH
main52119-0M973iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,135,TGN136..AD..L..BZAG; TGN126..AS202011-202110
PAINT REQ.; PAINT REQ.,FRONT BUMPER-PAINTED; PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN MULTI; PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN(VALEO)
main52119-0M977iGUN112,122,TGN111,121..(H,S)..GCC; GUN122..RHD..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..RHD..TS..6F..L..CBU;GUN112,122,TGN11#,120,121..GCC;GUN122,TGN121,126..LHD..TS..L..(GEN,LA); GUN125..TS..H;GUN125..L..GCC;GUN125..TS..6FC;GUN125..TD..L..LA;GUN122..S..(GEN,TH);TGN126..TD..L..(GCC,LA);GUN122,126,135..LHD..TD..L..(GEN,LA);GUN123,126,136,TGN126..TS..(ARL,GCC,TH);GUN120,TGN121,136..(TD,TX)..(GEN,LA,TH);GUN122,125..RHD..(TD,TX)..6F..L..(GEN,TH)202006-202108
PAINT REQ.; PAINT REQ.,FRONT BUMPER-PAINTED; PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
main52119-0M979supersedes 52119-0K860iGUN126..SS..S;GUN125..L..GHA;GUN125..S..IV3;GUN125,135..KEN;GUN125..LHD..SS..S;TGN126,136..LHD..S..SA;GUN125,TGN120..SS..(5F,6FC);GUN125,135,LAN125..SD..MTM..S202009-202111
PAINT REQ.
main52119-0M991iGUN125..SX;GUN126..KEN;GUN126..SD..S;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN136,TGN136..RHD..S..SA202009-202111
PAINT REQ.
PAINT REQ.
main52119-0M999iGUN125,135..AD..L..LA; GUN126,TGN126,136..AD..L..LA; GUN126..AD..6F..H..LA; GUN126..AD..S;GUN135..AD..6F..S;GUN135..6FC..BZAG;GUN126,135..AD..L..BZAG;GUN125,TGN126,136..AD..S..LA;GUN125,136,TGN13#..AD..(L,S)..BZAG202011-202110
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&HEADLAMP-4-BULB HALOGEN MULTI; PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&HEADLAMP-4-BULB HALOGEN MULTI
main52119-F0901iGUN125,135..AD..L..LA; GUN135..AD..6F..S;GUN135..6FC..BZAG;GUN125,126,136,TGN126,13#..AD..S; GUN135..AD..6FC..LA;GGN125,GUN126,136,TGN126,128,138..AD..H; TGN136..S..LA202011-202110
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&HEADLAMP-4-BULB HALOGEN MULTI&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&HEADLAMP-4-BULB HALOGEN MULTI&CLEARANCE & BACK SONAR-WITH
main52119-F0905iGUN125..TD..6F..L..GEN; GUN125..TX..H;TGN126..H..GEN;GUN125,135..S..VN;GUN125..RHD..TD..H..GEN;GUN126..TD..6F..H..(GCC,GEN,LA);GGN125,GUN125,126..TD..6FC..H..(ARL,GCC,GEN)..CBU; GUN126,135..TD..L..LA;GUN125,TGN126,136..TD..MTM..L..(GEN,LA); GUN126,TGN126..H..GEN;GUN125..RHD..TD..H..GEN; GUN126..6F..GCC;GGN125,GUN125,126..TD..6FC..H..(ARL,GCC)..CBU; GUN126..TWN;GUN135..L..VN;GUN126..(TD,TX)..IV3;GUN125..LHD..TD..6F..H;GUN125..TD..6FC..L..GEN;TGN126..6FC..(H,S)..GCC;GUN135,TGN126..TD..MTM..S..LA;GUN125..(TD,TX)..(ARL,IDN,TH);TGN126..TD..5F..(H,S)..(GCC,GEN);GUN135..(L,S)..(ARL,GEN,PH,TH)..CBU;GUN125,126,136..(TD,TX)..S..(ARL,GCC,GEN,LA)..CBU; GUN135..S..VN; TGN126,136..L..GEN; TGN136..GEN; TGN136..GEN;GUN135..TD..L..LA;GUN125..TD..6F..L..(GEN,LA)202006-202108
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,HEADLAMP-4-BULB HALOGEN MULTI&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDEFENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDEFENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDEFENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
main52119-F0906iGUN125..VN;GUN125..TX..H;GUN125..RHD..TD..H..GEN;TGN126..TD..H..(GEN,LA);GUN135..TD..6FC..(LA,VN);GGN125,GUN125..6FC..H..GCC;GUN126,13#..(MMD,TD,TX)..H..(ARL,GCC,GEN,LA,MMR,PH,TH,VN)..CBU202006-202301
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
main52119-0K860iGUN125..RHD..SS..6F..S..CBU;GUN122,125,135,LAN125,TGN121,126..(SD,SS)..L; GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; GUN135,TGN136..SS..MTM..S; GUN135..SS..6F..S; TGN120..SA;GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; TGN136..RHD..SD202009-202109
FRONT BUMPER-MATERIAL COLOR; FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&SPEEDOMETER-KM/H
main52119-F0911iGGN125,GUN126..GCC;GUN125..6FC..H..GCC; GUN125,TGN126..TD..S..GCC; GUN125..S..GCC;GUN125..6F..H..GCC;TGN126..TD..(H,S)..GCC; TGN126..H..GCC;GUN125..6F..H..GCC202006-202108
PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
main52119-YP917iGGN125..GCC; GUN125..6F..H..GCC; GUN125..LHD..TD..H..GEN; GUN126..GCC; GUN126..H..GEN;GUN125..RHD..TD..H..GEN; GUN126..TD..6FC..H..ARL..CBU; GUN126..TWN202006-202108
PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP- LED(MLM); PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP- LED(MLM)&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
main52119-YP918iGUN126..6F..PH;GUN135..LHD..6F..H;GUN13#..(TD,TX)..6FC..H;GUN126..TD..H..ARL..CBU;GUN126..6FC..(MMR,PH,TH)202006-202301
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); PAINT REQ.,POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
PAINT REQ.,RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED), ALUMINUM&FRONT BUMPER-MATERIAL COLOR(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
52125ABRACKET, FOG LAMP MOUNTING, RH
TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main52125-0K040iGUN125,126..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S..CBU; GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; GUN135..SS..6F..S202009-202109
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H
52126ABRACKET, FOG LAMP MOUNTING, LH
TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main52126-0K040iGUN125,126..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S..CBU; GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; GUN135..SS..6F..S202009-202109
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-0K200supersedes 52127-0K230iTGN126..TS..S;GUN125..TD..L..LA;GUN126,13#,TGN136..AS,TS;GUN126,135..(AD,TD)..L..LA;GUN125..(AS,TD)..6F..L..(BZAG,GCC,GEN,PH);GUN112,120,122,123,TGN110,121..ARL,GEN,IDN,PH,TH;GUN125,TGN126,136..LHD..(5F,6FC)..L..(GCC,GEN,LA);GUN125..(AD,AS,MS,TS)..(H,L)..(ARL,GCC,GEN,IDN,LA,MA)202006-202110
main52127-0K210iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
NO PAINT REQ.
NO PAINT REQ.
main52127-0K850iGUN126..TWN;GUN135..6F..S..LA;GUN125..6FC..S..MA;GUN126..S..(BZAG,LA);GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN135..(AD,TD,TX)..(L,S)..(ARL,BZAG,GEN,TH,VN);GUN125,126,TGN136..(AD,MD,TD,TX)..L..(ARL,BZAG,IDN,MA);GUN125,136,TGN126,13#..(AD,TD,TX)..S..(ARL,BZAG,GCC,GEN,IDN,LA,TH); GUN135..TD..L..LA;GUN125..TD..6F..L..(GEN,LA);GUN126,TGN126,136..(AD,TD)..L..(GEN,LA); TGN128,138..H;GUN135..S..PH;GUN126..6F..GCC;GGN125,GUN125,TGN126..H..GCC;GUN126..TD..6FC..H..(ARL,GCC)..CBU202006-202110
FRONT FOG LAMP-WITHOUT; NO PAINT REQ.; TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main52127-0K880iGUN125..SX;GUN126..SD..S;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN136,TGN136..RHD..S..SA202009-202111
NO PAINT REQ.
main52127-0K230iGGN125,GUN125,126,TGN126..H..GCC; GGN125,GUN126..GCC;GUN125..6FC..H..GCC; GUN112,122,TGN11#,120,121..GCC; GUN125,TGN126..TD..S..GCC; TGN126..TD..S..GCC; TGN126..TS..S;GUN125,TGN126..L..GCC..CBU202006-202108
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; FRONT BUMPER-WITH(STEEL LOWER COVER)
52128CCOVER, FRONT BUMPER HOLE, LH
main52128-0K200supersedes 52128-0K230iTGN126..TS..S;GUN125..TD..L..LA;GUN126,13#,TGN136..AS,TS;GUN126,135..(AD,TD)..L..LA;GUN125..(AS,TD)..6F..L..(BZAG,GCC,GEN,PH);GUN112,120,122,123,TGN110,121..ARL,GEN,IDN,PH,TH;GUN125,TGN126,136..LHD..(5F,6FC)..L..(GCC,GEN,LA);GUN125..(AD,AS,MS,TS)..(H,L)..(ARL,GCC,GEN,IDN,LA,MA)202006-202110
main52128-0K210iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
NO PAINT REQ.
NO PAINT REQ.
main52128-0K850iGUN126..TWN;GUN135..6F..S..LA;GUN125..6FC..S..MA;GUN126..S..(BZAG,LA);GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN135..(AD,TD,TX)..(L,S)..(ARL,BZAG,GEN,TH,VN);GUN125,126,TGN136..(AD,MD,TD,TX)..L..(ARL,BZAG,IDN,MA);GUN125,136,TGN126,13#..(AD,TD,TX)..S..(ARL,BZAG,GCC,GEN,IDN,LA,TH); GUN135..TD..L..LA;GUN125..TD..6F..L..(GEN,LA);GUN126,TGN126,136..(AD,TD)..L..(GEN,LA); TGN128,138..H;GUN135..S..PH;GUN126..6F..GCC;GGN125,GUN125,TGN126..H..GCC;GUN126..TD..6FC..H..(ARL,GCC)..CBU202006-202110
FRONT FOG LAMP-WITHOUT; NO PAINT REQ.; TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main52128-0K880iGUN125..SX;GUN126..SD..S;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN136,TGN136..RHD..S..SA202009-202111
NO PAINT REQ.
main52128-0K230iGGN125,GUN125,126,TGN126..H..GCC; GGN125,GUN126..GCC;GUN125..6FC..H..GCC; GUN112,122,TGN11#,120,121..GCC; GUN125,TGN126..TD..S..GCC; TGN126..TD..S..GCC; TGN126..TS..S;GUN125,TGN126..L..GCC..CBU202006-202108
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; FRONT BUMPER-WITH(STEEL LOWER COVER)
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-0K120iGUN112,122,TGN11#,120,121..GCC; GUN112,122,TGN111,121..(H,S)..GCC; TGN126..TS..S;GUN125,126,13#..TS;GUN126,135..TD..L..LA;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L;GUN112,120,122,123,TGN110,121,136..(TD,TS,TX)..(ARL,GEN,IDN,LA,PH,TH)202006-202108
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED; NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
main53112-0K130iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
NO PAINT REQ.
main53112-0K160iGUN125,135,TGN136..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN MULTI; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN(VALEO); NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN MULTI; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN(VALEO); NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO); NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
NO PAINT REQ.
NO PAINT REQ.
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75129ECUSHION, FRONT LICENCE PLATE
main75129-48010×2iGUN125,135,TGN136..AD..L..BZAG; GUN126..AD..L..BZAG; GUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN MULTI; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&HEADLAMP-2-BULB HALOGEN(VALEO); TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN MULTI; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED&HEADLAMP-2-BULB HALOGEN(VALEO); TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO); TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
main52127-0K860iGUN126..LHD..S..GEN;GUN125,126,136,TGN126..(AD,TD)..H..(BZAG,GEN); GUN135..6FC..BZAG;GUN126..S..(BZAG,LA);GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,VN);GUN126..RHD..(TD,TX)..S;GUN135..6F..S..(BZAG,LA);GUN125,136,TGN126,13#..(AD,TD,TX)..S..(ARL,BZAG,GCC,GEN,IDN,LA); GUN135..6FC..BZAG;TGN126..(AD,TD)..S;GUN126..S..(BZAG,LA);GUN126..RHD..TD..S..CBU;GUN135..6F..S..(BZAG,LA);GUN125,136,TGN13#..S..(ARL,BZAG,GEN,IDN,LA)..CBU; TGN128,138..H;GUN135..6FC..S..(LA,PH);GUN125,135..6F..S..(MA,PH,VN)202006-202110
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; HEADLAMP-4-BULB HALOGEN MULTI
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main52127-0K890iGUN125..H..SA; GUN125..LHD..SS..S;GUN125,135..SD..6F..S;TGN126,136..LHD..S..SA; GUN125..LHD..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN125..SX..S;GUN126..SD..S;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN136,TGN136..RHD..S..SA; GUN126..SS..S;GUN125..SS..6FC202009-202109
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H& WITH(*MID); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H& WITH(*MID)&CLEARANCE & BACK SONAR-WITH; FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H & WITH(*MID); TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H & WITH(*MID)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONTFOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONTFOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main52030-0K120iGGN125,GUN125,126,TGN126..TD..(H,S)..GCC; GGN125,GUN126..GCC;GUN125..6FC..H..GCC; GUN112,122,TGN111,121..(H,S)..GCC; TGN126..TD..S..GCC; TGN126..TS..S202006-202108
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE &BACK SONAR-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE &BACK SONAR-WITHOUT; FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH
TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main52127-0K180iGUN125,126..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S..CBU; GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; GUN135..SS..6F..S202009-202109
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H
main52127-YP120iGUN126..6F..PH;GUN135..LHD..6F..H;GUN13#..(TD,TX)..6FC..H;GUN126..TD..H..ARL..CBU;GUN126..6FC..(MMR,PH,TH)202006-202301
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED), ALUMINUM&FRONT BUMPER-MATERIAL COLOR(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
81482CCOVER, FOG LAMP, LH
main52128-0K860iGUN126..LHD..S..GEN;GUN125,126,136,TGN126..(AD,TD)..H..(BZAG,GEN); GUN135..6FC..BZAG;GUN126..S..(BZAG,LA);GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,VN);GUN126..RHD..(TD,TX)..S;GUN135..6F..S..(BZAG,LA);GUN125,136,TGN126,13#..(AD,TD,TX)..S..(ARL,BZAG,GCC,GEN,IDN,LA); GUN135..6FC..BZAG;TGN126..(AD,TD)..S;GUN126..S..(BZAG,LA);GUN126..RHD..TD..S..CBU;GUN135..6F..S..(BZAG,LA);GUN125,136,TGN13#..S..(ARL,BZAG,GEN,IDN,LA)..CBU; TGN128,138..H;GUN135..6FC..S..(LA,PH);GUN125,135..6F..S..(MA,PH,VN)202006-202110
FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; HEADLAMP-4-BULB HALOGEN MULTI
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main52128-0K890iGUN125..H..SA; GUN125..LHD..SS..S;GUN125,135..SD..6F..S;TGN126,136..LHD..S..SA; GUN125..LHD..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S; GUN125..RHD..SS..6F..S..CBU; GUN125..SX..S;GUN126..SD..S;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN136,TGN136..RHD..S..SA; GUN126..SS..S;GUN125..SS..6FC202009-202109
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H& WITH(*MID); FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H& WITH(*MID)&CLEARANCE & BACK SONAR-WITH; FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H & WITH(*MID); TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&SPEEDOMETER-KM/H & WITH(*MID)&CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONTFOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONTFOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
main52040-0K120iGGN125,GUN125,126,TGN126..TD..(H,S)..GCC; GGN125,GUN126..GCC;GUN125..6FC..H..GCC; GUN112,122,TGN111,121..(H,S)..GCC; TGN126..TD..S..GCC; TGN126..TS..S202006-202108
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE &BACK SONAR-WITH; FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH&CLEARANCE &BACK SONAR-WITHOUT; FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH
TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&HEADLAMP-2-BULB HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main52128-0K180iGUN125,126..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; GUN125..RHD..SS..6F..S..CBU; GUN125..S..IV3;GUN125,135..RHD..SD..6F..S; GUN135..SS..6F..S202009-202109
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H
main52128-YP120iGUN126..6F..PH;GUN135..LHD..6F..H;GUN13#..(TD,TX)..6FC..H;GUN126..TD..H..ARL..CBU;GUN126..6FC..(MMR,PH,TH)202006-202301
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED), ALUMINUM&FRONT BUMPER-MATERIAL COLOR(MLM) & WITH(WIDE FENDER)&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015960217
main90159-60217
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
90467T0047
main90467-T0047
40 parts on this diagram · 5 diagrams in section
