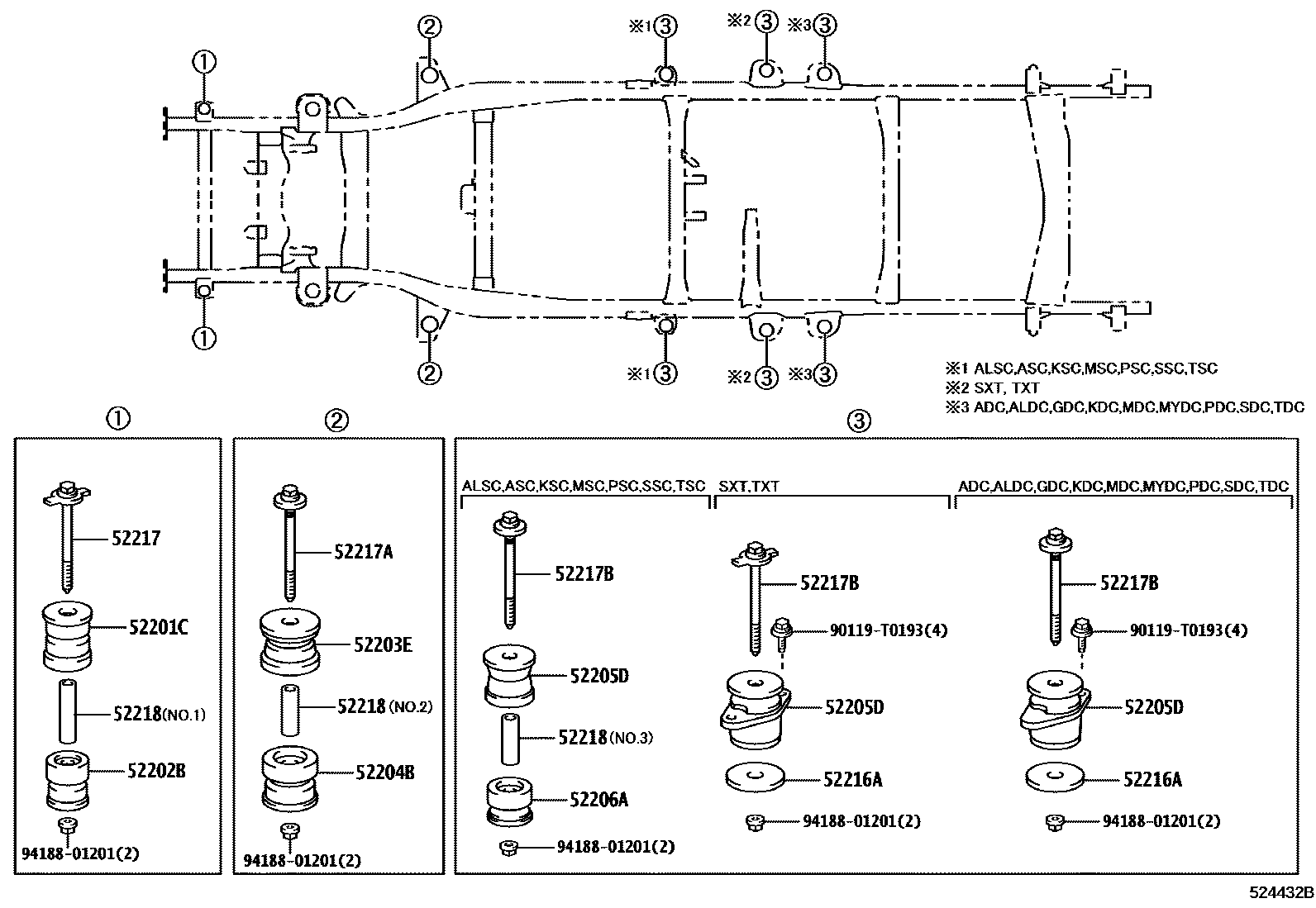

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K100×2iGUN122,126,TGN121..PKN202006-202201

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K100×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120×2iGUN125,126,135,TGN126,136..AS202006-202110

main52203-0K150×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110×2iGUN125,126,135,TGN126,136..AS202006-202110

main52205-0K150×2iGUN120,122,125,126,13#..SX,TX202006-202109

main52205-0K161iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301

RH

main52206-0K101iGUN126..PD202006-202201

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080×2iGUN125,126,135,TGN126,136..AS202006-202110

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202110

52217BOLT, BODY MOUNTING

main52217-0K010×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGUN122,126,TGN121..PKN202006-202201

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

main52217-0K031×2iGUN120,122,125,126,13#..SX,TX202006-202109

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGUN125,126..GHA202006-202111

NO.1

main52219-0K010×2iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS; GUN122,126,TGN121..PKN202006-202201

NO.2; NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
