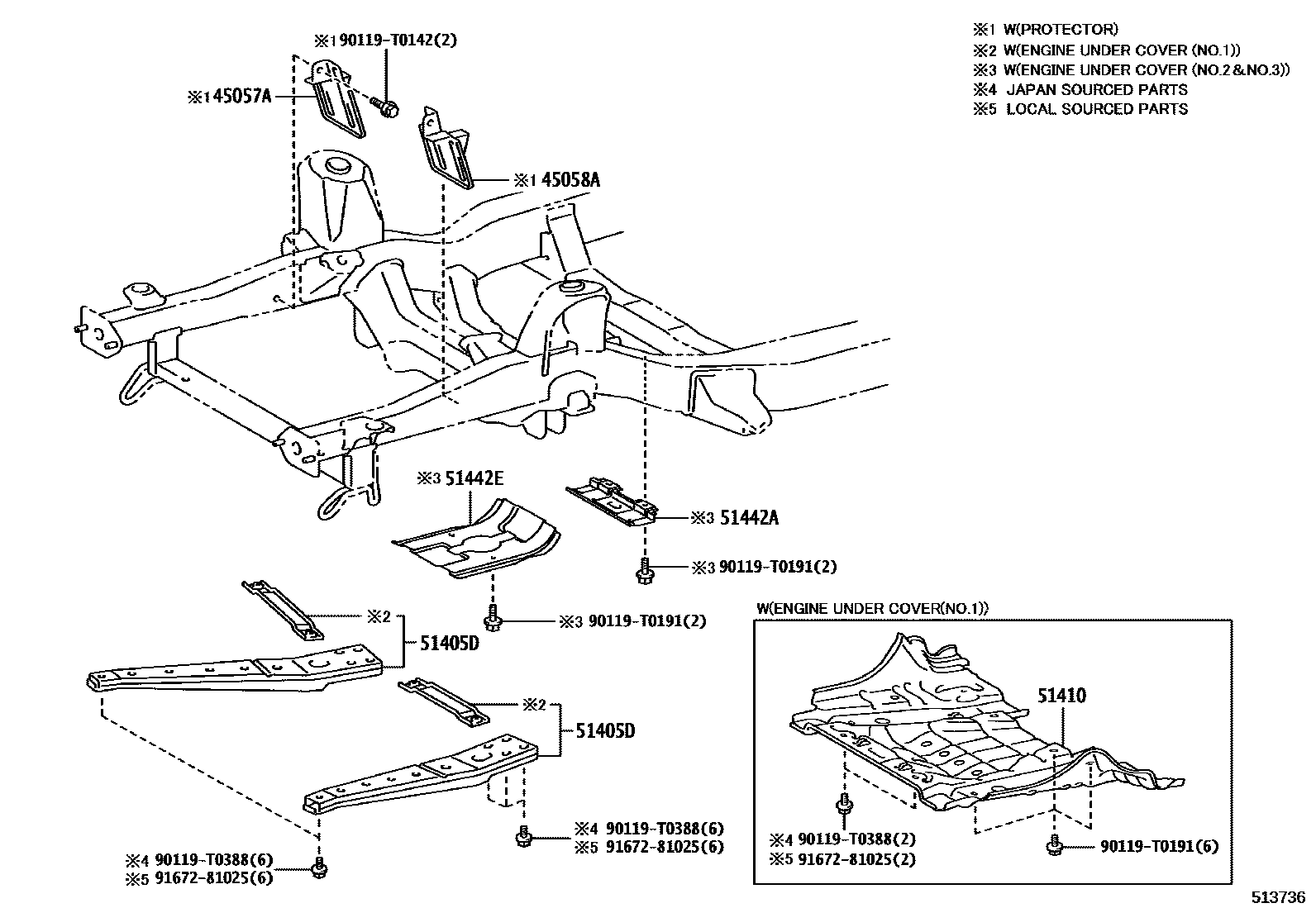

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

45057APROTECTOR SUB-ASSY, RACK BOOT, NO.1 RH

main45057-0K010iGUN112,120,122,123,TGN120,121..ARL,GEN,PH,PKN,SA,TH202006-202201

45058APROTECTOR SUB-ASSY, RACK BOOT, NO.1 LH

main45058-0K010iGUN112,120,122,123,TGN120,121..ARL,GEN,PH,PKN,SA,TH202006-202201

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK010×2iGUN112,120,122,123,TGN110,120,121..ARL,GEN,IDN,PH,PKN,SA,TH202006-202201

main51405-KK020×2iGUN112,122,TGN11#,120,121..GCC202006-202108

main51405-KK030×2iGUN126..PKN202006-202201

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN135..PH,VN;GUN126..LHD..S..GEN;GUN135..RHD..(GEN,TH);GUN126..MA,MMR,PH,TH,TWN,VN;GUN125..6FC..(H,L)..(GEN,IDN,MA);GUN125..(L,S)..(IDN,MA,PH,TH,VN)202006-202301

main51410-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

main51441-KK030iGUN112,122,TGN11#,120,121..GCC202006-202108

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN126..PKN202006-202201

main51420-KK020iGUN135..H..GEN;GUN126..TD..S..LA;GUN125..6FC..S..GEN;GUN126..RHD..(ARL,GEN,KEN,SA);GUN125..(SD,SS,TD,TX)..6FC..(ARL,GCC,LA,SA);GUN135..(KS,SD,SS,SX,TD,TS)..(ARL,KEN202006-202111

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-0K030iGUN112,122,TGN11#,120,121..GCC202006-202108

51442ECOVER, ENGINE UNDER, NO.2

main51441-0K020iGUN112,122,TGN11#,120,121..GCC202006-202108

90119T0142

main90119-T0142

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

11 parts on this diagram · 2 diagrams in section
