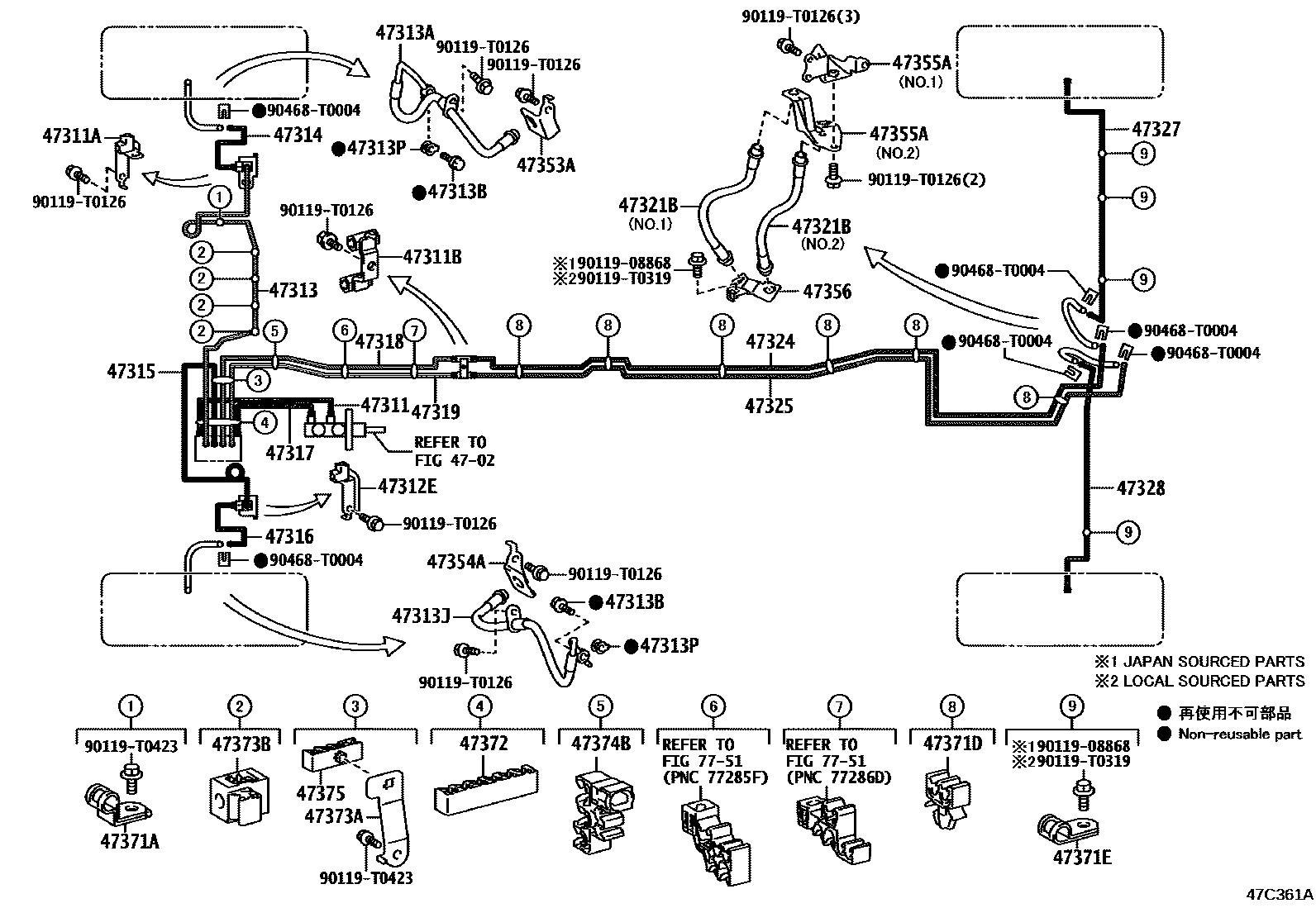

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, W(ABS) 0002 1BRAKE TUBE, W(VSC) 0003 1BRAKE TUBE, W(ABS) 0004 1BRAKE TUBE, W(VSC) 0005 1BRAKE TUBE, W(ABS) 0007 1BRAKE TUBE, W(VSC) & W/O(EURO0008 1BRAKE TUBE, W(VSC) & W(EURO 60009 1BRAKE TUBE, W(ABS) 0010 1BRAKE TUBE, W(VSC) 0011 1BRAKE TUBE, W(ABS) 0012 1BRAKE TUBE, W(VSC) 0013 1BRAKE TUBE, W(ABS) 0015 1BRAKE TUBE, W(VSC) 0017 1BRAKE TUBE, W(VSC) 0018 1BRAKE ACTUATOR 0019 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47311-KK030iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47311-KK050iTGN126..(H,S)..GEN;TGN126,136..(TD,TS)..(GCC,LA);GUN126,135..LHD..(MMD,SD,TD,TS);GUN122,125..LHD..(SD,SS,SX,TD,TS,TX)..(GCC,GEN,LA,SA,VN);GGN125,GUN112,136,TGN11#,120,121..LHD..(SD,SS,TD,TS)..(GCC,LA,SA)202006-202301

main47311-KK060iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10299iGUN122,TGN120,121..PKN,SA202009-202201

main90412-10307iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main90412-T0005iGUN112,120,122,123,TGN11#,120,121..TD,TS,TX202006-202108

main90412-T0009iGGN125,GUN125,126,13#,TGN126,136..TD,TS,TX202006-202108

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGUN125,126..GHA202009-202111

main90412-10302iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main90412-T0007iGUN135..H..GEN;GUN135..(TD,TS,TX)..(ARL,LA,PH,TH,VN);GGN125,GUN112,12#,136,TGN11#,120,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202006-202108

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10300iGUN122,TGN120,121..PKN,SA202009-202201

main90412-10308iGUN125,126..GHA202009-202111

main90412-T0006iGUN112,120,122,123,TGN11#,120,121..TD,TS,TX202006-202108

main90412-T0010iGGN125,GUN125,126,13#,TGN126,136..TD,TS,TX202006-202108

47313TUBE, FRONT BRAKE, NO.3

main47313-KK010iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47313-KK030iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47313-KK040iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

main47313-KK060iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2094iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main90947-T2098iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2095iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main90947-T2098iGGN125,GUN125,126,13#,LAN125,TGN126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

47314TUBE, FRONT BRAKE, NO.4

main47314-KK010iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main47314-KK020iGUN125,126..GHA202006-202111

47315TUBE, FRONT BRAKE, NO.5

main47315-KK010iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47315-KK030iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47315-KK040iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

main47315-KK060iTGN126..(H,S)..GEN;TGN126,136..(TD,TS)..(GCC,LA);GUN126,135..LHD..(MMD,SD,TD,TS);GUN122,125..LHD..(SD,SS,SX,TD,TS,TX)..(GCC,GEN,LA,SA,VN);GGN125,GUN112,136,TGN11#,120,121..LHD..(SD,SS,TD,TS)..(GCC,LA,SA)202006-202301

47316TUBE, FRONT BRAKE, NO.6

main47316-KK010iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main47316-KK020iGUN126..PKN202006-202201

47317TUBE, FRONT BRAKE, NO.7

main47321-KK010iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47321-KK020iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47321-KK030iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

main47321-KK040iGUN125,126..GHA202006-202111

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010iGUN126,135..RHD..(H,S);GUN135..RHD..L..(ARL,SA);GUN125..(H,S)..(IDN,KEN,MA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47322-KK020iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47322-KK030iGUN135..L..GEN202006-202108

main47322-KK040iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202006-202110

main47322-KK050iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

main47322-KK060iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030iGUN126,135..RHD..(H,S);GUN135..RHD..L..(ARL,SA);GUN125..(H,S)..(IDN,KEN,MA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main47323-KK040iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main47323-KK050iGUN135..L..GEN202006-202108

main47323-KK080iTGN126..(H,S)..GEN;TGN126,136..(TD,TS)..(GCC,LA);GUN122,125..LHD..(SD,SS,SX,TD,TS,TX)..(GCC,GEN,LA,SA,VN);GUN126,135..LHD..(MMD,SD,TD,TS)..(GCC,GEN,LA,MMR,PH,SA,VN);GGN125,GUN112,136,TGN11#,120,121..LHD..(SD,SS,TD,TS)..(GCC,LA,SA)202006-202301

main47323-KK090iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

main47323-KK100iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2107iGUN126..PKN202006-202201

NO.1:REFER ILLUST.

main90947-T2108iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

NO.1:REFER ILLUST.

main90947-T2109iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

NO.2:REFER ILLUST.

main90947-T2111iGUN126..PKN202006-202201

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK010iGUN120,122,123,TGN120,121..PS,SD,SS,TD,TS,TX202006-202201

main47324-KK020iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main47324-KK050iGUN112,TGN11#202006-202108

main47324-KK060iGUN125,126..GHA202006-202111

47325TUBE, REAR BRAKE, NO.5

main47325-KK030iGUN120,122,123,TGN120,121..PS,SD,SS,TD,TS,TX202006-202201

main47325-KK040iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main47325-KK080iGUN112,TGN11#202006-202108

main47325-KK090iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202006-202110

47327TUBE, REAR BRAKE, NO.7

main47327-KK030iTGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main47327-KK060iGUN120,122..GCC,GEN,PKN,SA,TH;GUN112,TGN111,121..ARL,GCC,GEN,PKN,SA202006-202201

main47327-KK120iGGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX202006-202301

main47327-KK130supersedes 47327-KK080iGGN125,GUN125,126,13#,TGN126,136..GHA,KEN,SA202009-202111

47328TUBE, REAR BRAKE, NO.8

main47328-KK030iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main47328-KK080iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202009-202111

main47328-KK090iGUN126..PKN202006-202201

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-0K011iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main47353-KK010iGUN125,126..GHA202006-202111

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-0K010iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main47354-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

NO.2:REFER ILLUST.

main47355-KK020iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

NO.1:REFER ILLUST.

main47355-KK060iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

NO.2:REFER ILLUST.

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK010iGUN125,126..GHA202006-202111

main47356-KK040iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007iGUN125,126..GHA202006-202111

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGUN125,126..GHA202006-202111

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGUN122,126,TGN121..PKN202006-202201

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

main90949-T1028iTGN126..(H,S)..GEN;TGN126,136..(TD,TS)..(GCC,LA);GUN126,135..LHD..(MMD,SD,TD,TS);GUN122,125..LHD..(SD,SS,SX,TD,TS,TX)..(GCC,GEN,LA,SA,VN);GGN125,GUN112,136,TGN11#,120,121..LHD..(SD,SS,TD,TS)..(GCC,LA,SA)202006-202301

main90949-T1029iTGN121..GEN;TGN126..S..SA;GUN122,125..PH;TGN126..L..(GEN,SA);LAN125,TGN136..LHD..(GEN,SA)202006-202109

47373ABRACKET, TUBE CLAMP

main90949-T2003iGUN125,126..GHA202006-202111

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

main90949-T1030×4iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

main90949-T1032iGUN125,126..GHA202006-202111

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GGN125,GUN112,122,136,TGN121..RHD..(ARL,GEN,IDN,SA);GUN125..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main90949-T1029iTGN110,120,136..RHD;GUN112,120,122,123,TGN121..PKN,TH;GUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main90949-T1031iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0319

main90119-T0319

90119T0423

main90119-T0423

90468T0004

main90468-T0004

39 parts on this diagram · 16 diagrams in section
