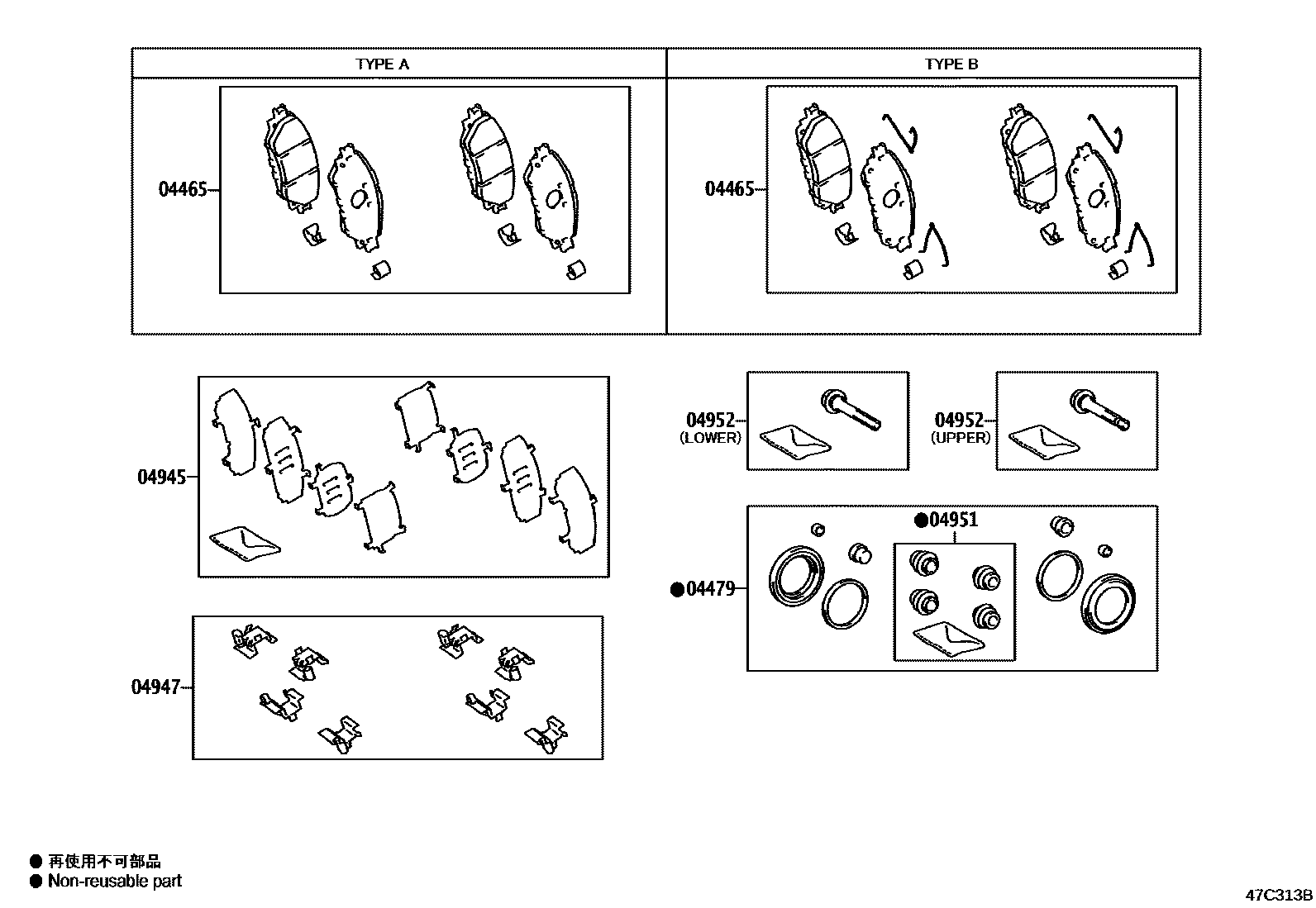

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
main04465-0K340iGUN125..KS..L;LAN125,TGN126,136..LHD..SA202009-202111 MARK ADVICS PS558H,PNC 04945=TYPE A
MARK AK NS265H,CENTRAL AND SOUTH AMERICA SPEC,PNC 04945=TYPE B
main04465-0K401iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110 MARK AK NS265H,PNC 04945=TYPE B
main04465-0K420iTGN110,120..RHD;TGN121..GEN,PKN,TH;GUN112,120,122,123..PH,PKN,TH202006-202201 MARK ADVICS VC060H,TYPE A:REFER ILLUST.
main04465-0K580iTGN136..RHD;GUN125..S..KEN;TGN126..GCC,GEN;GGN125,GUN126,13#..ARL,GCC,GEN,KEN,MA,MMR,PH,SA,TH,TWN,VN;GUN125..(KD,MD,MS,SD,SS,SX,TD,TS,TX)..(ARL,GCC,GEN,IDN,KEN,MA,P202006-202301 MARK ADVICS PS558H,PNC 04945=TYPE C
main04465-0K610iTGN121..GEN,TH;GUN122..(TS,TX)..L..TH;GUN112,120,TGN120..L..(SA,TH)202006-202109 MARK ADVICS VC084H,VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)&TIRE& DISC WHEEL-215/65R16C, STEEL,TYPE B:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-0K170iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201 main04478-0K210iGUN125..KS..L;LAN125,TGN126,136..LHD..SA202009-202111 main04478-0K220iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110 main04478-0K250iGUN125..S..KEN;TGN136..RHD..SD;TGN126,136..SS,TD,TS;GUN125..KD,MD,MS,SD,SS,SX,TD,TS,TX;GGN125,GUN126,13#..KD,KS,MD,MMD,SD,SS,SX,TD,TS,TX202006-202301 04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-0K280iTGN110,120..RHD;TGN121..GEN,PKN,TH;GUN112,120,122,123..PH,PKN,TH202006-202201 TYPE A:REFER ILLUST.
main04945-0K310iGUN125..KS..L;LAN125,TGN126,136..LHD..SA202009-202111 TYPE A:REFER ILLUST.
main04945-0K321iTGN121..GEN,TH;GUN122..(TS,TX)..L..TH;GUN112,120,TGN120..L..(SA,TH)202006-202109 TYPE A:REFER ILLUST.
main04945-0K341iTGN136..BZAG,GEN,LA;GGN125,GUN125,126,13#,TGN126,128,138..BZAG,LA202006-202110 TYPE B:REFER ILLUST.
main04945-0K370iTGN136..RHD;GUN125..S..KEN;TGN126..GCC,GEN;GGN125,GUN126,13#..ARL,GCC,GEN,KEN,MA,MMR,PH,SA,TH,TWN,VN;GUN125..(KD,MD,MS,SD,SS,SX,TD,TS,TX)..(ARL,GCC,GEN,IDN,KEN,MA,P202006-202301 TYPE C:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
main04947-0K090iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201 COSTA RICA SPEC,TYPE A:REFER ILLUST.
main04947-0K120iGUN125..KS..L;LAN125,TGN126,136..LHD..SA202009-202111 TYPE B:REFER ILLUST.
main04947-71010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110 TYPE A:REFER ILLUST.
04951BUSH KIT, DISC BRAKE, FRONT
main04951-0K010iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201 04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
main04952-0K020×2iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201 LOWER SIDE
main04952-0K030×2iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201 UPPER SIDE
6 parts on this diagram · 4 diagrams in section
