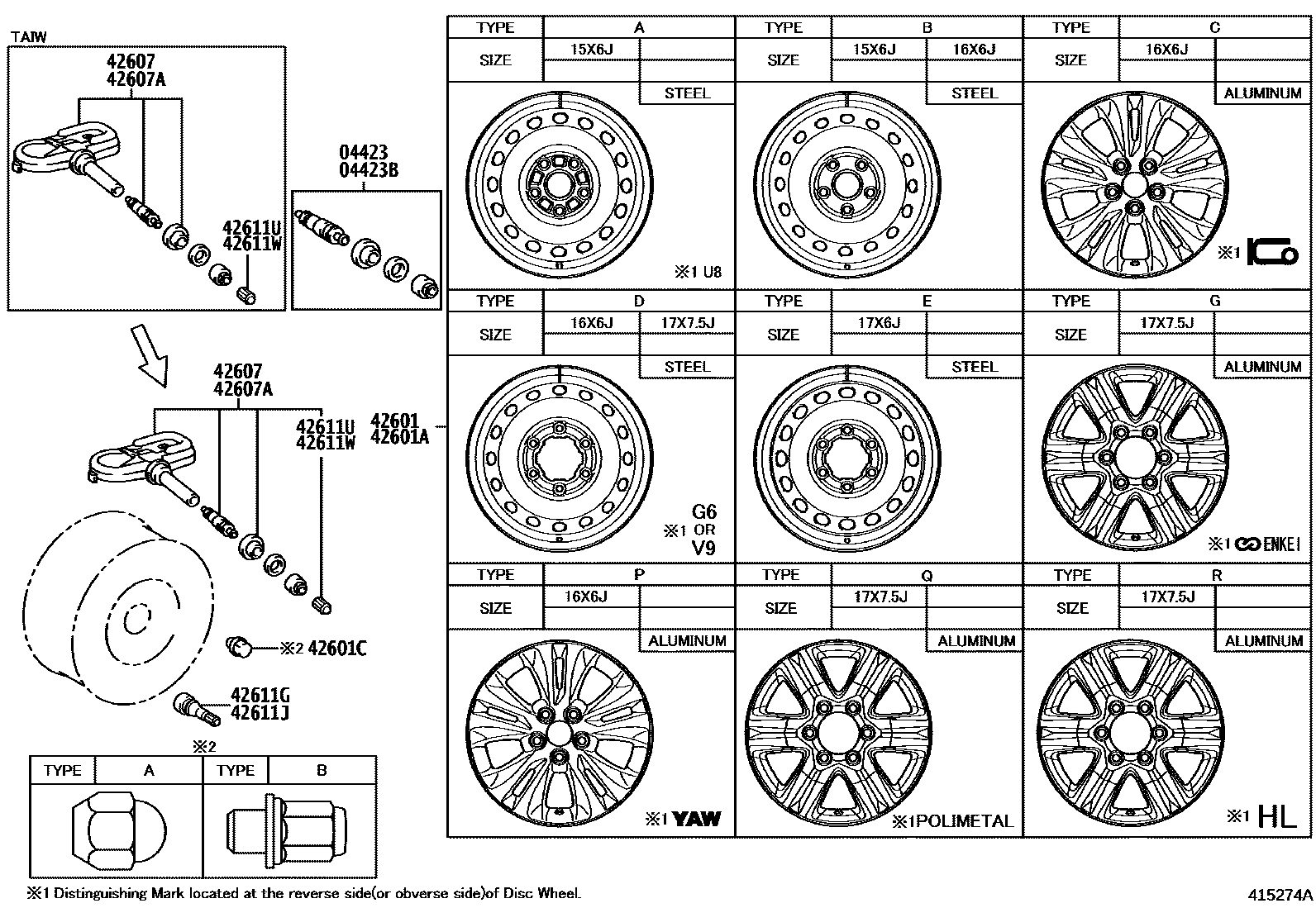

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
main42611-0KG10×4iGUN126..S..PKN;GUN125..TD..ARL;GUN135..(L,S)..(PH,TH,VN);GUN125..(H,S)..(IDN,TH,VN);GUN125,126..LHD..TD..S..GEN;GUN125,135,TGN126..TD..MTM..H..(GEN,LA);GGN125,GUN13202006-202201
17X7.5J,TYPE G:REFER ILLUST.
main42611-0KG51×4iTGN126..TS..S;GUN125,126,13#..MS,PS,TS;GUN126,135..(PD,TD)..L..(LA,PKN);GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L;GUN125,TGN136..TD..MTM..L..(GCC,GEN,LA,PH)202006-202201
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG52
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C, STEEL,TYPE A:REFER ILLUST.
main42611-0KG81×4iTGN121..GEN,TH;GUN122..PH..CBU;GUN122,TGN121..H;GUN122..TS..S..GEN;GUN112,120,TGN120..L..(SA,TH);GUN122..(TS,TX)..L..(GEN,PH,TH)202006-202109
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
main42611-0KK31×4iTGN121..TD..S;GUN122..TD..L..TH;TGN121..TS..GEN..CBU;GUN122..LHD..TD..L..GEN;GUN120,122..(TD,TX)..S..(GEN,TH)202006-202108
16X6J, #,EGYPT SPEC&TIRE & DISC WHEEL-215/65R16C, ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM41×4iTGN121..TD..S;GUN122..TD..L..TH;TGN121..TS..GEN..CBU;GUN122..LHD..TD..L..GEN;GUN120,122..(TD,TX)..S..(GEN,TH)202006-202108
16X6J, #,TIRE & DISC WHEEL-215/65R16C, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE P:REFER ILLUST.
17X7.5J,TYPE R:REFER ILLUST.
17X7.5J, #,EGYPT SPEC&TIRE & DISC WHEEL-265/65R17, ALUMINUM&WHEEL CAP-FOR ALUMINUMWHEEL,T/P AD:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
18X7.5J,T/P AF:REFER ILLUST.
main42611-0KR80×4iGUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
17X6J, #,TIRE & DISC WHEEL-225/70R17C, STEEL,TYPE E:REFER ILLUST.
18X7.5J, #,T/P AG:REFER ILLUST.
main42611-0KT40×4iGUN135..SS..L;GUN125..SD..6F..S;GUN135..(KS,SD)..6F;GUN125,126..(KS,SS)..S;GUN125..(GD,KD,SD,SS)..L202009-202111
17X6J, #,TYPE E:REFER ILLUST.
main42611-0KU30×4iGUN136..AD..LA;GUN135..AD..6FC..LA;GGN125,GUN126,TGN126,128,138..AD..H202011-202101
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE Q:REFER ILLUST.
main42611-0KU31×4iGUN136..AD..LA;GUN135..AD..6FC..LA;GGN125,GUN126,TGN126,128,138..AD..H202102-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPEQ:REFER ILLUST.
main42611-0KU40×4iGUN136..AD..LA;GUN135..AD..6FC..LA;GGN125,GUN126,TGN126,128,138..AD..H202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),T/P AE:REFER ILLUST.
main42611-0KU50×4supersedes 42611-0KU90iGUN136..AD..LA;GUN135..AD..6FC..LA;GGN125,GUN126,TGN126,128,138..AD..H202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
18X7.5J, #,T/P AF:REFER ILLUST.
main42611-0KV60×4iGUN125..SX..L;GUN135..SS..S;GUN136..H..SA;GGN125,TGN136..RHD;GUN125,126..(H,S)..GHA;GUN126..6F..H..(KEN,SA);GUN126..RHD..6FC..H..SA202009-202111
17X7.5J, #,TYPE R:REFER ILLUST.
18X7.5J, #,T/P AR:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C, STEEL,TYPE D:REFER ILLUST.
main42611-0KJ40×4supersedes 42611-0KQ40iGUN126..AD..S;GUN135..AD..6F..S;GUN135..6FC..BZAG;GUN126,135..AD..L..BZAG;GUN125,TGN126,136..AD..S..LA;GUN125,136,TGN13#..AD..(L,S)..BZAG202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(FULL CAP),TYPE Y:REFER ILLUST.
17X7.5J, #,ASIA COLD COUNTRY SPEC&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPEG:REFER ILLUST.
18X7.5J, #,ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
main42611-YP070×4iGUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU;GUN126,135..6FC..H..(GCC,GEN,TH);GUN125,126,135..TD..6F..H..(GCC,GEN)202006-202108
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,ASIA COLD COUNTRY SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P BA:REFERILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE,T/P AN:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-0KG10iGUN135..S..PH;GUN126..LHD..GEN;GUN135..LHD..(GEN,VN);GUN125,126..S..(PKN,VN)202006-202201
17X7.5J,TYPE G:REFER ILLUST.
main42611-0KG51iTGN126..TS..S;GUN125,126,13#..MS,PS,TS;GUN126,135..(PD,TD)..L..(LA,PKN);GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L;GUN125,TGN136..TD..MTM..L..(GCC,GEN,LA,PH)202006-202201
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG52
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C, STEEL,TYPE A:REFER ILLUST.
main42611-0KG81iTGN121..GEN,TH;GUN122..PH..CBU;GUN122..(TS,TX)..L..(PH,TH);GUN112,120,TGN120..L..(SA,TH)202006-202109
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AH:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AH:REFER ILLUST.
main42611-0KP90iGUN125..LHD..TD..S..GEN;GUN125..TD..H..(GEN,IDN);GUN126..RHD..H..(ARL,GEN);GGN125,GUN136..H..(ARL,GCC);GUN126..TD..6FC..H..(LA,TWN)202006-202108
17X7.5J,TYPE R:REFER ILLUST.
main42611-0KQ00iGUN125..LHD..TD..S..GEN;GUN125..TD..H..(GEN,IDN);GUN126..RHD..H..(ARL,GEN);GGN125,GUN136..H..(ARL,GCC);GUN126..TD..6FC..H..(LA,TWN)202006-202108
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR STEELWHEEL),T/P AC:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
18X7.5J,T/P AF:REFER ILLUST.
main42611-0KR80iGUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202011-202110
17X6J, #,TIRE & DISC WHEEL-225/70R17C, STEEL,TYPE E:REFER ILLUST.
18X7.5J, #,T/P AG:REFER ILLUST.
main42611-0KT40iGUN135..SS..L;GUN125..SD..6F..S;GUN135..(KS,SD)..6F;GUN125,126..(KS,SS)..S;GUN125..(GD,KD,SD,SS)..L202009-202111
17X6J, #,TYPE E:REFER ILLUST.
18X7.5J, #,T/P AF:REFER ILLUST.
main42611-0KV60iGUN136..H..SA;GUN125,126..(H,S)..GHA;GUN126..6F..H..(KEN,SA);GGN125,GUN126..RHD..6FC..H..SA202009-202111
17X7.5J, #,TYPE R:REFER ILLUST.
18X7.5J, #,T/P AR:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C, STEEL,TYPE D:REFER ILLUST.
main42611-0KJ40iGUN126..AD..S;GUN135..AD..6F..S;GUN135..6FC..BZAG;GUN126,135..AD..L..BZAG;GUN125,TGN126,136..AD..S..LA;GUN125,136,TGN13#..AD..(L,S)..BZAG202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, STEEL&WHEEL CAP-WITH(FULL CAP),TYPE Y:REFER ILLUST.
16X6J, #,SYRIA SPEC&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE C:REFER ILLUST.
16X6J, #,SYRIA SPEC&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE P:REFER ILLUST.
17X7.5J, #,ASIA COLD COUNTRY SPEC&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPEG:REFER ILLUST.
18X7.5J, #,ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE Q:REFER ILLUST.
main42611-0KU31supersedes 42611-0KU90iGUN126..6F..H..BZAG;GGN125,GUN126,TGN128,138..AD..6FC..H202102-202110
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE Q:REFER ILLUST.
main42611-0KU40supersedes 42611-0KU90iGUN126..6F..H..BZAG;GGN125,GUN126,TGN128,138..AD..6FC..H202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,T/P AE:REFER ILLUST.
main42611-0KU50supersedes 42611-0KU90iGUN126..6F..H..BZAG;GGN125,GUN126,TGN128,138..AD..6FC..H202011-202110
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, ALUMINUM,TYPE R:REFER ILLUST.
main42611-YP070iGUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU;GUN126,135..6FC..H..(GCC,GEN,TH);GUN125,126,135..TD..6F..H..(GCC,GEN)202006-202108
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,ASIA COLD COUNTRY SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P BA:REFERILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE,T/P AN:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01082×24iGUN135..6FC..BZAG;GUN135..(AD,AS)..6F;GUN125,126,136,TGN126,13#..(AD,AS)..(L,S)202006-202110
TIRE & DISC WHEEL-265/65R17, STEEL,TYPE A:REFER ILLUST.
(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17, ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 4 diagrams in section
