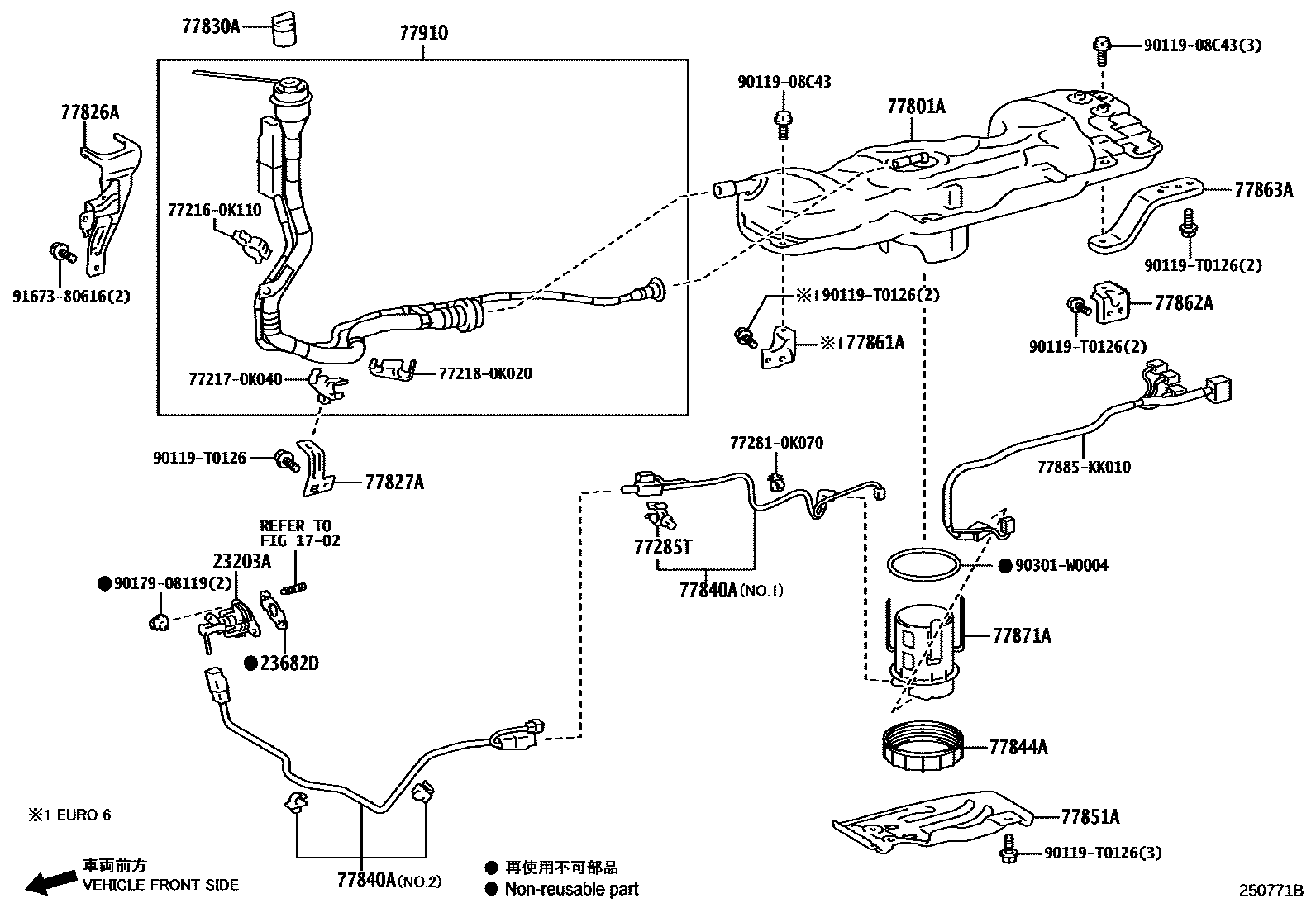

UREA TANK & TUBE

1702EXHAUST PIPE

→ Go to FIG 17-02

23203AINJECTOR SET, UREA

main23203-11021i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA); 1GDFTV..GUN126..TWN;2GDFTV..GUN125..AS..LA;2GDFTV..GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA); 1GDFTV..GUN126..TWN;2GDFTV..GUN125..AS..LA;2GDFTV..GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77285TCLAMP, UREA TUBE, NO.1

main77285-0K140iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77801ATANK SUB-ASSY, UREA

main77801-0K070iGUN126..LA;GUN125..TD..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main77801-0K080iGUN135..L..GEN202006-202108

77826ASUPPORT, UREA TANK FILLER PIPE, NO.1

main77826-KK010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77827ASUPPORT, UREA TANK FILLER PIPE, NO.2

main77827-KK010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77830ACAP ASSY, UREA TANK

main77830-0K020supersedes 77830-0K050iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202108

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main77830-0K050iGUN125..AS..LA; GUN135..6F..LA;GUN125,126,136..AD..LA202108-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77840ATUBE ASSY, UREA W/HEATER

main77840-0K020iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202103

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,NO.2; NO.2

main77840-0K021iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202104-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,NO.2; NO.2

main77841-0K010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202103

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,NO.1; NO.1

main77841-0K011iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202104-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,NO.1; NO.1

77844ARETAINER, UREA PUMP GAGE

main77844-0K010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77851APROTECTOR, UREA TANK

main77851-KK010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77861ABRACKET, UREA TANK, NO.1

main77861-KK010iGUN135..L..GEN202006-202108

77862ABRACKET, UREA TANK, NO.2

main77862-KK010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77863ABRACKET, UREA TANK, NO.3

main77863-KK010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77871APUMP, UREA

main77871-0K010iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

77910PIPE ASSY, UREA TANK FILLER

main77910-0K020iGUN125..TX..S..GEN;GUN135..TD..6F..LA;GUN125,126,136..TD..LA; GUN126..TWN;GUN135..L..GEN202006-202007

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main77910-0K021iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202008-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

772160K110COVER, FUEL PIPE

main77216-0K110

772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)

main77217-0K040

772180K020PLATE, FUEL INLET PIPE SET

main77218-0K020

772810K070BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K070

77885KK010HARNESS, UREA TANK

main77885-KK010

9011908C43

main90119-08C43

90119T0126

main90119-T0126

9017908119

main90179-08119

90301W0004

main90301-W0004

9167380616

main91673-80616

26 parts on this diagram · 1 diagram in section
