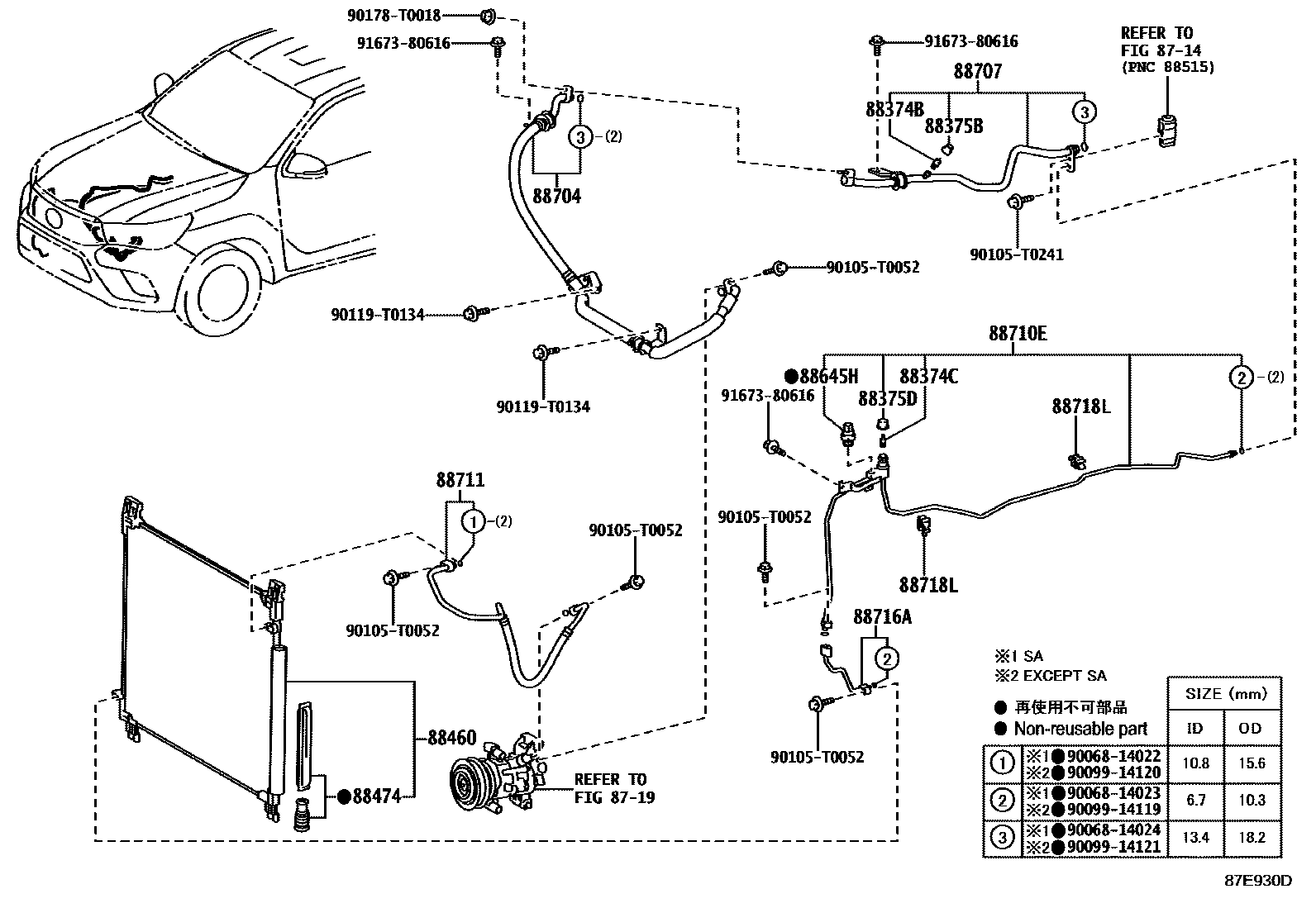

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88374-30010iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);KUN125,126,13#..ADC,ASC;GUN122..(M,S)..DCR..GEN;GUN126,13#..MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(ARL,GEN,IDN,MA,TH);GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH201505-202012
88374CVALVE, SERVICE, NO.2
main88374-02010iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC; GUN125..ASC..LA; TGN126..ADC..S; TGN126..ADC..S;GUN125..ASC..LA; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88374-30010iGUN122..GCC,PH;KUN125..TDC,TSC,TXT;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GGN12#,GUN112..ARL,GCC,TH;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(ARL,GEN,IDN,MA,TH);GUN120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(MDC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,MA,PH,TAIW,TH,VN)201505-202012
88375BCAP, SERVICE VALVE, NO.1
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88375-30290iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);KUN125,126,13#..ADC,ASC;GUN122..(M,S)..DCR..GEN;GUN126,13#..MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(ARL,GEN,IDN,MA,TH);GGN12#,GUN112,120,123,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,LA,TH201505-202012
88375DCAP, SERVICE VALVE, NO.2
main88375-02120iGGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC; TGN126..ADC..S; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88375-30280iGUN122..GCC,PH;KUN125..TDC,TSC,TXT;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..(ADC,ASC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126,13#..ADC,ASC,MDC,TDC,TSC,TXT;GUN122,125..RHD..(ARL,GEN,IDN,MA,TH);GGN12#,GUN112,120,123,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN)201505-202012
88460CONDENSER ASSY, COOLER
main88460-0K350iGUN122..GCC,PH;TGN121..L..CBU;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);TGN126..(TDC,TSC)..CBU;GUN122..(M,S)..DCR..GEN;TGN121..(TDC,TSC)..(M,S,X);GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GGN12#,GUN112,120,123,126,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN); GUN122..M..GCC;GUN125..TSC..S..GCC;GGN12#,TGN121..(S,X)..ARL;TGN136..(TDC,TSC)..5F..(S,X);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC); GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN125..TSC..LA; GUN125..TSC..LA;TGN126..TDC..S..LA; TGN121,136..GEN; TGN121..X..GEN; TGN126..TDC..S..LA; TGN136..TDC..S..LA;GGN12#,TGN121..(S,X)..ARL;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);GUN125,TGN126..LHD..TDC..MTM..(M,S)..GEN201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88460-0K360iKUN122,125..RHD..X..GEN;KUN122,125..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN125..RHD..TDC..(L,S)..GEN;KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);KUN112,126,136..(TDC,TSC)..MTM..(L,S,X)..(GCC,GEN,LA); KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..(TDC,TSC)..MTM..(L,S,X)..(GCC,GEN,LA); KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; KUN122..TSC..X;KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA; KUN126..L..GEN;KUN125..TDC,TSC,TXT;KUN126..(PDC,TDC)..(H,M,S,X);KUN112,122,13#..(TDC,TSC,TXT)..(GCC,GEN,LA,VN)201505-201904
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88460-0K390iGGN125,GUN125,126,13#,TGN126,128,13#..ADC,ASC; GUN125..ASC..LA; TGN126..ADC..S; TGN126..ADC..S;GUN125..ASC..LA; TGN136..ADC..S; TGN136..ADC..S;TGN136..ASC..LA201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88460-0K420iKUN125,126,13#..ADC,ASC; KUN125,126,135..(ADC,ASC)..(S,X); KUN126..ADC..6F..(S,X); KUN135..ADC..X;KUN125..(ADC,ASC)..X201511-201709
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88460-0K430iTGN136..SDC;GUN125,135..X..KEN;GUN122,125,135..LHD..X..SA;GUN125,135..(M,S)..(KEN,SA);GGN125,135,GUN126,136,TGN121,126..KEN,SA201601-202102
FRONT AIR CONDITIONER-MANUAL
88474DRYER, COOLER
main88474-0K020iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC; GUN125..ASC..LA; TGN126..ADC..S; TGN126..ADC..S;GUN125..ASC..LA; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88474-12020iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;KUN126,TGN121..(5F,5FC)..L..CBU;KUN125,TGN126..(TDC,TSC,TXT)..CBU;KUN126,TGN121..(PDC,TDC,TSC)..(H,M,S,X);GGN12#,GUN112,120,123,126,13#,KUN112,122,13#,TGN11#,120,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN); GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN125..TSC..LA; GUN125..TSC..LA;TGN126..TDC..S..LA; KUN122,125..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN125..RHD..TDC..(L,S)..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,125,TGN121..RHD..X..(ARL,GEN);GUN125,TGN126..LHD..TDC..MTM..(M,S)..GEN;KUN122,126,TGN136..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA;KUN122,TGN121..TSC..X..GEN; TGN121,136..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88645HSWITCH, PRESSURE NO.1
88704HOSE SUB-ASSY, SUCTION
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88704-0KB30iKUN112,122,125..GCC; KUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88704-0KC30iTGN126,128,13#..ADC,ASC; TGN126..ADC..S; TGN136..ADC..S; TGN136..ADC..S;TGN136..ASC..LA201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88704-0KC70iKUN125,126,13#..ADC,ASC; KUN125,126,135..(ADC,ASC)..(S,X); KUN126..ADC..6F..(S,X); KUN135..ADC..X;KUN125..(ADC,ASC)..X201511-201709
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-COOLER LESS
main88704-0KD70iKUN122,125..LHD..X..SA; KUN122,125..LHD..X..SA;KUN125,126,135..(M,S)..SA; KUN122,125..RHD..X..SA201601-201905
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL
main88704-0KD90iGUN125,135..X..KEN;GUN122,125,135..LHD..X..SA;GUN125,126,13#..(M,S)..(KEN,SA)201601-202102
main88704-0KE50iKUN12#,13#..(TDC,TSC,TXT)..(GEN,IDN,LA,VN); KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; KUN122..TSC..X;KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA; KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR; KUN125..X..GEN;KUN126..TDC..6F..(S,X);KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,136..RHD..TDC..(S,X);KUN125..RHD..TDC..(L,S)..GEN201505-201904
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88704-0KG10iTGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH); TGN121,136..GEN; TGN121..ARL;TGN126..S..GEN;TGN136..(TDC,TSC)..5F..(S,X); TGN121..ARL;TGN126..S..GEN;TGN136..TDC..S..LA; TGN121..X..GEN; TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88704-0KG20iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,S)..GEN;GUN122,125..RHD..(TDC,TSC,TXT);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN); GUN122..M..GCC;GUN122..TDC..HDCR;GUN125..TSC..S..GCC;GUN125..LHD..TDC..S..GEN; GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN122..TDC..HDCR;GUN125..LHD..TDC..S..GEN; GUN125..LHD..TDC..S..GEN; GUN125..TSC..LA; GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA); GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
88707PIPE SUB-ASSY, SUCTION
main88707-0K680iGGN12#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH); GGN125..GCC;TGN126..S..GEN;GGN12#,TGN121..(S,X)..ARL;TGN136..(TDC,TSC)..5F..(S,X); GGN125..GCC;TGN126..S..GEN;TGN136..TDC..S..LA;GGN12#,TGN121..(S,X)..ARL; TGN121,136..GEN; TGN121..X..GEN; TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88707-0K700iGGN125,TGN126,128,13#..ADC,ASC; TGN126..ADC..S; TGN136..ADC..S; TGN136..ADC..S;TGN136..ASC..LA201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
FRONT AIR CONDITIONER-MANUAL
main88710-0KE50iGGN12#,KUN112,12#,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN); KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA;KUN122,TGN121..TSC..X..GEN; TGN121,136..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..S..GEN;KUN126..TDC..5FC..(L,X);KUN122,125..L..GCC..CBU;GGN125,KUN122..(M,S)..GCC;KUN125..RHD..TDC..(L,S)..GEN;KUN126,TGN136..TDC..(5F,5FC)..S..LA;KUN122,125,TGN121..RHD..X..(ARL,GEN);GGN12#,KUN112,126,136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88710-0KE70iGUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(ARL,GEN,TH);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN); GUN122..M..GCC;GUN122..TDC..HDCR;GUN125..TSC..S..GCC;GUN125..LHD..TDC..(M,S)..GEN; GUN122..M..GCC;GUN122..TDC..HDCR;GUN125..TSC..S..GCC;GUN125..LHD..TDC..S..GEN; GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN125..LHD..TDC..S..GEN; GUN125..TSC..LA; GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA); GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88710-0KF10iGGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC; TGN126..ADC..S; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88710-0KF80iGUN125,135..X..KEN;GUN122,125,135..LHD..X..SA;GUN125,126,13#..(M,S)..(KEN,SA)201601-202102
TOYOTA STOP & START SYSTEM-WITH
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)
PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
main88711-0K660iKUN12#,13#..(TDC,TSC,TXT)..(GEN,IDN,LA,VN); KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; KUN122..TSC..X;KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA; KUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135..(TDC,TSC)..6F..(S,X)..DCR; KUN125..X..GEN;KUN126..TDC..6F..(S,X);KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,136..RHD..TDC..(S,X);KUN125..RHD..TDC..(L,S)..GEN201505-201904
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88711-0K740iKUN125,126,13#..ADC,ASC; KUN125,126,135..(ADC,ASC)..(S,X); KUN126..ADC..6F..(S,X); KUN135..ADC..X;KUN125..(ADC,ASC)..X201511-201709
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88711-0K800iKUN122,125..LHD..X..SA; KUN122,125..LHD..X..SA;KUN125,126,135..(M,S)..SA; KUN122,125..RHD..X..SA201601-201905
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL
main88711-0K860iKUN112,122,125..GCC; KUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88711-0KB50iGUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN112,120,123,126,13#..(TDC,TSC,TXT)..(ARL,GEN,LA,PH,TAIW,TH,VN); GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN122..TDC..HDCR;GUN125..LHD..TDC..(M,S)..GEN; GUN122..TDC..HDCR;GUN125..LHD..TDC..S..GEN; GUN125..LHD..TDC..S..GEN; GUN125..TSC..LA; GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA); GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88711-0KC20iGUN125,135..X..KEN;GUN122,125,135..LHD..X..SA;GUN125,126,13#..(M,S)..(KEN,SA)201601-202102
main88711-0KC50iTGN121,126,136..(TDC,TSC,TXT)..(ARL,GEN,LA,TH); TGN121,136..GEN; TGN121..ARL;TGN126..S..GEN;TGN136..(TDC,TSC)..5F..(S,X); TGN121..ARL;TGN126..S..GEN;TGN136..TDC..S..LA; TGN121..X..GEN; TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88711-0KC90iTGN126,128,13#..ADC,ASC; TGN126..ADC..S; TGN136..ADC..S; TGN136..ADC..S;TGN136..ASC..LA201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-COOLER LESS
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88716APIPE, COOLER REFRIGERANT LIQUID, A
main88716-0KQ80iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GGN12#,KUN125..TDC,TSC,TXT;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN112,120,123,126,13#,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TAIW,TH,VN); GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN125..LHD..TDC..S..GEN; GUN125..TSC..LA; GUN125..TSC..LA;TGN126..TDC..S..LA; GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA; KUN122,125..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN125..RHD..TDC..(L,S)..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,125,TGN121..RHD..X..(ARL,GEN);GUN125,TGN126..LHD..TDC..MTM..(M,S)..GEN;KUN122,126,TGN136..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA;KUN122,TGN121..TSC..X..GEN; TGN121,136..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..ARL;GUN122..M..GCC;GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GUN125,TGN126..LHD..TDC..S..GEN;GGN125,GUN122..LHD..TDC..(HDCR,HTWC);KUN122,126..(TDC,TSC)..(5F,5FC)..S..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..TDC..S..LA; TGN126..TDC..S..LA;GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA)201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88716-0KR10iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC; GUN125..ASC..LA; TGN126..ADC..S; TGN126..ADC..S;GUN125..ASC..LA; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88718LCLAMP, PIPING
main88718-0KF20×2iGUN122..GCC,PH;GUN126..6F..H..TH;GUN126..H..(GEN,VN);GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN122,125..RHD..(TDC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN126..(TDC,TSC,TXT)..(L,M,S,X);GUN112,120,123,13#..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,TH,VN); GUN122..M..GCC;GUN122..TDC..HDCR;GUN125..TSC..S..GCC;GUN125..LHD..TDC..S..GEN; GUN122..S..HDCR;GUN122..TSC..X..GEN;GUN125..TDC..X..GEN; GUN122..TDC..HDCR;GUN125..LHD..TDC..(M,S)..GEN; GUN125..LHD..TDC..S..GEN; GUN125..TSC..LA; GUN135..(TDC,TSC)..LA;GUN125,126..TDC..6F..(S,X)..LA;GUN125..LHD..(TSC,TXT)..(S,X)..(GEN,LA); GUN135..TDC..X..LA;GUN125..(TDC,TSC)..X..LA; KUN125..TDC,TSC,TXT;GGN12#,KUN112,122,126,13#,TGN11#,120,121,126,136..(TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH,VN); KUN125..TSC..L;KUN135..TDC..X;KUN122..RHD..TDC..L;KUN125..(TDC,TSC)..X..LA;KUN122,TGN121..TSC..X..GEN; TGN121,136..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..ARL;TGN126..S..GEN;KUN122..L..GCC..CBU;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(L,X);KUN122,125..(TDC,TSC)..X;GGN125,KUN122..(M,S)..GCC;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;KUN125..TDC..(L,S)..(GCC,LA);GGN12#,KUN112,126,13#,TGN136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..S..GEN;KUN126..TDC..5FC..(L,X);KUN122,125..L..GCC..CBU;GGN125,KUN122..(M,S)..GCC;KUN125..RHD..TDC..(L,S)..GEN;KUN126,TGN136..TDC..(5F,5FC)..S..LA;KUN122,125,TGN121..RHD..X..(ARL,GEN);GGN12#,KUN112,126,136..(TDC,TSC)..(5F,6F,6FC)..(L,S,X)..(ARL,GCC,GEN,LA); TGN126..TDC..S..LA201505-202005
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-COOLER LESS; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL
main88718-0KX00iGGN125,KUN125,126,13#,TGN126,128,13#..ADC,ASC; GUN125,126,13#..ADC,ASC; GUN125..ASC..LA; TGN126..ADC..S; TGN136..ADC..S;KUN126..ADC..6F..(S,X); TGN136..ADC..S;TGN136..ASC..LA;KUN125,126,135..(ADC,ASC)..(S,X)201511-202010
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS; BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS; CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS; PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
9006814022
main90068-14022
9006814023
main90068-14023
9006814024
main90068-14024
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
90178T0018
main90178-T0018
9167380616
main91673-80616
26 parts on this diagram · 10 diagrams in section
