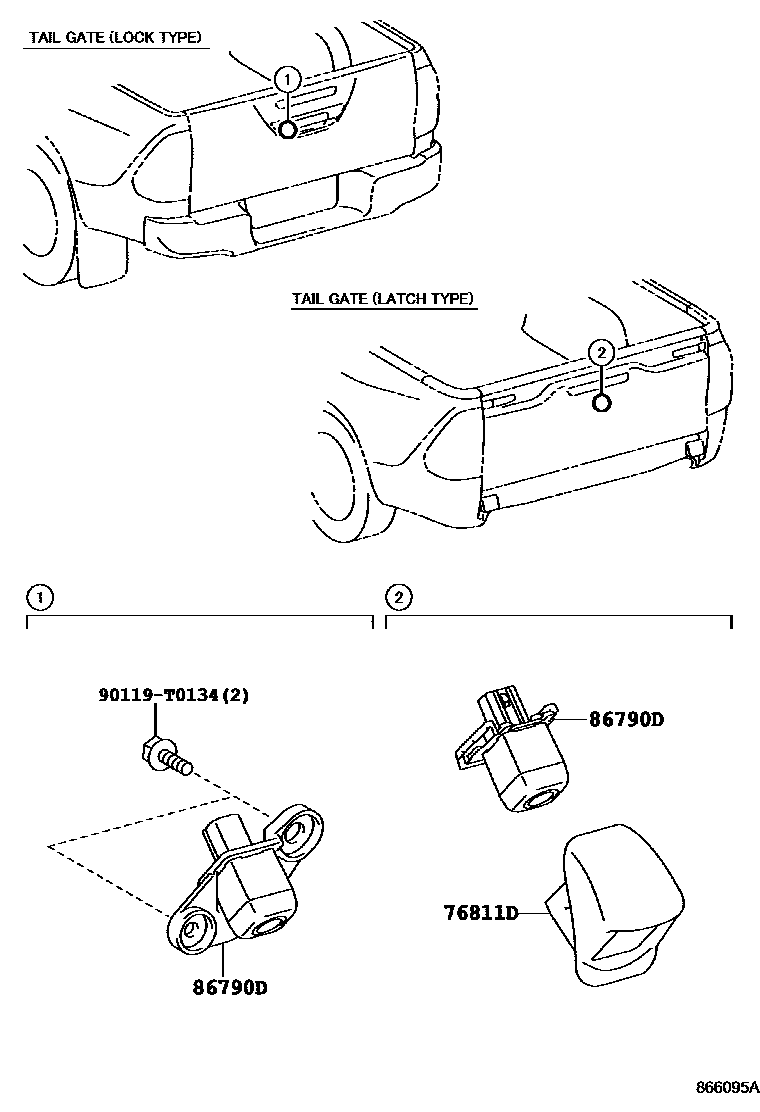

CAMERA & REAR MONITOR DISPLAY
76811DGARNISH, REAR BODY TAIL GATE
main76811-0K520iGGN12#,GUN122,123,125,126,13#,TGN121..TDC..(S,X)..ARL..CBU; GUN122,125,126,KUN122,125,TGN121,126..TDC..(M,S)..GCC; GUN126..TDC..S..ARL..CBU; KUN122,TGN121..TDC..(M,S)..GCC;GUN122,125,126,KUN125,TGN126..M..GCC; TGN126..M..GEN201505-202005
HIGH MOUNT STOP LAMP-WITH(TAIL GATE)&AUDIO-*DA & DVD & *BT; HIGH MOUNT STOP LAMP-WITH(TAIL GATE)&AUDIO-AVN & DVD & *BT; RADIATOR GRILLE(MATERIAL COLOR); RADIATOR GRILLE(MATERIAL COLOR)&REAR BUMPER-WITHOUT; RADIATOR GRILLE(MATERIAL COLOR)&REAR DECK-A DECK,WITH(ROPE HOOK); RADIATOR GRILLE(MATERIAL COLOR)&REAR DECK-A DECK,WITH(ROPE HOOK)&REAR BUMPER-WITHOUT; REAR BUMPER-WITHOUT; REAR DECK-WITH(SIDE PANEL TOP RAIL)
86790DCAMERA ASSY, TELEVISION, RR
main86790-0K010supersedes 86790-0K020iGGN12#,GUN122,123,125,126,13#,TGN121..TDC..(S,X)..ARL..CBU; GUN122,125,126,KUN122,125,TGN121,126..TDC..(M,S)..GCC; GUN126..TDC..S..ARL..CBU; KUN122,TGN121..TDC..(M,S)..GCC;GUN122,125,126,KUN125,TGN126..M..GCC; TGN126..M..GEN201505-202005
HIGH MOUNT STOP LAMP-WITH(TAIL GATE)&AUDIO-*DA & DVD & *BT; HIGH MOUNT STOP LAMP-WITH(TAIL GATE)&AUDIO-AVN & DVD & *BT; RADIATOR GRILLE(MATERIAL COLOR)&REAR BUMPER-WITHOUT; REAR BUMPER-WITHOUT; REAR DECK-WITH(SIDE PANEL TOP RAIL)
main86790-0K020iKUN126..RHD..(SDC,SXT);TGN126..M..(BZAGT,GEN);GGN135,GUN123,TGN128..ADC,SDC,TXT;GUN126..RHD..(SDC,TDC)..(H,M)..(ARL,SA,TH);GUN125,13#..(ADC,TXT)..S..HDCR..(ARL,BZAGT);GUN126..(ADC,KDC,SXT,TXT)..HDCR..(ARL,BZAGT,KEN,SA,TH)..CBU;GUN13#,TGN136..(ADC,SDC,SXT,TDC,TXT)..(H,M)..(ARL,BZAGT,SA,TH);GGN125,GUN126,TGN138..(H,M)..(HTWC,HTWCF,IART)..(ARL,BZAGT,LA,SA)201505-202102
90119T0134
main90119-T0134
3 parts on this diagram · 1 diagram in section
