Toyota 671220 — RADIO RECEIVER & AMPLIFIER & CONDENSER

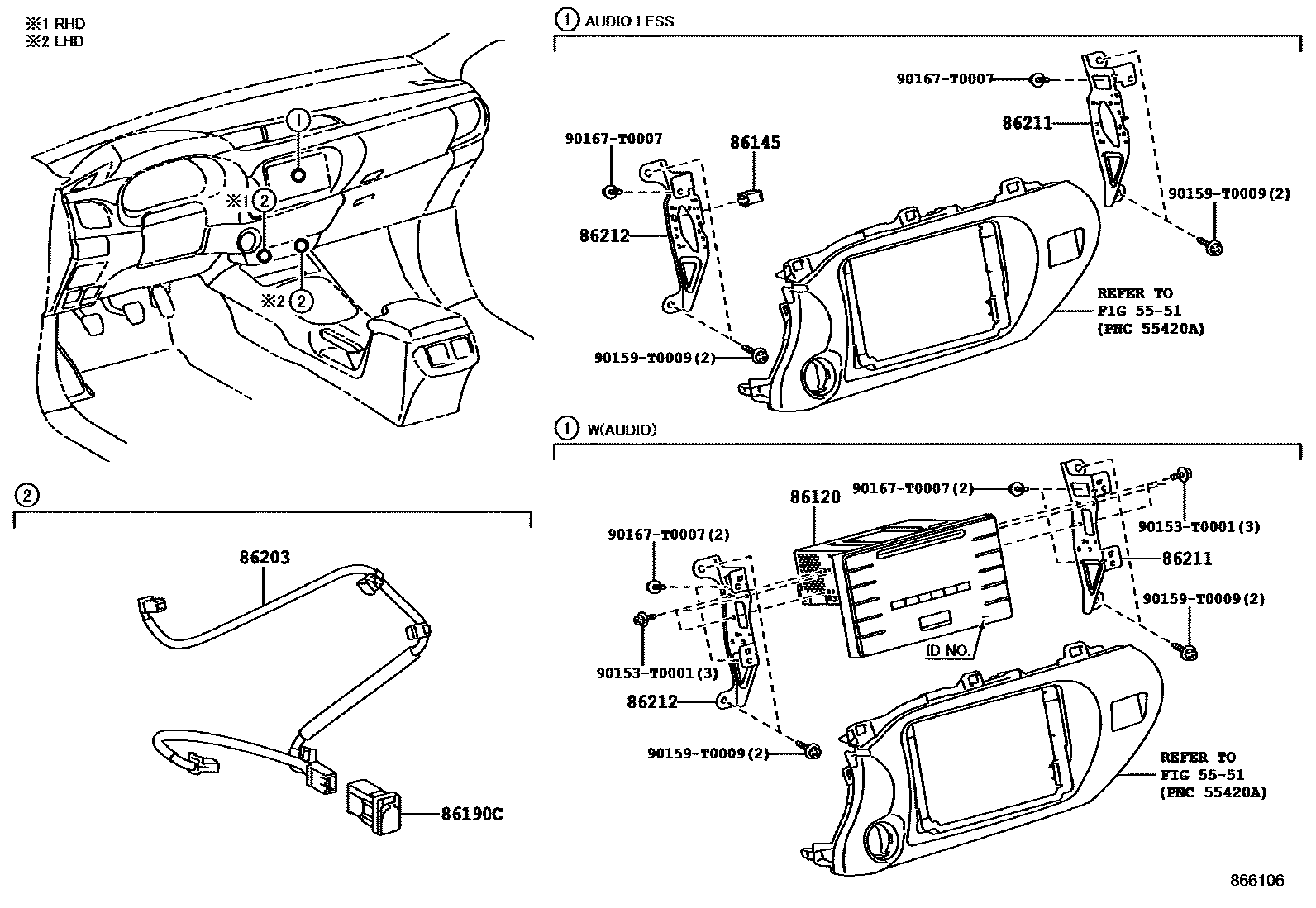

Parts diagram

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86120RECEIVER ASSY, RADIO

86145CONNECTOR, ANTENNA MALE

86190CADAPTER ASSY, STEREO JACK, NO.1

86203WIRE, RADIO

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

90153T0001

90159T0009

90167T0007

10 parts on this diagram · 1 diagram in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 671220

This section contains 10 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 671220. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, RECEIVER ASSY, RADIO, CONNECTOR, ANTENNA MALE, ADAPTER ASSY, STEREO JACK, NO.1, WIRE, RADIO.
