MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-0K160iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,PDC,SDC,TDC201505-202105
main75551-0K170iTGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-0K160iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,PDC,SDC,TDC201505-202105
main75552-0K170iTGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
main68160-0K010iGUN126,KUN126..PDC..L;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,SDC,TDC)..(L,M,S,X)201505-202105
main68160-0K040iTGN136..ASC,TSC,TXT;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,SXT,TSC,TXT201505-202105
main68160-0K070iGUN126..M..PKN;KUN126..TDC..H;KUN126..(H,M)..PKN;GGN125,GUN125,126,13#,KUN122,125,135..H201505-202105
75720MOULDING ASSY, FRONT DOOR BELT, LH
main68210-0K010iGUN126,KUN126..PDC..L;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,SDC,TDC)..(L,M,S,X)201505-202105
main68210-0K070iGUN126..M..PKN;KUN126..TDC..H;KUN126..(H,M)..PKN;GGN125,GUN125,126,13#,KUN122,125,135..H201505-202105
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K010iGUN126,KUN126..PDC..L;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,SDC,TDC)..(L,M,S,X)201505-202105
main68180-0K120iGUN126..M..PKN;KUN126..TDC..H;KUN126..(H,M)..PKN;GGN125,GUN125,126,13#,KUN122,125,135..H201505-202105
75740MOULDING ASSY, REAR DOOR BELT, LH
main68230-0K010iGUN126,KUN126..PDC..L;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,SDC,TDC)..(L,M,S,X)201505-202105
main68230-0K120iGUN126..M..PKN;KUN126..TDC..H;KUN126..(H,M)..PKN;GGN125,GUN125,126,13#,KUN122,125,135..H201505-202105
75770MOULDING ASSY, HOOD, FRONT
main75770-0K310supersedes 75770-0K321iTGN121..GEN;GUN125,135..(ADC,TDC)..X..LA; TGN136..GEN,TH;GUN135..(TDC,TXT)..L;TGN126..(ASC,TSC)..LA;TGN126..6FC..(M,S)..GCC;GUN125..LHD..TDC..S..GEN;TGN121..(L,M,S)..(GCC,TH);GUN125..RHD..6F..(H,M,S)..GEN;KUN122,125,TGN126..L..(GCC,IDN);TGN126..(ADC,TDC,TSC)..5F..(M,S);GUN125,TGN138..(ADC,TXT)..(M,S)..(BZAGT,GEN);GUN125..6F..(L,M,S)..(GCC,IDN,LA,MA,PH,TH,VN);GUN126,135,KUN12#..(ADC,MDC,PDC,TDC,TSC,TXT)..(H,M,S);GUN125,TGN136..(5F,6FC)..(L,M,S)..(BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,120,122,123,136,KUN112,13#,TGN11#,120,128..(H,L,M,S)..(ARL,BZAGT,GCC,GEN,LA,TH,VN)201505-201812
PLATED; PLATED,ECUADOR SPEC&CHROME PACKAGE
main75770-0K311supersedes 75770-0K331iTGN136..GEN;GUN135..S..BZAGT;KUN122..LHD..(L,M,S);TGN126..(ASC,TSC)..LA;GUN135..(H,L,M,S)..(GEN,LA,PH,TH,VN);GUN122,125..MTM..(H,M,S)..(BZAGT,GEN);GUN125..(ADC,MDC,TDC,TSC)..6FC..(L,M,S);GUN126..(ADC,MDC,PDC,TDC,TSC,TXT)..(H,M,S);GUN125..6F..(L,M,S)..(GCC,IDN,LA,MA,PH,TH,VN);GGN125,GUN112,120,122,123,136,KUN112,TGN11#,12#,13#..(H,L,M,S)..(ARL,BZAGT,GCC,LA,TH)201901-202105
main75770-0K320supersedes 75770-0K311iGUN125,TGN126..S..GEN; GUN125..M..GEN; GUN125..S..GEN201505-201708
PLATED; PLATED,KAZAKHSTAN SPEC(EURO 2 REGULATION); PLATED,KAZAKHSTAN SPEC(EURO 4 REGULATION)
NO PAINT REQ.
main75770-0K341iTGN126..TDC..(L,X)..(GEN,LA);GUN122,125..MTM..L..(GEN,PH,PKN);GUN135,TGN136..(MDC,TDC,TSC)..(L,X)..(ARL,LA,MA);GUN112,120,122,125,KUN112,TGN110..(MDC,MSC,TDC,TSC,TXT)..X;GUN126,KUN122,TGN121..(PDC,PSC,TDC,TSC)..(L,X)..(ARL,GEN,LA,PKN,TH)201901-202105
PLATED
PLATED
main75770-0K370iGUN126..M..HDCR..BZAGT;GUN126,TGN138..6FC..S..BZAGT; TGN126..ADC..X;GUN125,126,135,TGN13#..(ADC,ASC)..(L,X); TGN126..ASC201710-201803
NO PAINT REQ.; NO PAINT REQ.,DAKAR 1 PREPARATION PACKAGE
main75770-0K371iGUN126..M..HDCR..BZAGT;GUN126,TGN138..6FC..S..BZAGT; TGN126..ADC..X;GUN125,126,135,TGN13#..(ADC,ASC)..(L,X); TGN126..ASC201804-202010
DAKAR 1 PREPARATION PACKAGE
NO PAINT REQ.
PLATED; PLATED,KAZAKHSTAN SPEC(EURO 5 REGULATION)
main75770-YP010supersedes 75770-0K321iTGN126..M..GEN; TGN126..M..GEN;GUN125,135..RHD..(TDC,TXT)..M..(GEN,TH)201905-202012
"BLACK RALLY EDITION"*(B); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
75777EPAD, HOOD FRONT MOULDING
main53393-0K010iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,12#,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K010iGUN125..TDC..X..GEN;GUN126..(PDC,TDC)..L;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;GUN125..RHD..TDC..S..GEN;TGN121..TDC..(GCC,GEN,TH);KUN125..RHD..TDC..(L,S)..GEN;GUN126..TDC..6F..S..(GEN,LA);KUN126..(PDC,TDC)..6F..(L,S,X);KUN125,135,TGN136..TDC..(S,X)..LA;GUN125,KUN125..RHD..TDC..6F..L..HDCR;GUN126,TGN126..LHD..TDC..(5F,6FC)..(S,X)..(GEN,LA);GUN120,122,123,KUN122,136,TGN120..TDC..(ARL,GCC,GEN,PH,TH)201505-202105
main75851-0K020iKUN125..TSC..X;GUN125..RHD..TSC..X..CBU;TGN121..TSC..(GCC,GEN,TH);GUN126,135,TGN126..(PSC,TSC)..(LA,PKN,TH);GUN112,120,122,123,KUN112,122,126,135,TGN11#,120,136..PSC,TSC201505-202105
main75851-0K030iGUN120,122,123,KUN122,TGN121..TXT;GUN125,KUN125..TXT..(L,S)..(GEN,IDN); GUN125,126,136..TXT..(S,X)..ARL201506-202005
STEP & STEP COVER-WITHOUT
main75851-0K060iGUN126,136..SDC..S;GUN125..LHD..SDC..S;GUN126,KUN126..LHD..SA;GUN125..(KDC,SDC)..(M,X);GUN122,135,KUN122,125,135,LAN125,TGN121,126,136..SDC201601-202102
main75851-0K070iGUN126,KUN125,126,135,TGN126,136..ADC..(S,X)..LA; TGN138..L;GUN125,13#..ADC..(L,S,X);GUN126,TGN13#..ADC..MTM..(L,S,X)..BZAGT201511-202010
STEP & STEP COVER-WITHOUT
main75851-0K090iGUN125..ASC;GUN135,TGN136..ASC..BZAGT; GUN135,TGN136..ASC..LA;GUN126,KUN125,135,TGN126..ASC201511-202010
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K010iGUN125..TDC..X..GEN;GUN126..(PDC,TDC)..L;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;GUN125..RHD..TDC..S..GEN;TGN121..TDC..(GCC,GEN,TH);KUN125..RHD..TDC..(L,S)..GEN;GUN126..TDC..6F..S..(GEN,LA);KUN126..(PDC,TDC)..6F..(L,S,X);KUN125,135,TGN136..TDC..(S,X)..LA;GUN125,KUN125..RHD..TDC..6F..L..HDCR;GUN126,TGN126..LHD..TDC..(5F,6FC)..(S,X)..(GEN,LA);GUN120,122,123,KUN122,136,TGN120..TDC..(ARL,GCC,GEN,PH,TH)201505-202105
main75852-0K020iKUN125..TSC..X;GUN125..RHD..TSC..X..CBU;TGN121..TSC..(GCC,GEN,TH);GUN126,135,TGN126..(PSC,TSC)..(LA,PKN,TH);GUN112,120,122,123,KUN112,122,126,135,TGN11#,120,136..PSC,TSC201505-202105
main75852-0K030iGUN120,122,123,KUN122,TGN121..TXT;GUN125,KUN125..TXT..(L,S)..(GEN,IDN); GUN125,126,136..TXT..(S,X)..ARL201506-202005
STEP & STEP COVER-WITHOUT
main75852-0K060iGUN126,136..SDC..S;GUN125..LHD..SDC..S;GUN126,KUN126..LHD..SA;GUN125..(KDC,SDC)..(M,X);GUN122,135,KUN122,125,135,LAN125,TGN121,126,136..SDC201601-202102
main75852-0K070iGUN126,KUN125,126,135,TGN126,136..ADC..(S,X)..LA; TGN138..L;GUN125,13#..ADC..(L,S,X);GUN126,TGN13#..ADC..MTM..(L,S,X)..BZAGT201511-202010
STEP & STEP COVER-WITHOUT
main75852-0K090iGUN125..ASC;GUN135,TGN136..ASC..BZAGT; GUN135,TGN136..ASC..LA;GUN126,KUN125,135,TGN126..ASC201511-202010
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010×16iGUN125..RHD..TSC..X..CBU;TGN121..TSC..(GCC,GEN,TH);GUN135,KUN125..(ASC,TSC)..X..(GEN,LA);GUN126,TGN126..(ASC,PSC,TSC)..(BZAGT,LA,PKN,TH);GUN112,120,122,123,KUN112,122,126,135,TGN11#,120,136..(ASC,PSC,TSC)..(ARL,GCC,GEN,IDN,LA,PH,PKN,TH); KUN125..S..LA;GUN126..ADC..X;KUN126..5FC..(L,X);GUN125..TDC..X..GEN;GUN126..TDC..6FC..X;GUN126..(PDC,TDC)..L;GUN126..6F..S..(GEN,LA);GUN125..RHD..TDC..S..GEN;GUN126,KUN126..ATM..S..LA;KUN125..RHD..TDC..(L,S)..GEN;TGN136..(ADC,TDC)..(S,X)..LA;GUN125..RHD..(TDC,TXT)..6F..L;GUN125,KUN125..TXT..(L,S)..GEN;TGN121..(TDC,TXT)..(GCC,GEN,TH);TGN126..(ADC,TDC)..(S,X)..(GEN,LA);KUN125..(ADC,TDC,TXT)..(L,X)..(IDN,LA);KUN126,135..(ADC,PDC,TDC)..6F..(L,S,X)..DCR;GUN120,122,123,KUN122,136,TGN120..(TDC,TXT)..(ARL,GCC,GEN,PH,TH)201505-202105
9046707215
main90467-07215

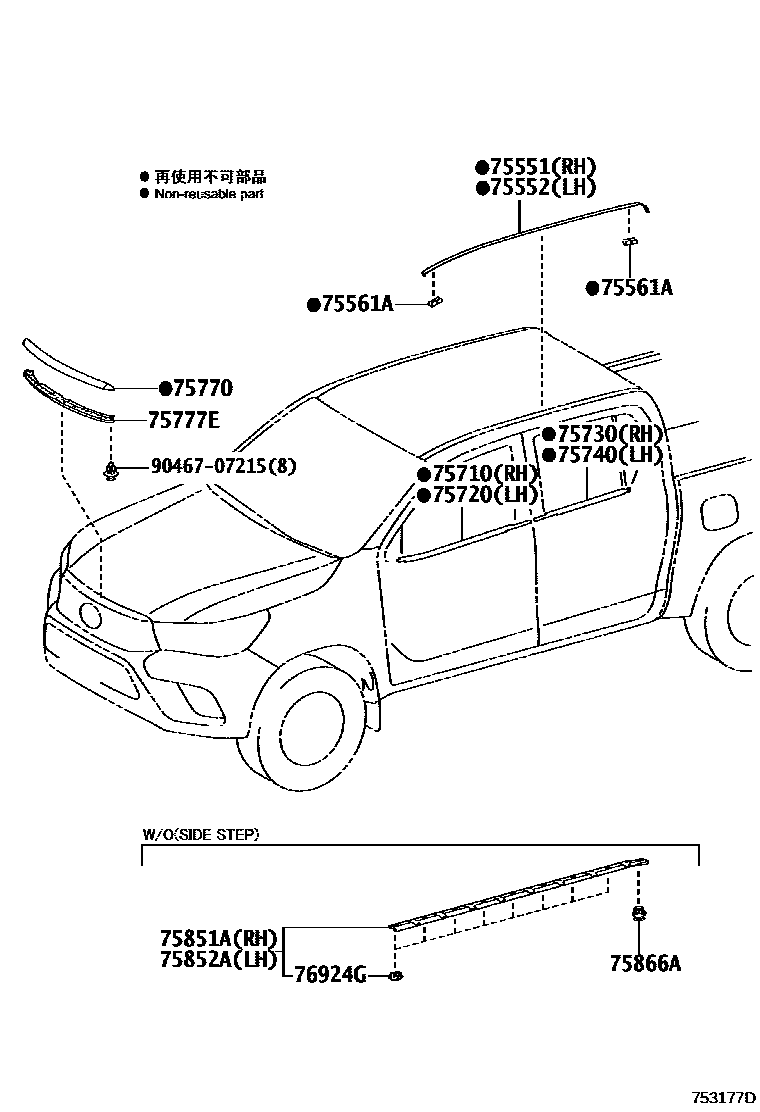

14 parts on this diagram · 3 diagrams in section
