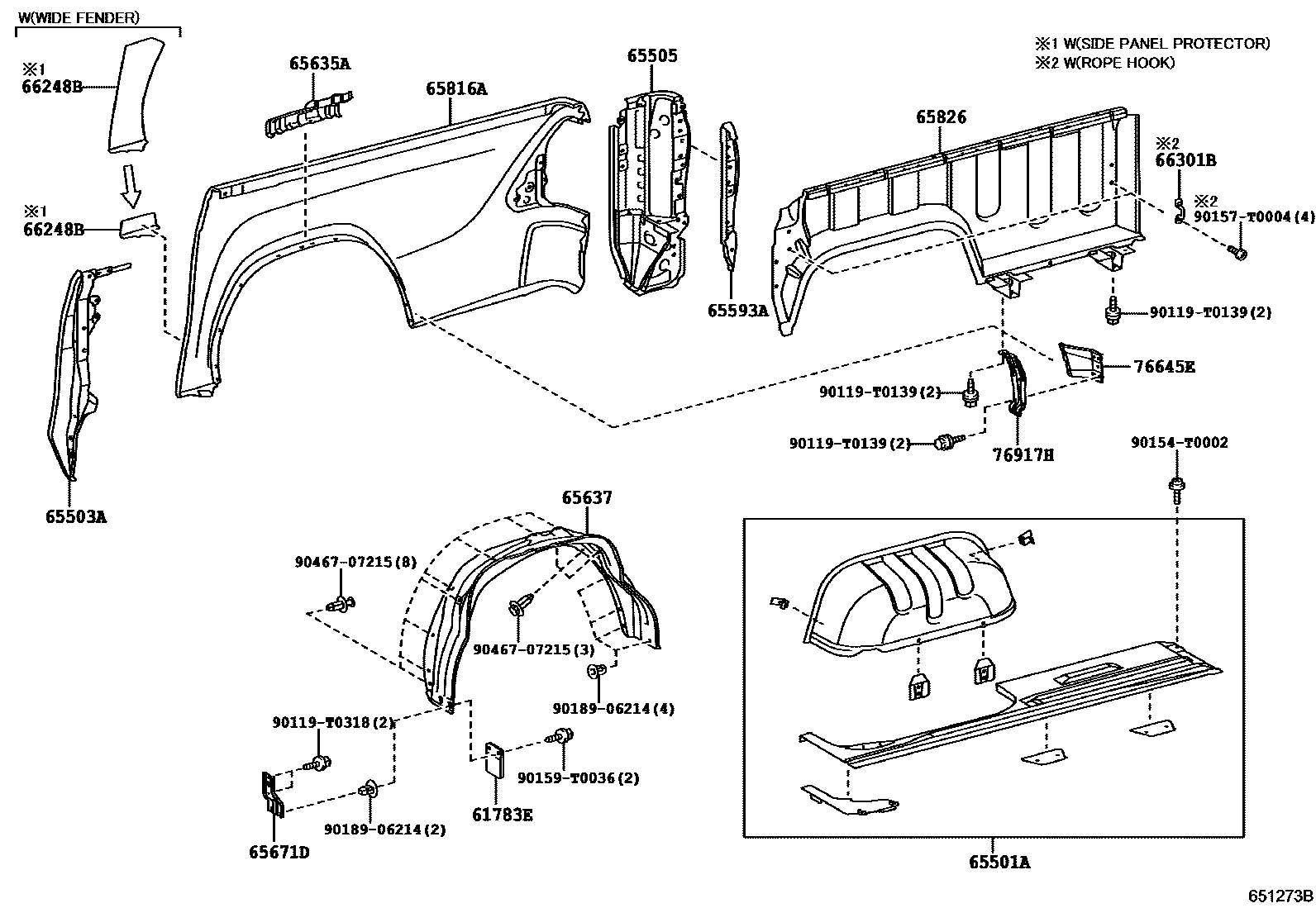

REAR BODY SIDE PANEL

0001 1W/O(TOP RAIL),RH 0002 1W(TOP RAIL),RH 0003 1RH 0004 1RH 0005 1RH 0006 1W/O(TOP RAIL),LH 0007 1W(TOP RAIL),LH 0008 1LH 0009 1LH 0010 1LH

61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0K160iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,12#,13#..(ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT)..CBU201505-202105

main61783-0K180iTGN136..SSC201601-202102

65501APANEL SUB-ASSY, REAR BODY SIDE, RH

main65501-KK900iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,PDC,SDC,TDC)..CBU201505-202105

main65501-KK901iTGN136..SSC201505-202105

main65501-KK902iGUN12#,13#,KUN12#,TGN121,136..(SXT,TXT)..CBU201506-202009

main65501-KK903iGUN112,KUN112,TGN11#201505-202005

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-KK010iGGN125,135,TGN128..H,M;GUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GUN122..(SDC,TDC)..5F..(GEN,PH,SA,TH);GUN126..(ADC,KDC,MDC,PDC,SDC,TDC)..(BZAGT,GEN,KEN,LA201505-202105

main65503-KK050iGUN120,122..TXT..(6F,6FC)201506-202009

main65551-KK030iGUN120,122..TSC..(6F,6FC)..CBU201505-202105

main65551-KK060iGUN126..M..GCC;TGN121..TDC..(ARL,GCC,GEN);GUN122,125,KUN125,TGN126..(KDC,TDC)..(ARL,GCC,KEN)..CBU;GGN12#,GUN123,126,13#,KUN122,TGN120..TDC..(L,S,X)..(ARL,GCC)..CBU201505-202102

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-KK010iTGN121..(L,S)..TH;GUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125..(ADC,TDC)..(H,M);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136..(ADC,KDC,MDC,PDC,SXT,TXT)..CBU201505-202105

EXCEPT PLANT TSAM

main65505-KK030iGUN126..M..GCC;TGN121..S..GCC;TGN121..(TDC,TSC)..(L,M,X)..CBU;GUN122,125,KUN125..TDC..(ARL,GCC)..CBU;GUN135,KUN122,TGN126..(ASC,TSC)..(GEN,LA);GUN135,TGN126..(ASC,K201505-202105

EXCEPT PLANT TSAM

main65505-KK040iGUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135,GUN120,TGN128..(ADC,SDC,TDC)..(H,L,M);GUN126..(ADC,KDC,MDC,SDC,SXT,TDC)..(BZAGT,GEN,KEN,LA,MA,PH,SA,TA201601-202102

PLANT TSAM

main65505-KK050iTGN136..ASC,TSC;GUN12#,13#,KUN12#,135,LAN125,TGN120,121,126..(ASC,KSC,MSC,SSC,TSC)..CBU201602-202102

PLANT TSAM

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main65593-KK010iGUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125,135,TGN128..H,M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN122..(SDC,TDC,TXT)..5F..(GEN,PH,201505-202105

main65593-KK020iTGN121..S..GCC;GUN126..TDC..S..ARL..CBU;GUN122..(PSC,SSC,TSC)..5F..CBU;GUN135,KUN122..(ASC,TSC)..(GEN,LA);TGN121..(SSC,TDC,TSC)..(L,M,X)..CBU;GUN122,125,KUN125..TDC201505-202105

65635APANEL, WHEEL HOUSE, REAR RH

main65635-KK010iGUN120,122..(6F,6FC)..CBU201505-202105

main65635-KK020iGUN136..H,M;GUN126,KUN125..(SDC,SSC)..M;GUN136..S..(ARL,BZAGT)..CBU;TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125,135,TGN126..M..(GCC,PH,SA)201505-202105

65637LINER, REAR WHEEL HOUSE, RH

main65637-0K070iGUN125,135,TGN136..ADC..(L,X)..BZAGT201505-201710

TIRE & DISC WHEEL-225/70R17C STEEL

main65637-0K070iTGN126..TDC..S..GCC201505-201905

TIRE & DISC WHEEL-205R16C STEEL

main65637-0K070iTGN126..TSC..S;KUN126,135..L,X;KUN125..RHD..(TSC,TXT);KUN125..(ADC,ASC,TDC)..(L,X);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN125..TDC..(L,X)..(G201505-202105

main65637-0K080iGUN135..TDC..S..LA;GUN125,TGN126..M..GCC;GUN135..(H,M)..(GEN,PH);KUN125,126,13#..(ADC,PDC,TDC,TXT)..(H,M,S);GUN125,TGN126..(TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,135..201505-202105

main65637-0K080iTGN136..ADC..X..BZAGT;GUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)201505-201710

TIRE & DISC WHEEL-265/65R17 STEEL

main65637-0K090iTGN136..SSC201601-202102

main65637-0K100iGUN125,135,KUN125..SXT;GGN125,135,GUN125,126,136,KUN125,126..M..(KEN,SA)201601-202102

main65637-0K120iTGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,TGN126..(ADC,ASC)..X..CBU201710-202010

TIRE & DISC WHEEL-225/70R17C STEEL

main65637-0K130iGUN125,126,135,TGN126,136..ADC..X..LA201710-202010

TIRE & DISC WHEEL-265/65R17 STEEL

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65608-KK010iGUN120,122..(TSC,TXT)..(6F,6FC)..CBU201505-202105

main65608-KK050iGUN125,126,135..SSC..S..CBU201903-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main65608-KK050iGUN125,126,135..SSC..S..CBU201903-202009

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main65671-KK010iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,PDC,SDC,TDC)..CBU201505-202105

65816APANEL, REAR BODY SIDE, RH

main65816-KK010iGUN135..(ADC,TDC)..X..LA;TGN121..(SDC,TDC)..(SA,TH);GUN135..(SDC,TDC)..(L,S,X)..(GEN,PH,SA);GUN122,KUN122,LAN125..(SDC,TDC)..5F..(GEN,PH,SA,TH);KUN125,126..(ADC,PDC201505-202105

main65816-KK020iTGN126..TDC..S..GCC201505-202102

main65816-KK030iKUN125..M..SA;GUN125..LHD..TDC..M..GEN;GUN126..S..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;KUN126..(ADC,PDC,SDC,TDC)..(H,M,S);KUN13#,TGN13#..(ADC,TDC)..(H,L,201505-202105

main65816-KK040iGUN126..M..GCC;GGN125,GUN126,13#..TDC..(S,X)..ARL..CBU;GUN125,KUN125,TGN126..(M,X)..(ARL,GCC)..CBU201505-202005

REAR DECK-WITH(SIDE PANEL TOP RAIL)

main65816-KK040iGUN125..TDC..S..GCC201505-202005

TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)

main65816-KK040iGUN125,KUN125,TGN126..LHD..TDC..L..GEN201505-202005

TIRE & DISC WHEEL-265/65R17 STEEL

main65816-KK040iTGN126..TDC..S..GCC201905-202005

main65816-KK050iTGN136..SSC201505-202105

main65816-KK060iGUN125,KUN125,LAN125..LHD..SSC..S201602-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main65816-KK060iGUN125,126,135,KUN125,LAN125..SSC..S..CBU201602-202009

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main65816-KK070iGUN112,KUN112,TGN11#201505-202005

main65816-KK080iKUN125..TXT..L;GUN122,123,KUN122,TGN121..TXT..5F201506-202005

TIRE & DISC WHEEL-225/70R17C STEEL

main65816-KK080iGUN125,KUN125..TXT..M201506-202005

TIRE & DISC WHEEL-205R16C STEEL

main65816-KK080iGUN120,122..TXT..(6F,6FC)201809-202005

main65816-KK090iKUN125..(SXT,TXT)..(M,S);GUN125,126,13#,KUN126,TGN136..(SXT,TXT)..CBU201506-202009

65826PANEL, REAR BODY SIDE, INNER RH

main65826-KK900iGUN126,136..TDC..M..ARL;TGN121..(SDC,TDC)..(SA,TH);GGN125,135,GUN120,TGN128..(ADC,SDC,TDC)..(H,L,M);GUN126..(ADC,KDC,MDC,PDC,SDC,TDC)..(BZAGT,GEN,KEN,LA,MA,PH,PKN,S201505-202105

main65826-KK901iTGN136..SSC201505-202105

main65826-KK902iGUN12#,13#,KUN12#,TGN121,136..(SXT,TXT)..CBU201506-202009

main65826-KK903iGUN126..M..GCC;TGN121..TDC..(ARL,GCC,GEN);GUN122,125,KUN125,TGN126..(KDC,TDC)..(ARL,GCC,KEN)..CBU;GGN12#,GUN123,126,13#,KUN122,TGN120..TDC..(L,S,X)..(ARL,GCC)..CBU201505-202102

main65826-KK904iGUN112,KUN112,TGN11#201505-202005

66248BPROTECTOR, REAR BODY SIDE PANEL, RH

main58745-0K040iGUN122,123..TDC..ARL201505-201904

main58745-0K050iGUN125..LHD..SDC..S;GUN126,13#,KUN125,135,LAN125,TGN126,136..SDC..S201601-202009

TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT

main58745-0K050iGUN125..LHD..SDC..S;GUN126,13#,KUN125,135,LAN125,TGN126,136..SDC..S201601-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main58745-0K050iGUN125..LHD..SDC..S;GUN126,13#,KUN125,135,LAN125,TGN126,136..SDC..S201601-202009

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main58745-0K050iGUN125..LHD..SDC..S;GUN126,13#,KUN125,135,LAN125,TGN126,136..SDC..S201601-202009

TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITHOUT

main58745-0K070iGUN125,126,135,KUN125,LAN125..SSC..S..CBU201602-202009

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main58745-0K070iGUN125,135,KUN125..SXT;GUN126,136,KUN126..(SSC,SXT)..M201602-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main58745-0K110iGUN125..LHD..SDC..S;GUN125..(KDC,SDC)..X;GUN122,126,13#,KUN122,125,135,LAN125,TGN121,126,136..SDC..(S,X)201601-202102

main58745-0K130iTGN126..TDC..S..GCC201905-202005

IRAQ SPEC&STEP & STEP COVER-WITHOUT

main58745-0K150iGUN126,136..TXT..ARL..CBU201506-202005

66301BHOOK SUB-ASSY, ROPE

main66312-0K010iGUN136..TDC..(H,M);GUN126..TDC..M..ARL;GGN125,135,GUN120..L,M;TGN121..(SDC,TDC,TXT)..(SA,TH);GUN126..TDC..(GEN,LA,PH,TAIW,TH,VN);GUN123,126,136,LAN125..(KDC,MDC,PDC201505-202105

main66312-0K020iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

76645EBRACKET, RR BODY MUDGUARD, RH

main76645-KK010iTGN136..SDC;GUN135..X..LA;GUN125..TSC..LA;TGN126..(L,X)..CBU;TGN136..ADC..X..LA;KUN135..(ADC,TDC)..X;GUN125..TDC..S..(GCC,PH);TGN136..(ASC,TDC,TSC)..X;KUN125..RHD..201505-202105

main76645-KK020iGUN136..H,M;GUN126,KUN125..(SDC,SSC)..M;GUN136..S..(ARL,BZAGT)..CBU;TGN126..(M,S)..(BZAGT,GEN,LA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125,135,TGN126..M..(GCC,PH,SA)201505-202105

76917HMUDGUARD, SIDE, REAR RH

main76607-KK010iGUN120,122..(6F,6FC)..CBU201505-202105

90119T0139

main90119-T0139

90119T0318

main90119-T0318

90154T0002

main90154-T0002

90157T0004

main90157-T0004

90159T0036

main90159-T0036

9018906214

main90189-06214

9046707215

main90467-07215

21 parts on this diagram · 10 diagrams in section
